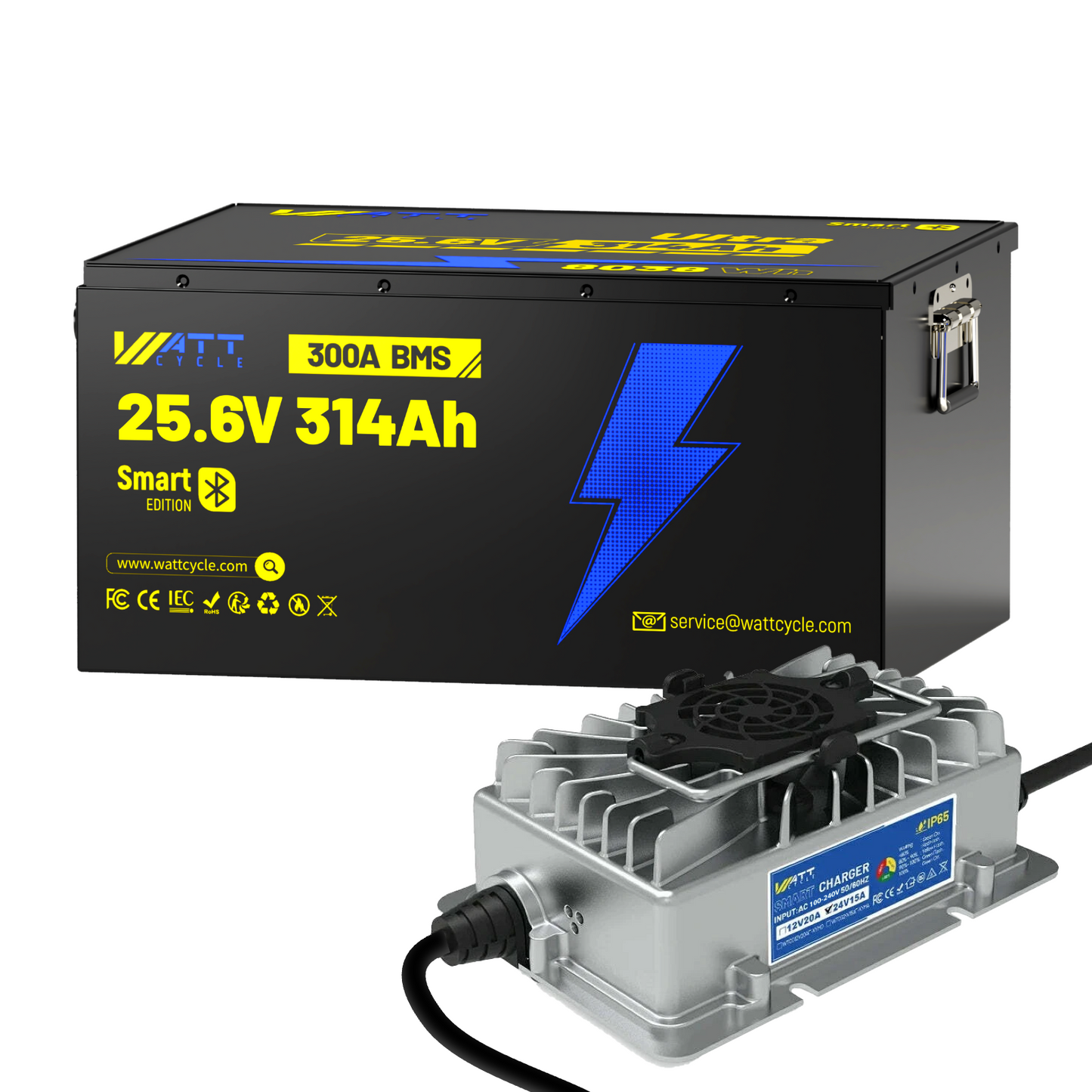

WattCycle AU - 24V 314Ah Ultra LiFePO4 Battery with Bluetooth

WattCycle AU - 24V 314Ah Ultra LiFePO4 Battery with Bluetooth

$1,999.90 AUD
$2,799.99 AUD $1,999.90 AUD
Sale Sold out
Free shipping, tax and discount code calculated at checkout.
  • Compact Design: 480 x 362 x 242 mm | 69.85 kg
  • Massive Capacity: 314Ah (25.6V) | ~8kWh energy storage in a single unit.
  • Equivalent to: 2-series 12V 314Ah MINI BT
  • 3X weight energy density of lead-acid batteries, suitable for scenarios that require lightweighting (such as RVs and ships).
  • Ultra-Long Cycle Life: 6,000+ cycles at 80% depth of discharge (DoD)—outperforming standard LiFePO4 batteries.
  • High Power Output: Continuous 300A discharge (7,680W) for heavy-duty inverters and equipment.
  • Smart Bluetooth Monitoring: Track real-time voltage, state of charge (SoC), temperature, and health via WattCycle app.
  • Robust 300A BMS with 8X Protections: Over-current, short-circuit, and thermal safeguards.
  • Low/high-temperature cutoffs: charge: -5 °C (23 °F) to 60 °C (140 °F); discharge: -25 °C (-13 °F) to 75 °C (167 °F).
  • Scalable Design: Supports up to 2-series (51.2V) or 4-parallel (1,256Ah) configurations with 64.31kWh max usable energy.
  • Military-Grade Build: UL94 V-0 fire-resistant ABS+PC casing and corrosion-resistant M8 terminals.

5 in stock

QUANTITY
  • 5-Year Warranty
  • Hassle-free Returns
  • 7/24 Help & Advice

Shipping

Free local shipping

Download

Description

  • Grade A+ Automotive Cells: The WattCycle 24V 100AhLiFePO4 Battery is equipped with Grade A+ Automotive LiFePO4 cells, ensuring top-tier safety, energy density, power, and stability. This battery provides reliable and long-lasting power with a minimal self-discharge rate of just 3% per month. It features robust protection against overcharge, over-discharge, over-current, and short circuits, offering peace of mind and dependable performance.
  • Smart BMS:  It comes with a high-performance 100A Battery Management System (BMS), which manages charge and discharge cycles while protecting the battery from overcharging, over-discharging, and short circuits. This advanced BMS enhances both safety and efficiency.
  • Longevity: With a lifespan of up to 10 years and between 5,000 and 15,000 charge cycles, this battery produces a total of 12,800 kWh of energy over its lifetime (2560Wh x 5,000 cycles). This longevity translates into significant cost savings, providing up to 50% power savings compared to utility power.
  • Cost-Efficient: The WattCycle 24V 100Ah battery is also cost-efficient, offering robust energy storage for RVs, marine applications, or off-grid use. It is lightweight, weighing only 44lbs.
  • Lightweight: 24V 100Ah lithium battery weighs only 1/3 of a comparable lead-acid battery with the same capacity, a little lighter than 2 pack of WattCycle 12V 100Ah LiFePO4 Battery.
  • High Energy Density: The battery boasts a high energy density of 60Wh/lb (2560Wh / 44lbs ≈ 58Wh/lb).
  • Fast Charging Capabilities: It supports rapid charging, allowing for quicker turnaround times and minimizing downtime between uses.
View full details

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

WattCycle 24V 314Ah Ultra Lithium ion Battery

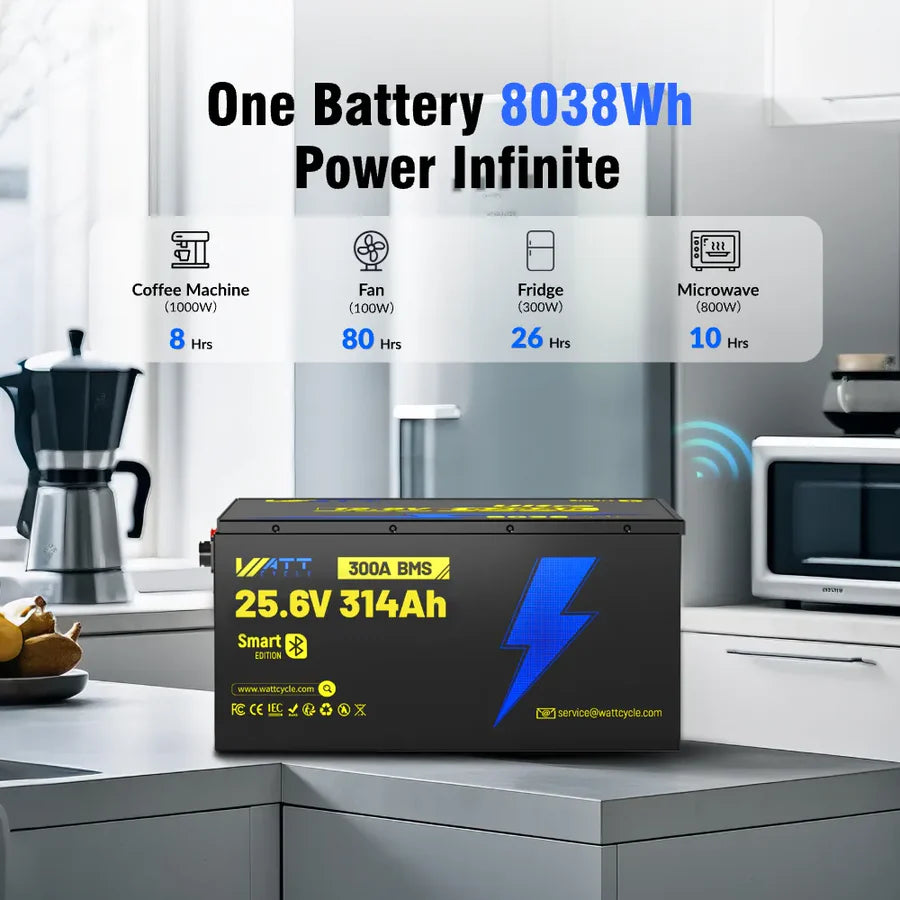

Powerful Capacity in a Compact Package

WattCycle 24V 314Ah Ultra Lithium Battery, delivering an impressive 8 038 Wh of usable energy in a cabinet just 18.9″ × 14.25″ × 9.53″ and weighing only 153.99 lbs. This 24V 314Ah Lithium Battery brings high-density power to your RV, marine or off-grid system without the bulk of legacy setups. Its slim footprint makes installation a breeze, whether you’re retrofitting an existing panel or designing a new energy hub.

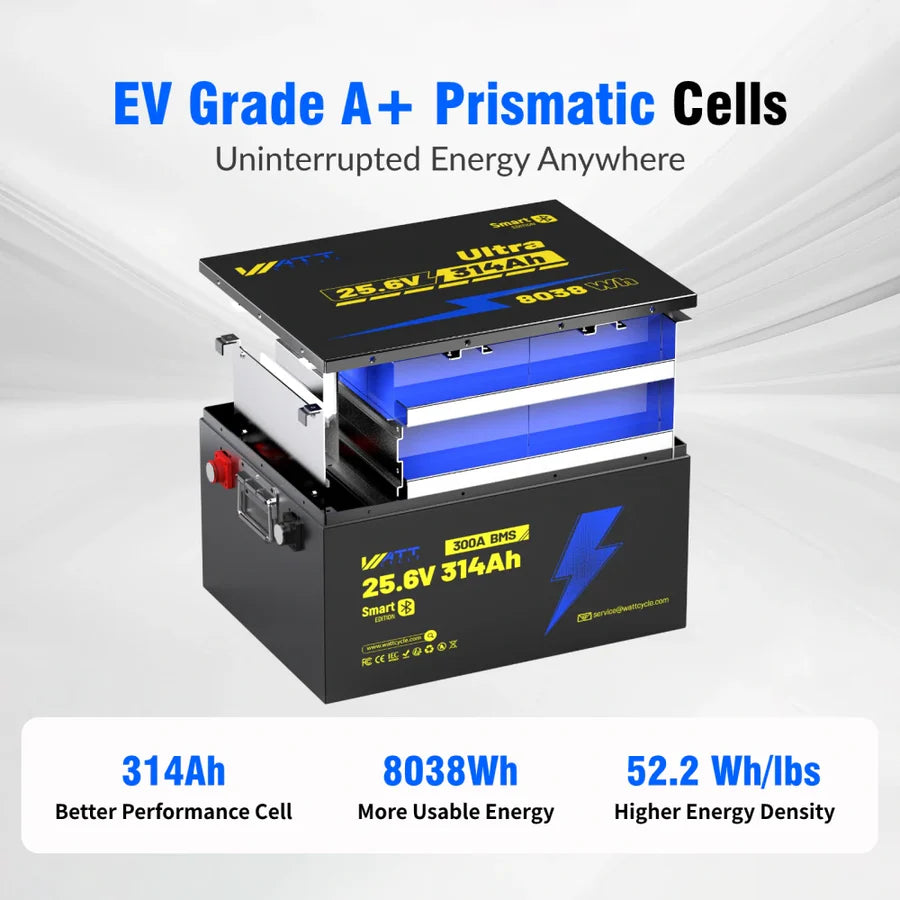

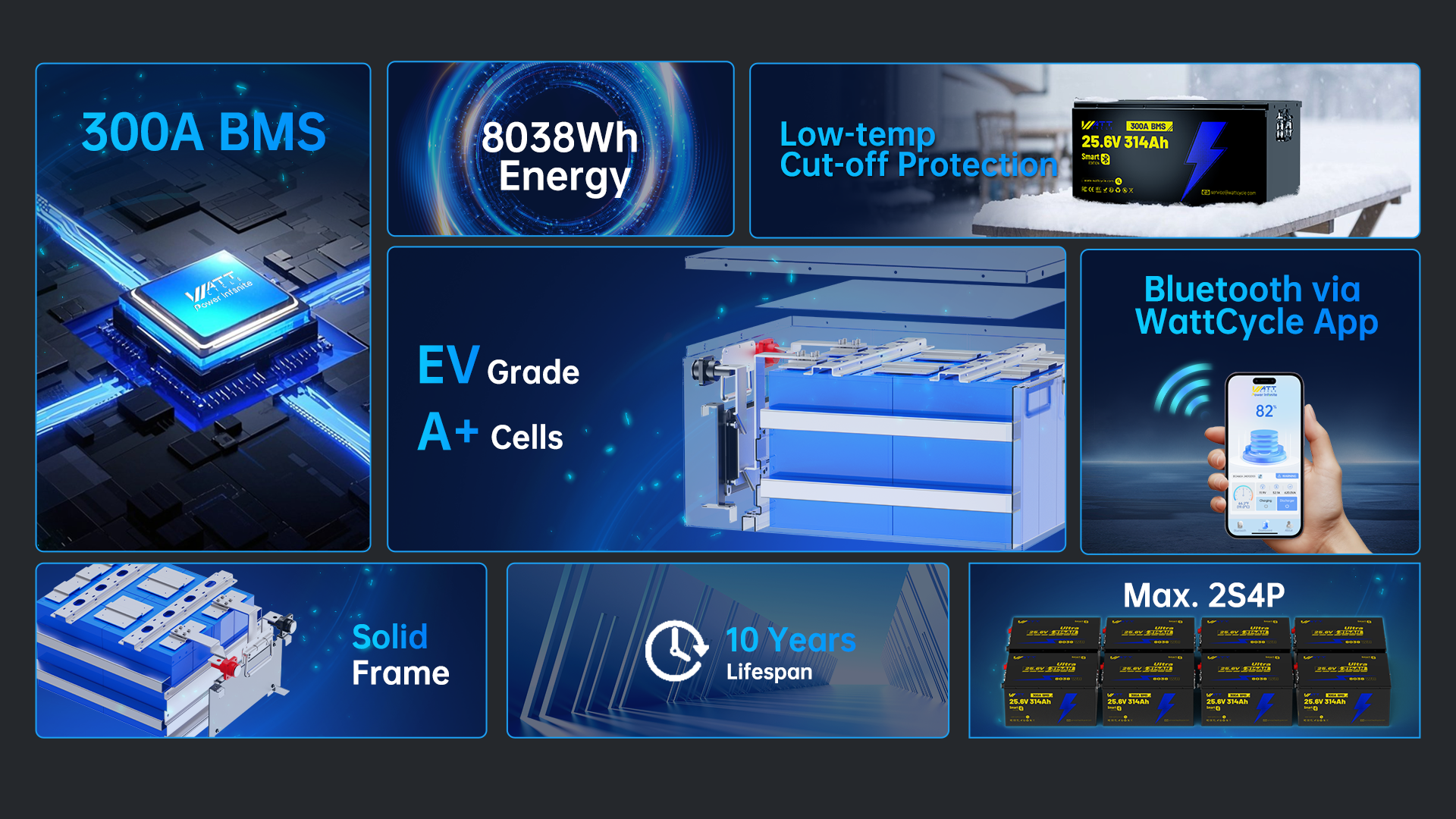

Premium Cell Chemistry with Smart Protections

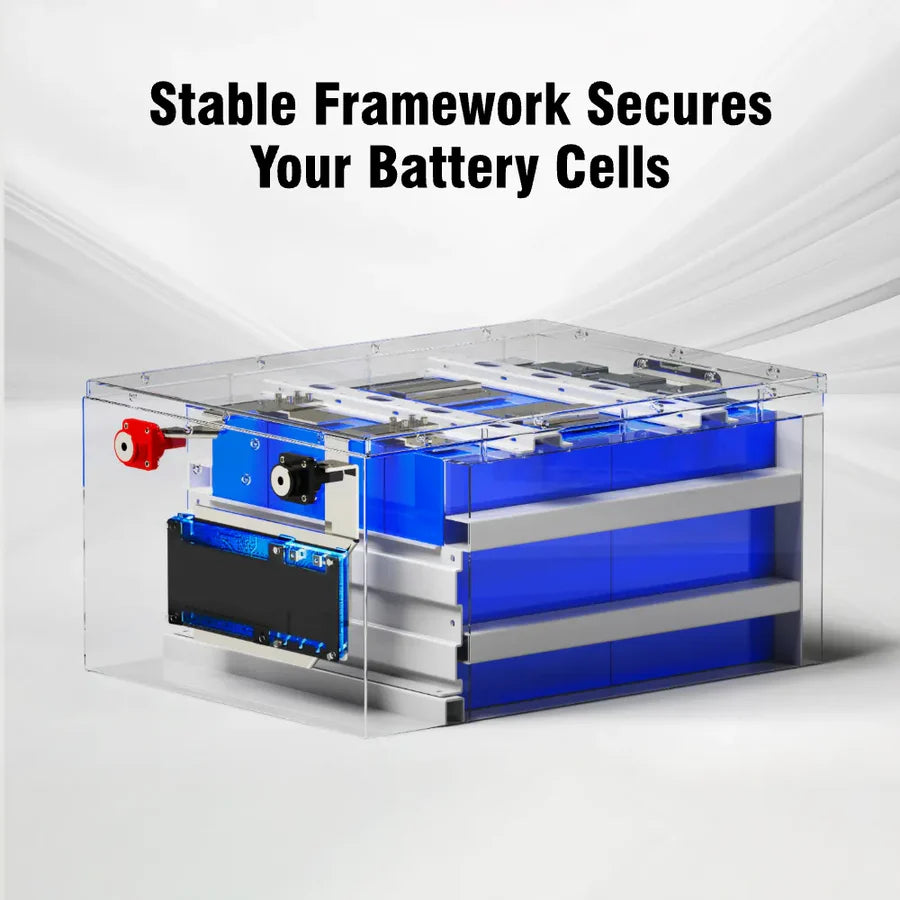

Under the hood, WattCycle use EV Grade A+ MB31 cells form the backbone of our 24V 314Ah LiFePO4 Battery, paired with a 300 A BMS that shields against over-current, short-circuit, over-charge and over-discharge events. You’ll enjoy up to 15 000 cycles and a decade-long service life—far beyond typical LiFePO4 modules. A solid aluminum frame and rugged ABS+PC casing (UL94 V‑0 rated) complete the military-grade build.

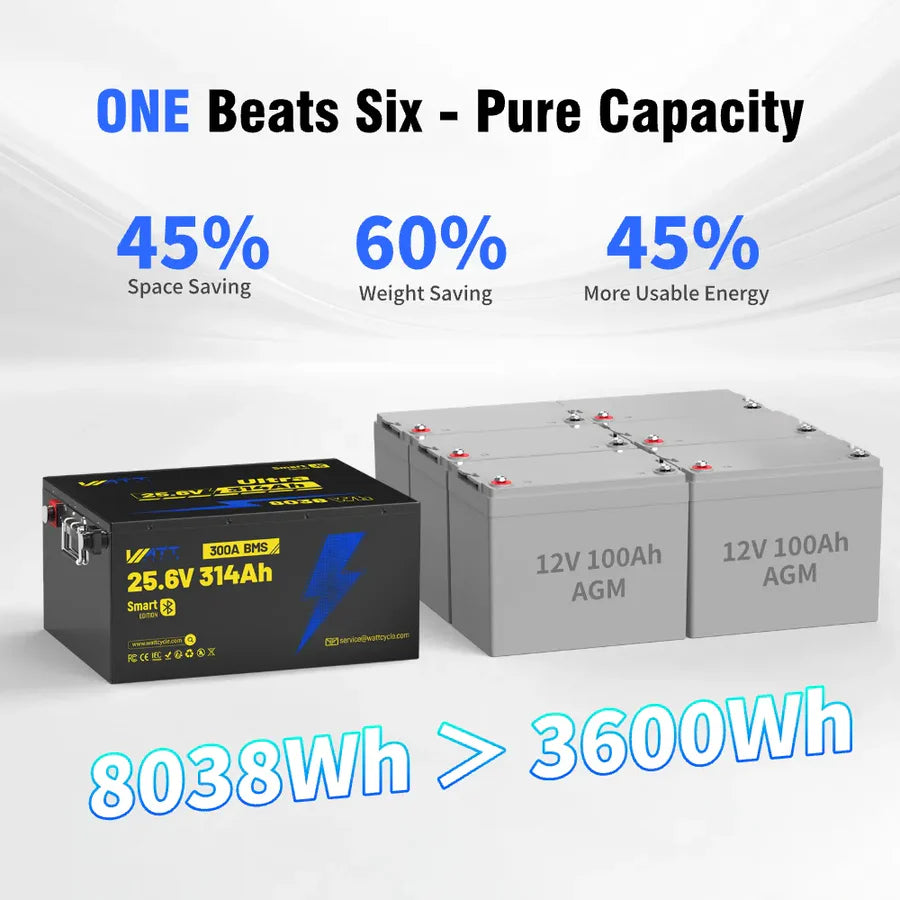

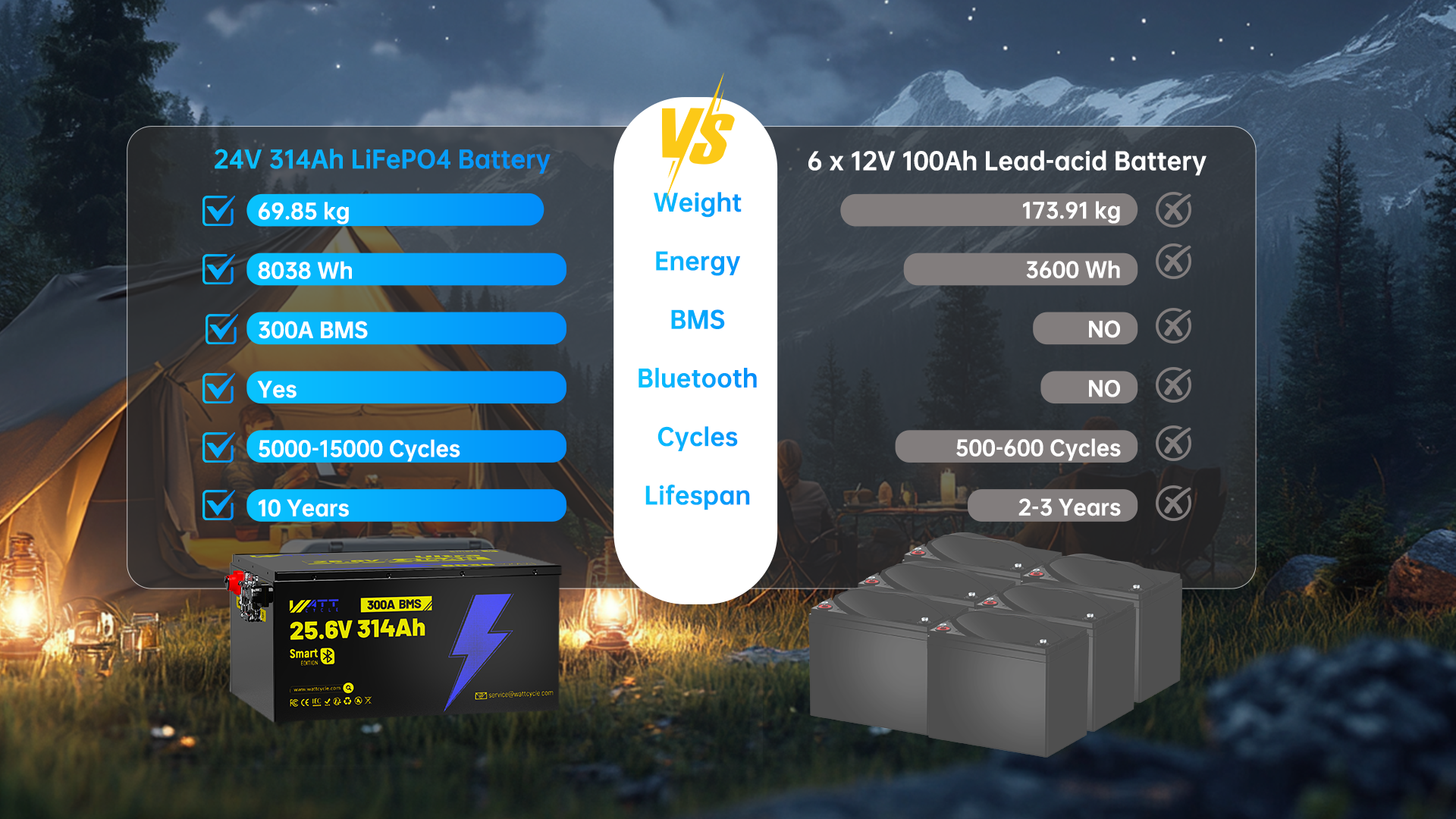

Leaner, Stronger Alternative to Lead-Acid

WattCycle 24V 314Ah Ultra Lithium Battery cuts weight by more than half while offering over 15% more energy and 3× the cycle life. Its consistent power output and sustained depth of discharge ensure you won’t be sidelined by sudden voltage sag or premature capacity loss. Upgrade to this 24V 314Ah Lithium Battery and feel the difference in performance and durability.

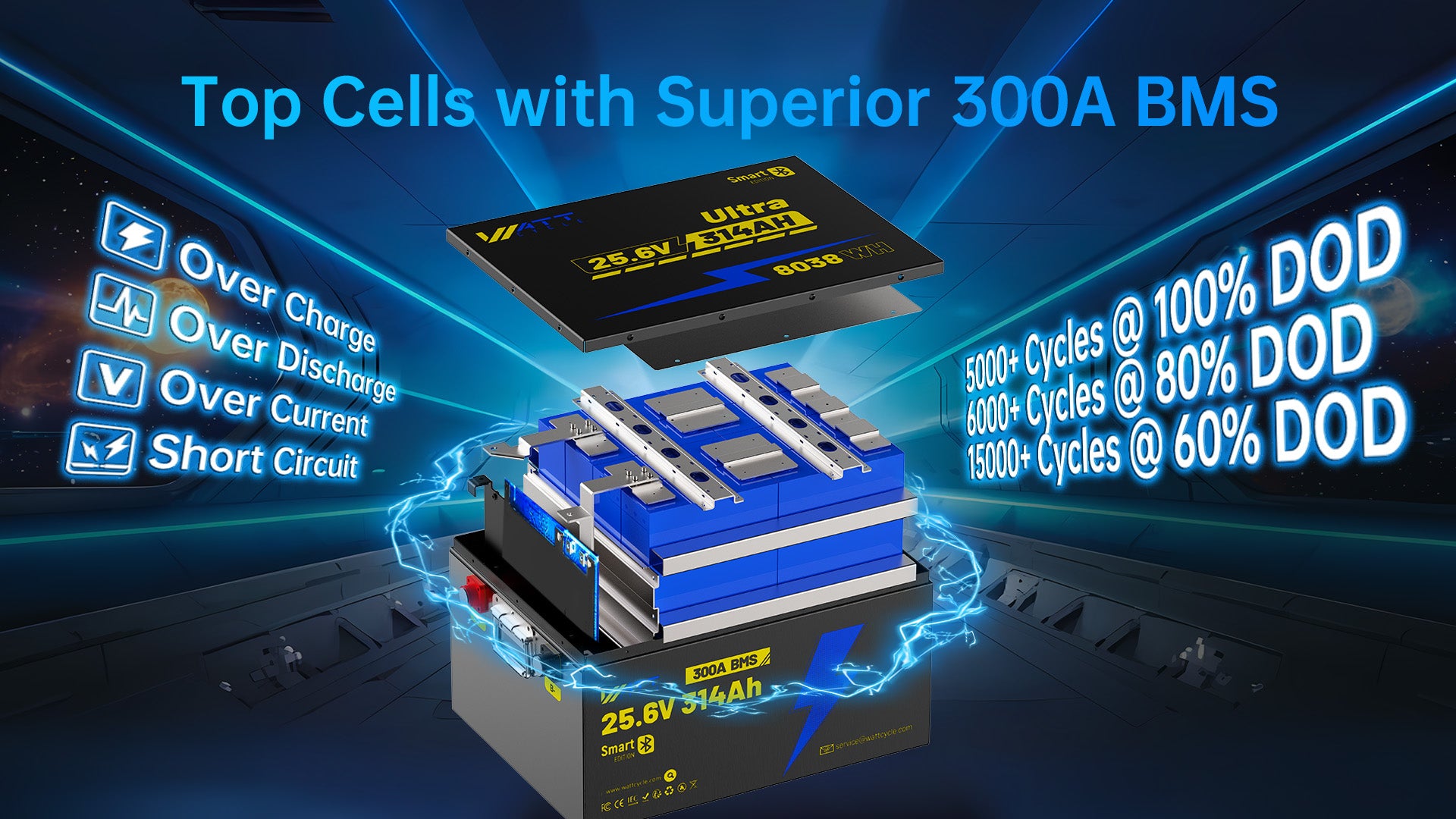

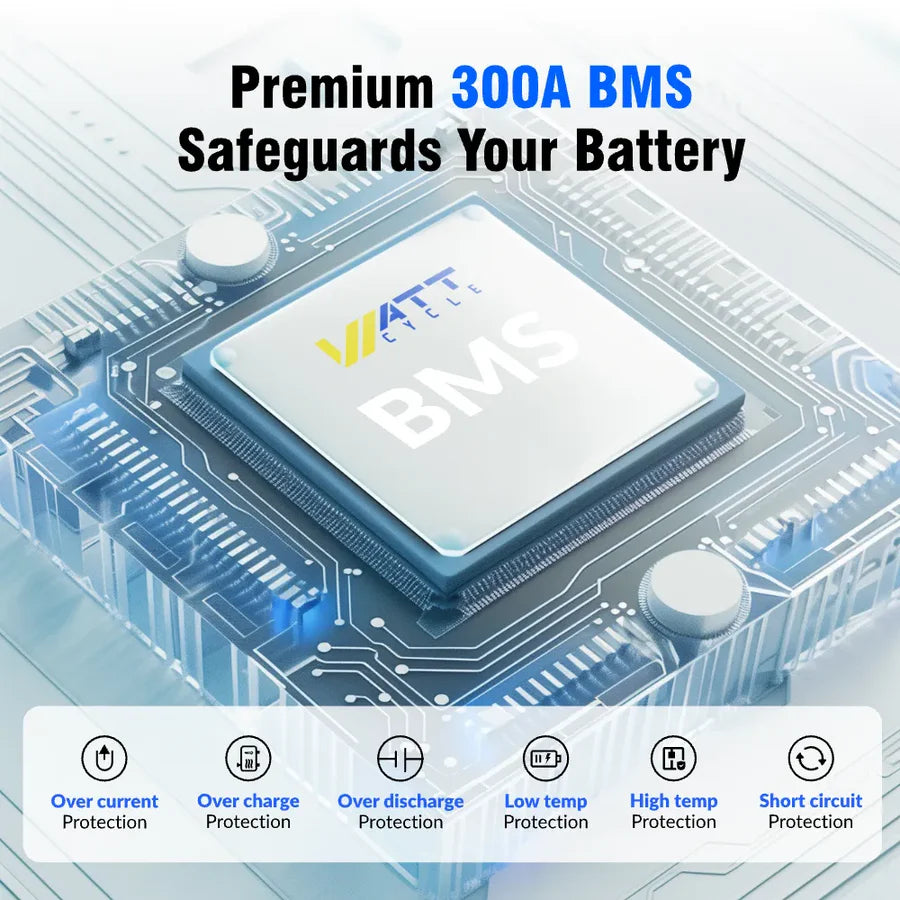

Rock-Solid 300 A BMS for Heavy-Duty Use

A top-tier 300 A battery management system monitors each cell in real time, automatically halting unsafe conditions and preserving your investment. With eight layers of protection—thermal, over-current, short-circuit, cell-imbalance and more—you can push heavy inverters and motors up to 7 680 W without hesitation. It’s safety and power hand in hand for demanding applications.

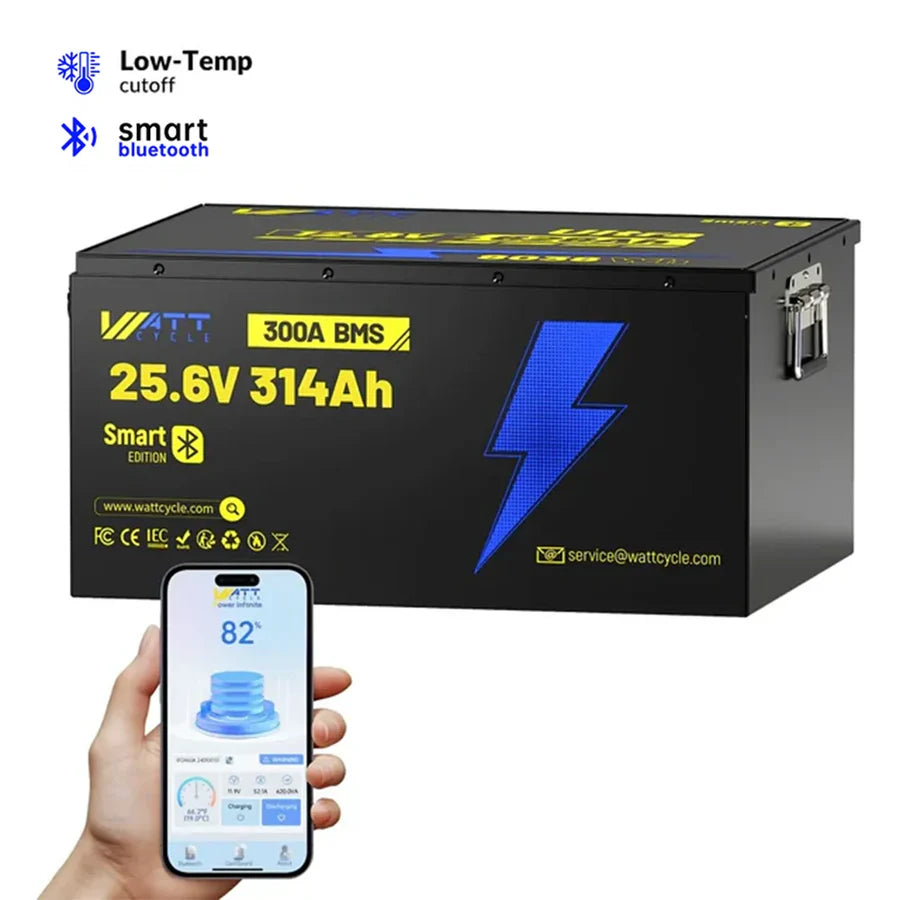

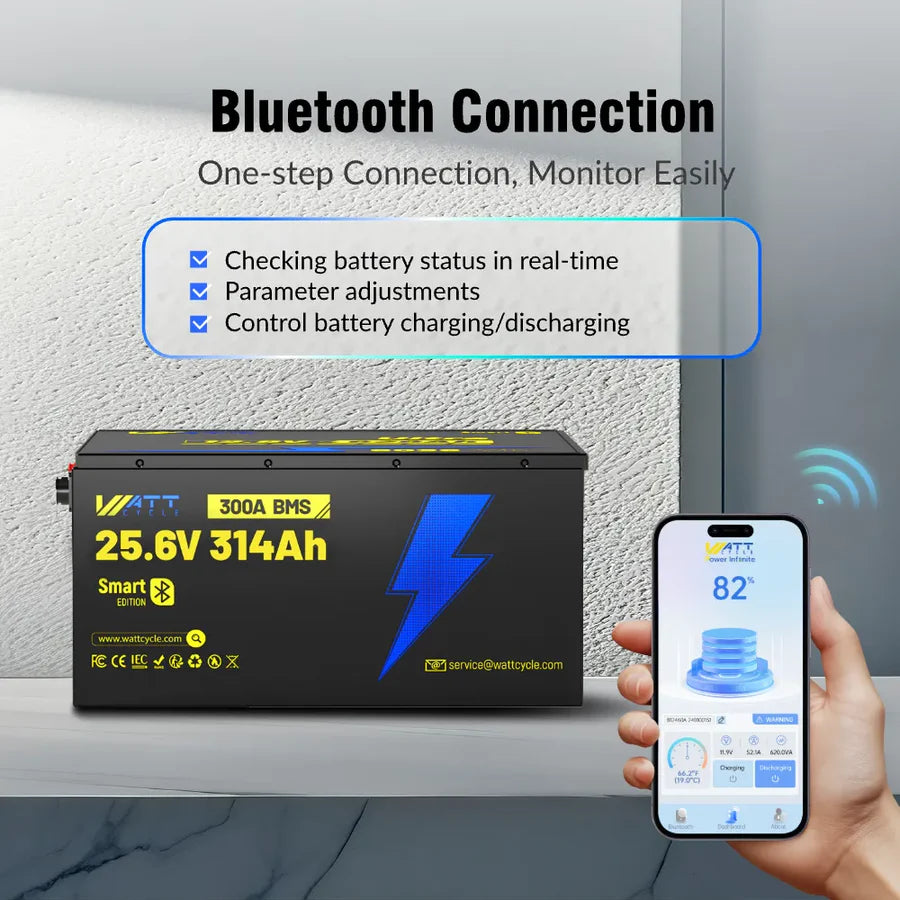

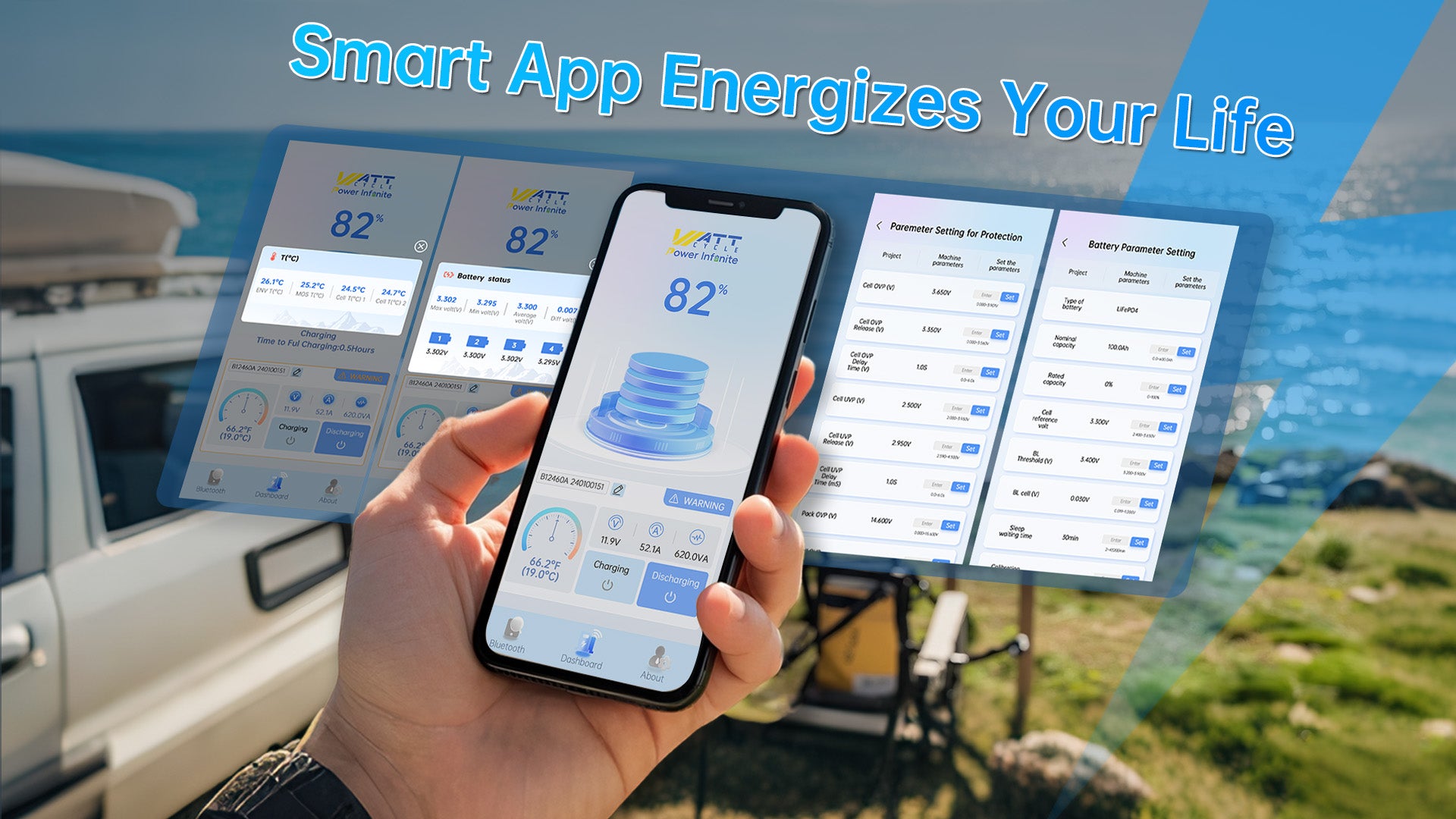

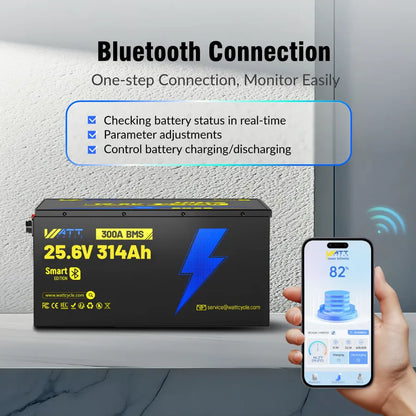

Real-Time Monitoring via Bluetooth

Stay in control with Bluetooth 5.0 connectivity and the WattCycle mobile app. Check voltage, state of charge (SoC), temperature and health metrics right from your smartphone—no extra hardware needed. Whether you’re on-site or miles away, this 24V 314Ah Ultra Lithium Battery keeps you informed so you can plan charging cycles and maintenance around your schedule.

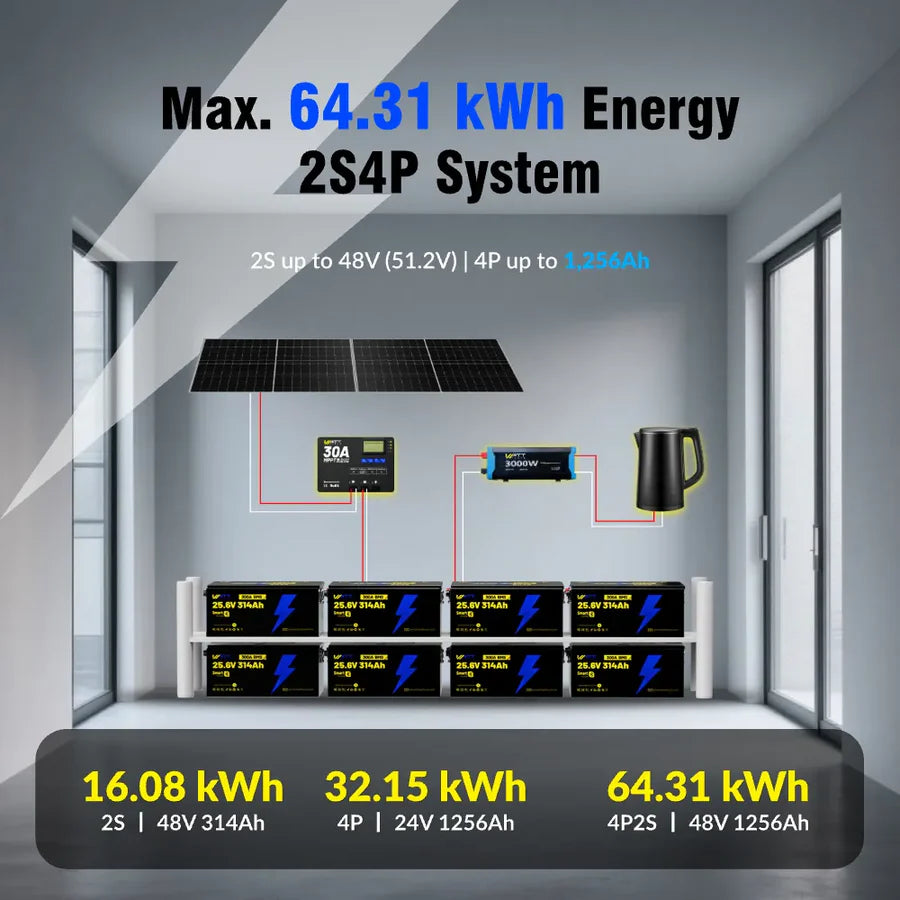

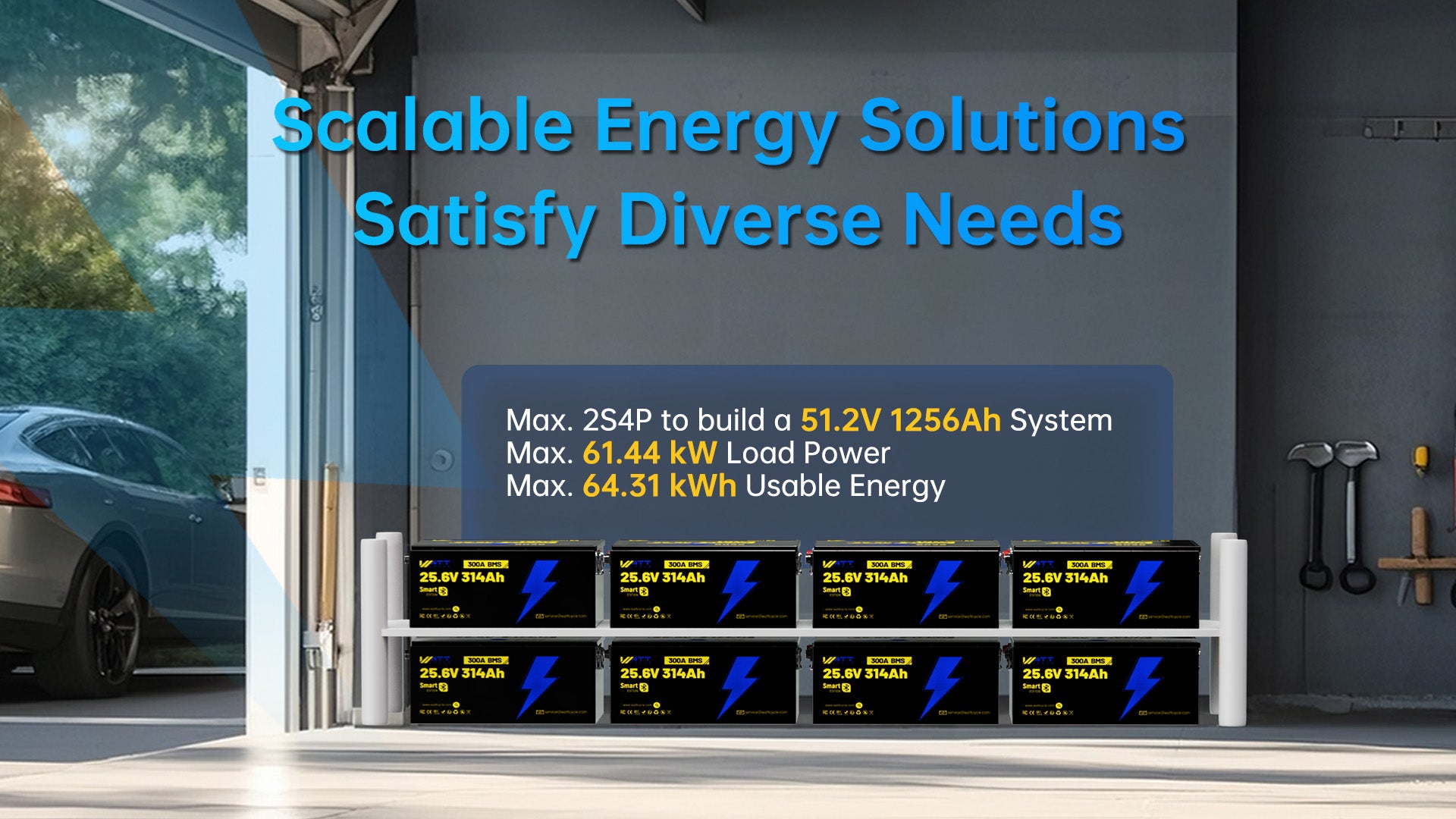

Flexible, Scalable Energy Architectures

Design your ideal system with up to 2 series by 4 parallel configurations—build a 51.2 V, 1 256 Ah powerhouse for a maximum 64.31 kWh usable bank. Need more peak power? Support up to 15.36 kW of continuous load. From a single 24V 314Ah LiFePO4 Battery to a full rack, WattCycle scales with your needs

Tech Specs

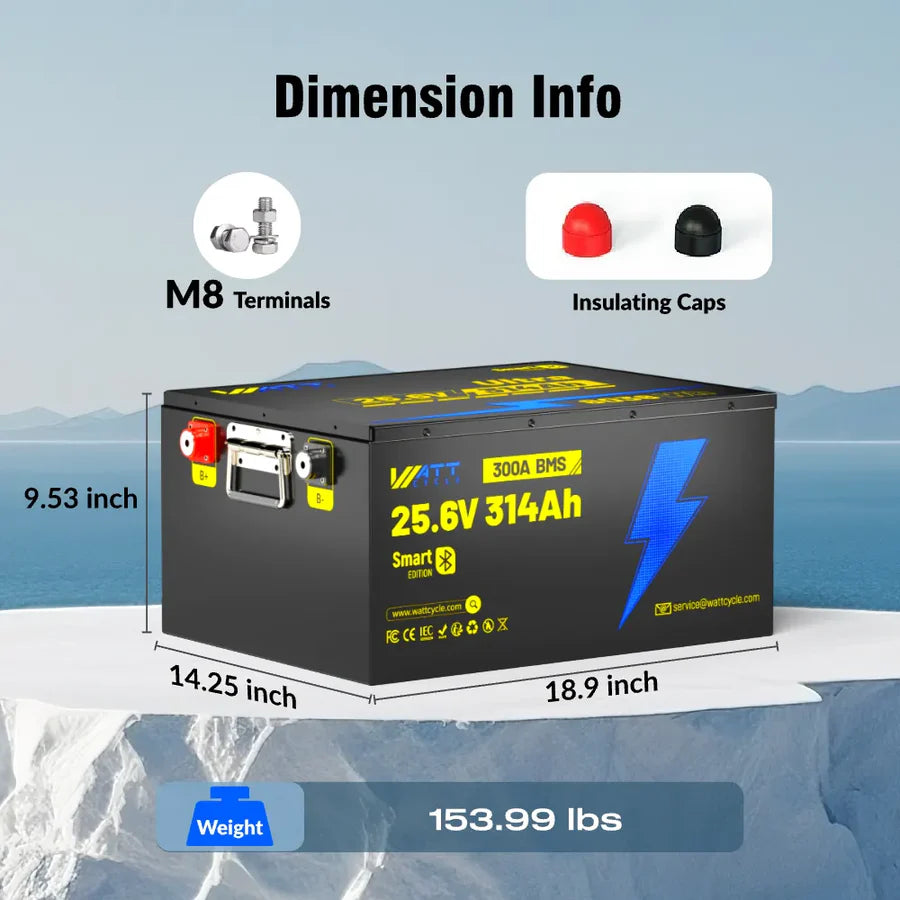

Dimensions 18.9 × 14.25 × 9.53 inch | 480 × 362 × 242 mm
Weight 153.99 lbs | 69.85 kg
Standard / Maximum Continuous Charging 62.8A / 300A
Maximum Continuous Discharging 300A
Over-current Discharge Protection 310A ±10A
Over-current Charge Protection 310A ±10A
Short-Circuit Current Protection Support
Release Condition Cut Load
Charging High Temperature Protection 140°F ~ 158°F / 60°C ~ 70°C
Discharge High Temperature Protection 149°F ~ 167°F / 65°C ~ 75°C
High Temperature Protection Release Drop by 41°F ~ 59°F / 5°C ~ 15°C

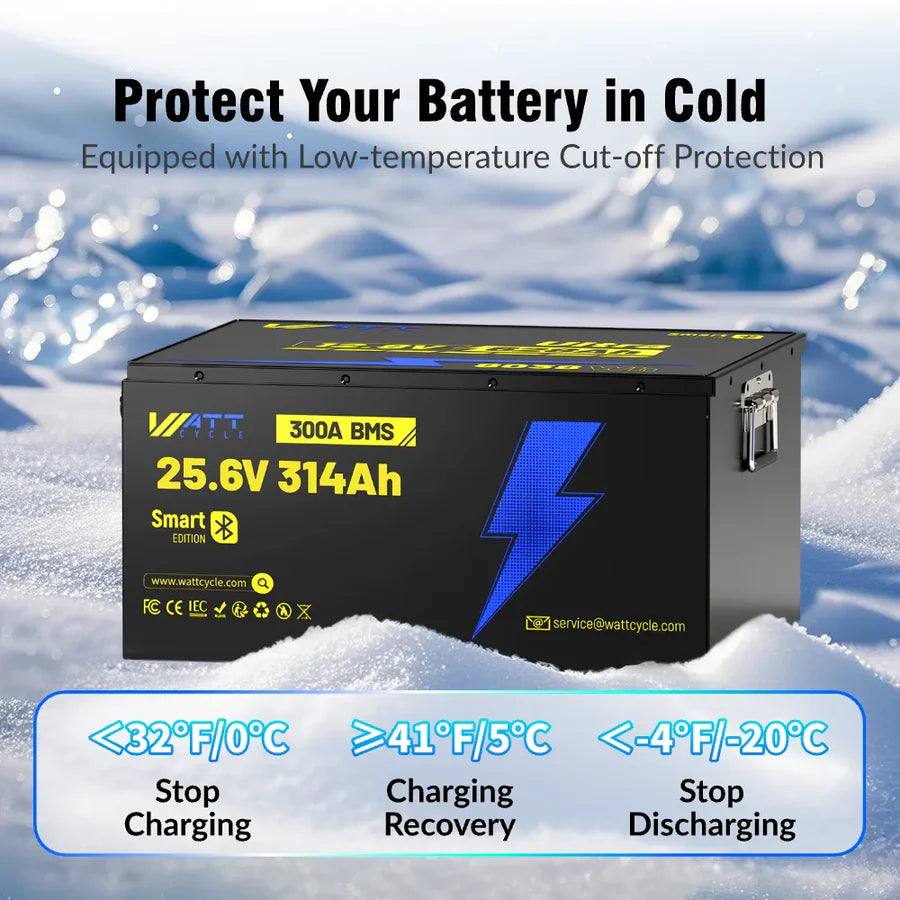

Charging Low Temperature Protection 23°F ~ 41°F / -5°C ~ 5°C
Discharge Low Temperature Protection -13°F ~ 5°F / -25°C ~ -15°C
Low Temperature Protection Release Rise by 41°F ~ 59°F / 5°C ~ 15°C
Rated Voltage 25.6V
Standard Charging Voltage 29.2V ±0.2V
Shipping Charging Voltage 25.6V ~ 29.2V
Shipping Capacity 50%
Cycle Life 6000 @ 80% DOD
Self Discharge Rate <3% / Month
Series & Parallel Connections 4 Parallel (Max), 2 Series (Max)
Communications Support
Case Material Metal / UL94 V-0
Storage Temperature 32°F ~ 140°F / 0°C ~ 60°C
Terminal Bolt Size M8
