Solar Power Year Round Without a Generator

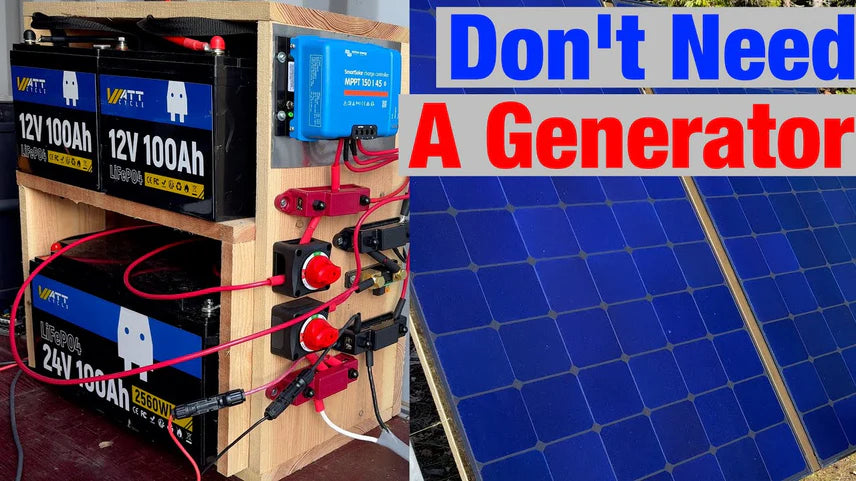

This video explores a DIY solar power system designed to provide year-round energy without a generator. The creator details their system's components, including lithium iron phosphate batteries, a charge controller, and solar panels, and explains how they work together to provide reliable power. They also discuss the cost of the system and its potential applications for off-grid living.

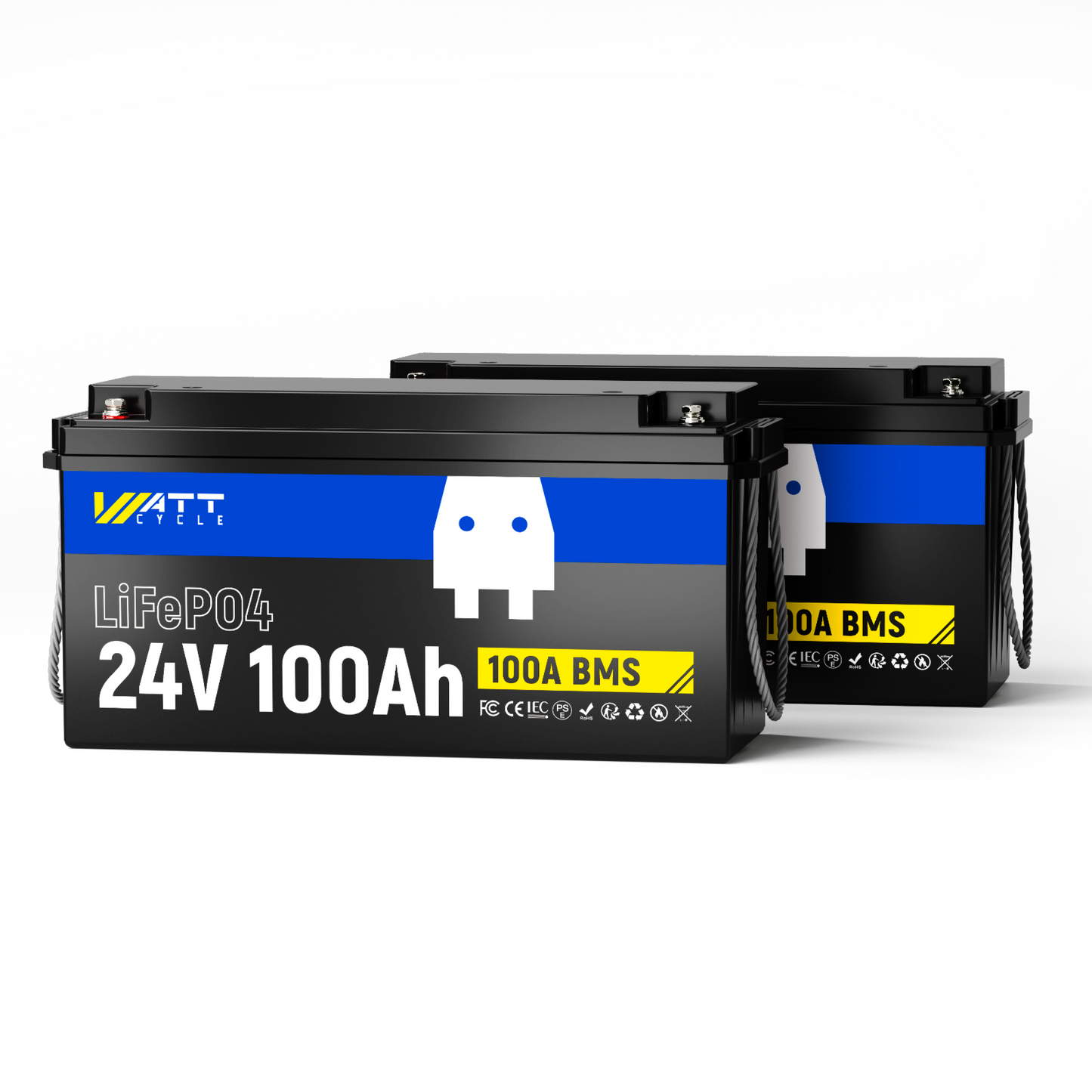

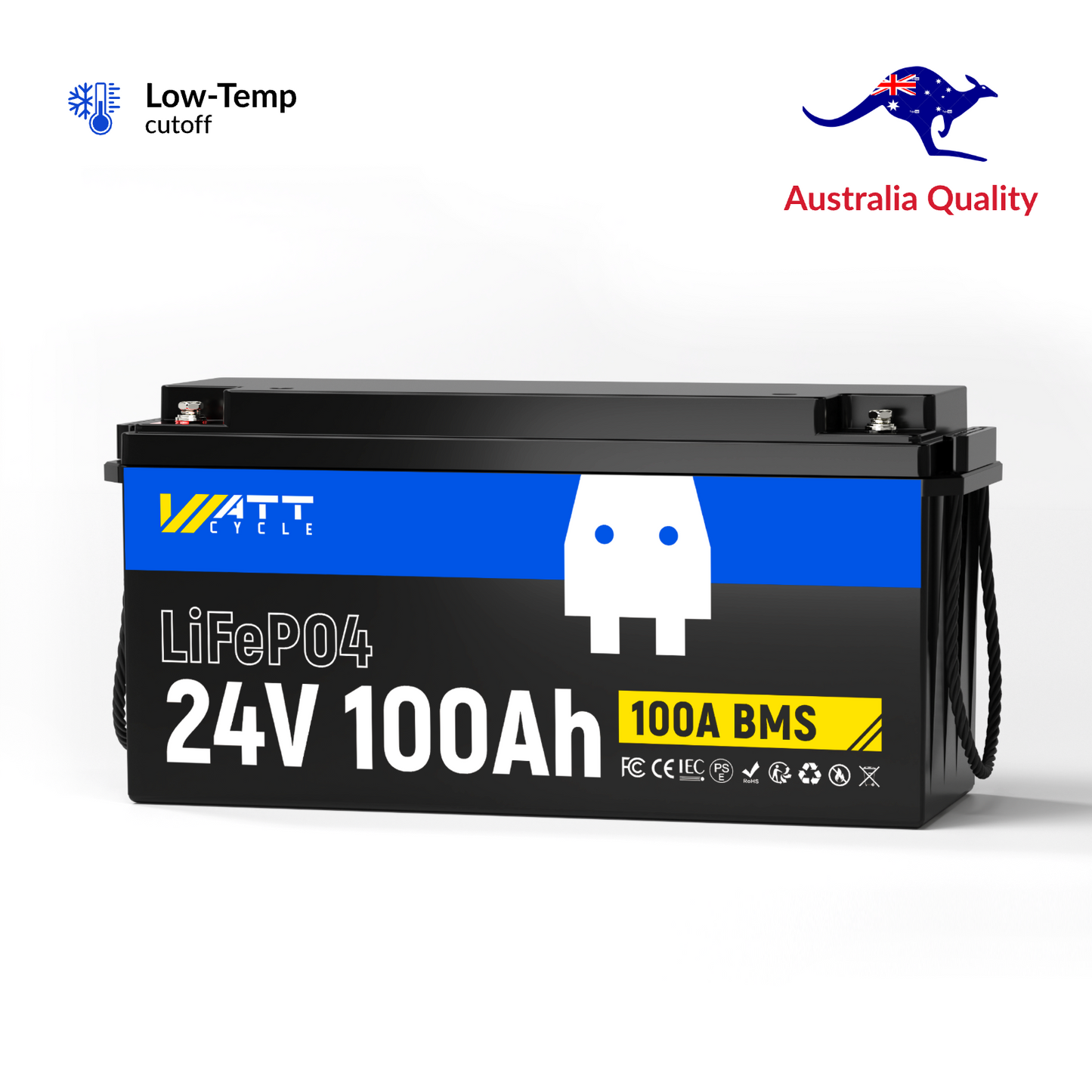

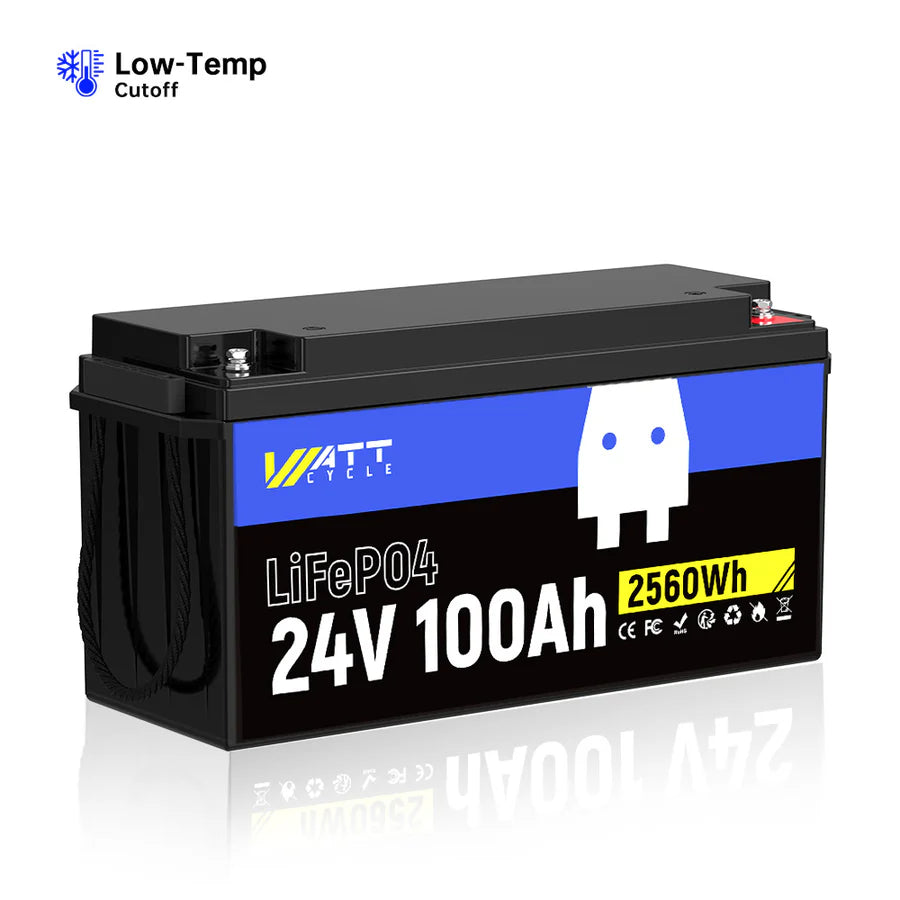

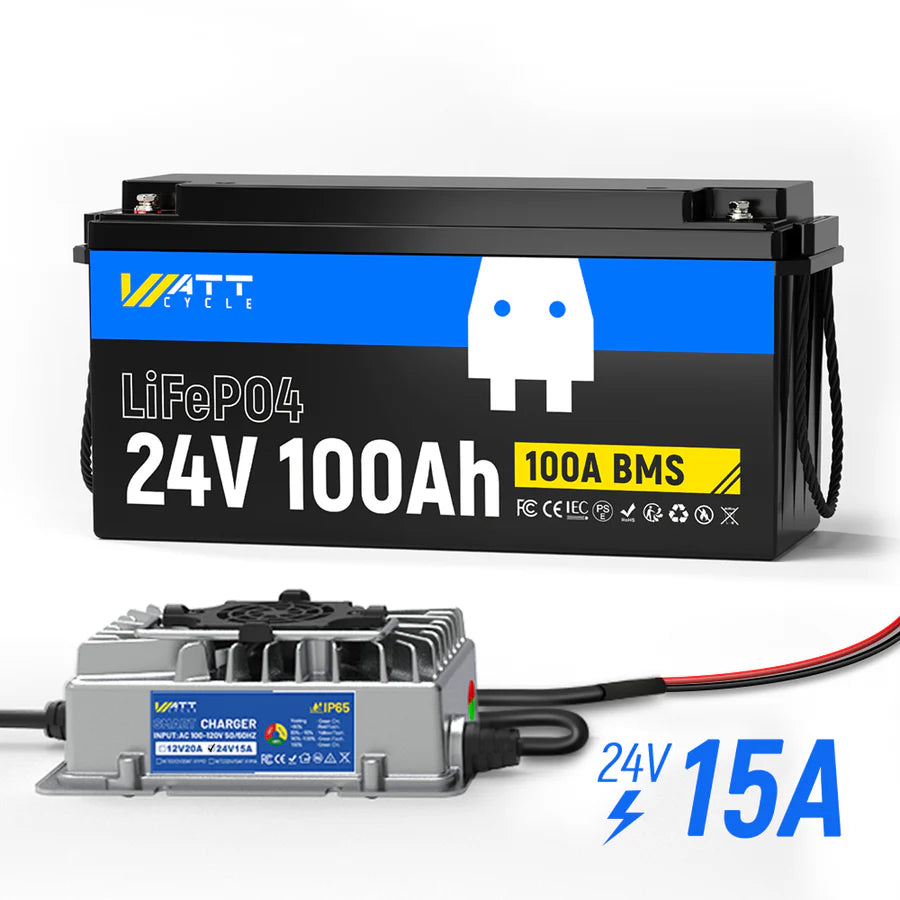

WattCycle 24V 100Ah Lithium ion Battery
24V 100Ah Lithium Battery Tech Specs
GENERAL

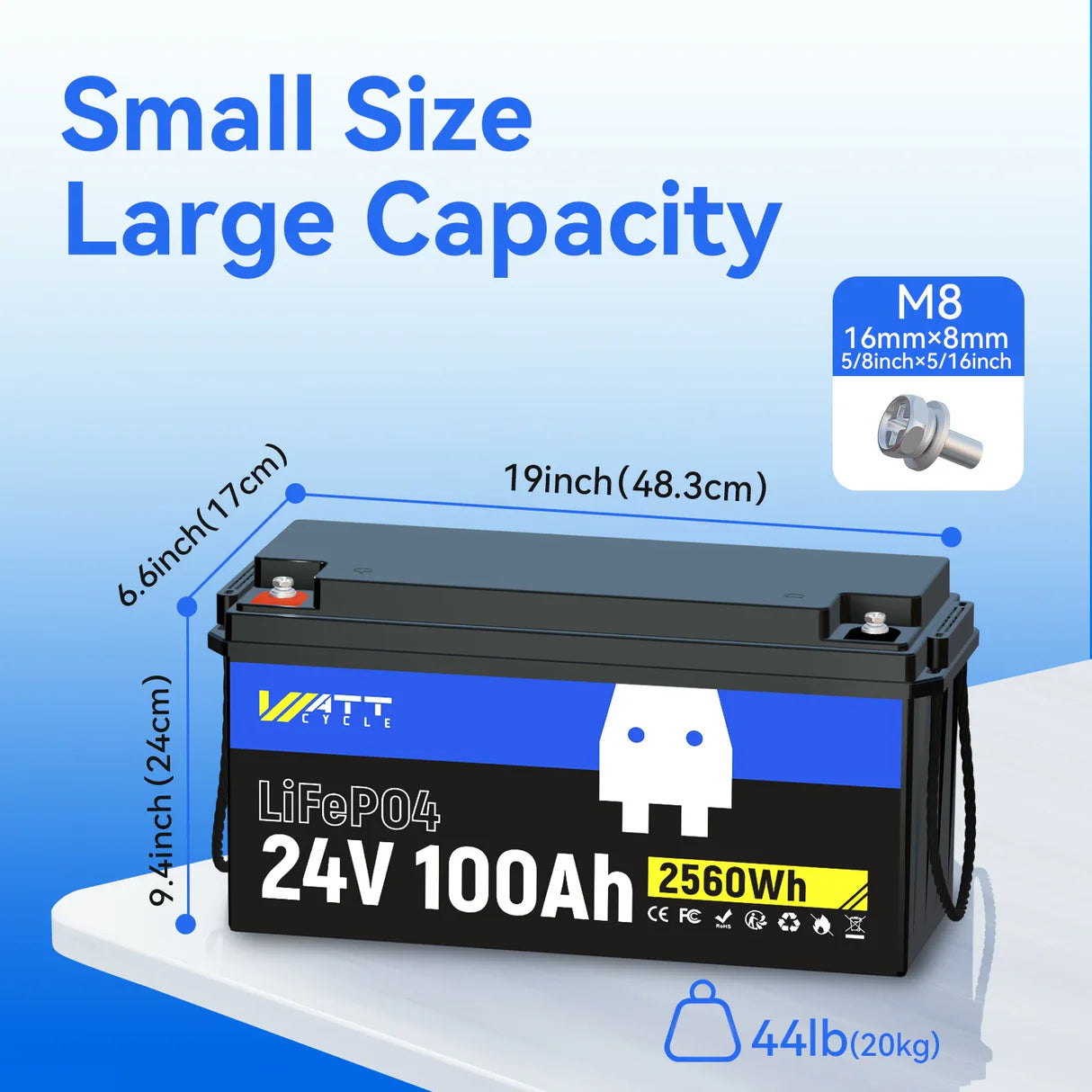

Dimensions (Inches) | L482 * W170 * H241 mm |
Weight | 44.0lbs / 21.7kg |
Waterproof Rating | IP65 |
Warranty | 5 years |
Housing Material | ABS (Flame Retardant Plastic) |
Terminal | M8 bolts |
24V 100Ah LiFePO4 Battery Feature
Cell | EV Grade A+ LiFePO4 Cells |
Nominal Voltage | 25.6V |
Nominal/Usable Capability | 100Ah |
Energy | 2560Wh |
Cycle Life | 5,000+ cycles @100% DOD, 6,000+ cycles @80% DOD, 15,000+ cycles @60% DOD |
Max Depth of Discharge (DOD) | 100% |
Max. Expansion | 4P2S |
Internal Resistance | ≤40mΩ |

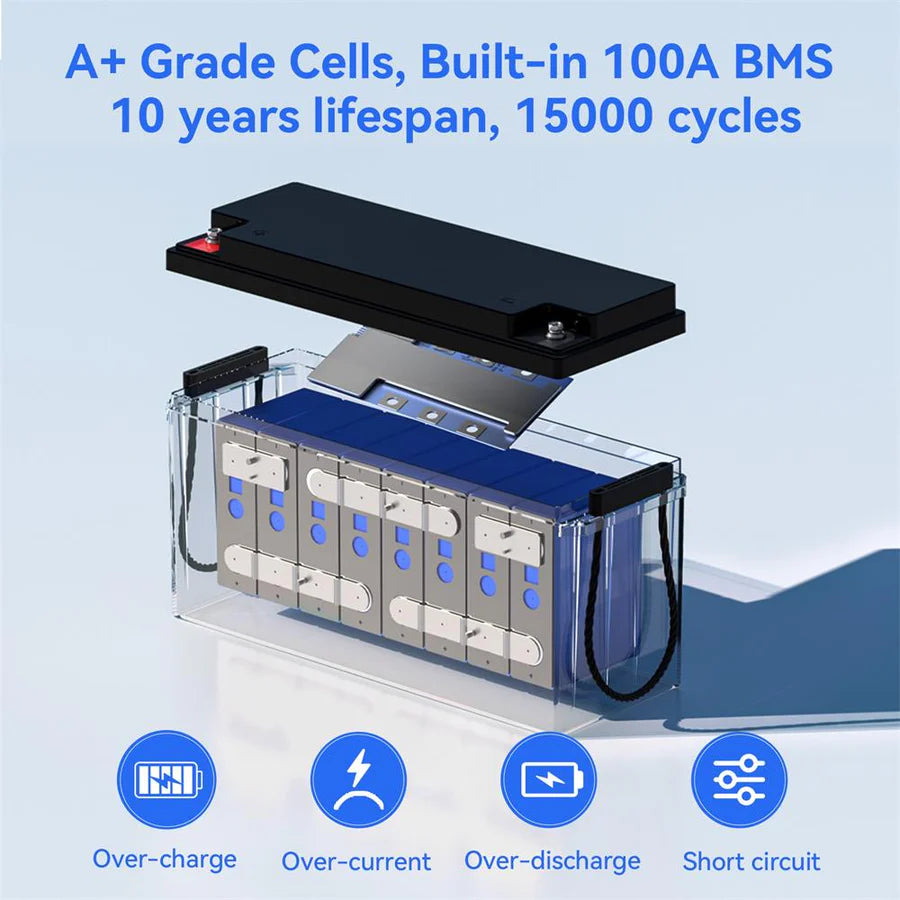

Battery BMS
BMS | 100A |
Max. Continuous Output Power | 2560W |
Max. Continuous Charge Current | 100A |
Max. Continuous Discharge Current | 100A |
