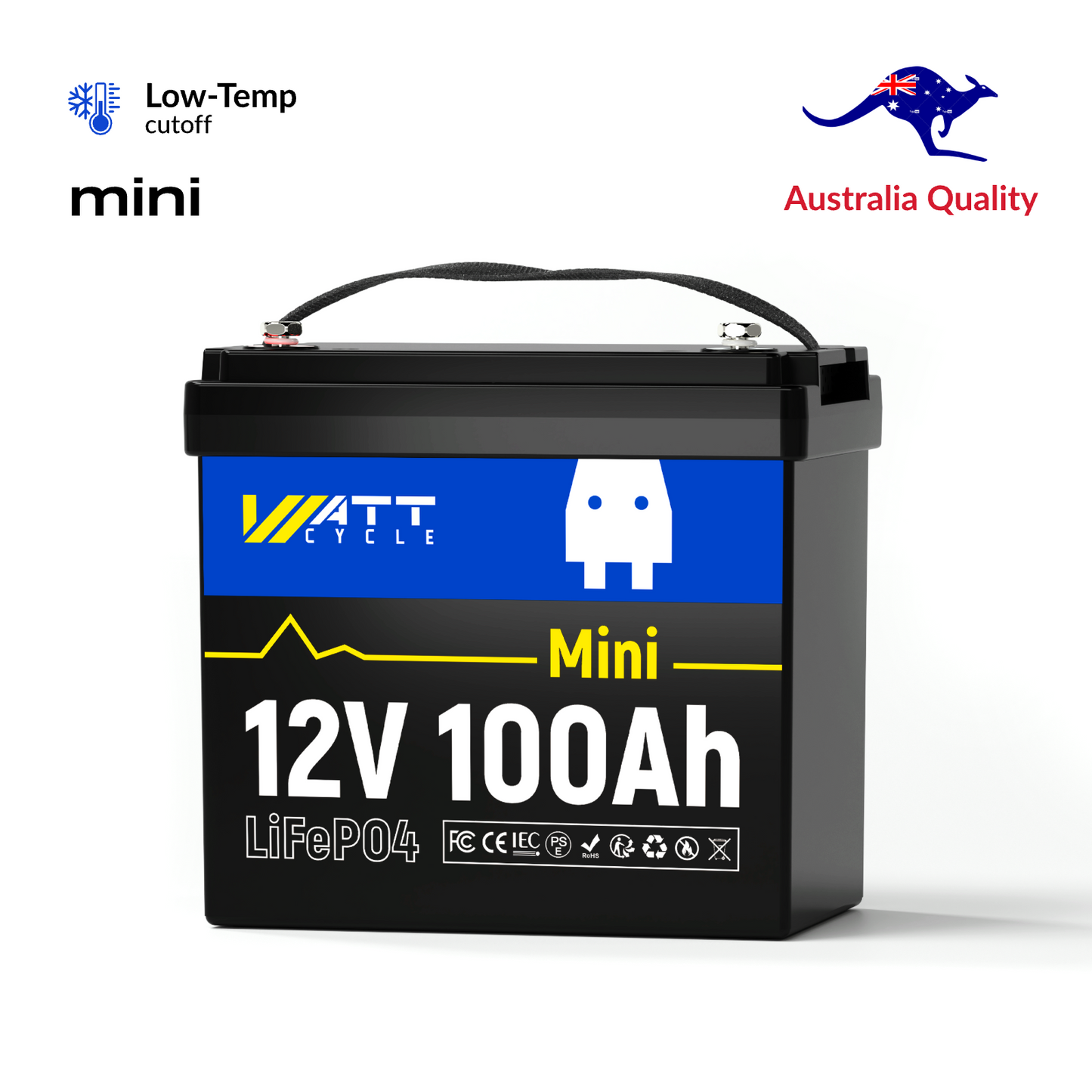

WattCycle 12V 100Ah Mini LiFePO4 Battery
WattCycle 12V 100Ah Mini LiFePO4 Battery
- Compact: 9.02 x 5.43 x 8.19 inches
- Lightweight: 20.8lbs
- Safe: Low-temperature cut-off protection
- Premium: EVE grade A+ LiFePO4 cells
- Durable: 5,000-15,000 deep discharge cycles
- Reliable: Built-in 100A BMS | 1280W | 1280Wh
- Scalable: Max. 4S4P, up to 20.48kWh
- Certification: SDS /UN38.3 /FCC /CE /ROHS /UL
Couldn't load pickup availability
- 5-Year Warranty
- Hassle-free Returns
- 7/24 Help & Advice
Shipping
Shipping
Free local shipping on all orders.
Description
Description
Mini Size, Maximum Power: WattCycle 12V 100Ah mini LiFePO4 lithium battery offers an 11% weight reduction and a 39% volume reduction compared to the Group 24 regular style, while its energy density has increased to an impressive 195wh/L!
Cutting-edge technology: Manufactured by EVE, a high-end lithium battery brand, the Grade A+ cells in our 12 volt battery ensure a lifespan of up to 10 years, withstand up to 20,000 cycles, and support a 4S4P configuration with a capacity of up to 20.48kWh.
More Compact: This lithium battery weighing only 20.94lbs and measuring 9*5.4*8.2 inches, this means it's easier to carry. With the same battery storage space, you can accommodate more batteries, providing you with more power for your outings.
Low-Temp Protection: The WattCycle 12V 100Ah LiFePO4 battery operates in a wide temperature range (-4℉ to 158℉ / -20℃ to 70℃). It automatically shuts off at low temperatures, ensuring maximum battery protection and performance in diverse environments.
Smart 100A BMS: The built-in Battery Management System (BMS) safeguards the 12V 100Ah LiFePO4 battery against overcharge, deep discharge, overload, overheating, low temperatures, and short circuits. The BMS optimizes cell voltage balance, enhancing overall battery efficiency.
High load capacity: This 100Ah LiFePO4 battery can deliver a pulse discharge of up to 3C, allowing for a current output of up to 300A for 5 seconds and 200A for 2 minutes. This makes it suitable for applications requiring bursts of power.
Support & 5-Year Warranty: We are committed to providing excellent customer support and offer a comprehensive 5-year warranty with our products, demonstrating our confidence in their quality and lifespan. Our dedicated support team is always available to address any questions or concerns.
Download
Download
Check out the highlights from our influencer's review of the WattCycle 12V 100Ah Mini Battery!
Looking for A Smaller & Lighter Battery with Higher Energy Capacity?
Compared to lead acid battery: 49% smaller, 65% lighter, 70% energy density increases
Compared to 12V 100Ah battery (WattCycle): 32% smaller, 10% lighter, 10% energy density increases
Only Grade A Cells
Grade A+ cells typically refer to battery units that incorporate high-quality, high-performance cells. Specifically, these cells often exhibit the following characteristics:
1) High Energy Density
2) Long Cycle Life
3) High Safety Standards
4) Stable Performance
5) Environmental Friendly
Intelligent BMS, Eightfold Safety Protection
Battery Management System: A crucial component in lithium-ion batteries and other rechargeable batteries, responsible for monitoring and managing the battery's performance.
Eightfold Safety Protection: Over-current/Over-charge/Over-discharge/Over-load/High Temperature/Low Temperature/Short Circuit/Equalization Protection
Unleash Creative Possibilities with Easy Positioning
Note: Please keep the terminal bolts away from pressure or contacting!
Maximize Performance with Customizable Configurations
Tailor Energy Solutions to Fit Your Needs
Choose the Charging Method that Suits You
-
Solar Energy Plate
1) Recommended Charging Current: 0.1C~0.5C
2) Recommended Charging Voltage: 14.4~14.6V -
14.6 V 20A Charger
1) 3 Charging Phase: I1, I2, I3
2) Recommended Charging Rate: 0.1C~5C
3) Full Charging: 5 hours (0.2C) -
Power Generator
1) Charging: DC to DC
2) Recommended Charger: 20A DC-DC Charger
3）Full Charging: 5 hours
Visualizing Lithium Battery Performance
Estimate Lithium Battery Run Times
Worry-free Extreme Environments
Powering Diverse Applications
Precautions before Connections
-
No charging for the lead-acid battery
For the sake of safety and battery life, It cannot be used to charger for the lead-acid battery.
-
No using as the starting battery
Lithium batteries are not intended for use as starter power sources. Please do not perform this operation.
-
Kind Reminding for Connections
Before you perform series or parallel connections with lithium batteries, please ensure that you have followed the above principles.

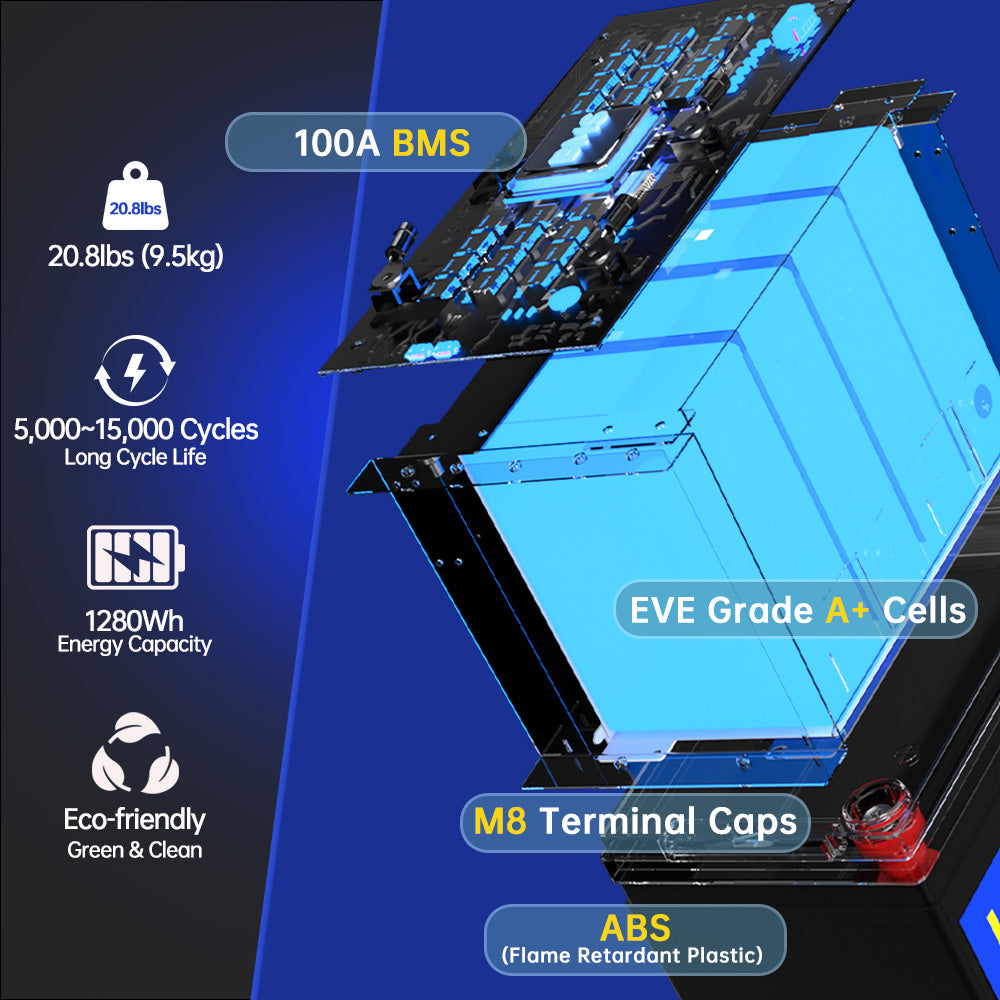

| Dimensions (Inches) | 9.02 (L) x 5.43 (W) x 8.19 (H) |
| Weight | 20.8lbs / 9.5kg |
| Waterproof Rating | IP65 |
| Warranty | 5 years |
| Housing Material | ABS (Flame Retardant Plastic) |
| Terminal | M8 bolts |
| Cell | EVE Grade A+ LiFePO4 Cells |
| Nominal Voltage | 12.8V |
| Nominal/Usable Capability | 100Ah |
| Energy | 1280Wh |
| Cycle Life | 5,000+ cycles @100% DOD, 6,000+ cycles @80% DOD, 15,000+ cycles @60% DOD |
| Max Depth of Discharge (DOD) | 100% |
| Max. Expansion | 4S4P |
| Internal Resistance | ≤40mΩ |
| BMS | 100A |
| Max. Continuous Output Power | 1280W |
| Max. Continuous Charge Current | 100A |
| Max. Continuous Discharge Current | 100A |
| Max. Discharge Current | 300±50A (≤5s) |
| Charge Voltage | 14.6V ± 0.2V |
| Charge Method | CC/CV |
| Recommend Charge Current | 20A (0.2C) |
| Charge Temperature | 0℃ to 50℃ / 32℉ to 122℉ |
| Discharge Temperature： | -20℃ to 70℃ / -4℉ to 158℉ |
| Storage Temperature | -10℃ to 50℃ / 14℉ to 122℉ |
| Low-Temperature Protection | Yes (32℉/0℃) |
| Low-Temperature Charging Protection Auto Recovery | Yes (41℉/5℃) |
Frequently Asked Questions
Q1: What is the workflow of a Battery Management System (BMS)?
A1:
Over-charge Voltage Cut-off (>15V):
If the voltage of a single cell exceeds the specified threshold during charging, the BMS will stop charging.
Over-discharge Voltage Cut-off (<8.8V):
If a single cell falls below the specified threshold, when the battery voltage drops below 8.8V, the BMS will prevent further discharge. The battery will automatically reconnect when the voltage recovers to 10.8V.
High Temperature Charging (>158°F/70°C) and Discharging (>167°F/75°C):
If the internal temperature of the battery reaches 158°F (70°C), the BMS will not allow charging.
If the internal temperature of the battery reaches 167°F (75°C), the BMS will not allow discharging.
Low Temperature Charging (<32°F/0°C) and Discharging (<-4°F/-20°C):
The BMS will not allow charging below 32°F (0°C), but will continue discharging down to -4°F (-20°C).
Note: The operating temperature range for WattCycle 12V series products is -4°F (-20°C) to 140°F (65°C).
Q2: How to Check Battery Voltage?
A2:
If you don't have a battery monitor, you can use a multimeter to monitor the voltage.
Q3: The battery is at 0V, what should I do?
A3:
This is likely due to the overcurrent or short circuit protection being triggered. Please disconnect the battery cables from the load and test the battery voltage.
- If the voltage is above 10.8V, reconnect the battery cables.
- If the voltage is below 10.8V, please contact our technical team at service@wattcycle.com.
Q4: What is the warranty process?
A4:
We offer free warranty service for up to 5 years.
Note: After purchasing the battery, please register for warranty on our official website www.wattcycle.com immediately.
Failure to register within one month will be considered as waiver of warranty service.
For more information, you can click here.
Q5: How can l get my battery capacity?
A5:
Battery capacity can be roughly estimated by the following voltage method.
Test steps:
1. Disconnect the charger or load.
2. Let it sit for 15 minutes.
3. Test the open circuit voltage.
Q6: Can it be used in humid environments?
A6:
It adopts a sealed packaging design and waterproof casing, and the sealed positive and negative electrodes can achieve IP67 protection.
This allows you to use it in humid environments.
In order to give the battery a better service life, we recommend that you use it in a dry, ventilated and cool environment.
Q7: Is it fire-proof?
A7:
Lithium batteries are generally not fireproof. Then, WattCycle takes a series of safety measures during design and use to prevent fire or explosion. These measures include using fireproof materials to construct battery cases (non-flammable ABS plastic), using battery management systems to monitor battery status, and using fuses and other measures to prevent overcharge or over discharge.
Q8: What is the difference between 12V100Ah MINI and 12V100Ah?
A8:
WattCycle 12V100Ah MINI is slightly smaller than WattCycle 12V100Ah, but the performance of the two is exactly the same.
Q9: Can I use the G24 battery case?
Provide an answer to the question here, with as much detail as possiblA9:
Yes!
Dimensions of a G24 battery box are approximately 10.5 inches long (L), 6.19 inches wide (W), and 8.88 inches tall (H).
And the size of a WattCycle 12V 100Ah MINI LiFePO4 Battery is about 9.01″ (L) x 5.14″ (W) x 8.18″ (H).
It is completely possible to use the G24 battery box to install the WattCycle 12V 100Ah MINI LiFePO4 Battery.e to help your customers.
Q10: Can I use it to charge my RV?
A10:
Yes!
It can be used for RV backup power. It has high energy density and long cycle life, providing long-lasting power support and suitable for various power needs of RVs, such as lighting, electrical equipment and other electronic equipment. Lithium batteries are lighter, charge faster, and have a longer life than traditional lead-acid batteries, making them ideal for RV backup power.
