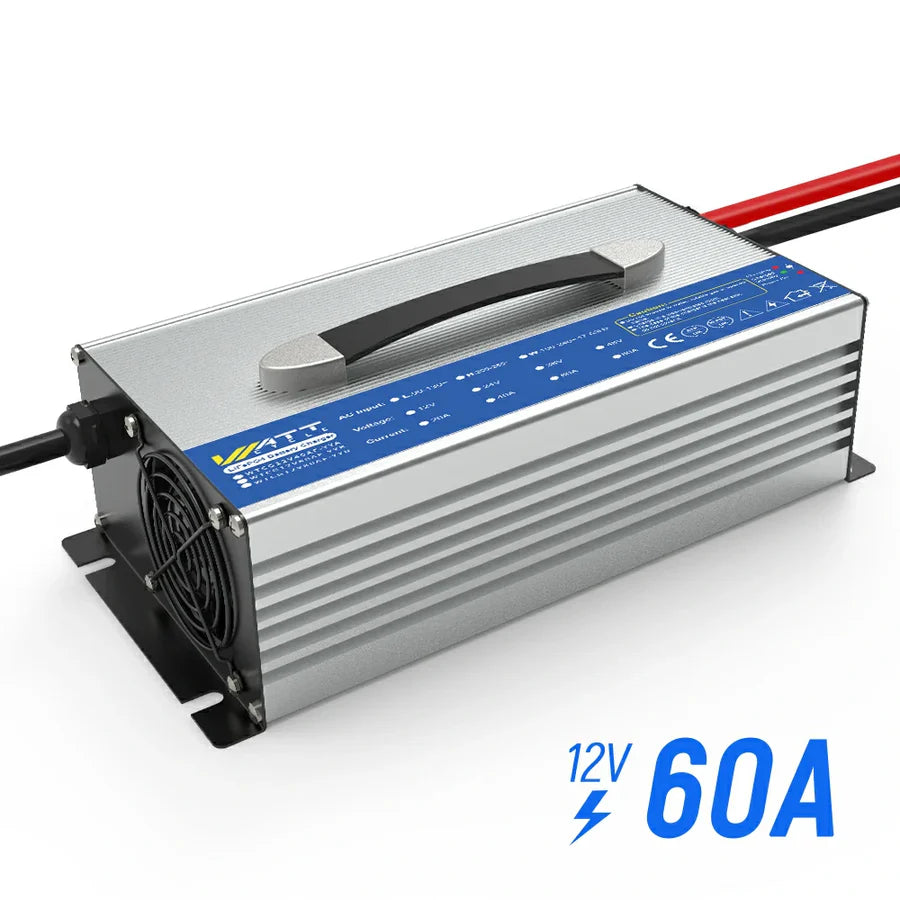

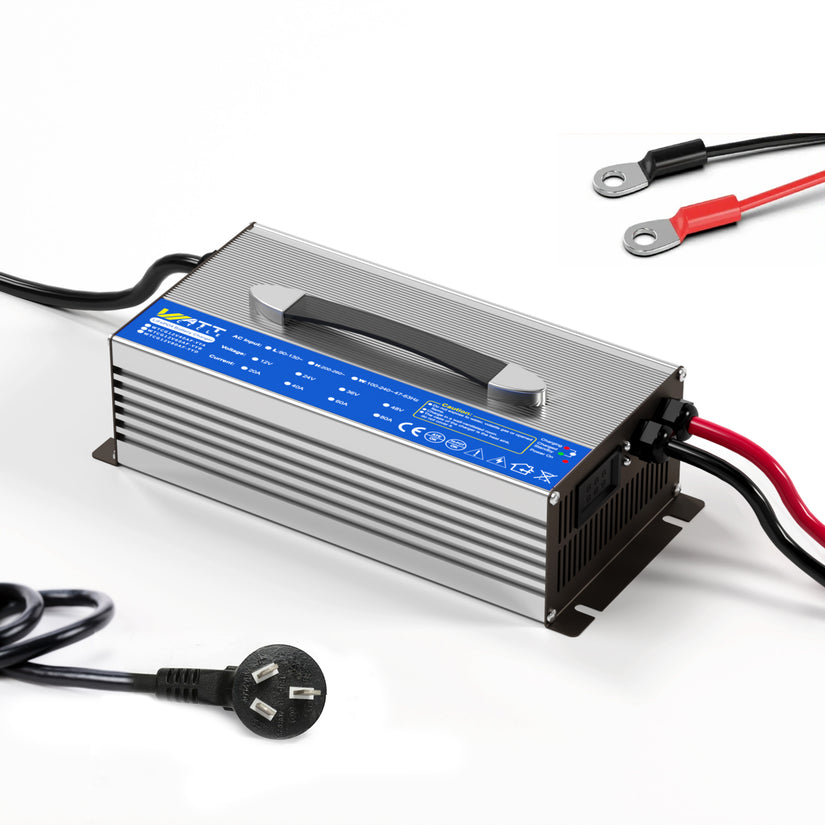

【Easter Sale: 6% OFF】WattCycle AU - 14.6V 60A Aluminum Shell LiFePO4 Battery Charger
【Easter Sale: 6% OFF】WattCycle AU - 14.6V 60A Aluminum Shell LiFePO4 Battery Charger
59 in stock
- Compact & Design: 330*150*90mm | 3.8kg
- 5X Protection: Over voltage / Over temperature / Short circuit / Reverse polarity connection Protection
- LED Indicators & Display for clear charging status

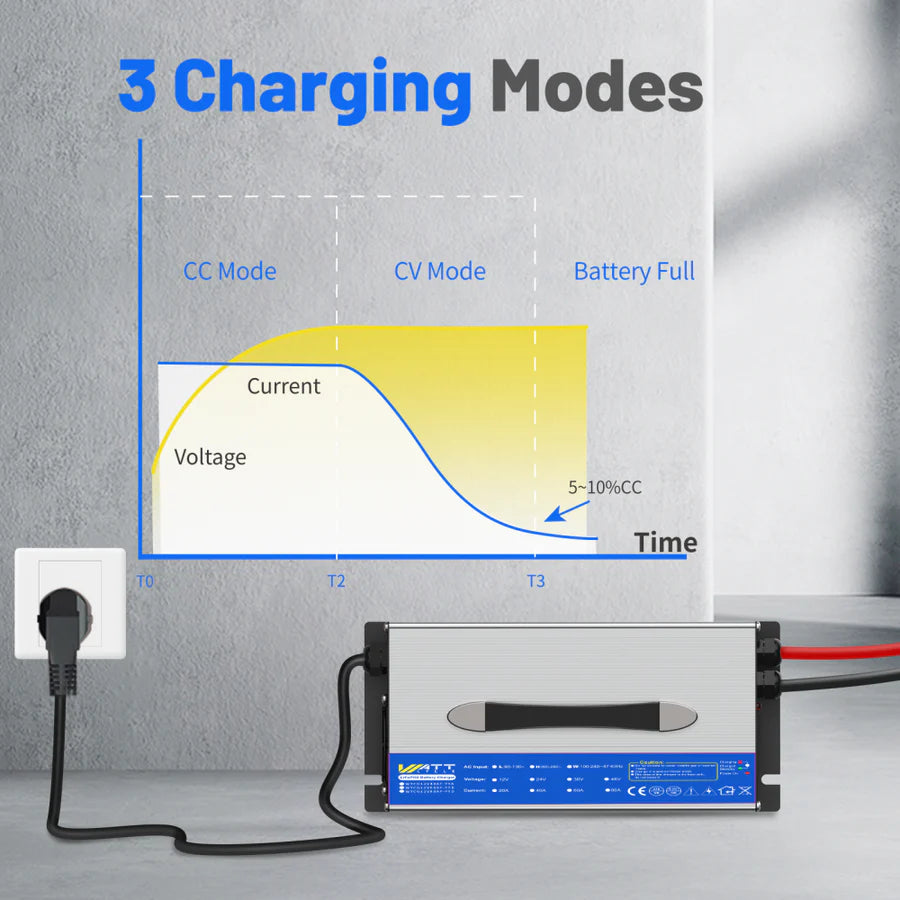

- 3 Charging Modes for efficiency and longevity
- Wall mountable and convenient installation
- 3X Faster Charing Speed: Only 5 hours for 12V 300Ah MINI
- IP65 Water & Dust-proof
Couldn't load pickup availability
- 5-Year Warranty
- Hassle-free Returns
- 7/24 Help & Advice
Shipping
Shipping
Free local shipping
Description
Description
Maintenance & User Precautions
- Before charging, carefully review the battery's user manual to ensure its compatibility with the charger's technical specifications.
- Ensure that the charger's positive and negative terminals are correctly connected to the corresponding terminals of the battery (positive to positive, negative to negative).
- During the charging process, ensure that the input/output connectors are securely attached.
- lf any abnormalities or damage to the charger or battery are noticed during the charging process, immediately disconnect the input/output cables.
- If using alternative input cables, ensure that the cable can handle the charger's maximum input current and that the charger's input voltage is within its operating range.
- lf an extension for the output connection is needed, ensure that the connection cable can handle the charger's maximum output current, and the voltage drop between the charger and the battery connection should be kept as low as possible. ideally less than 1% of the battery voltage, Otherwise, it may affect the charging effectiveness.
- The internal voltage of the charger is high and poses a significant risk .In case of any defects, please contact service.au@wattcycle.com promptly. Users and non-professional repair personnel are prohibited from disassembling or modifying this product without authorization.
- Do not use the charger during thunderstorms or lightning storms.
- Keep the charger body dry and avoid using it in damp or rainy environments.
- Avoid using the charger in direct sunlight or near heat sources.
- Do not use the charger in or near flammable or explosive gas areas.
- Use the charger in a well-ventilated and dust-free area.
- Do not cover the ventilation ports and leave at least 10 centimeters of space around them.
- Avoid shaking, impacting or throwing the charger with force.

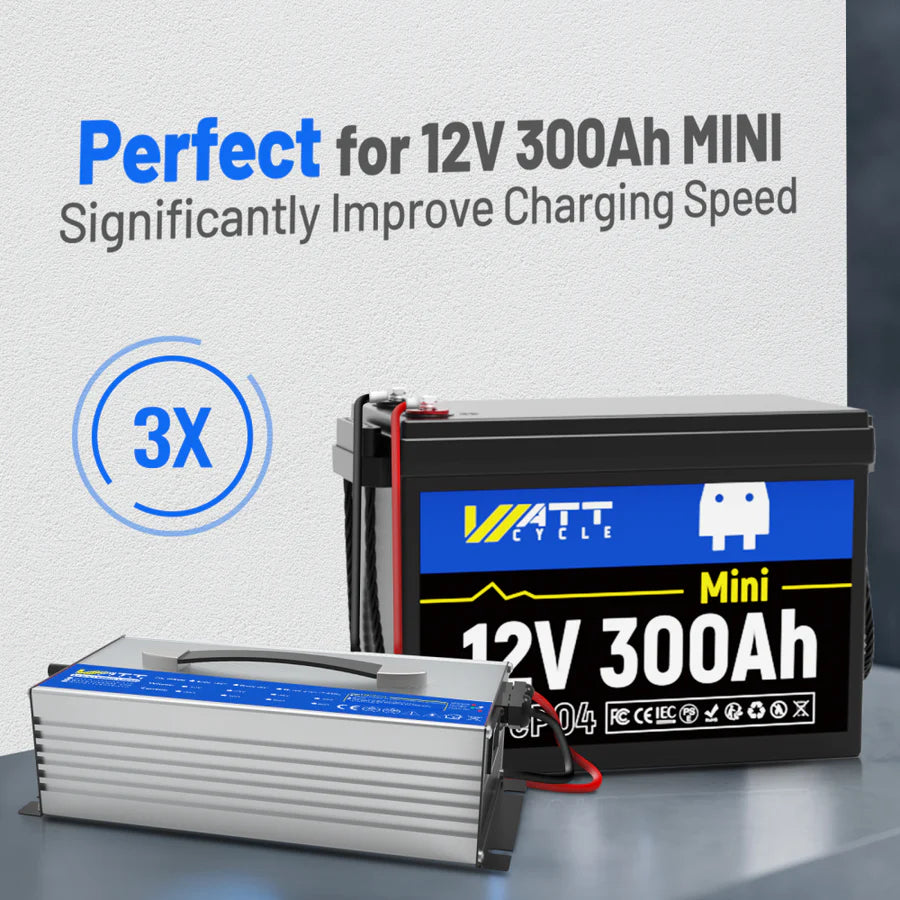

Perfect for 12V 300Ah MINI LiFePO4 Battery
The WattCycle 14.6V 60A Lithium Battery Charger saves space, offers easy installation, and includes wall-mounting capability for added convenience. Triple the Charging speed, it is pefect for 12V 300Ah MINI LiFePO4 battery.
Power Meets Efficiency
Discover the ultimate charging solution designed for WattCycle's 12V 300Ah MINI LiFePO4 batteries. Built for safety, speed, and durability, this charger ensures your batteries stay charged and protected in any environment.
Key Features: Wall-Mount Design / LED Indicators & Display / IP65 Waterproof Protection / 5-Layer Safety System / Rapid 5-Hour Charging / Smart 3-Stage ChargingThis all-in-one solution combines speed, safety, and convenience, making it the perfect companion for your high-capacity LiFePO4 batteries.
Triple the Speed, 1/3 the Time
Compared to a 20A lithium battery charger, the 60A charger delivers a 3x faster charging experience, fully powering your 300Ah LiFePO4 battery in just 5 hours. Save time and get back to what matters most!
Smart LED Display: Know Your Charge at a Glance
Stay informed with intuitive LED indicators. Red light signals charging in progress, while green light confirms your battery is fully charged—simple and hassle-free monitoring for optimal performance.

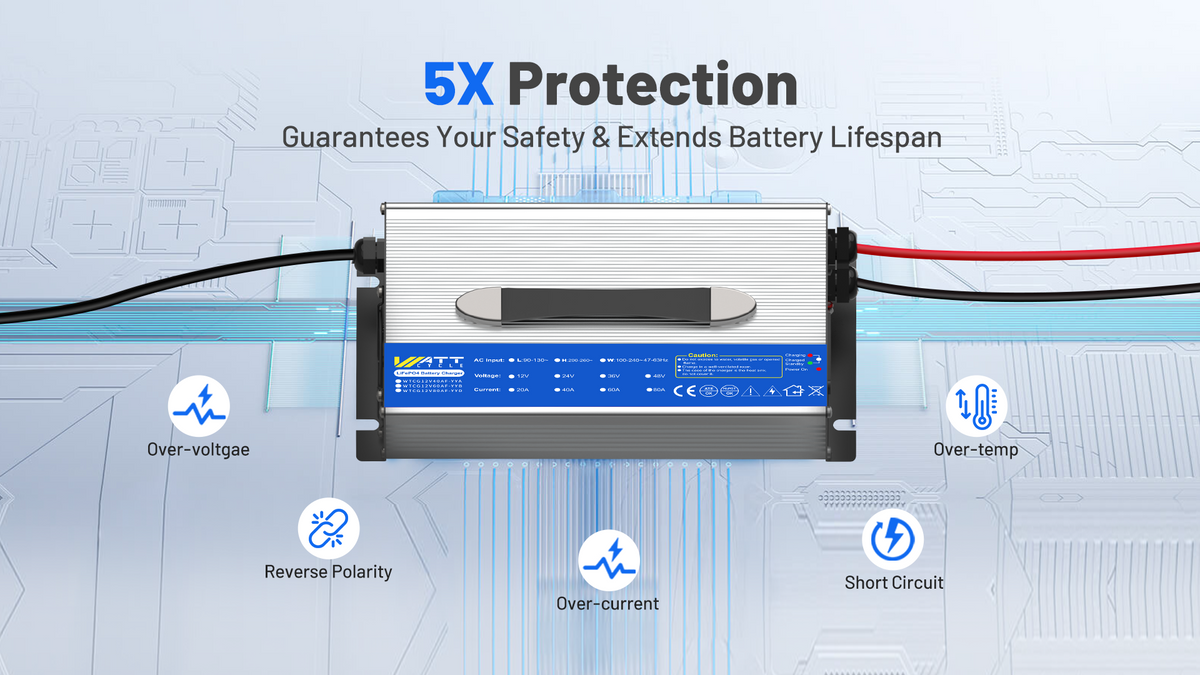

5-Layer Safety Protection: Charge with Confidence
Engineered with advanced safeguards, including over-temperature, over-voltage, over-current, reverse polarity, and short-circuit protection, this charger ensures secure and reliable performance every time.

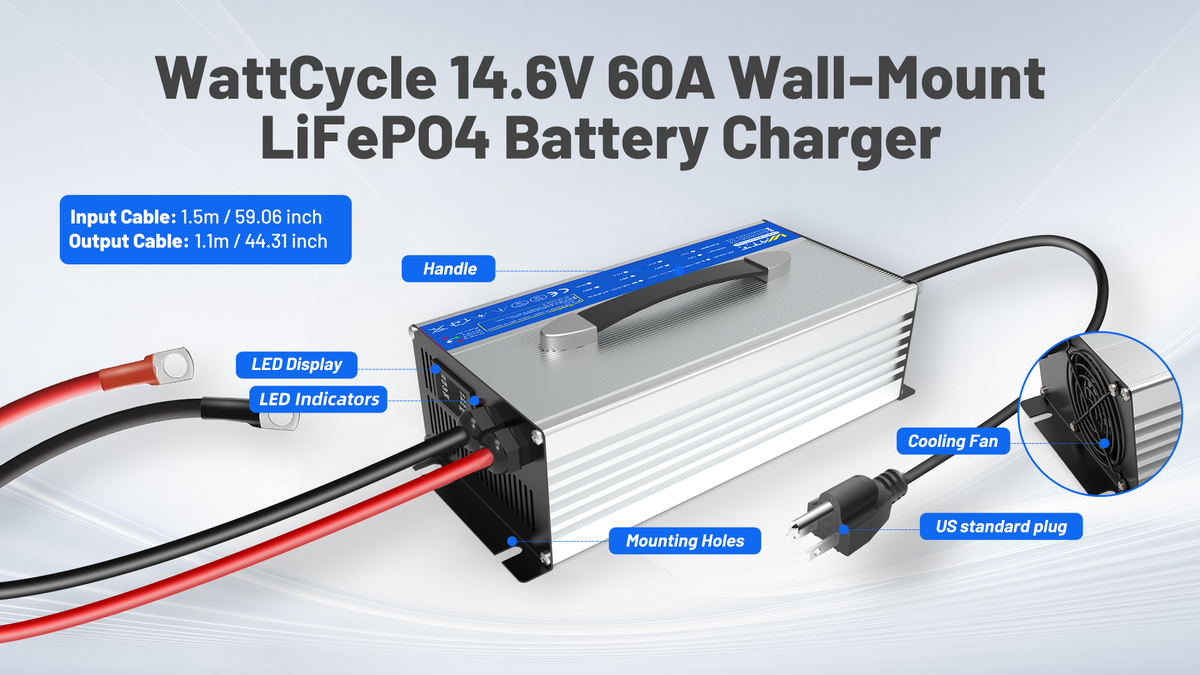

Advanced Design: A Closer Look at Our LiFePO4 Battery Charger
Cooling Fan / Mounting Holes / Handle / US Standard Plug / LED Indicators & Display / Input & Output Cables

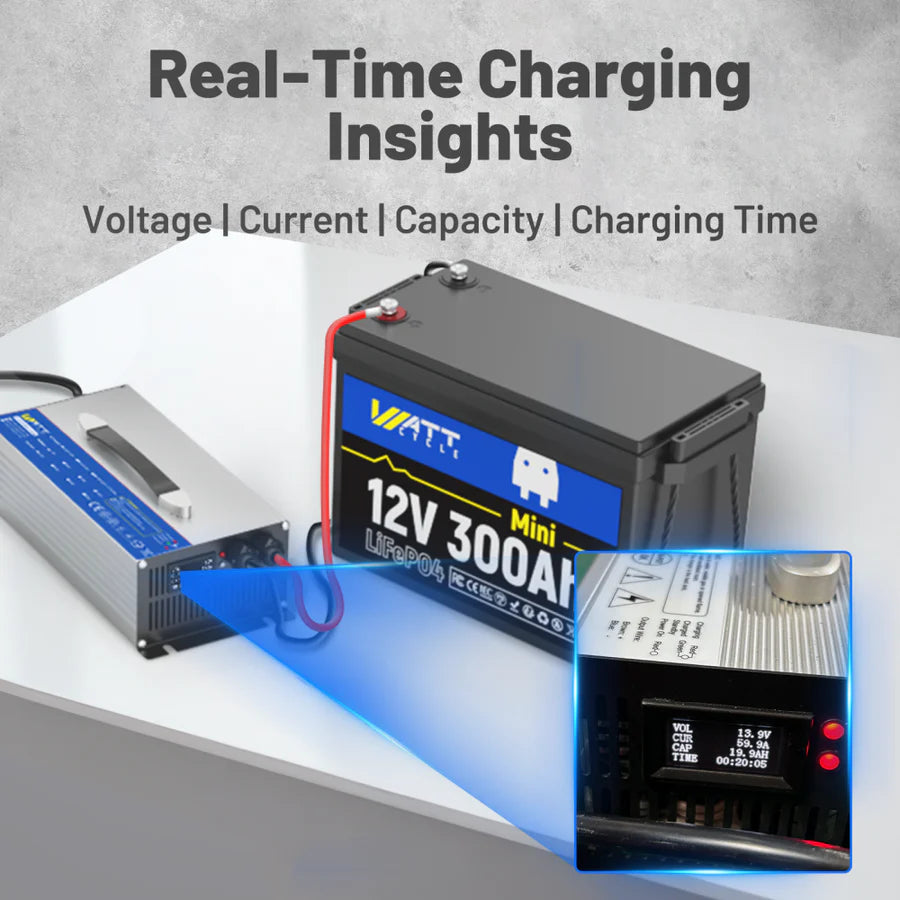

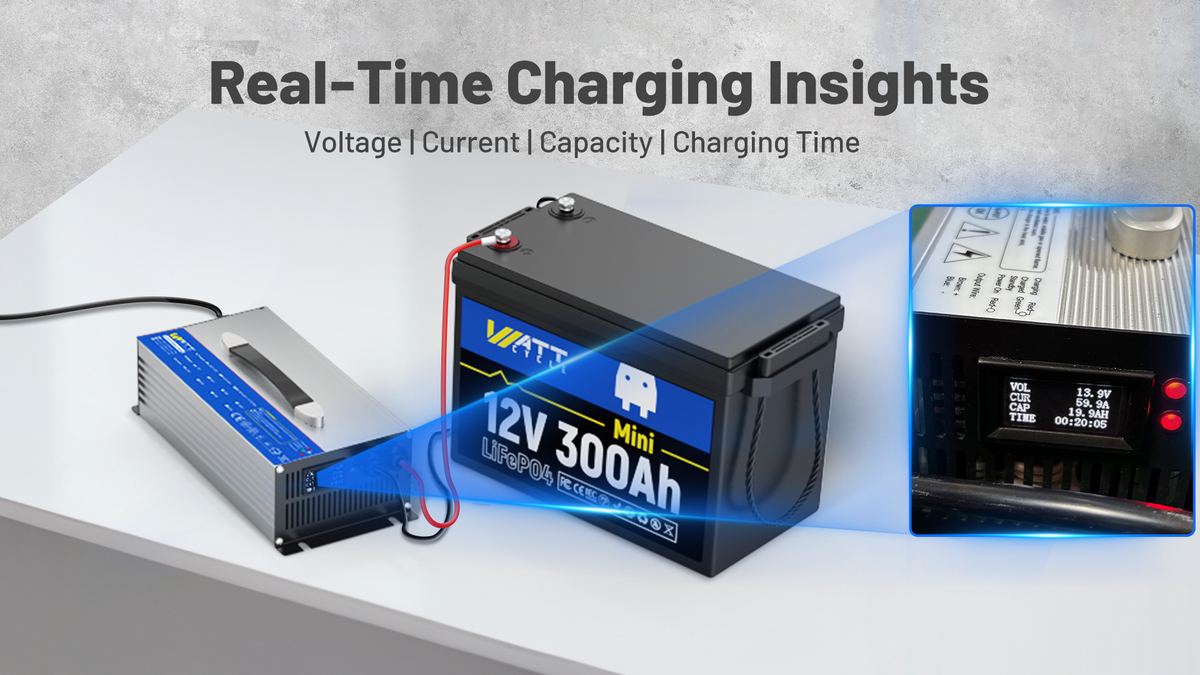

Real-Time Monitoring: Stay Informed as You Charge
The integrated display provides live updates on voltage, current, capacity, and charging time, ensuring precise and efficient charging at a glance.
Instant Alerts: Visual Warnings for Abnormal Conditions
The charger’s indicator lights provide immediate alerts for any irregularities, such as over-voltage or over-temperature, ensuring safe operation and quick response to potential issues.

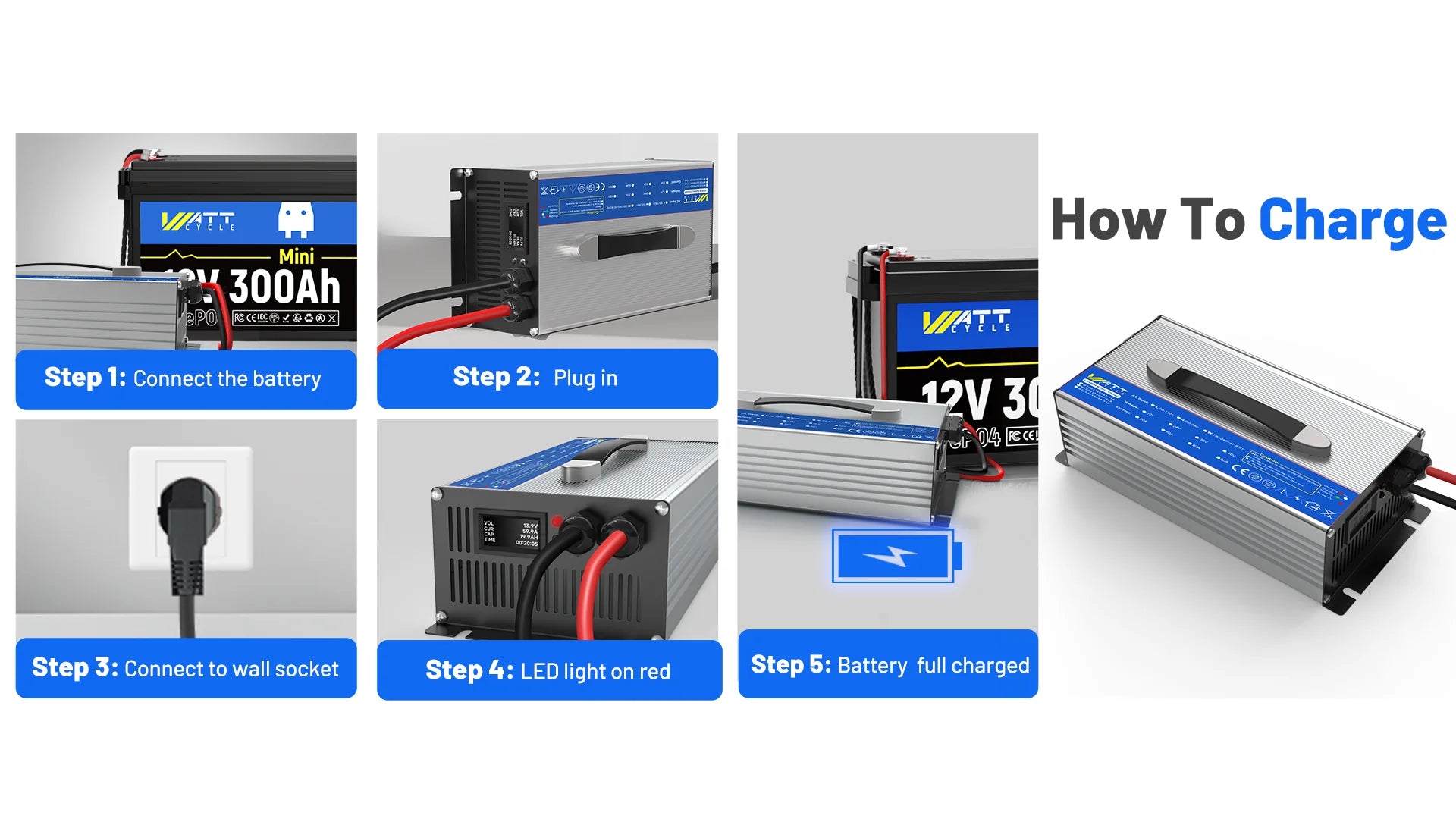

Effortless Charging: The Simplified Process in One Step
Experience a seamless charging process with just a few easy steps: plug in, monitor, and charge—efficiency made simple.
Tech Specs
SPECIFICATION
| Brand | WattCycle |
| Model | 12V60A |
| Input Voltage | 220V-240V |
| Output Voltage | 14.6V |
| Output Current | 60A |
| Product Size (Inches) | 11.42 X 5.91 X 2.54 inch |
| Net Weight | 8.16lbs / 3.7kg |
| Relative Humidity | 5%~95% |
| Atmospheric Pressure | 70KPa to 106KPa |
| Temperature Range | In operation: -10°C to 45°C/14°F to 113°F In storage: -40°C to 75°C/-40°F to 167°F |

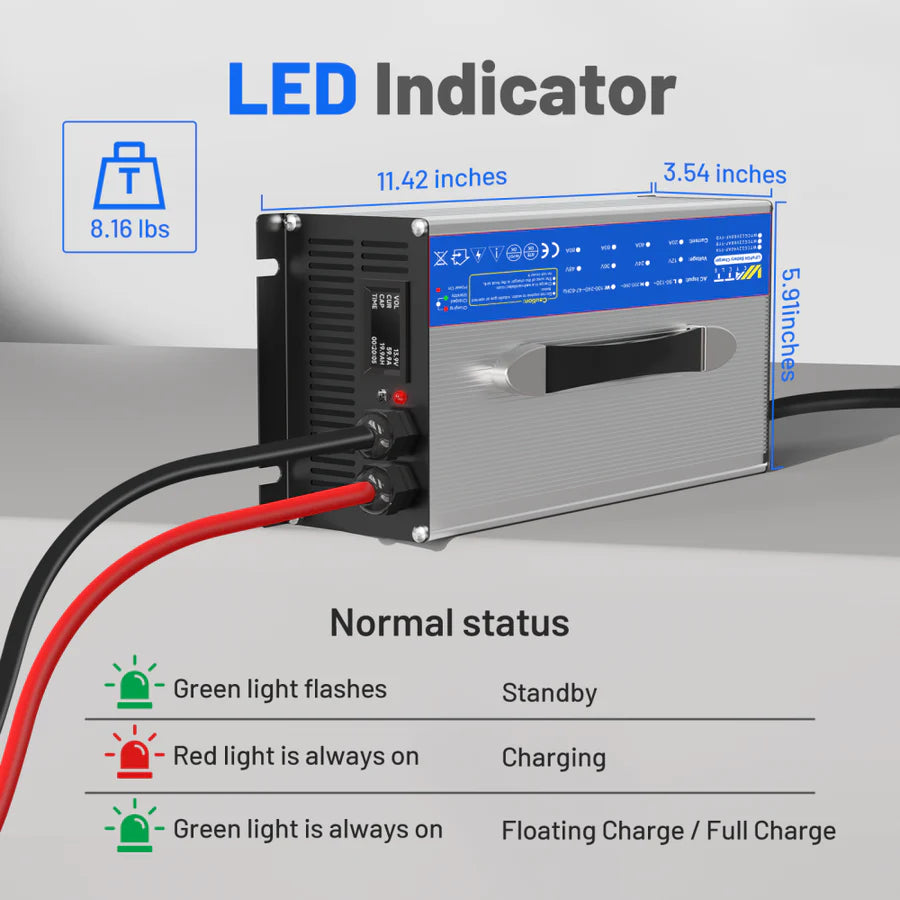

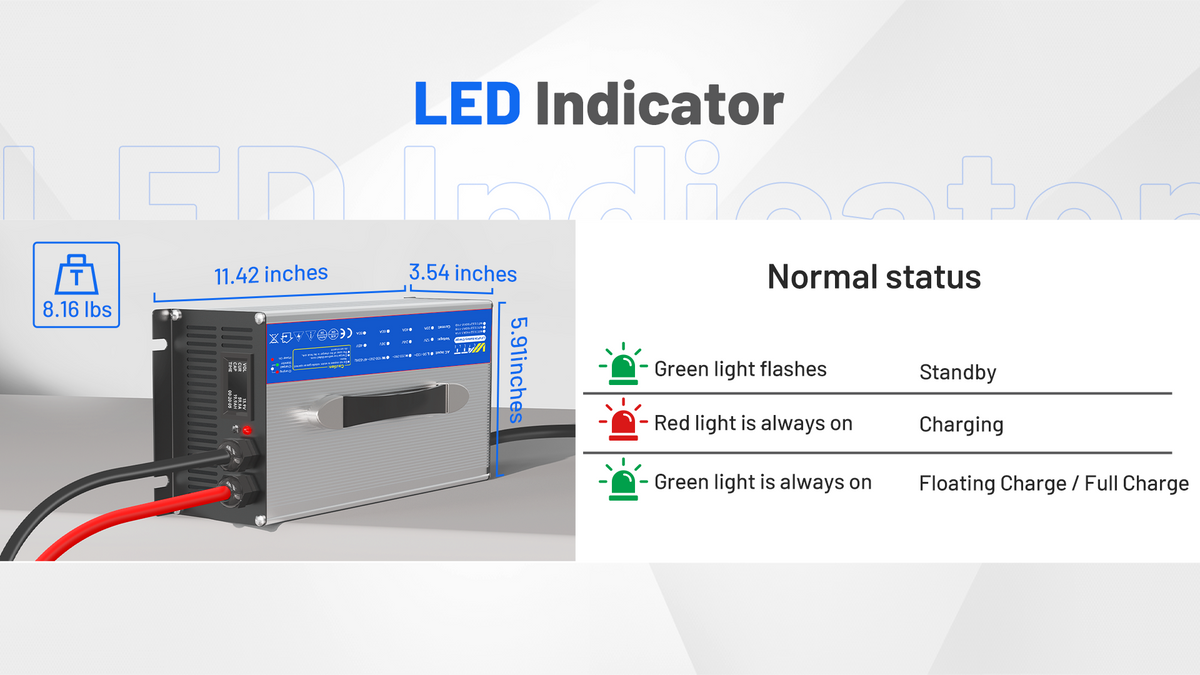

CHARGING MODE
| Standby | 🟢(Flashing) |
| Charging | 🔴(Always On) |
| Full Charge / Floating Charge | 🟢(Always On) |
ABNORMAL STATUS
| Over-voltage Protection | 🔴(Flashes 3 times), pauses and loops |
| Over-heat Protection | 🔴(Flashes 5 times), pauses and loops |
| Reverse Connection Protection | 🔴(Flashes 7 times), pauses and loops |
| Short-circuit Protection | 🔴(Keep Flashing) |
Frequently Asked Questions
Q1: Is it easy to install?
Yes , it is. You just need to connect the positive and negative terminals of the charger and battery, plug it in and use it.
Q2: Is it suitable for all LiFePO4 batteries?
This charger is suitable for all sizes of LiFePO4 batteries.
Q3: Is the charging process safe?
This charger uses the latest sparkless charging technology. At the same time, it has over-current, over-temperature, over-voltage and reverse polarity protection mechanisms.
When overcharged or overheated, it will cut off power in time.
During normal use, you don't need to worry about safety issues.
Q4: Does it have a LED display?
This product does not use a LED display. WattCycle charger is designed with a light-up alert function, blinking red (abnormal status) to activate over-temperature/short-circuit/reverse polarity protection/over-power protection, green color is always on when it's fully charged, and red color is always on when it's charging. You can judge the status of the battery and charger according to the lighted status, and pay attention to whether the battery is full or whether there is any abnormality in time.
Q5: What is the warranty policy?
From the original date of purchase, this product is covered by a 1-year warranty. Any non-human-made quality issues occurring during the warranty period will be repaired free of charge.
