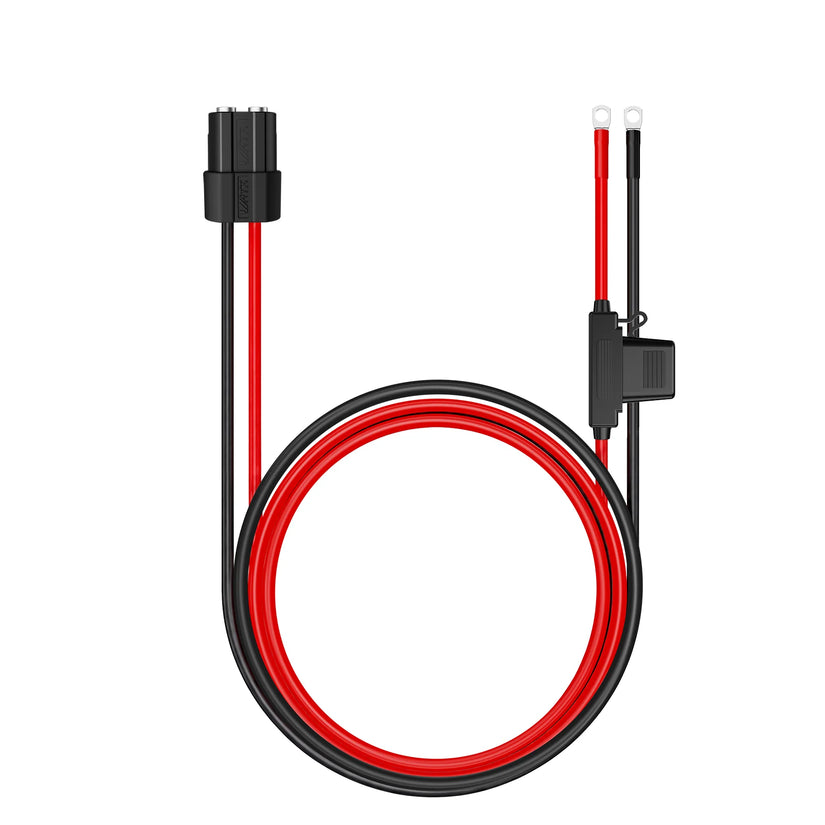

WattLINK P90D Expansion Cable for Bluetti AC300 / AC200MAX / AC200L, 48V Battery-to-PPS Adapter with 80A Fuse & 8AWG Wire
$99.99 AUD
⚡ Pre-order Notice — The BLUETTI Expansion cable is on pre-order and ships from late November. For kits, batteries ship earlier; cables follow separately. Limited quantities—pre-order now to secure yours.
🎃 Halloween Deals Ends In:
00
Days
00
Hours
00
Minutes
00
Seconds
🎃 Extra 6% OFF with code
Code: Halloween

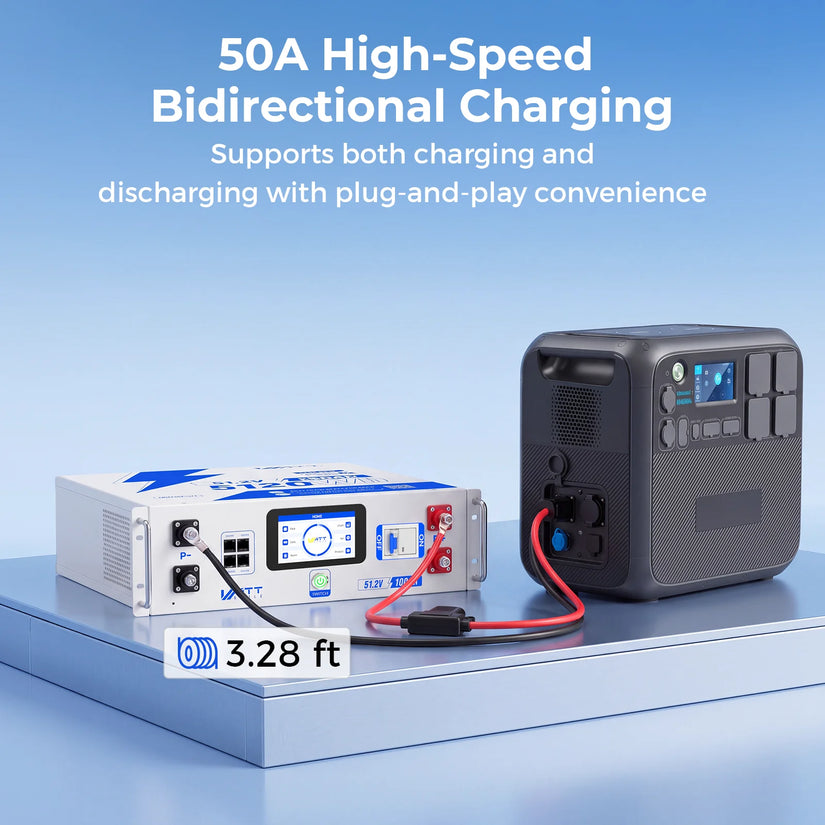

- 50A High-Speed Bidirectional Charging: Delivers up to 50A of bidirectional current for stable and efficient power transfer during both charging and discharging.

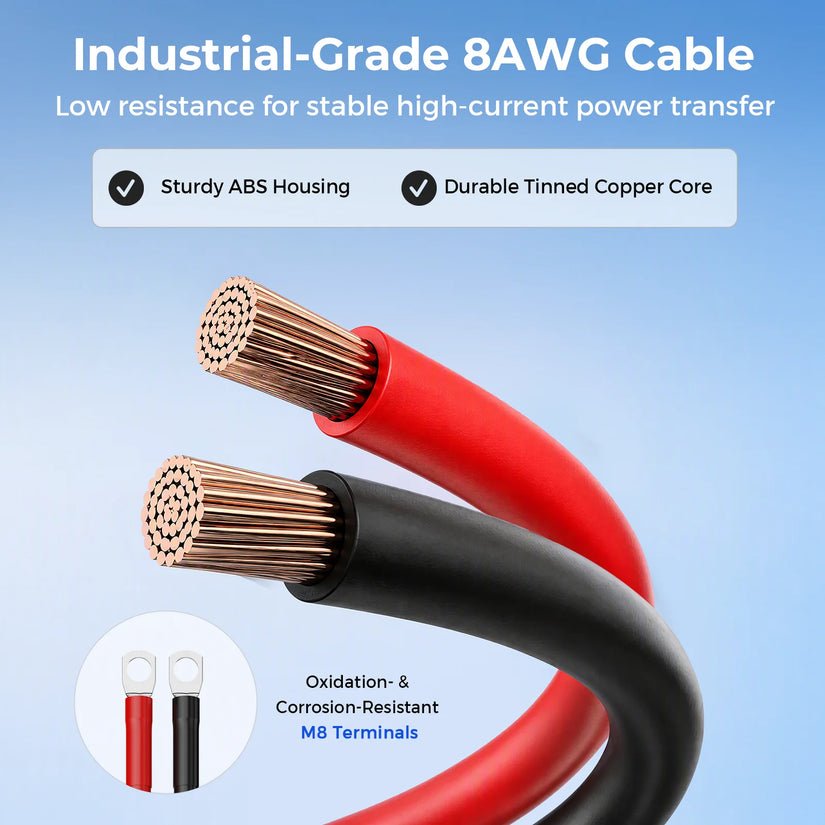

- Industrial-Grade 8AWG Cable: The large-gauge design reduces resistance and heat buildup, helping ensure safe operation under high loads.
- 80A Built-In Fuse Protection: Engineered with an integrated 80A fuse to instantly trigger protection and prevent thermal overload under extreme current conditions.
- Massive Value Solution: Skip buying multiple expensive proprietary expansion batteries. Connect a reliable 48V rack or floor-standing battery to massively scale your total watt-hours on a budget.
- Optimal 39.37-Inch Length: Perfectly balanced length (1 meter) to ensure zero compromise on performance, flexibility, or neat cable management.
- *Before connecting, make sure both devices are 51.2V LiFePO₄ systems and that their SOC and voltage levels are close, with a voltage difference of ≤1V. If protection is triggered due to a significant voltage difference, restart the portable power station and reconnect.
View More
Bluetti AC200MAX Expansio

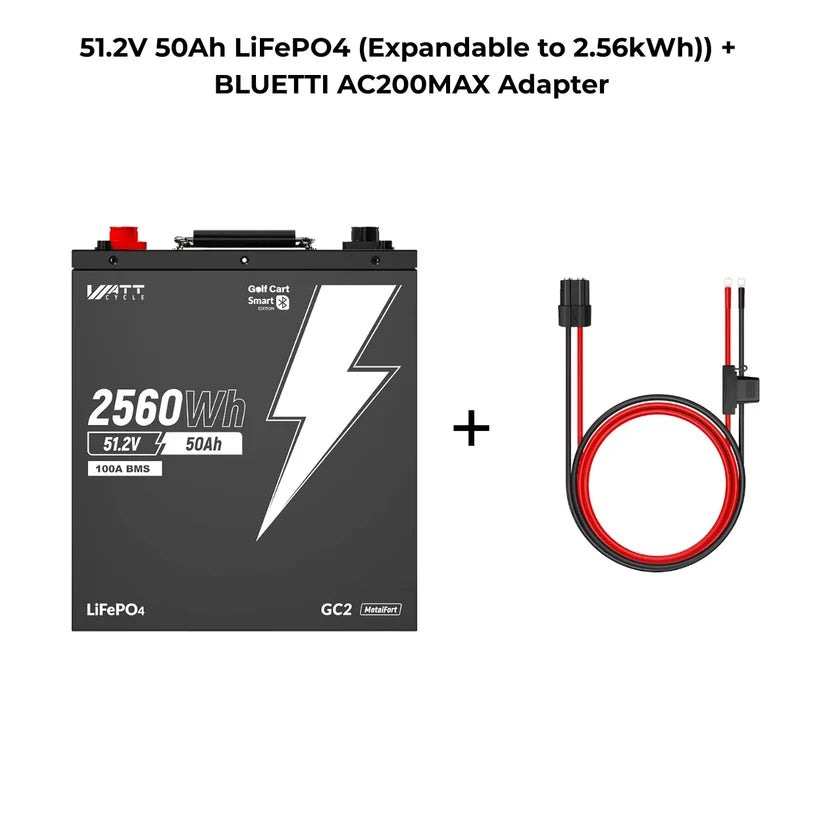

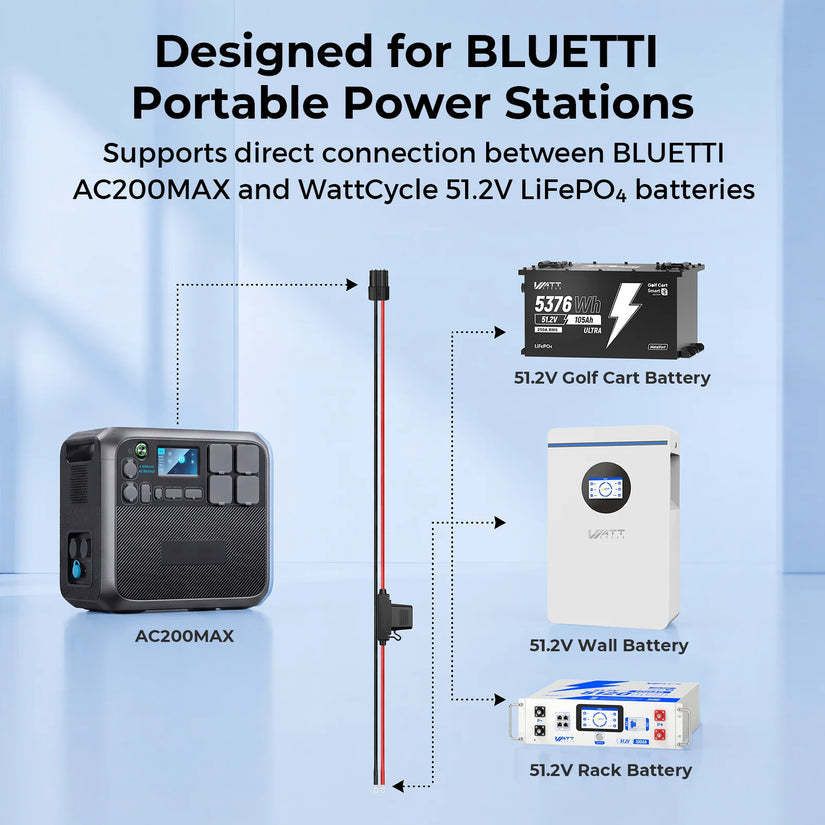

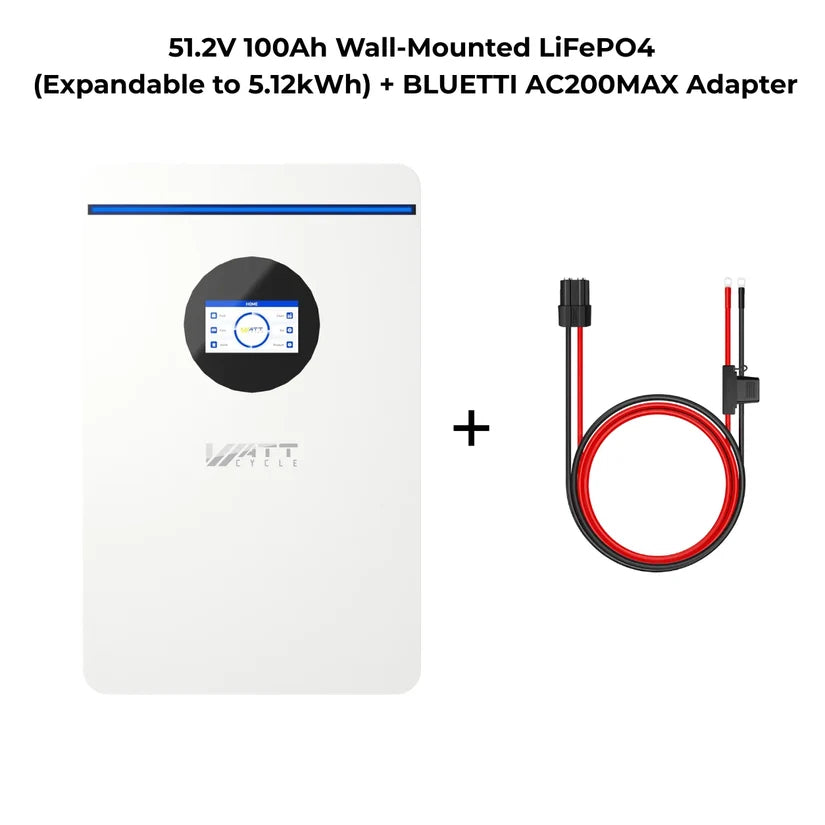

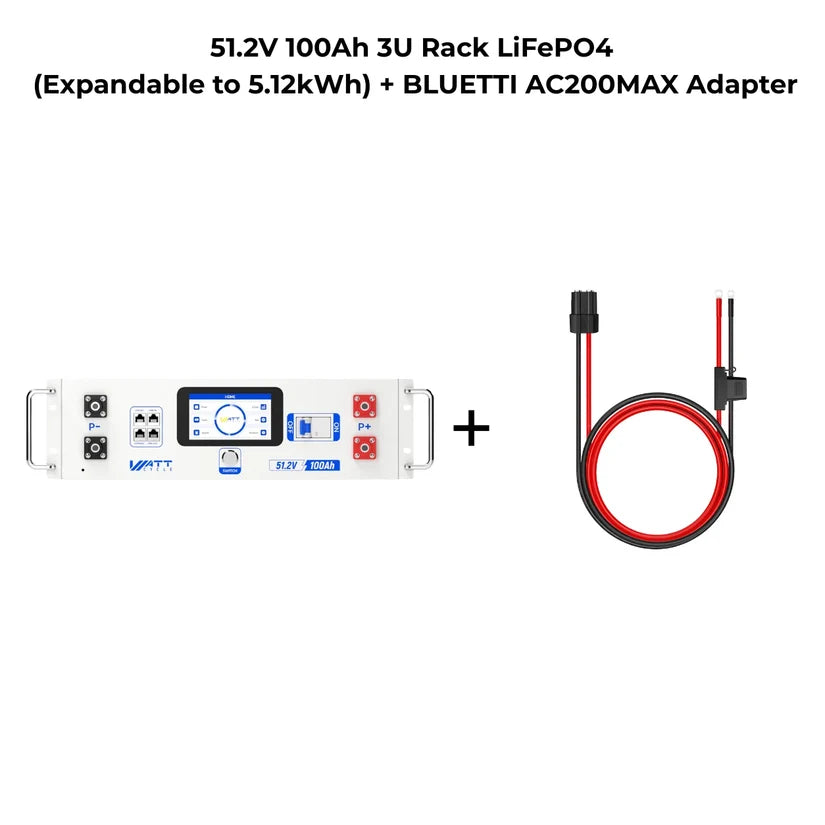

Designed primarily for BLUETTI 51.2V LiFePO₄ Systems (such as the AC200MAX, AC300*, and AC200L*) and compatible 48V series batteries (including WattCycle 48V 100Ah V2 3U rack batteries, 48V 105Ah golf cart smart batteries, and 48V wall-mounted series).
Voltage & Chemistry Match: Both units must be 51.2V LiFePO₄ systems with tightly matched State of Charge (SOC) and voltage levels (voltage difference ≤ 1V).
⚠ CRITICAL SAFETY WARNINGS — READ BEFORE INSTALLATION
1. Short-Circuit Prevention: Always secure and lock the M8 O-type terminal side first before plugging the other end into the power station expansion port. Loose hot wires can accidentally touch and trigger a dangerous short-circuit.
2. Voltage Difference Check: Ensure the voltage difference between the battery and PPS is ≤ 1V. If protection mode trips due to a voltage gap, simply restart your energy storage unit and reconnect.
3. Matched Capacity & Power: Match loads appropriately. Extreme mismatches in capacity or power draw can generate excessive current, exceeding safe limits and blowing the 80A fuse.
Our batteries come with a 5-year warranty, which can be extended to 7 years total upon product registration. Accessories are covered by a 1-year warranty, and like-new (refurbished) batteries include a 1-year warranty.
For full terms, conditions, and claim details, please visit:
-
Fast, Free Shipping
-
30-Day Money-Back Guarantee
-
Hassle-Free Warranty
-
Lifetime Customer Support
Payment Method
The WattLINK Story: Proven Tech, Engineered for PPS
Following the immense success of our EcoFlow-compatible expansion cables—which have been thoroughly battle-tested and trusted by thousands of WattCycle users in the field—we are proud to introduce the WattLINK BLUETTI AC200MAX Expansion Cable, our second major brand-specific power transfer solution.
- 8 Months of Rigorous Laboratory R&D: Initiated in February 2026, this product is the result of 8 months of relentless laboratory testing, protocol cracking, and safety optimization.
- Built on Proven Field Experience: Because our foundational high-current architecture has already been vetted and heavily adopted by the WattCycle community, you are getting a mature, field-proven technology.
- Welcome BLUETTI Users: Say goodbye to brand-name markups. Experience the same freedom to scale your capacity securely and affordably today.
WattLINK - Bluetti AC 200MAX Cable Technical Specifications
FAQ about WattLINK & Bluetti AC200MAX Cable
Yes, it is plug-and-play! However, for maximum safety, please follow this connection rule:
Step 1: Connect the ring terminals (positive to positive, negative to negative) to your external batteries FIRST.
Step 2: Plug the adapter into your BLUETTI power station LAST.
Note: Our cable features flexible 8AWG (200°C rated) silicone wire, positive heat-shrink protection, and a factory-installed 80A inline fuse to safeguard your setup.
Because the cable creates a direct, high-current path between batteries. If you connect a 100% full external battery to a 5% depleted power station, massive equalizing currents will surge through the wire and blow the fuse. Always ensure both your BLUETTI unit and external batteries are at similar charge levels (e.g., both at 100%) before turning them on together.
Since third-party batteries don't communicate BMS data directly with BLUETTI, the power station estimates state-of-charge purely based on overall voltage curve. As you run heavy loads, the power station display will drop faster than the external battery readout (SoC Drift). This is 100% normal—power is still flowing properly!
The WattLINK-Bluetti AC200MAX cable is designed for direct connection to the BLUETTI AC200MAX. For models such as the AC300 and AC200L, due to stricter internal communication requirements, at least one official B300 expansion battery must first be connected to serve as the system "guide" (establishing the necessary communication handshake) before the port can recognize the auxiliary power input.
Any 51.2V LiFePO4 battery that matches your power station’s voltage architecture! This includes WattCycle Server Rack batteries, our portable 50Ah LiFePO4 batteries, 51.2V Golf Cart batteries, or even massive wall-mounted battery systems.
No. WattLINK operates on an independent "no-protocol" direct DC transfer method. Your BLUETTI station and WattCycle battery will each manage their own internal BMS and State of Charge independently, bypassing the need for proprietary brand software.
Yes! WattLINK supports bidirectional fast charging. You can transfer energy back and forth depending on whether you need to recharge your portable power station or draw from your large 48V WattCycle storage bank to power heavy appliances.
For safety, both units should have a voltage difference of ≤ 1V before connecting. If the voltage gap is too wide, the power station's native protection mode may trigger or the built-in 80A fuse will protect the circuit. If it pauses, let the units equalize or restart the system before reconnecting.
Safety is paramount in high-current 48V setups. Securing the M8 O-terminals to the battery first ensures that loose, live wires cannot accidentally brush against each other and cause a dangerous short-circuit while you handle the power station end.
Absolutely!
Gas Generator Cleaning: Pass dirty AC generator power into a dedicated charger -> charge your 51.2V batteries -> feed clean power into the power station to output pure sine wave power.
Unlimited Solar Expansion: Besides plugging solar panels directly into your BLUETTI, you can connect an external high-power MPPT charge controller straight to the external battery terminals, unlocking virtually unlimited solar input potential.
To draw maximum capacity from your external batteries without premature shutdown:
Go to Settings -> Advanced Settings -> Charge Limit Settings.
Set the Max Charge Limit to 100%.
Set your discharge threshold in TOU/Self-Consumption mode to the lowest possible setting.
