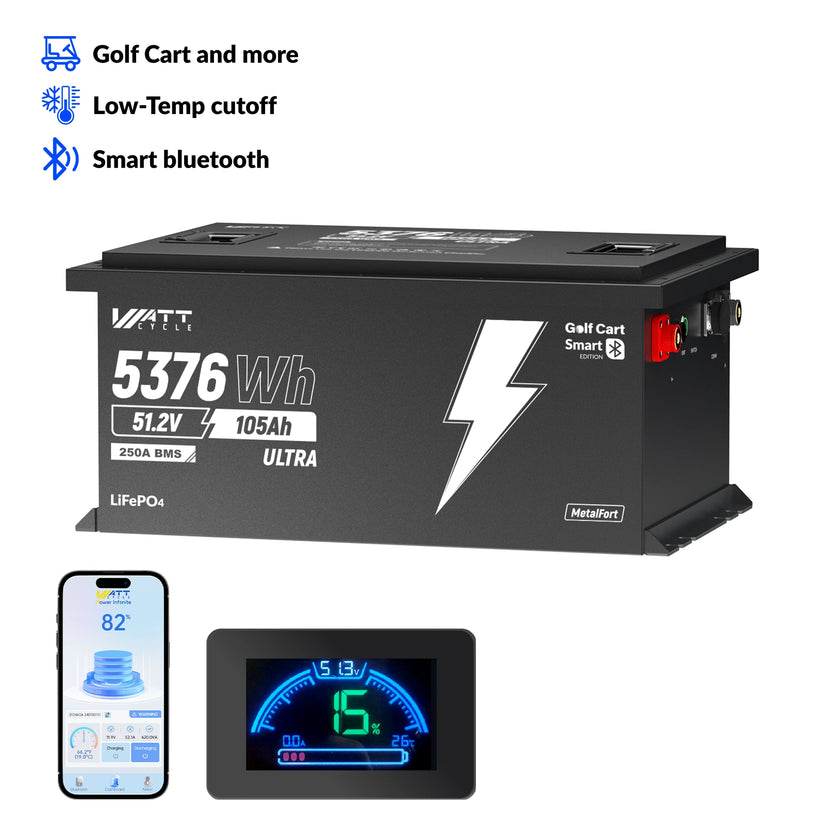

WattCycle 48V 105Ah (5.38kWh) Bluetooth LiFePO₄ Golf Cart Battery – 250A BMS & EVE Grade A Cells
- EVE Grade A Cells with 6000-Cycle Life – Built with premium EVE Grade A LiFePO₄ cells and rated for 6000 cycles at 80% depth of discharge, supporting more than 10 years of reliable service under proper operating and maintenance conditions.
- 250A Continuous High-Current Output – The upgraded 250A BMS supports up to 12.8kW of continuous power, delivering strong and stable performance for acceleration, steep hills, heavier passenger loads and demanding terrain.
- Up to 600A for 30 Seconds – Delivers 600A peak current for 30 seconds and up to 1000A for 1.5 seconds, helping reduce power lag and unexpected cut-outs during rapid acceleration or hill climbing.
- 5.376kWh Extended-Range Capacity – The 51.2V 105Ah battery stores 5.376kWh of energy in a single unit, providing dependable power for golf courses, resort fleets, farms, large properties and other compatible 48V low-speed vehicles.

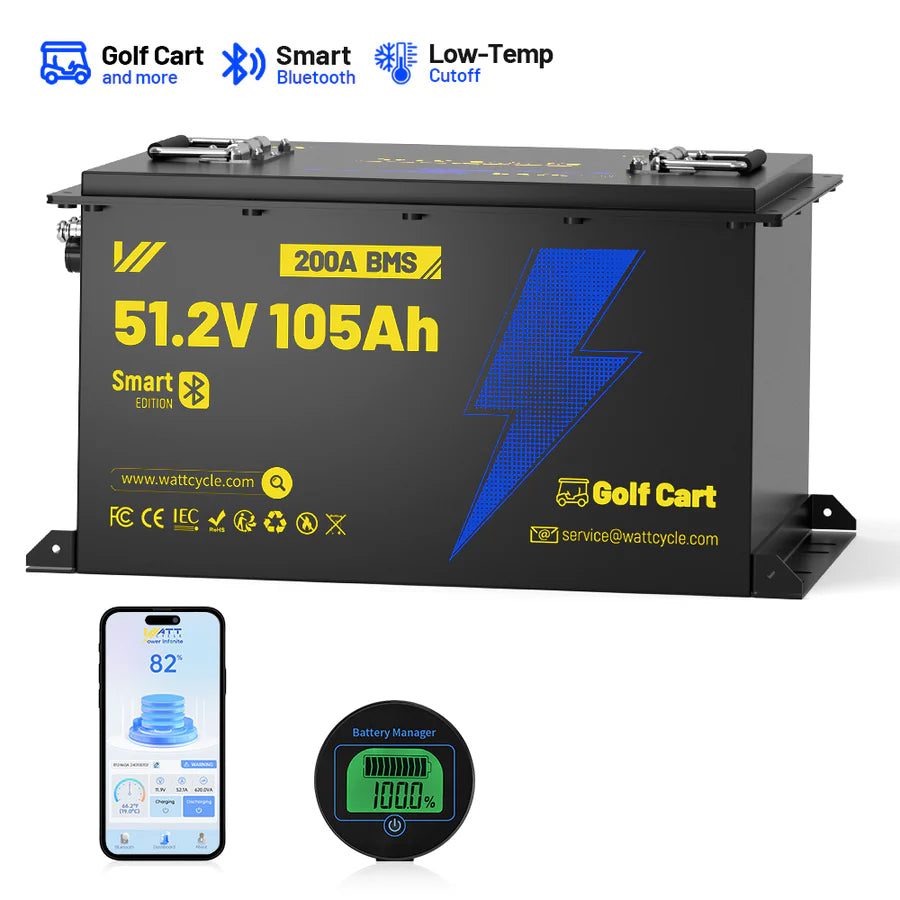

- Bluetooth Smart Monitoring – Connect to the WattCycle App to monitor battery capacity, voltage, current, temperature and operating status directly from your phone.
- Rugged IP65 Metal Housing – The heavy-duty metal enclosure is dust-tight and resistant to water jets, helping protect the battery from vibration, dust, wet grass and demanding outdoor operating conditions.
- Intelligent Temperature Protection – The BMS automatically stops charging at approximately 0°C and protects against excessive charging and discharging temperatures. The supported operating range is 0°C to 55°C while charging and -20°C to 60°C while discharging.

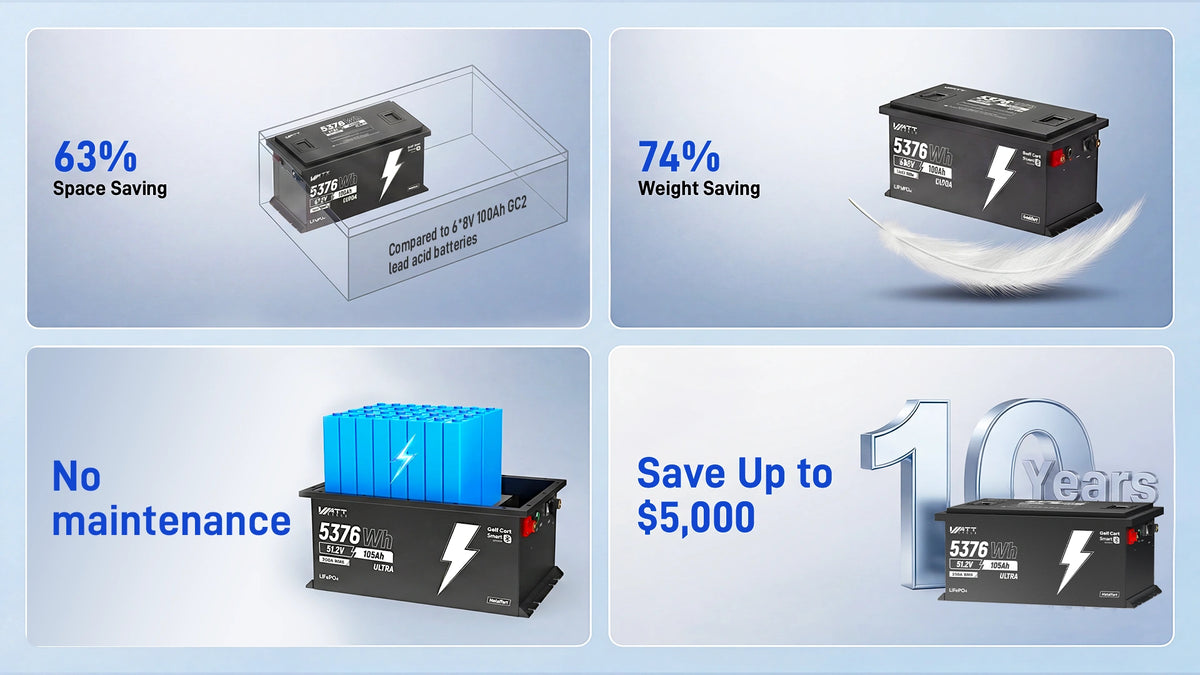

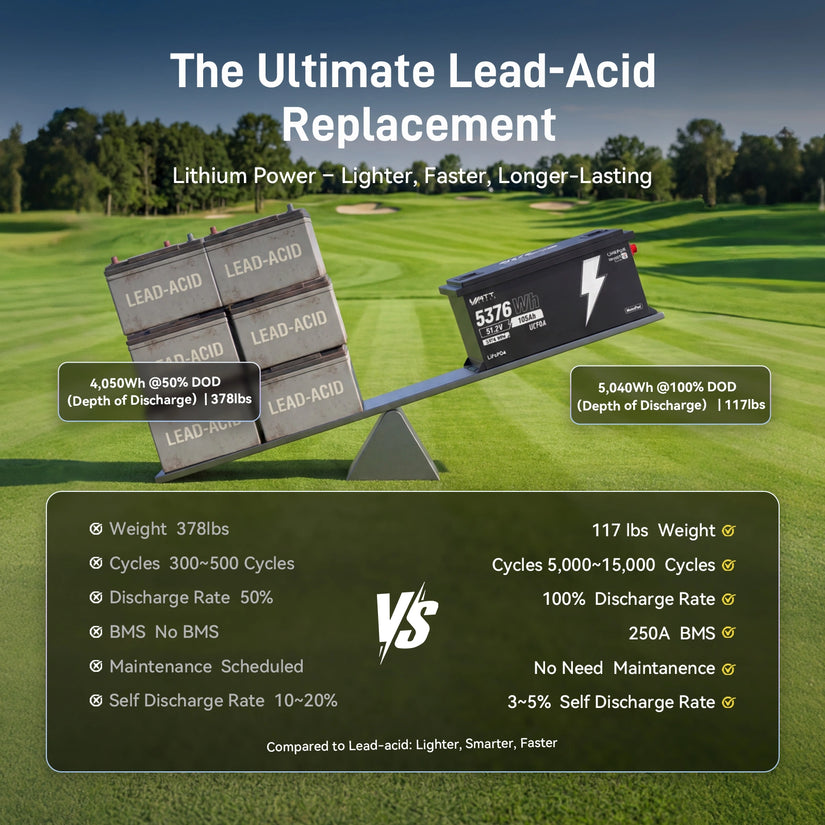

- Replace a Complete 48V Lead-Acid Bank – Replaces a traditional battery bank using up to eight 6V lead-acid batteries, reducing cable connections, routine maintenance and overall system complexity.
- Designed for Popular 48V Golf Carts – Suitable for compatible 48V models from Club Car, E-Z-GO, Yamaha, Cushman, Star EV, Tomberlin, ICON EV and Bintelli. Please confirm the battery compartment dimensions and electrical requirements before ordering.

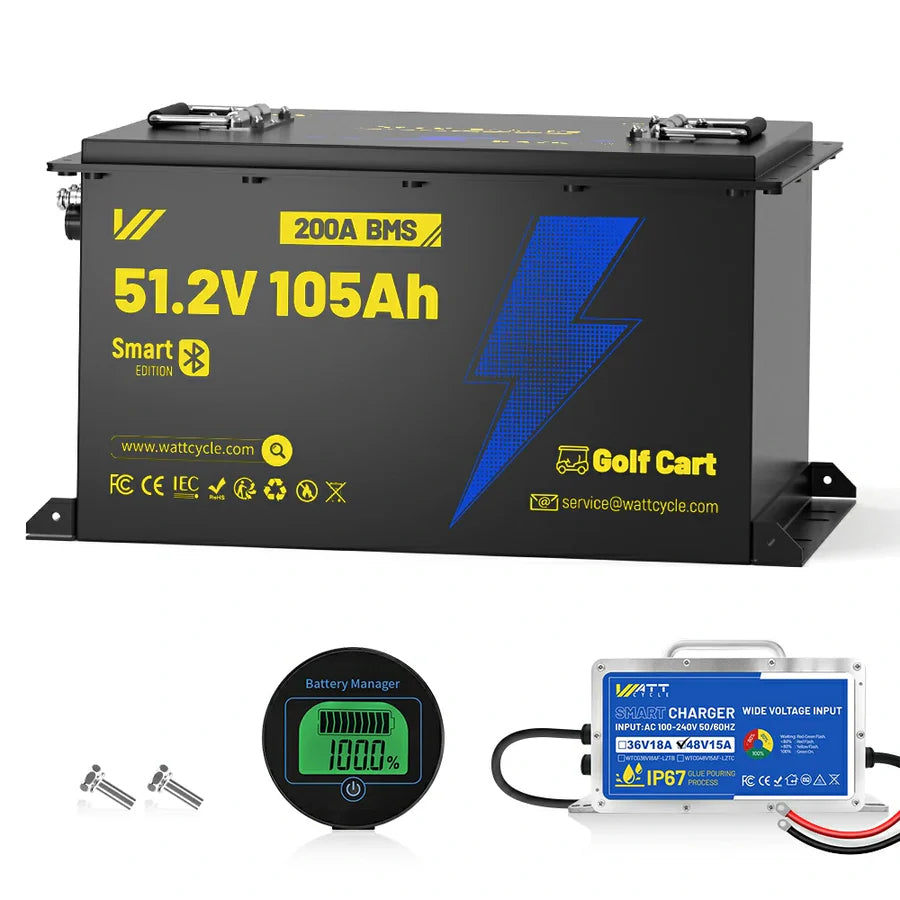

- Optional 58.4V 15A Charger – Choose the battery-and-charger package for a matched LiFePO₄ charging solution. A full charge from empty takes approximately 7–8 hours under normal conditions.
- Low Self-Discharge for Seasonal Storage – With a monthly self-discharge rate below 3% and a physical ON/OFF switch, the battery is easier to store between rounds or during extended periods of inactivity.
- 5-Year Warranty and Lifetime Support – Backed by WattCycle’s 5-year warranty, responsive customer service and lifetime technical support.
- Safety & Compliance: IEC 62619 tested, UN 38.3 tested, CE-EMC, FCC SDoC and RoHS compliance documentation, with MSDS and sea transport reports available.
Free local shipping for all orders, except some areas need extra shipping cost.
Our batteries come with a 5-year warranty, which can be extended to 7 years total upon product registration. Accessories are covered by a 1-year warranty, and like-new (refurbished) batteries include a 1-year warranty.
For full terms, conditions, and claim details, please visit:
-
Fast, Free Shipping
-
30-Day Money-Back Guarantee
-
Hassle-Free Warranty
-
Lifetime Customer Support
Wattcycle Newest 51.2V 105AH Steel Golf Cart Battery For Our Club Car Solar Cart

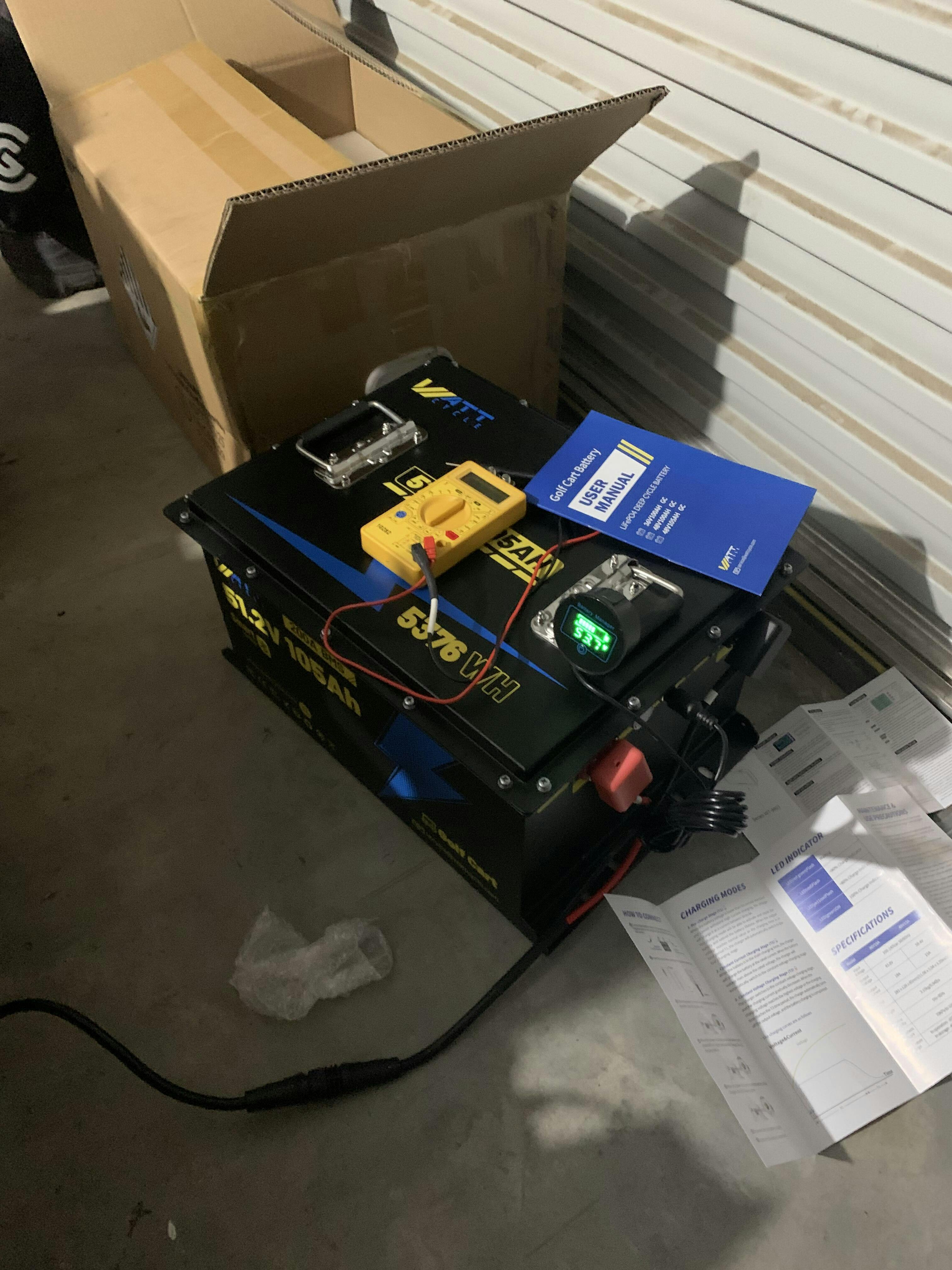

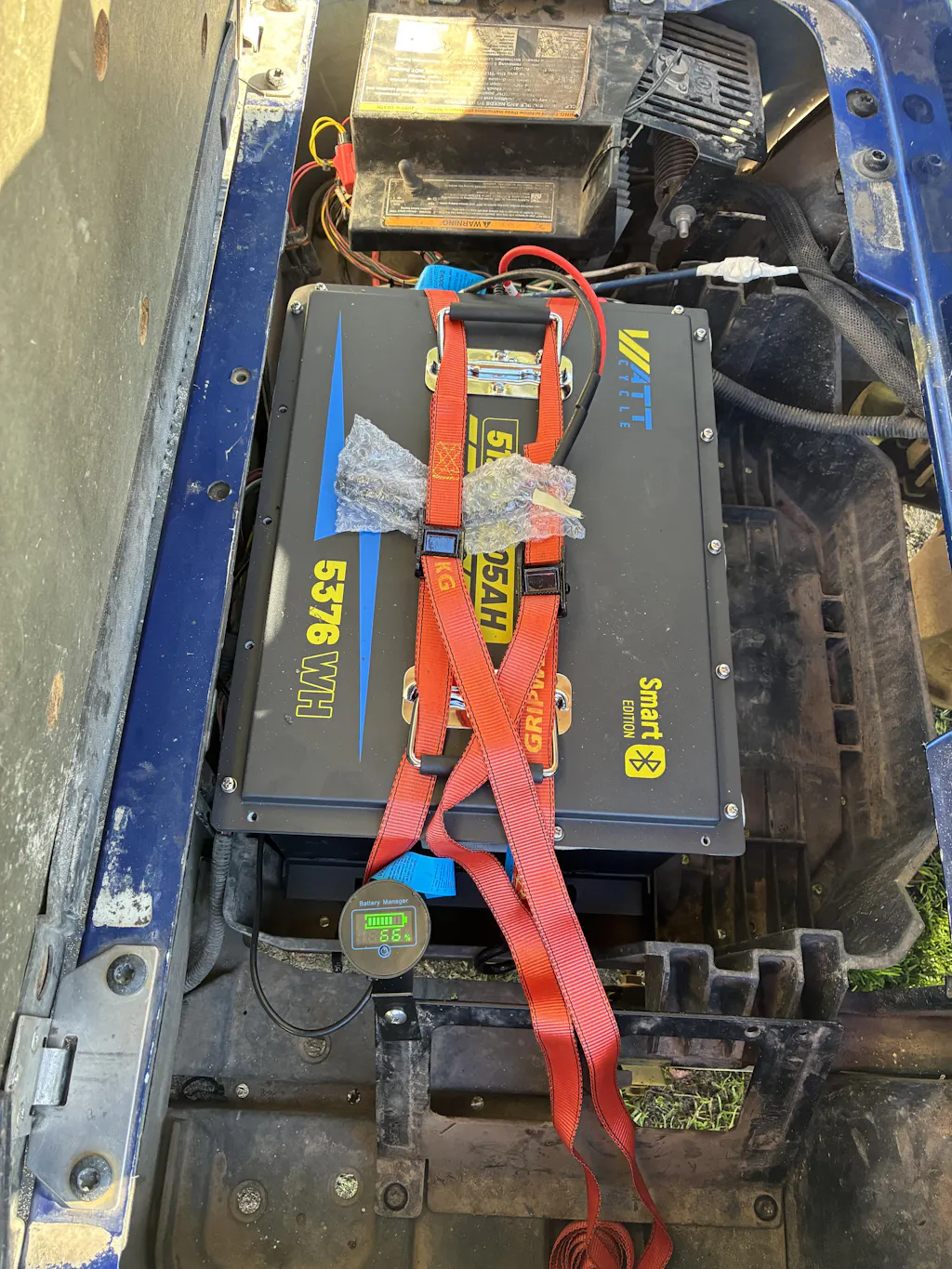

Wattcycle just released a new line of golf cart batteries and I was given a chance to get the first one to try. No app needed to control or monitor but also has Bluetooth and app monitoring. The most rugged and safest battery I have tried so far.

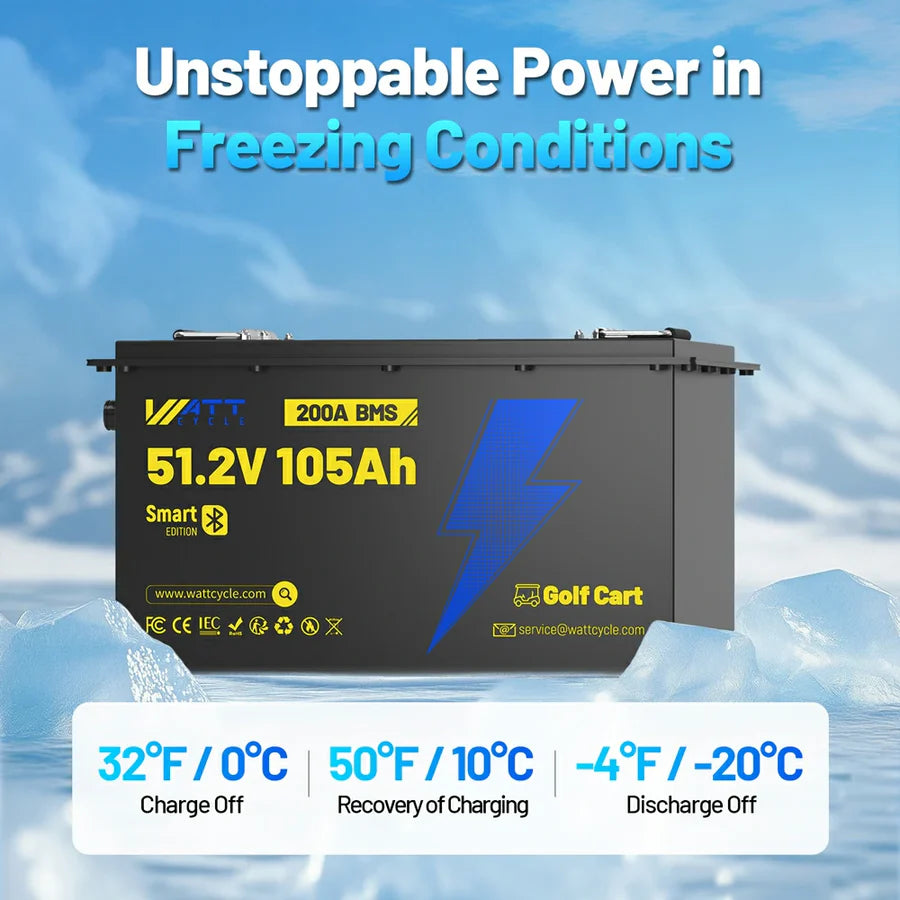

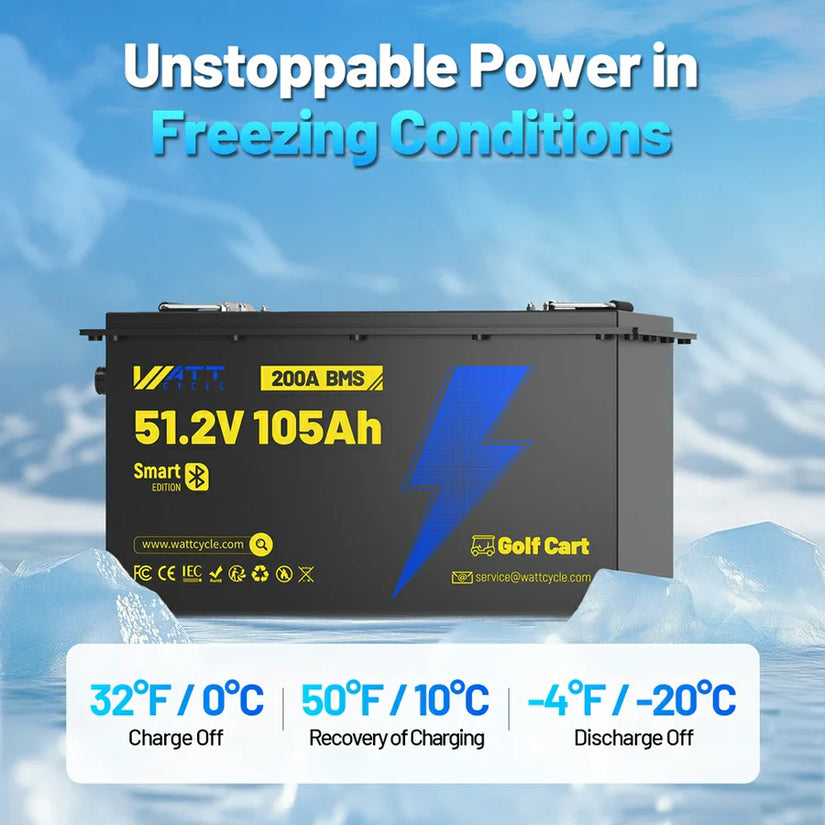

When winter chills set in, this Golf Cart Battery maintains dependable performance thanks to its intelligent low-temperature cut-off: charging pauses below 32 °F and resumes at 50 °F, while discharge remains available down to –4 °F. Encased in IP67-rated housing, it keeps out dust and water, and paired with UL94 V-0 fireproof materials, it delivers resilient power even in the most demanding conditions—so your lithium golf cart batteries stay ready, come rain, snow or sleet.

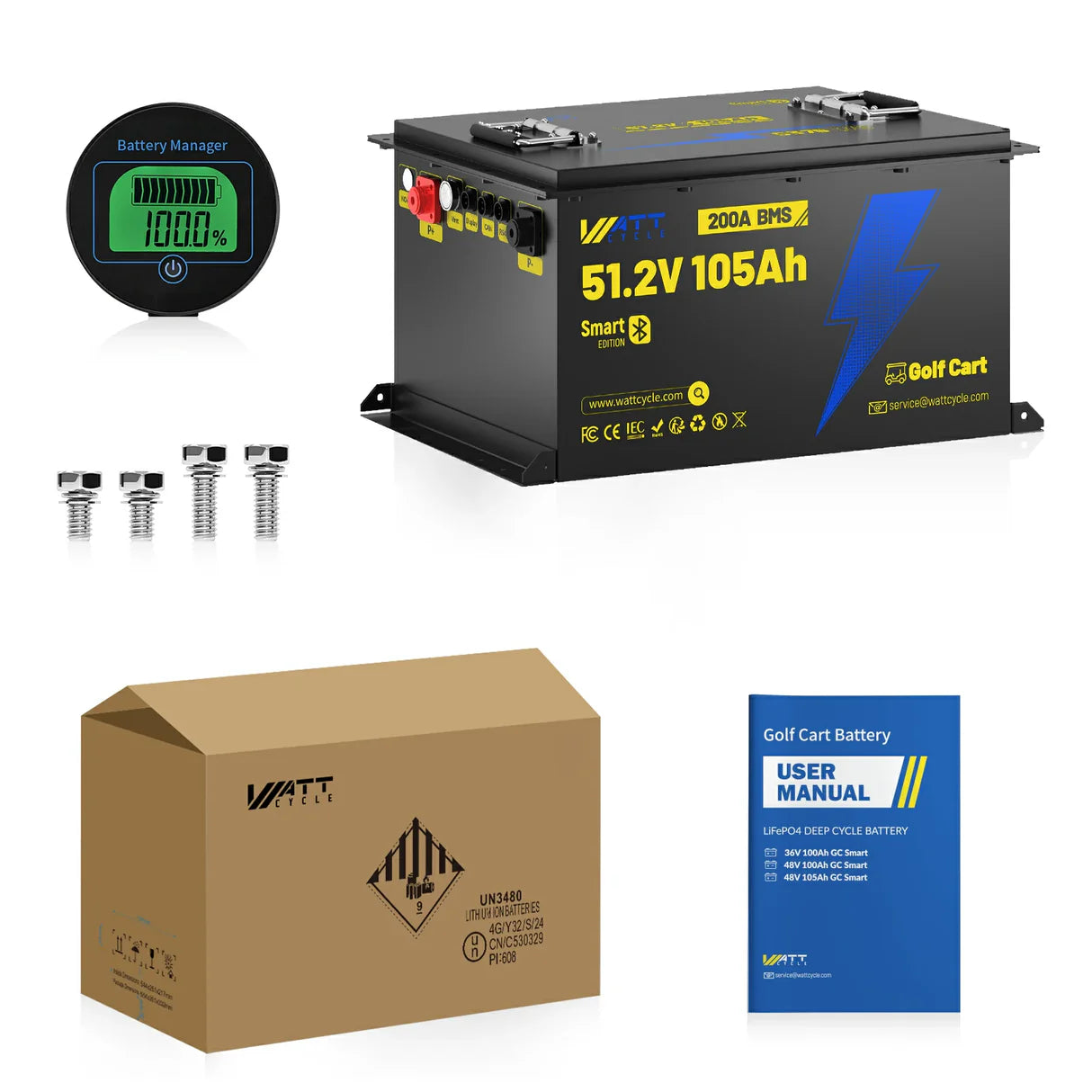

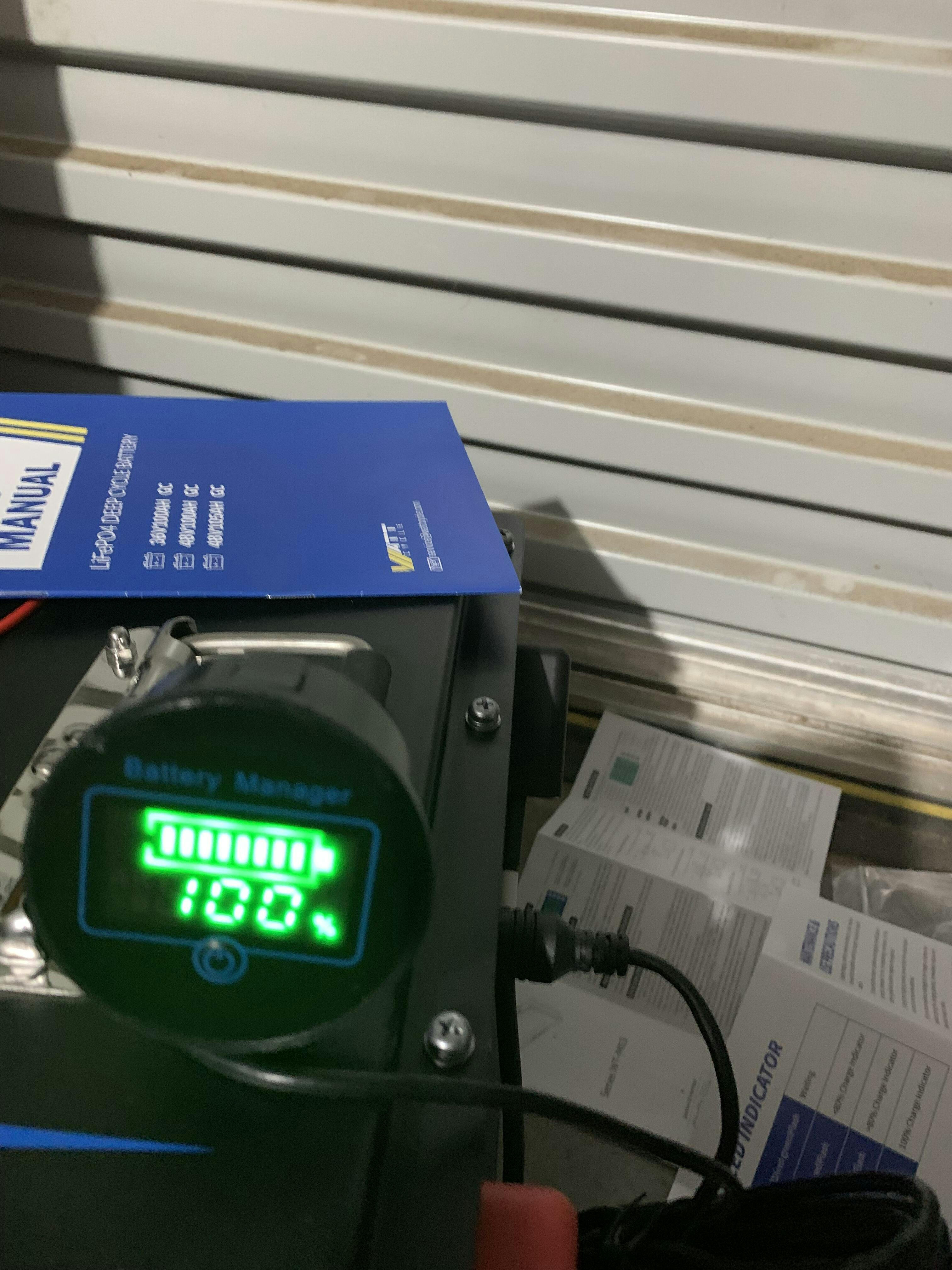

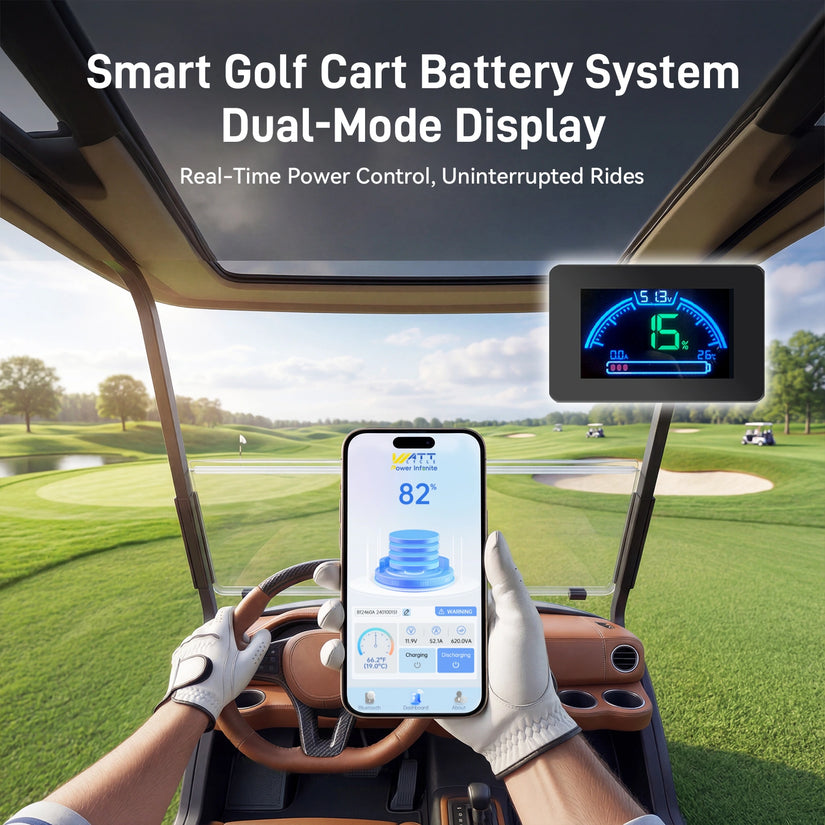

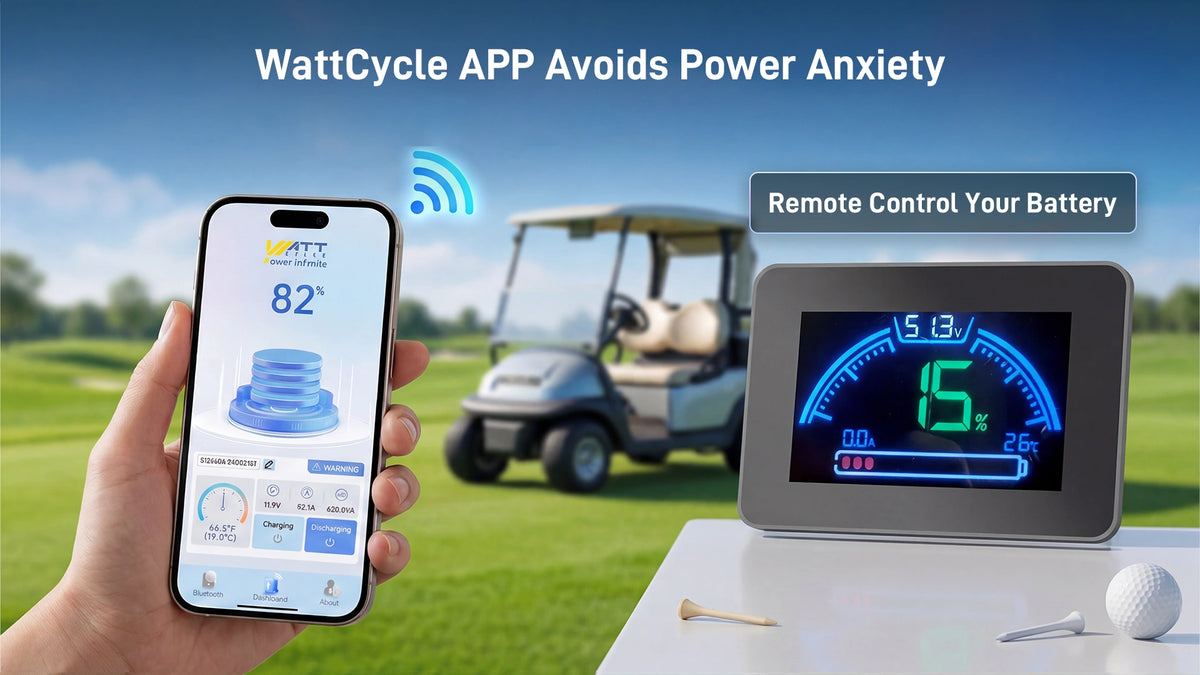

The WattCycle 51.2V 105Ah Golf Cart Battery features a smart external display that brings key metrics directly to your fingertips. At a glance, you can verify voltage, remaining capacity and temperature— so you can know the status information of your golf cart even without your phone. This on-board interface enhances user confidence and operational efficiency, making it one of the most intuitive golf cart batteries available. Moreover, after our tests, the data information on the screen is more accurate than that on the Bluetooth APP.

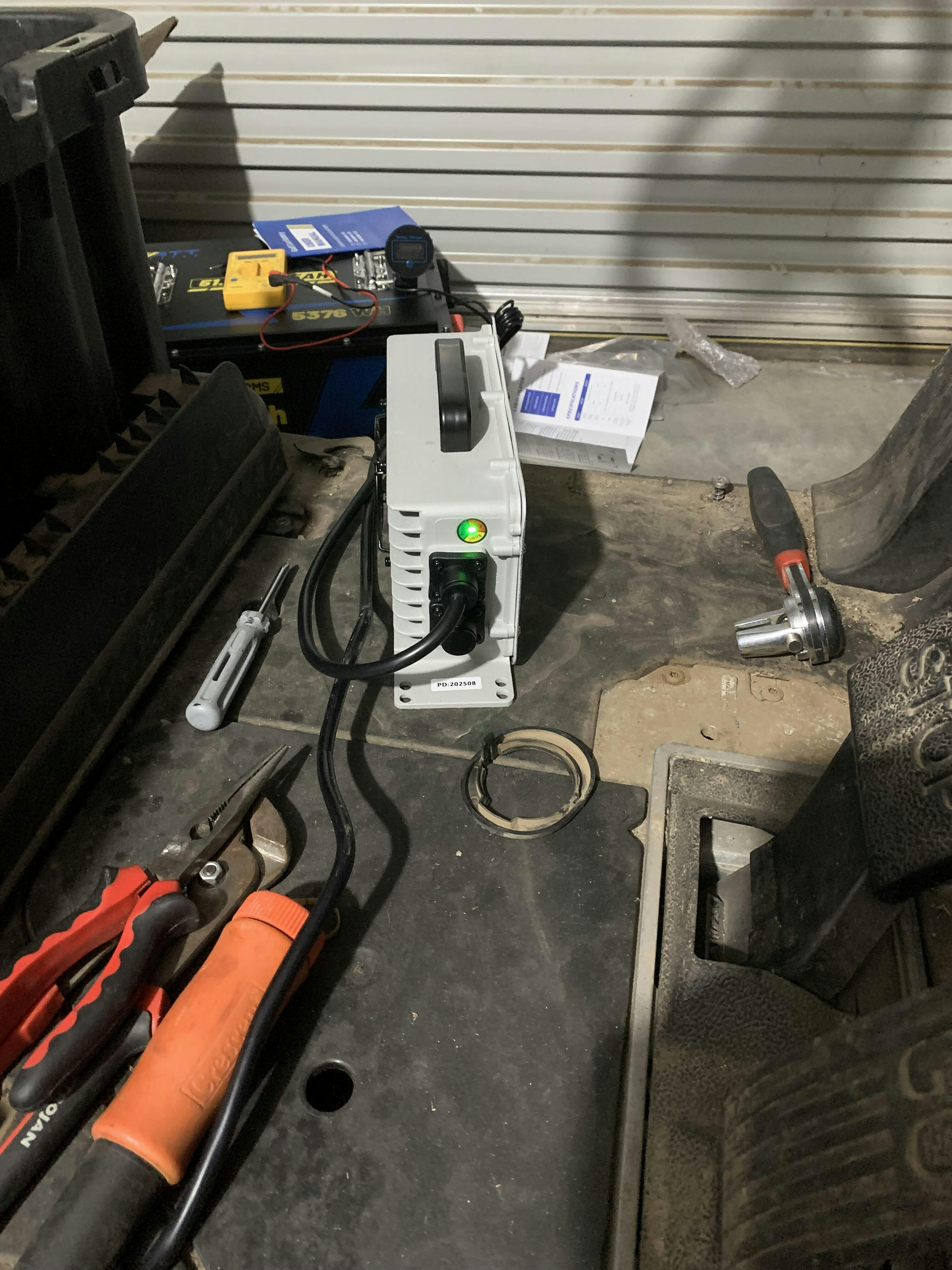

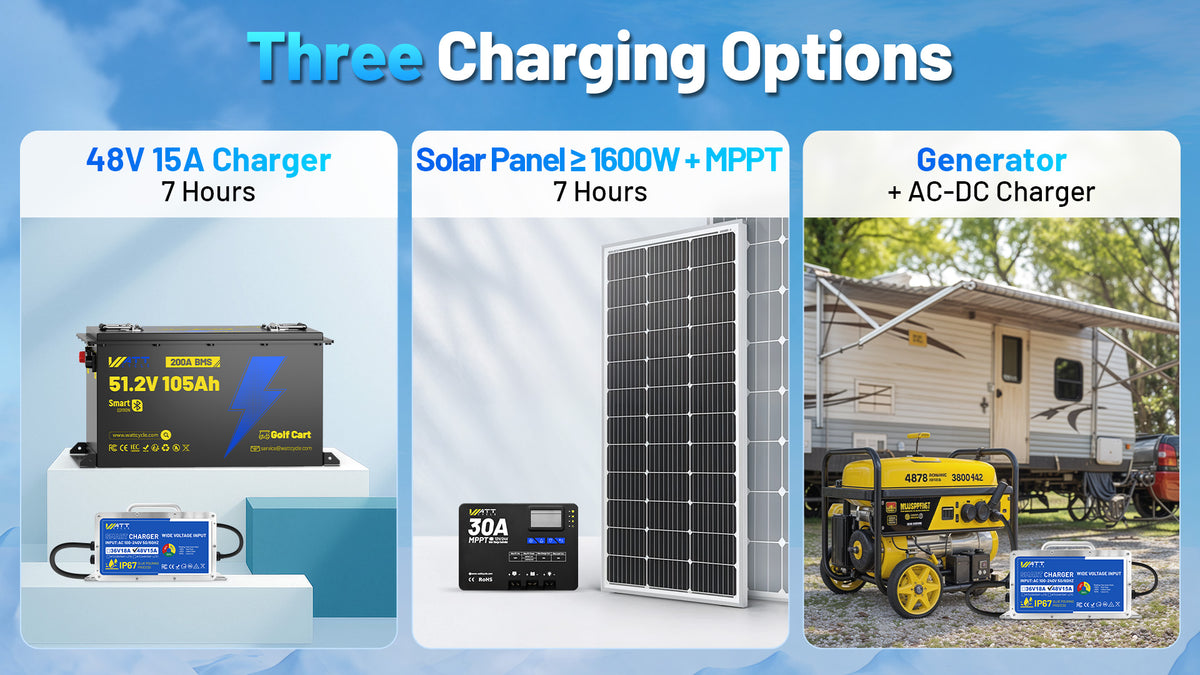

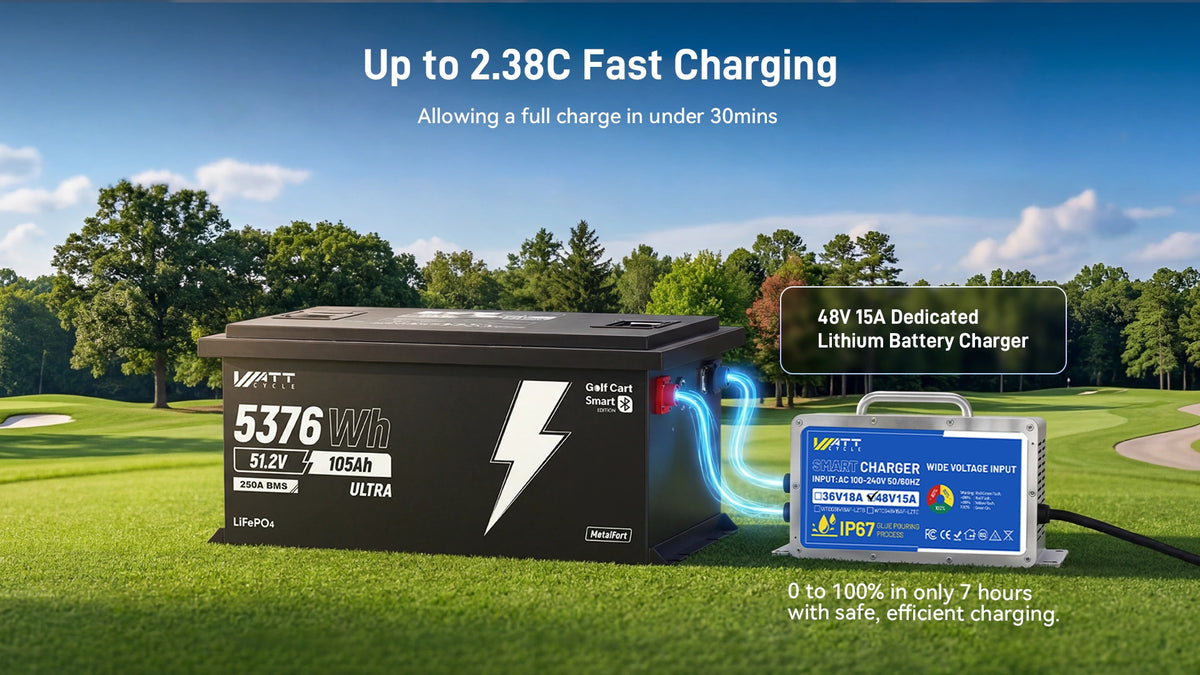

Whether you choose our dedicated 48 V/15 A charger, a solar array of 1.6 kW or greater paired with an MPPT controller, or a generator feeding an AC-DC converter, the WattCycle 48V (51.2V) 105 Ah Golf Cart Battery refreshes to full capacity in about 6.7 hours. This flexibility means you’re never tied to a single power source—simply plug in your golf cart battery charger, set up your solar rig, or fire up a generator, and you’ll be back on the course with minimal downtime.

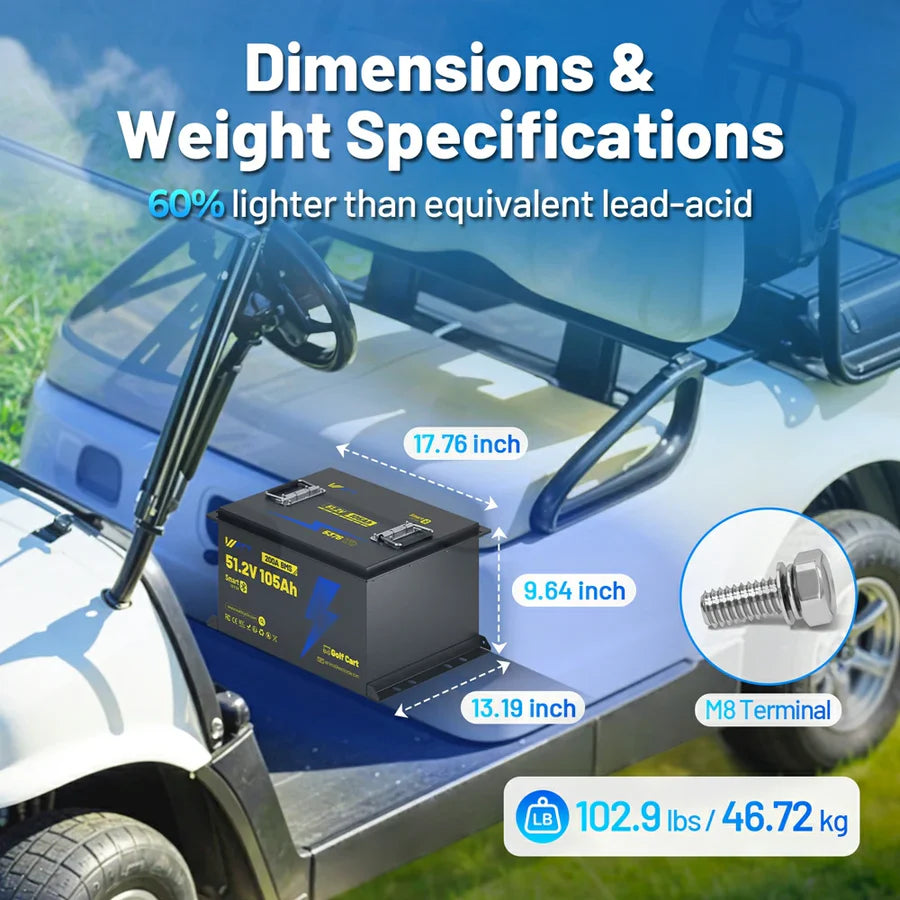

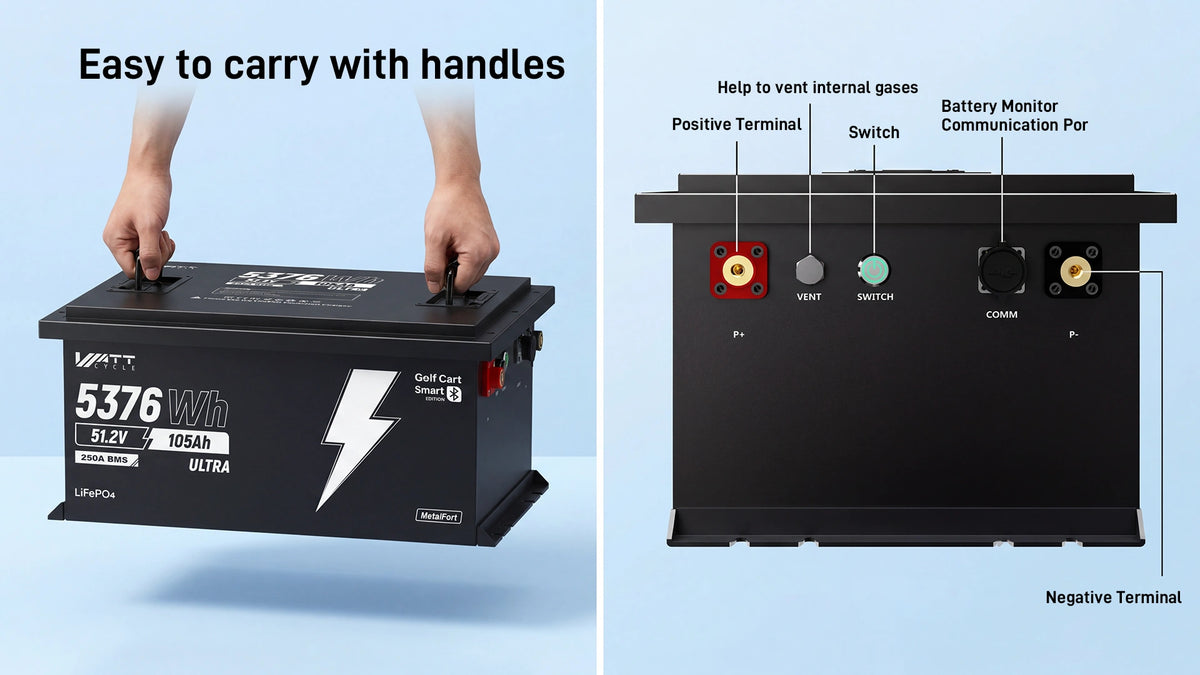

The WattCycle 48V (51.2V) 105 Ah Golf Cart Battery measures 17.76″ × 13.19″ × 9.64″ and weighs just 103 lbs, conforming to standard industrial dimensions for effortless installation in today’s most popular 48 V systems. Designed as a true drop-in replacement, it integrates seamlessly with leading golf cart batteries from Club Car, E-Z-GO, Yamaha, Cushman, Star EV, Tomberlin and Icon EV—no adapters or modifications required. Whether you’re swapping out old lead-acid packs or upgrading to a high-capacity lithium solution, this 48 volt lithium golf cart battery delivers consistent power and long cycle life, all while fitting neatly into your existing compartment.
Beyond the fairway, this battery proves its versatility as a reliable energy reservoir for solar storage systems, RV electrical setups, marine applications and off-grid installations. As a true deep cycle lithium golf cart battery, it delivers consistent discharge profiles and long cycle life—but keep in mind it is not intended for engine cranking. Whether you’re integrating with a standard golf cart battery charger or pairing with renewable power arrays, this 48 volt golf cart battery adapts effortlessly to diverse power demands, giving you a single solution across multiple platforms.
Tech Specs
Basic Specifications
| Nominal Voltage | 51.2V |
| Nominal Capacity | 105Ah |
| Energy | 5376Wh (5.376kWh) |
| Cycle Life | 6000 Cycles @ 80% DOD |
| Monthly Self-Discharge | ≤3% |
| Protection Rating | IP65 |
| Terminal | M8 |
| Case Material | Metal |
| Dimensions | 520 × 335 × 231 mm |
| Weight | 48.45 kg ±3% |
Charging
| Charge Mode | CC/CV |
| Charge Voltage | 57.6 ± 0.8V |
| Recommended Charge Current | 21A |
| Maximum Charge Current | 250A |
| Charge Cut-Off Voltage | 58.4 ± 0.64V |
Discharging
| Recommended Discharge Current | 52.5A |
| Maximum Continuous Discharge Current | 250A |
| Discharge Cut-Off Voltage | 40 ± 0.64V |
Frequently Asked Questions
The battery is suitable for many compatible 48V golf carts, including selected Club Car, E-Z-GO, Yamaha, Cushman, Star EV, Tomberlin and ICON EV models.
Before ordering, confirm that your battery compartment can accommodate its 451 × 335 × 245mm dimensions and that your controller supports a 51.2V LiFePO₄ battery. If you are unsure, contact us with your cart brand, model, year and compartment measurements.
Yes. One compatible 51.2V 105Ah battery can replace a complete 48V lead-acid bank, such as eight 6V, six 8V or four 12V batteries.
Remove all existing lead-acid batteries before installation and never mix lithium with lead-acid batteries. Some carts may require a hold-down bracket, cable adaptor, connector modification or onboard-charger bypass.
The battery stores 5.376kWh of energy, providing extended runtime for golf courses, neighbourhood driving and utility use. It also offers approximately 5% more energy than a 100Ah battery.
Actual range depends on the cart model, motor, controller, terrain, speed, passenger load, tyre pressure and accessories. Contact us with your vehicle details if you need a more specific runtime estimate.

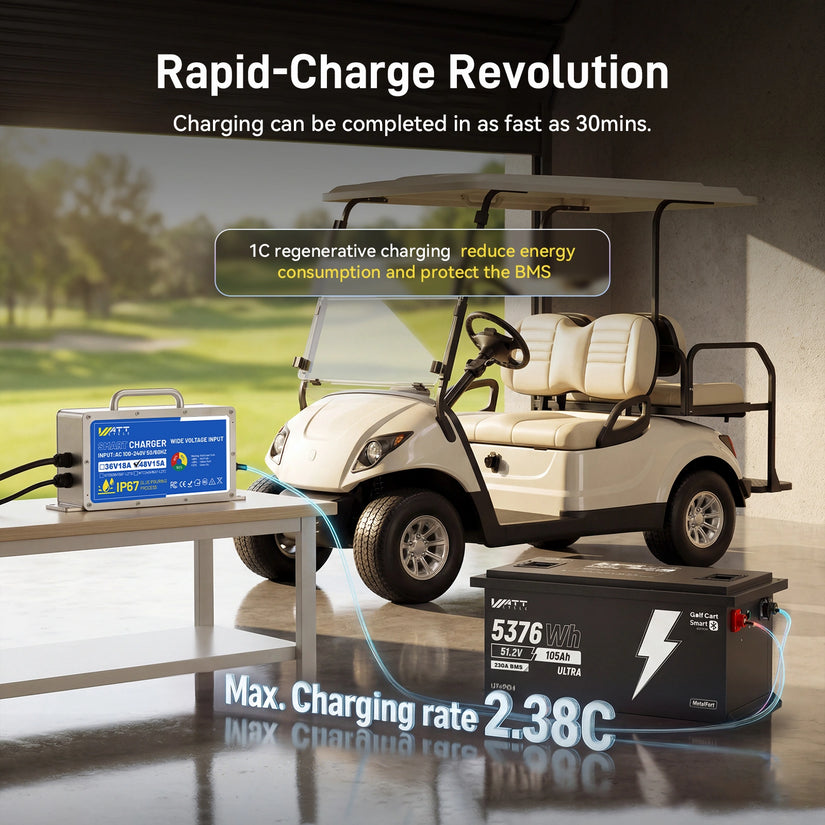

Use a 58.4V LiFePO₄ charger with a CC/CV charging profile. The optional 48V 15A charger takes approximately 7 hours to charge the battery from empty.
Do not use the original lead-acid charger unless its charging voltage and profile have been confirmed as LiFePO₄-compatible. Select Battery + Charger when ordering if you require the compatible charger.

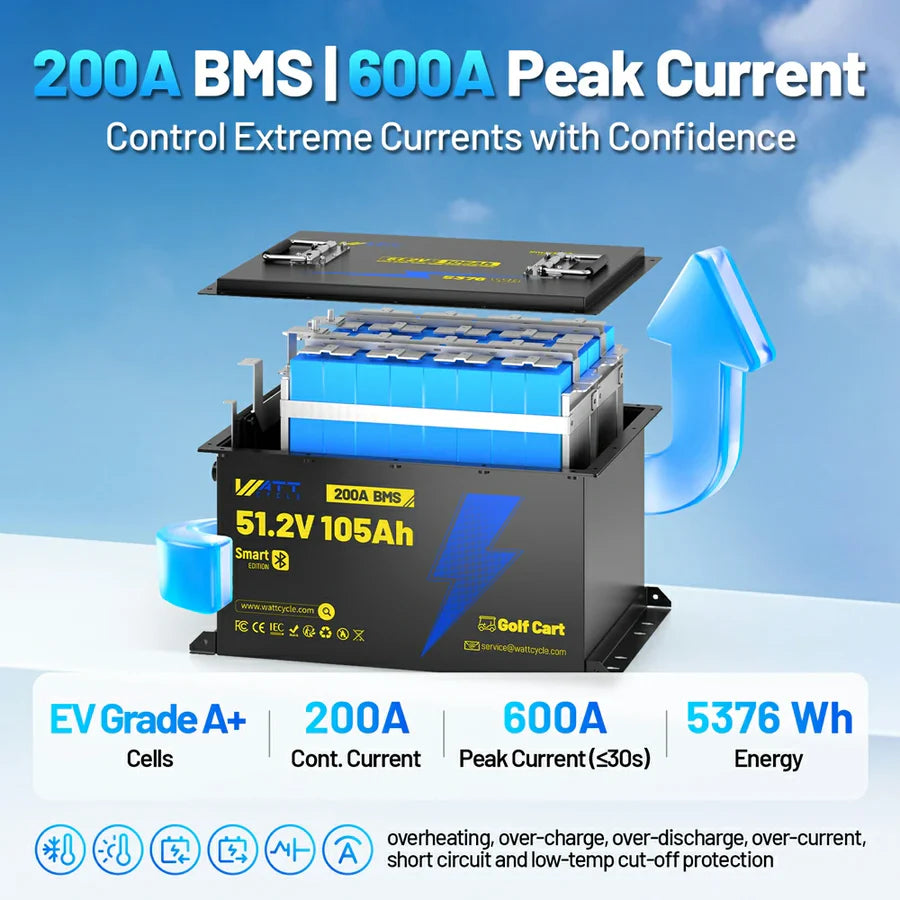

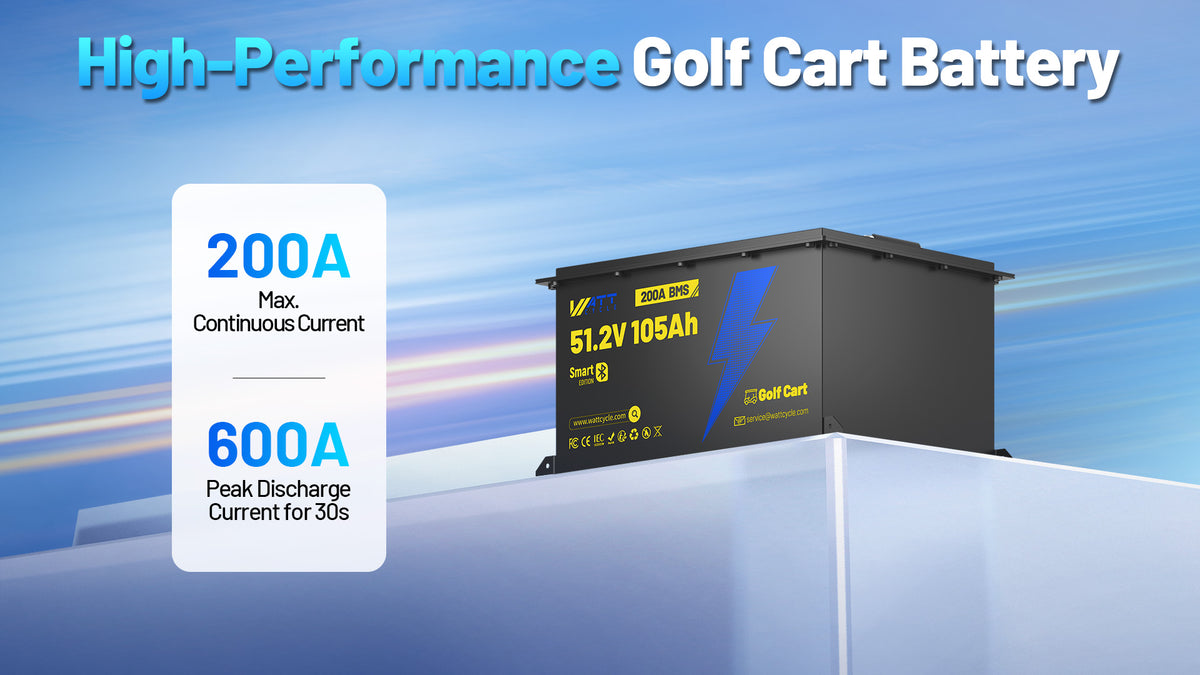

The built-in 200A smart BMS supports up to 10.24kW continuous output and 600A peak current for up to 30 seconds, with protection against overcharge, over-discharge, over-current, short circuits and abnormal temperatures.
Battery status can be checked through the Bluetooth App and intelligent battery display. The IP67-rated enclosure provides additional protection against dust and water. The battery includes a 5-year warranty, extendable to a total of 7 years after product registration.
