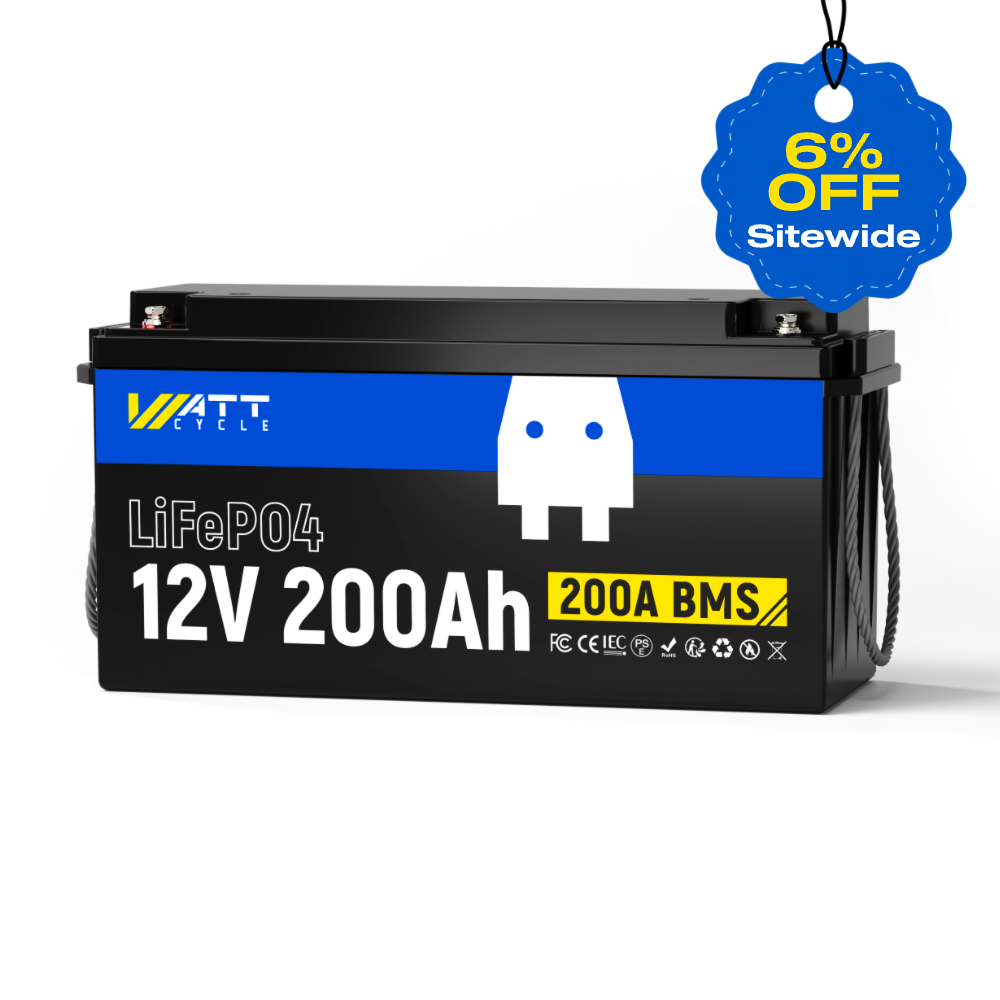

WattCycle 12V 200Ah LiFePO4 Battery

WattCycle 12V 200Ah LiFePO4 Battery

AUD799.89
AUD799.89
Sale Sold out
Free shipping, tax and discount code calculated at checkout.

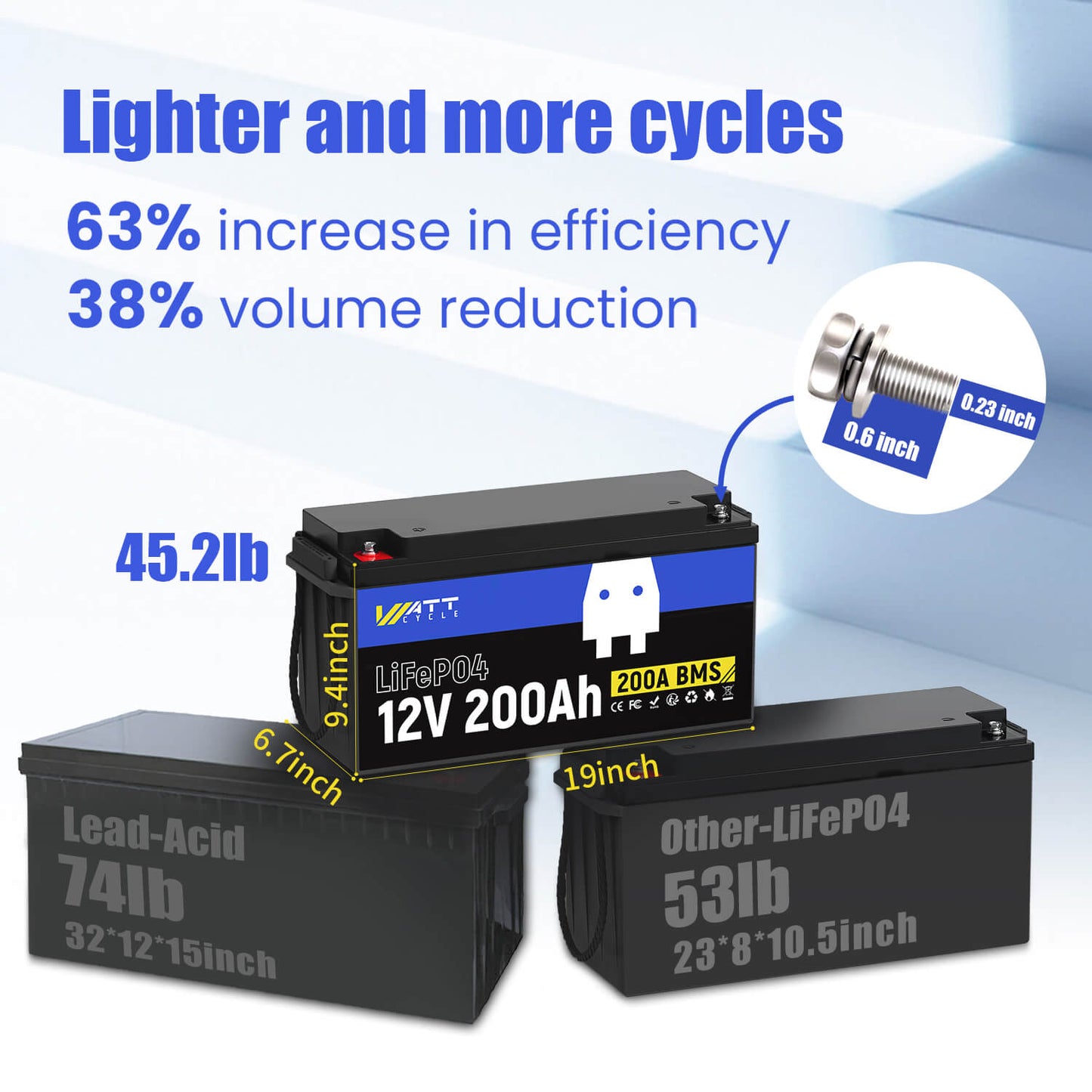

  • Compact: 21.0 x 8.2x 8.5 Inches
  • Lightweight: 45.20 lbs
  • Safe: Low-temperature cut-off protection
  • Premium: EVE grade A+ LiFePO4 cells
  • Durable: 5,000-15,000 deep discharge cycles
  • Reliable: Built-in 200A BMS | 2560W | 2560Wh
  • Scalable: Expandable max 4S4P, up to 40.96kWh
  • Certification: SDS/UN38.3/FCC/CE/ROHS/UL

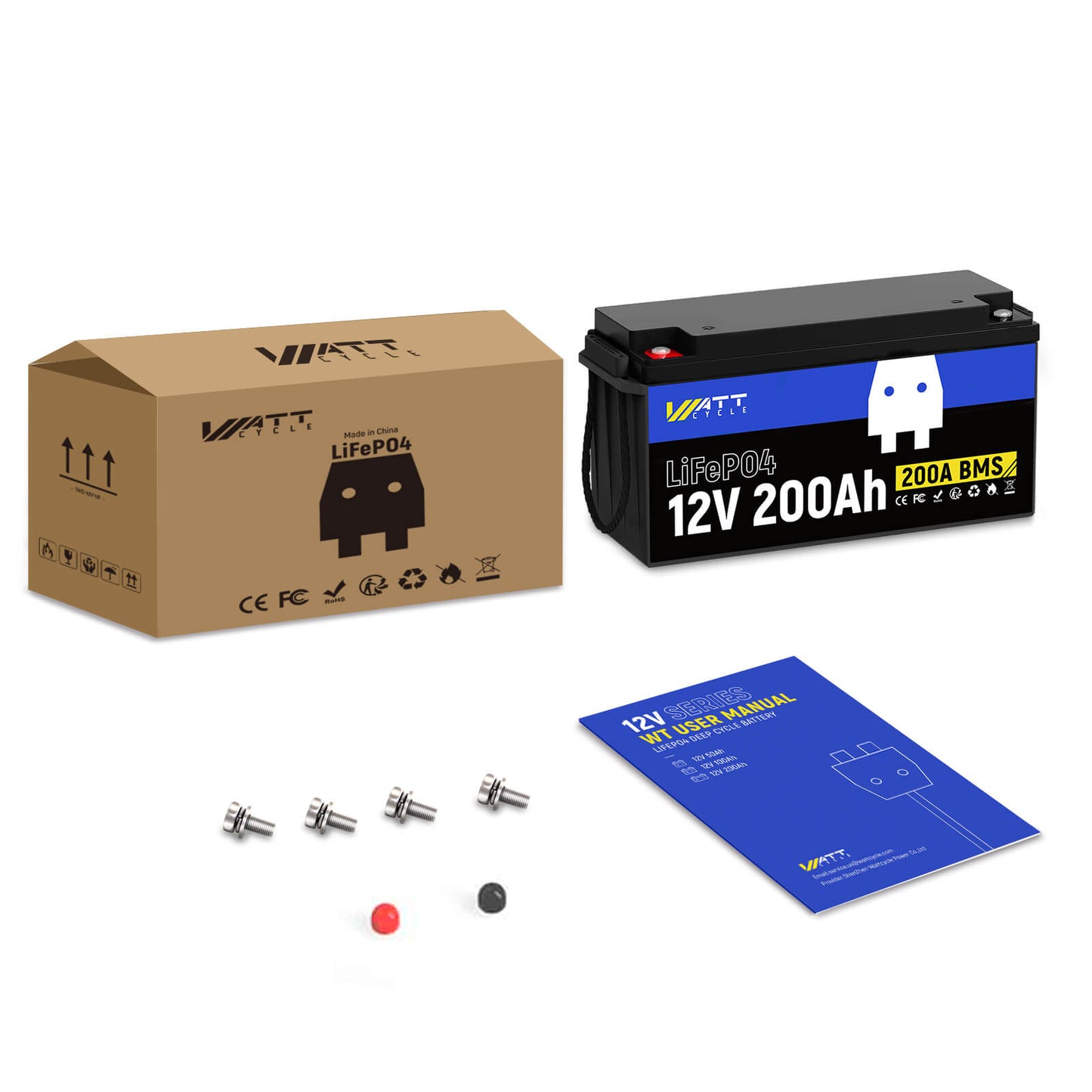

PACK
  • 5-Year Warranty
  • Hassle-free Returns
  • 7/24 Help & Advice

Shipping

Free local shipping on all orders.

Description

12V 200Ah LiFePO4 Battery: Compared with traditional lead-acid batteries, WattCycle LiFePO4 battery is made of the latest lithium-ion material, the battery doesn't contain any heavy metal elements, it's safer and more environmentally friendly. The 12v battery has the advantages of high energy density, long cycle life, good safety performance and no harmful hydrogen gas.

Fast Charging and Solar Charging: WattCycle lithium marine battery can be charged through the RV's solar charging panel, which needs to be equipped with the appropriate controller or inverter. Our LiFePO4 battery's new structural components design, compared with traditional lead-acid battery and other ordinary lithium battery, our charging efficiency has increased by 15%. No need to worry about no charging power or dead battery in outdoor.

Support for Series and Parallel Use: WattCycle LiFePO4 12v battery is scalable for both parallel and series connection to meet the needs of larger capacity and voltage. Both series and parallel connection are recommended to use the same brand of battery for connection, the batteries must have the same voltage and capacity and be purchased within 6 months. A maximum of four batteries are supported for connection for greater capacity and higher voltage.

Applicable to Many Scenarios: WattCycle 12v battery can be used in RV/outdoor camping, automobiles, boats, golf carts, trolling motors, wheelchairs, ride-on toys, computer back-up power, emergency lighting equipment, alarms, home energy storage, solar and wind energy storage, etc. When using it on ride-on toys, please choose a larger capacitor to avoid power failure caused by load protection. Please choose the appropriate battery capacity according to your usage scenario.

Quality Assurance and After-sales Service: WattCycle batteries offer 5-10 years of float and standby use with no maintenance required. With a single installation, you can have your system or application up and running quickly. All WattCycle lithium batteries come with after-sales quality assurance. For any questions or quality issues, please contact our support team. We are committed to providing you with satisfactory after-sales service.

Download

12V 200Ah User Manual

View full details

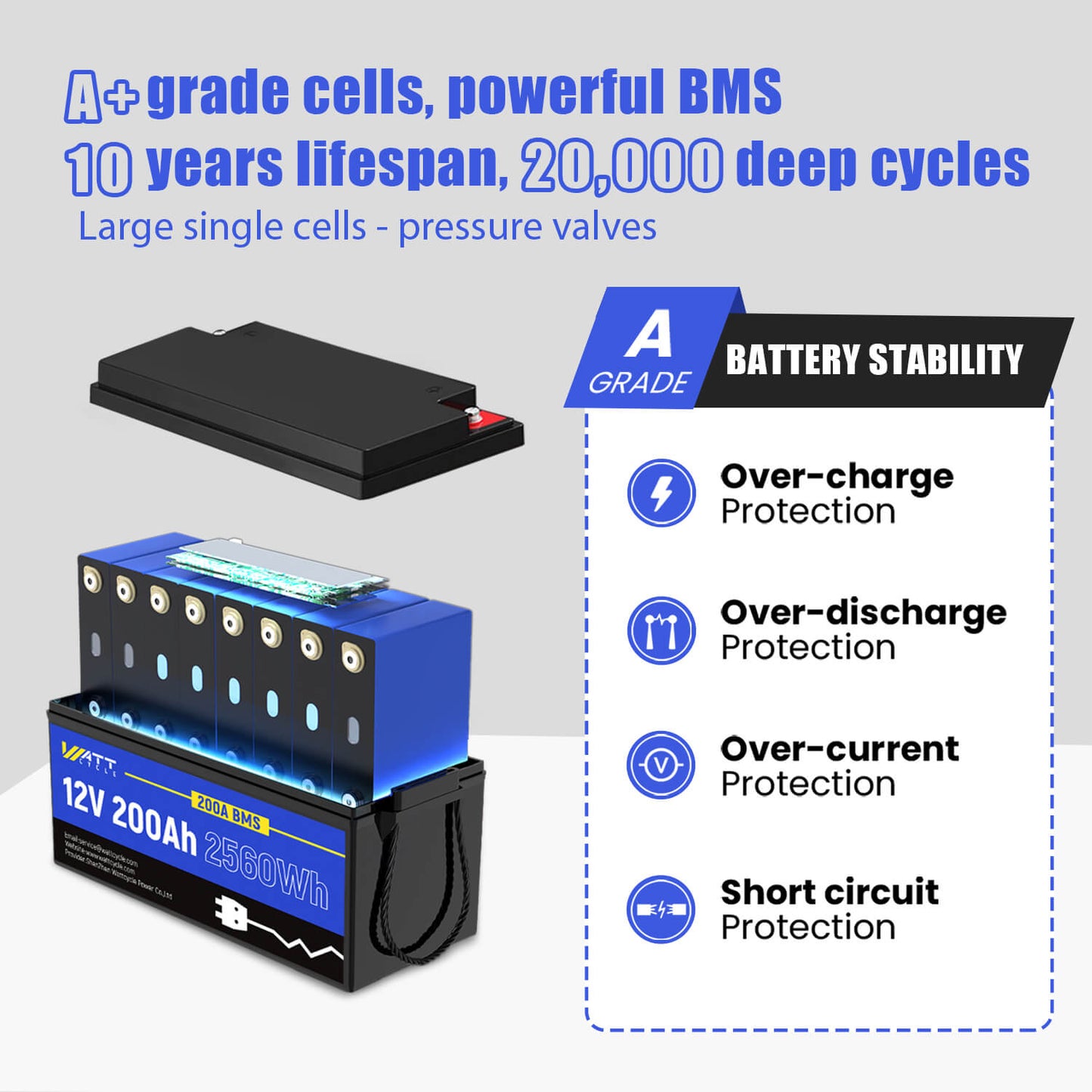

Only Grade A Cells, Powerful Core

  • Brand New EVE Grade A+ Cells
  • Superior Quality and Reliability
  • Longer Lifespan
  • High Energy Density
  • Safety and Stability
  • Consistent Performance
  • High Performance in Extreme Conditions
  • Environmental Friendliness

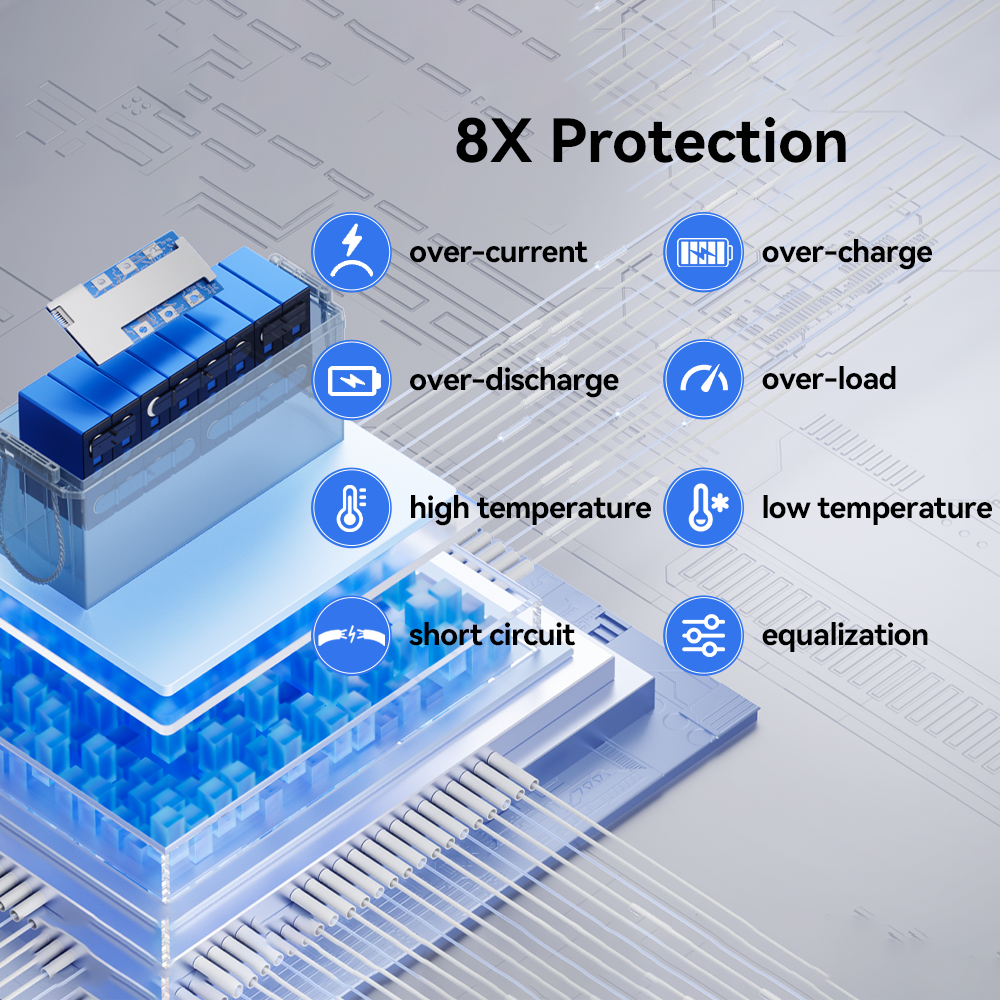

Primary Safety: EV-Grade BMS Protection

  • Max. Cont. Discharge Current: 200A
  • Max. Cont. Charge Current: 200A
  • Max. Discharge Current (5s)：300±50A

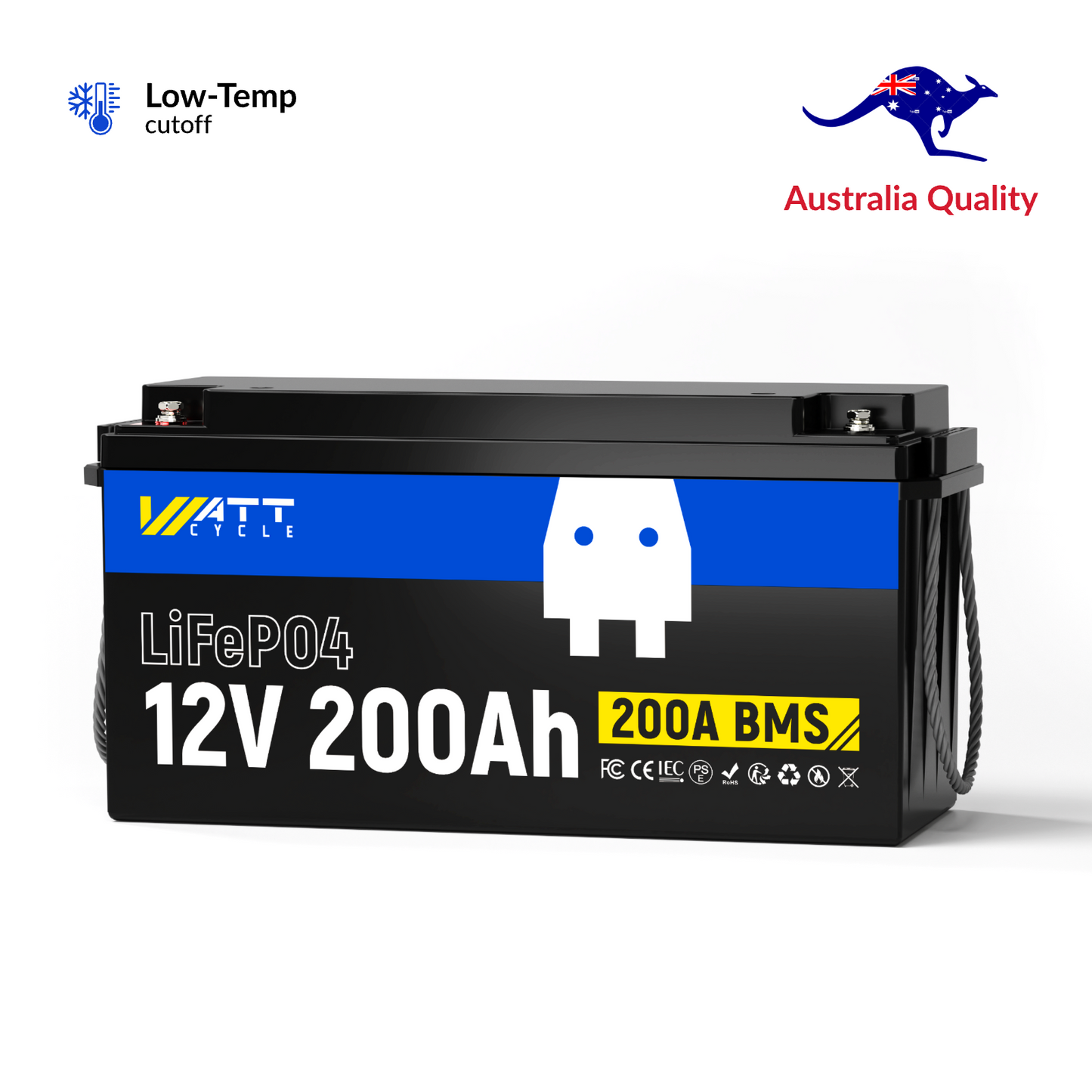

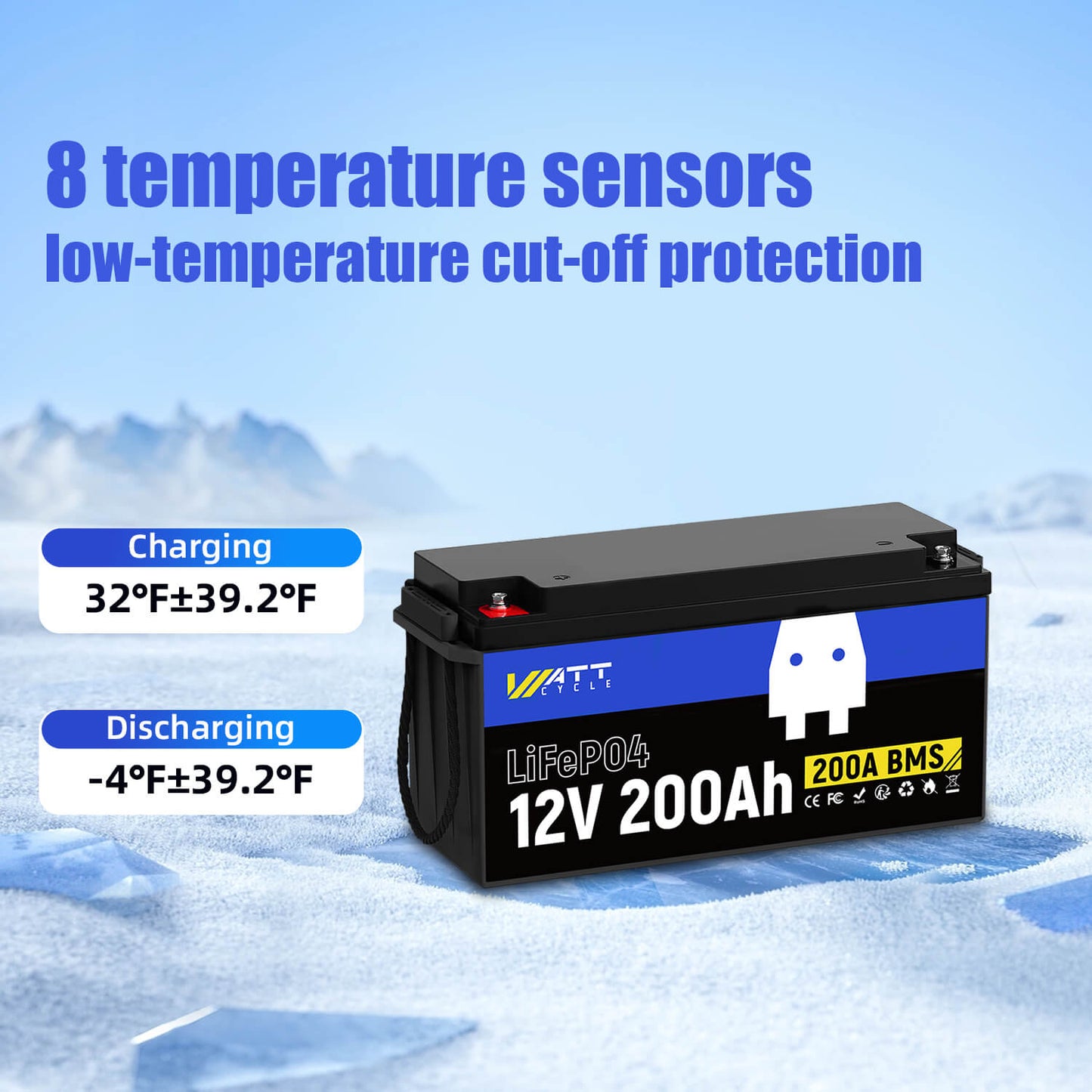

Brave the Cold Winter Journeys

Automatic Temperature Monitoring / Low-Temperature Protection / User-Friendliness / Wide Applicability

12V 200Ah in RV System

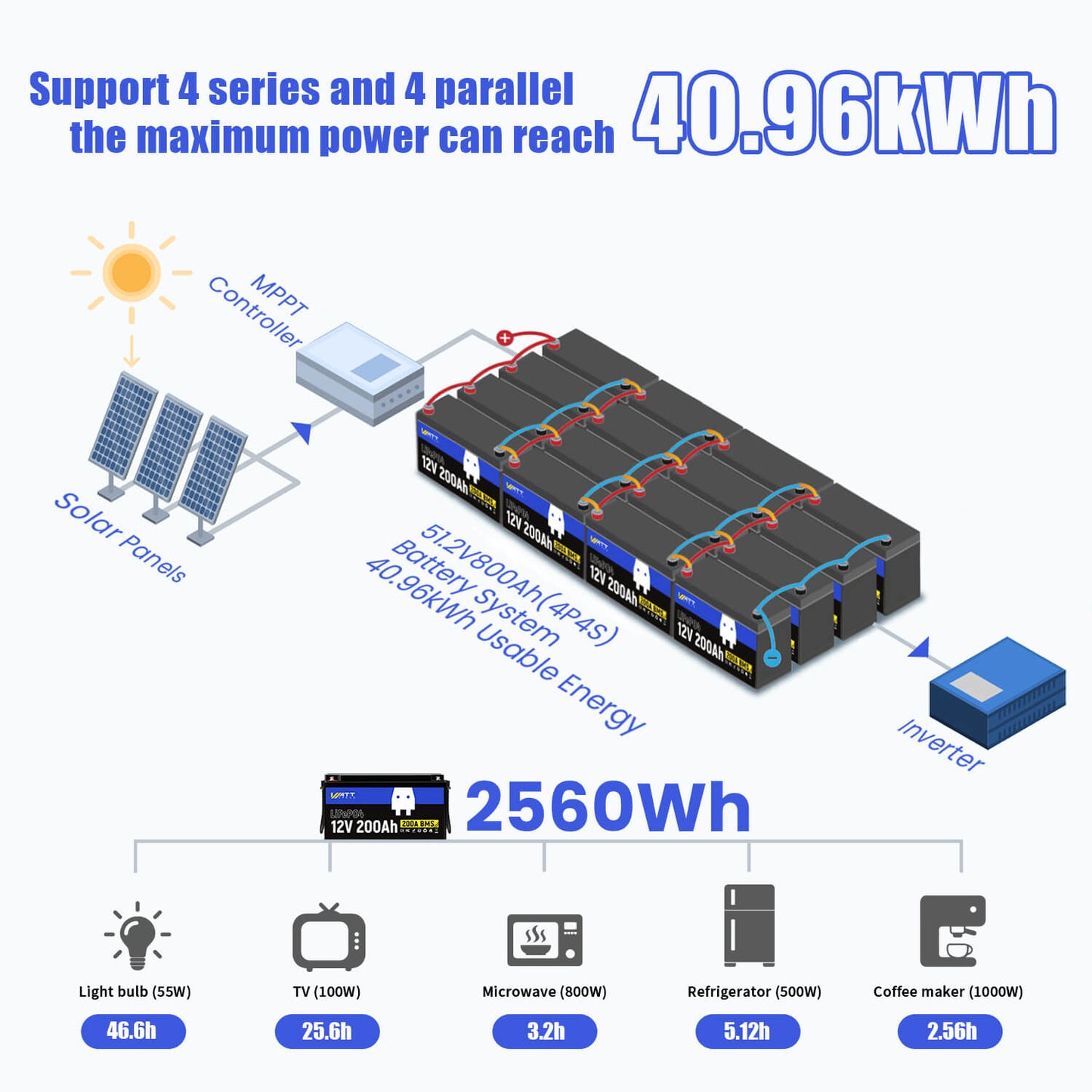

Connect in Series or Parallel

You can wire 12V 200Ah Core Series Batteries in series to build a 24V, 36V, or even 48V system in your RV.

Your One-Stop Juice Station

Stay Powered: Reliable Home Backup Solutions for Peace of Mind

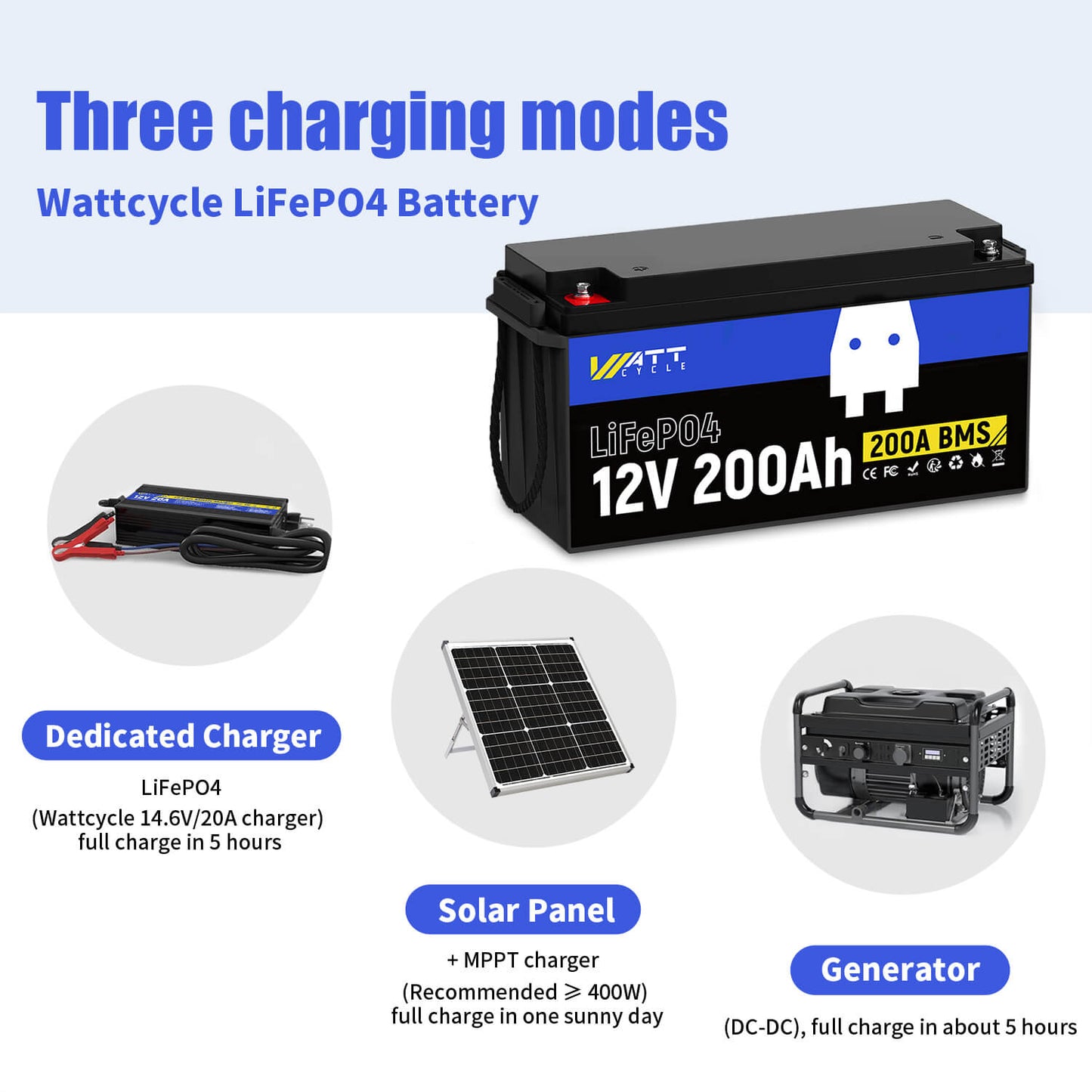

Choose the Charging Method That Suits You

  • 14.6 V 20A Charger

    1) 3 Charging Phase: I1, I2, I3
    2) Recommended Charging Rate: 0.1C~5C
    3) Full Charging: 10 hours (0.1C)

  • Solar Energy Plate

    1) Recommended Charging Current: 0.1C~0.5C
    2) Recommended Charging Voltage: 14.4~14.6V

  • Power Generator

    1) Charging: DC to DC
    2) Recommended Charger: 20A DC-DC Charger
    3）Full Charging: 5 hours

Precautions for Usage

Tips for a better using experience and batteries' health.

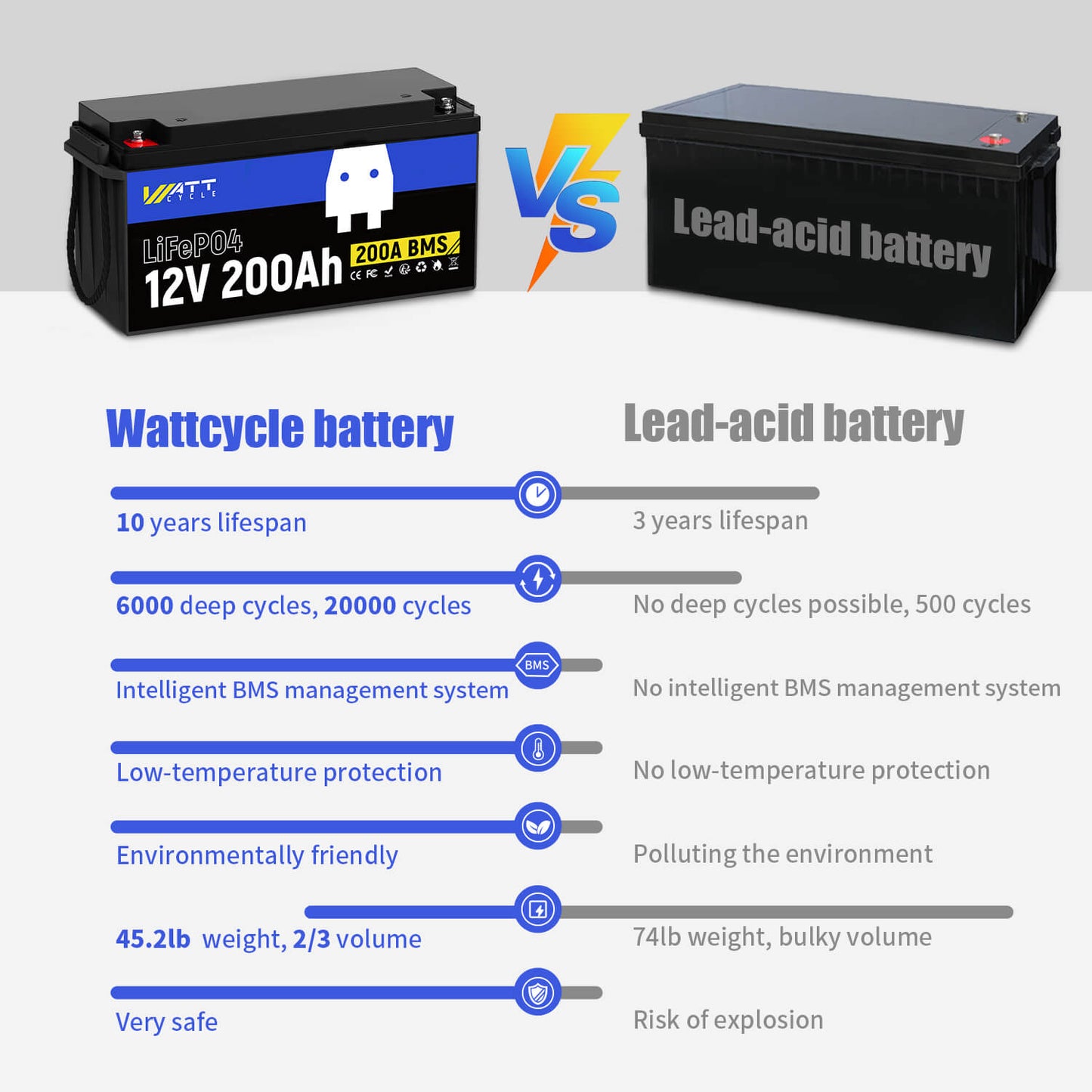

Upgrade to the 12V 200Ah Battery

Your Trusted Solution for Transitioning from Lead-Acid to Advanced Lithium Technology

Tech Specs

GENERAL
Dimensions (Inches) 21.0 (L) x 8.2 (W) x 8.5 (H)
Weight 45.20lbs / 20.5kg
Waterproof Rating IP65
Warranty 5 years
Housing Material ABS (Flame Retardant Plastic)
Terminal M8 bolts
BATTERY
Cell Grade A+ LiFePO4 Cells
Nominal Voltage 12.8V
Nominal/Usable Capability 200Ah
Energy 2560Wh

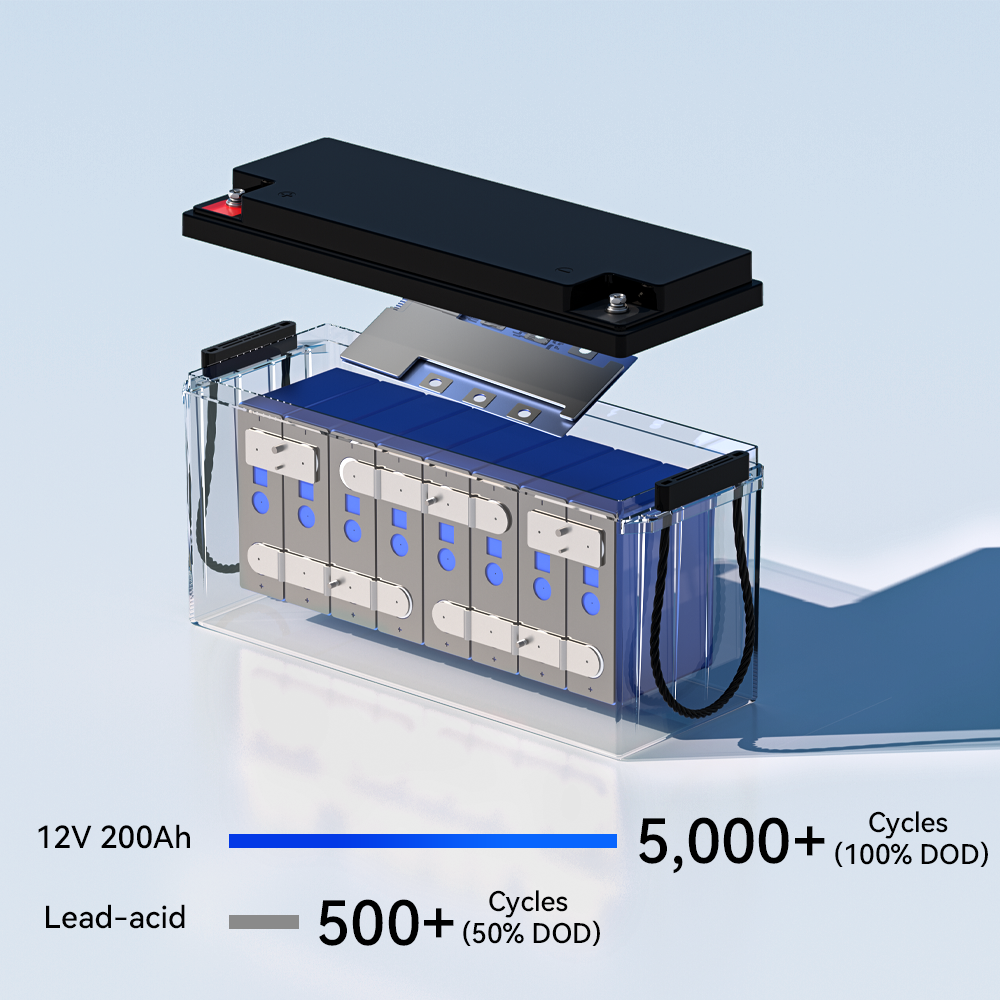

Cycle Life 5,000 cycles @100% DOD, 6,000 cycles @60% DOD, 15,000 cycles @40% DOD
Max Depth of Discharge (DOD) 100%
Max. Expansion 4S4P
Certifications SDS/UN38.3/FCC/CE/ROHS/UL
Internal Resistance ≤40mΩ
BMS
BMS 200A
Max. Continuous Output Power 2560W
Max. Continuous Charge Current 200A
Max. Continuous Discharge Current 200A
Max. Discharge Current  300±50A (≤5s)
CHARGE
Charge Voltage 14.6V ± 0.2V
Charge Method CC/CV
Recommend Charge Current 40A (0.2C)
Charge Temperature 0℃ to 50℃ / 32℉ to 131℉
Discharge Temperature： -20℃ to 55℃ / -4℉ to 131℉
Storage Temperature 0℃ to 55℃ / 32℉ to 131℉
Low-Temperature Protection Yes (32℉/0℃)
Low-Temperature Charging Protection Auto Recovery Yes (41℉/5℃)
