DIY Power Station

Components of DIY Power Station Kit

Building your own DIY power station requires a few essential components and tools

  • LiFePO4 Battery: The core of your power station. LiFePO4 batteries are known for their long lifespan, stability, and safety. They provide reliable energy for your DIY portable power station and can be used for both small and large devices.
  • DIY Power Station Box: You’ll need a solid, durable case to house your components. Rigid frame is a popular choice for its toughness and compact size. Secure battery and all components that could easily be removed if something needed servicing.
  • Inverter: For true off-grid use, an inverter can convert 12V DC into 120V AC, allowing you to power appliances like small electronics and lights. A low-wattage inverter is perfect if you have a small battery capacity.
  • 12V DC Power Output: A 12V socket, commonly found in vehicles, is essential for powering car accessories or charging devices. Consider adding a switch panel with USB ports and 12V sockets to your setup to provide multiple outputs.
  • Charge Controller: If you plan on integrating solar panels, a charge controller will regulate the voltage and current coming from the solar panels to the battery, preventing overcharging and damage to your power station.
  • Solar Panels: Adding solar panels allows you to create a renewable, off-grid power solution. Choose panels based on the power you need to charge your DIY battery power station effectively.
  • Battery Charger: A battery charger designed for LiFePO4 batteries is critical to safely charge your battery. Ensure that it’s compatible with your battery's voltage and current specifications to prevent damage and ensure efficient and rapid charging.
  • Cables & Connectors: Proper wiring and connectors are crucial for safely connecting your battery, inverter, and charge controller. Look for durable, high-quality cables that can handle the power output of your system.
  • Fuse/Breaker: Protect your power station and devices by including a fuse or circuit breaker. A reliable circuit breaker like the one from WattCycle is safely. They will cut off the power if the system becomes overloaded or encounters a short circuit.
  • Switch: A 200A LiFePO4 battery switch allows you to safely disconnect your system when not in use, preventing battery drain. A simple but effective addition to your DIY power station.
  • Light: Many DIY power stations come with an integrated 12V LED light, providing additional utility. This is ideal for camping, emergency situations, or general off-grid use.

Tools

  • Soldering Iron or Crimping Tool: For making secure connections between wires and connectors.
  • Multimeter: Used to check voltage, current, and ensure your system is running efficiently and safely.
  • Power Drill & Screwdriver: For mounting components and securing parts of your setup.
  • Wire Strippers and Pliers: These tools help you prepare the cables and connectors for assembly, ensuring tight, clean connections.

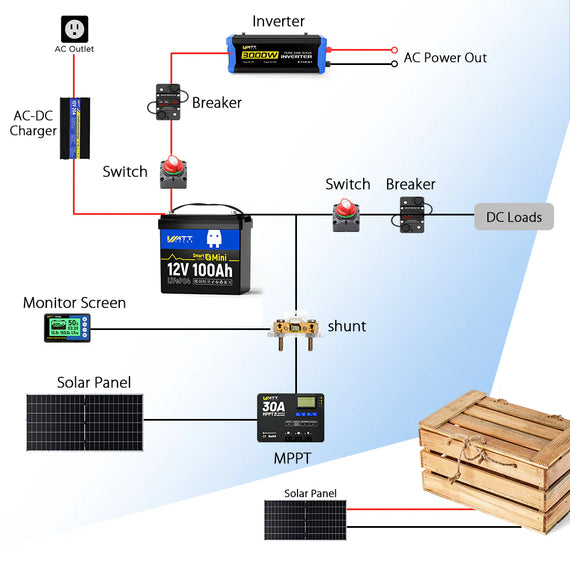

Step 1: DIY Power Station Diagram

Before you begin, it’s important to identify all the components you need and plan their layout within your case. Space is limited, so be strategic about where each major component goes. Consider the wiring between components, ensuring enough room for all connections and smooth routing of wires.

Step 1: DIY Power Station Diagram

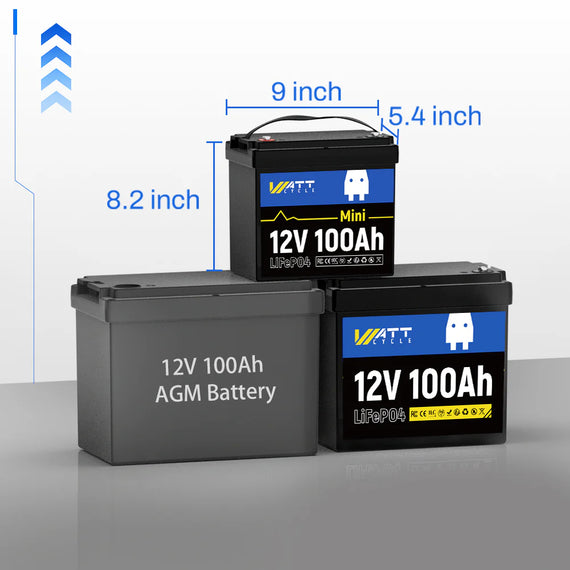

Step 2: Select Your Battery

Choose a LiFePO4 battery based on your capacity needs. A higher-capacity battery will provide more power for longer durations. Consider your power consumption and how long you need the battery to run before recharging. Select the appropriate voltage and amp-hour rating to match your setup.

Step 2: Select Your Battery

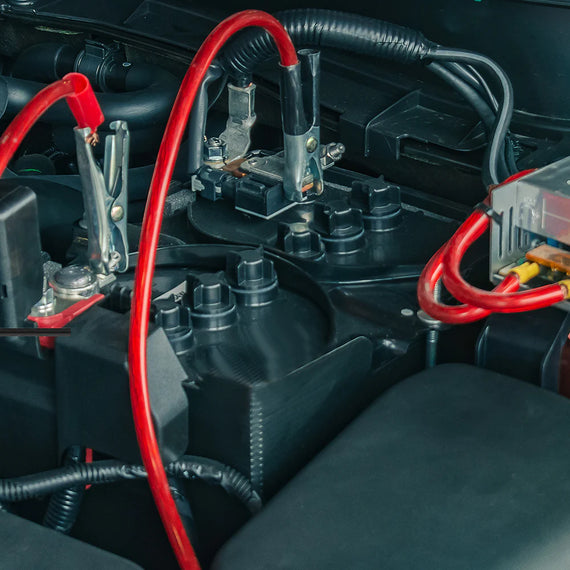

Step 3: Construction Process

With your components selected and your diagram in hand, begin assembling the power station. Arrange the components according to your wiring diagram, ensuring the proper orientation for connections. Take care when routing and bending wires—avoid sharp angles or tight bends to prevent damage. Drill any necessary holes for securing the components and routing the wiring.

Step 3: Construction Process

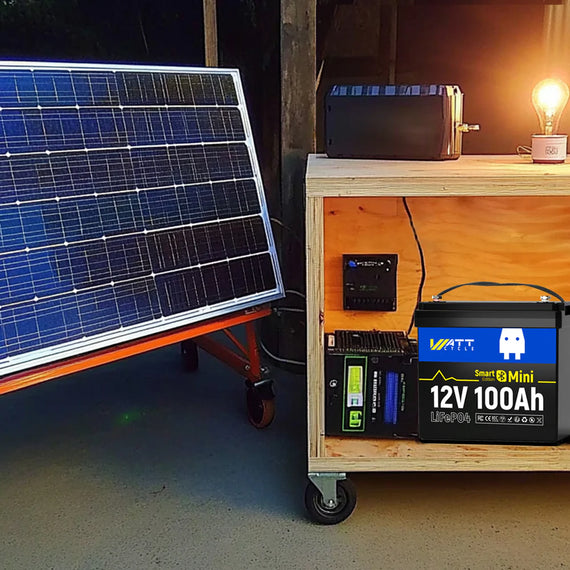

Step 4: Testing

Once assembled, it’s time to test your DIY power station. Ensure that all components are wired correctly and that the inverter is functioning as expected. Test the system by connecting a small load to check the power output and ensure the battery is discharging properly. Monitor the system's performance to confirm that your inverter is providing maximum output and your battery is handling the load for the desired amount of time.

Step 4: Testing
