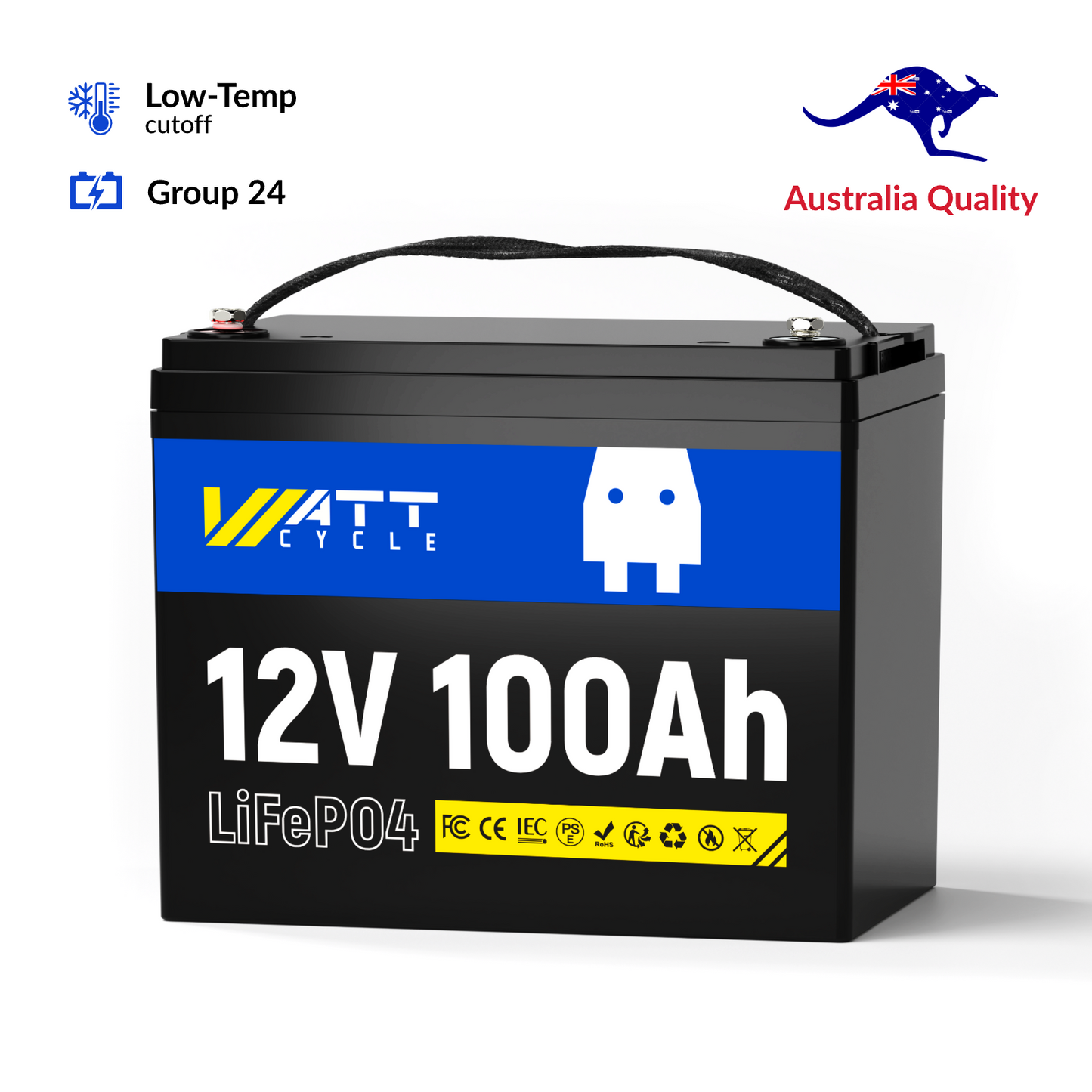

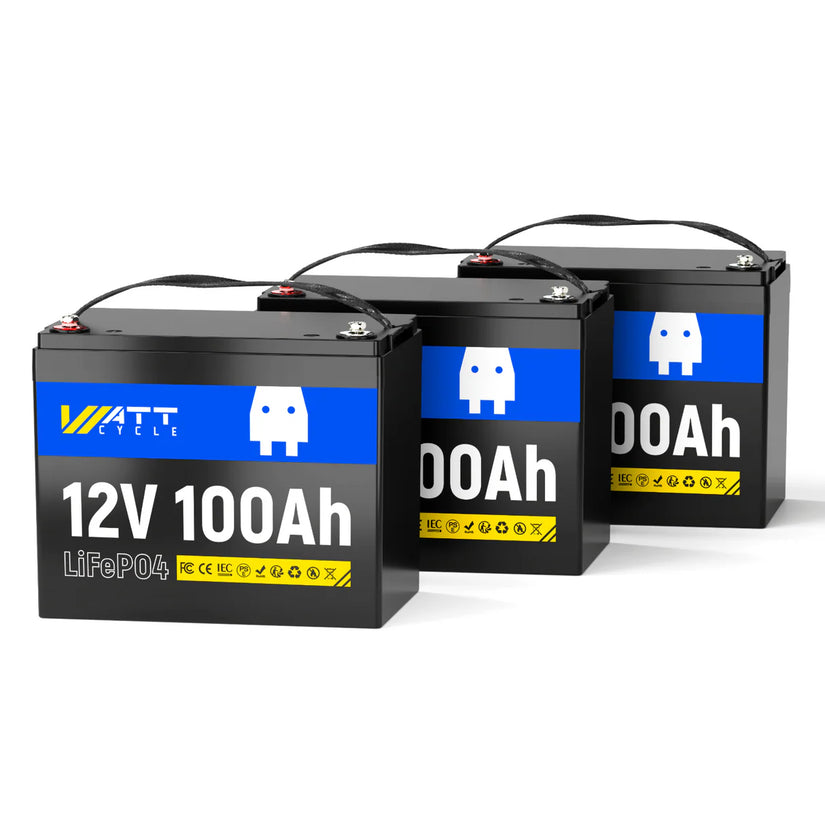

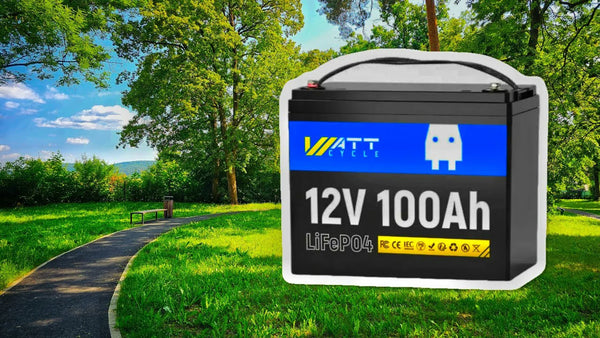

WattCycle 12V 100Ah Group 24 LiFePO4 Battery
WattCycle 12V 100Ah Group 24 LiFePO4 Battery
- Compact: 10.2 x 6.6 x 8.2 inches (Group 24)
- Lightweight: 23lbs
- Safe: Low-temperature cut-off protection
- Premium: EVE grade A+ LiFePO4 cells
- Durable: 5,000-15,000 deep discharge cycles
- Reliable: Built-in 100A BMS | 1280W | 1280Wh
- Scalable: Max. 4S4P, up to 20.48kWh
- Certification: SDS /UN38.3 /FCC /CE /ROHS /UL
Couldn't load pickup availability
- 5-Year Warranty
- Hassle-free Returns
- 7/24 Help & Advice
Shipping
Shipping
Free local shipping on all orders.
Description
Description
- High Performance: The WattCycle LiFePO4 battery has a capacity of 100Ah and a standard voltage of 12.8V. It features A+ grade cells and can endure up to 20000 cycles. It has obtained SDS/UN38.3/FCC/CE/ROHS certifications, ensuring its quality and safety.
- Built-in BMS Protection: The battery incorporates a built-in 100A BMS protection plate that automatically disconnects the battery if the discharge current exceeds 300±50A. This intelligent design ensures optimal safety for the battery.
- Compact Design: Measuring a mere 10.2x6.6x8.2inches (26x17x21cm) and weighing only 23.2lbs (10.5kg), our battery boasts a compact form factor that maximizes energy density.
- Low Temperature Protection: Designed to withstand extreme temperatures, our battery can operate in conditions as low as -4℉ (-20℃) and as high as 158℉ (70℃). It adapts seamlessly to various climate environments.

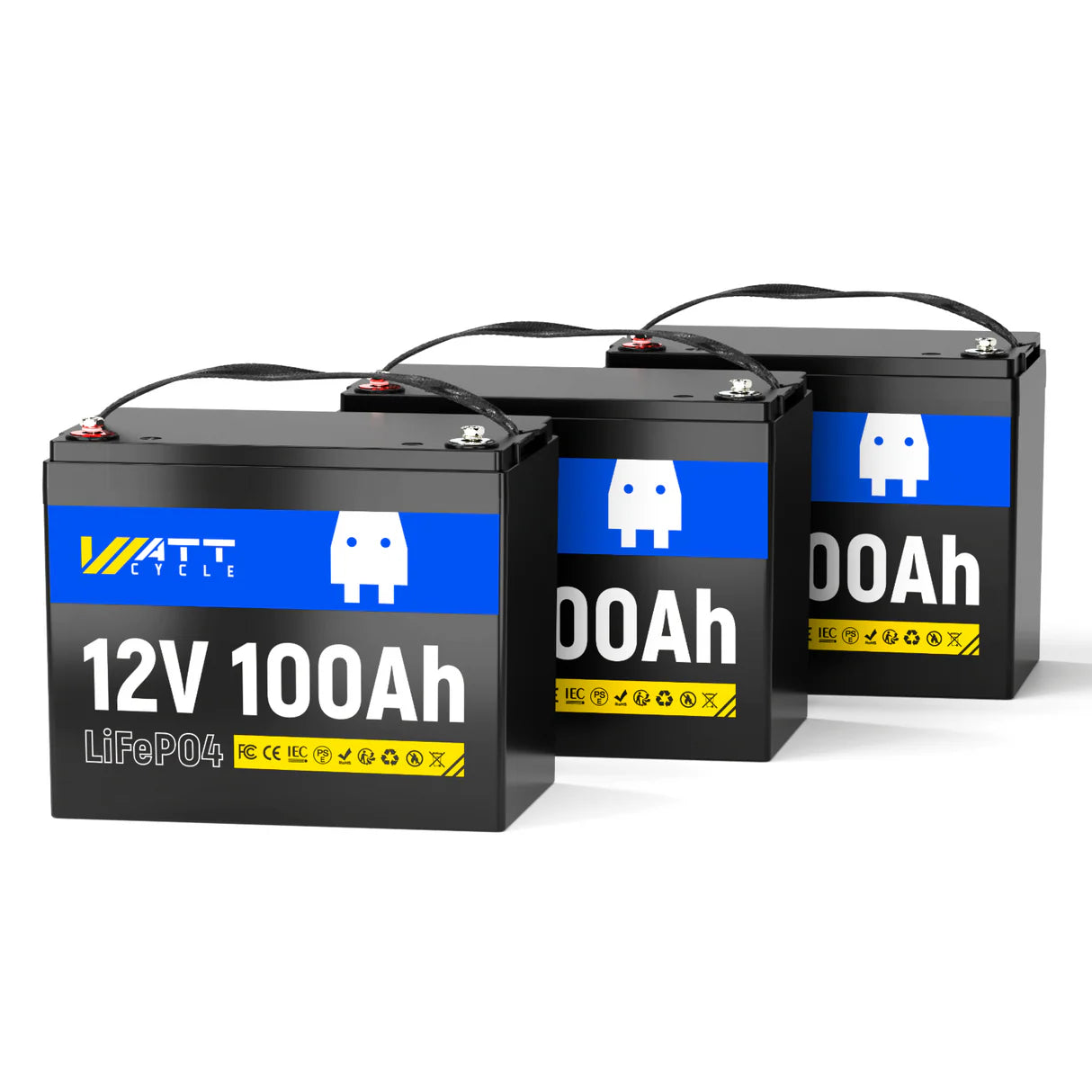

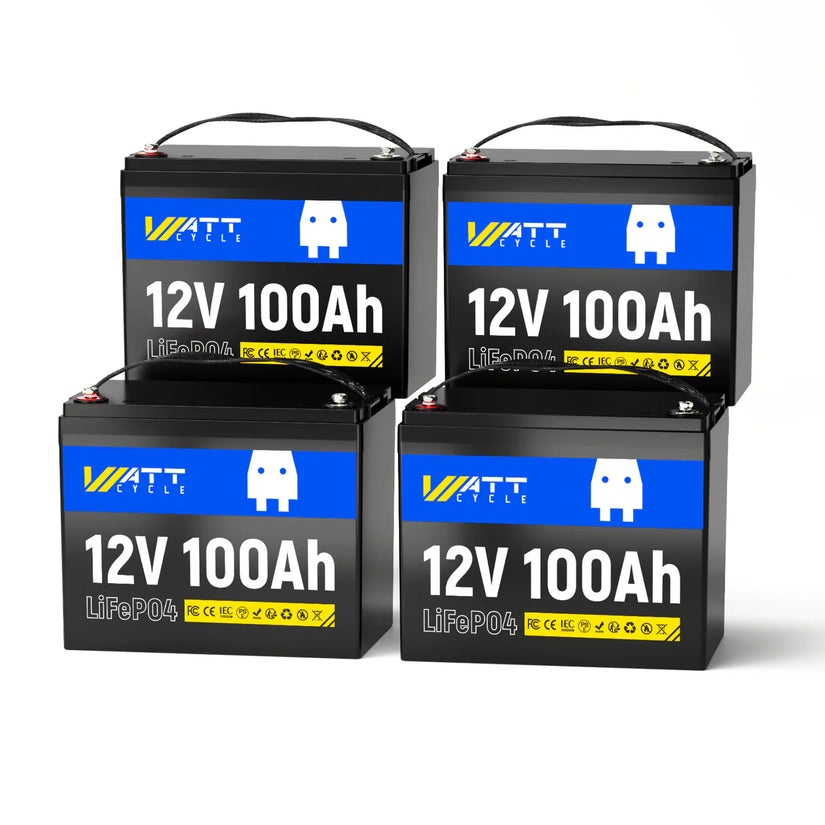

- Series or Parallel Connection: You can easily connect up to 4 batteries in series or 4 battery packs in parallel, providing a remarkable capacity of up to 20.48kWh.
Perfect Fit: Our 100Ah LiFePO4 battery is thoughtfully designed to seamlessly fit the Group-24 battery box, eliminating the need for purchasing a larger box.
Download
Download

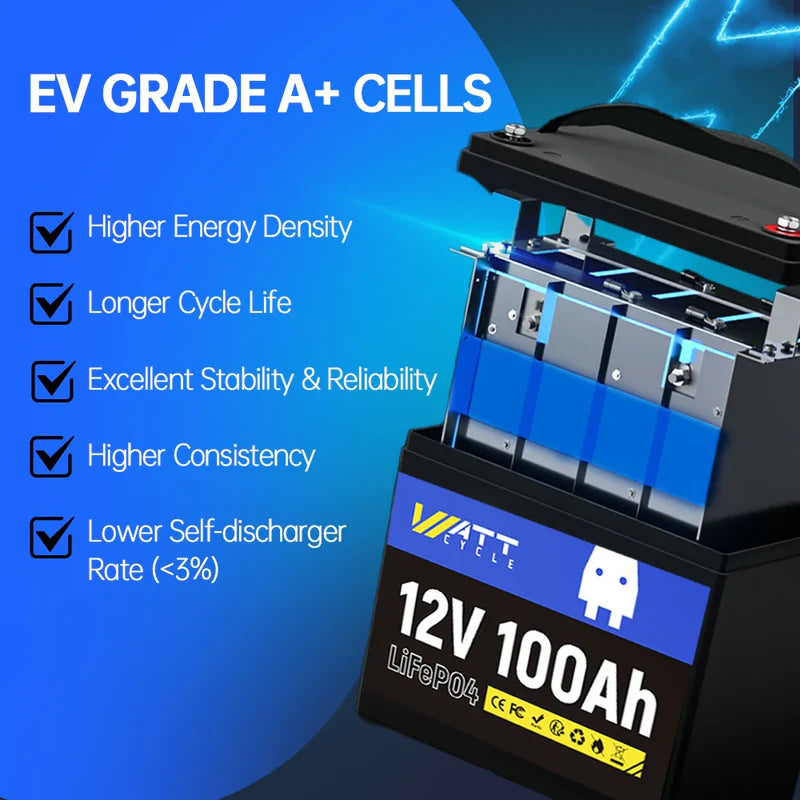

Only Grade A Cells
Grade A cells typically refer to battery units that incorporate high-quality, high-performance cells. Specifically. These cells often exhibit the following characteristics and benefits:
1) High Energy Density
2) Long Cycle Life
3) High Safety Standards
4) Stable Performance

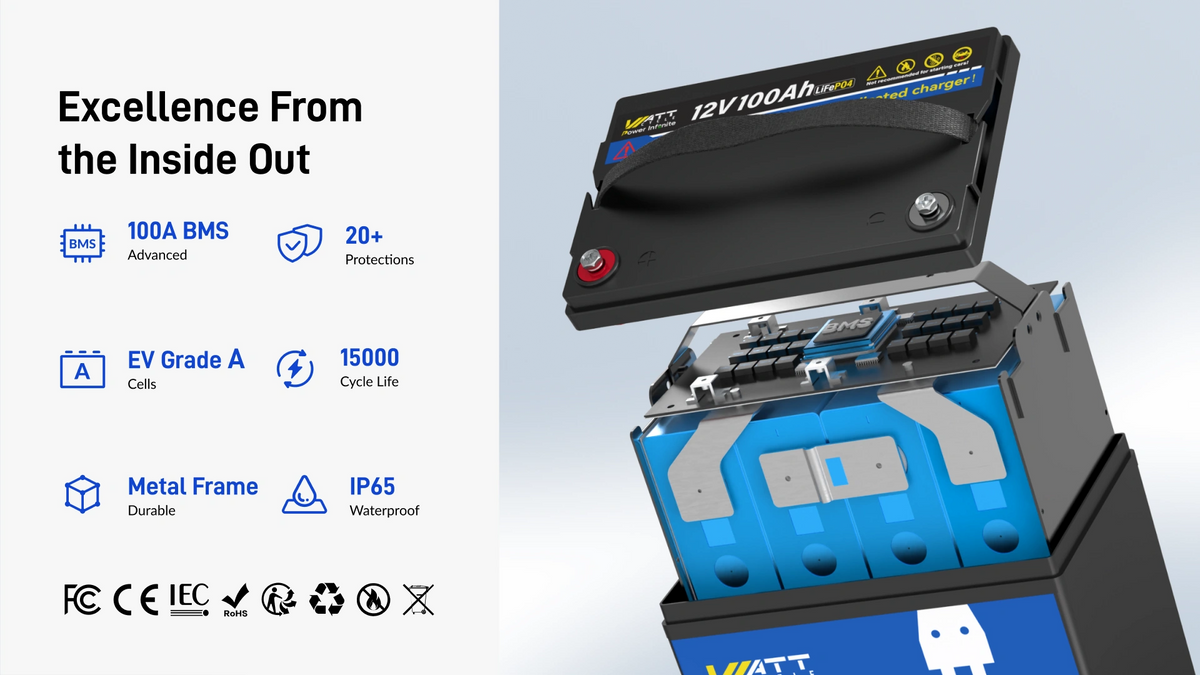

Intelligent BMS, Eightfold Safety Protection
Battery Management System: A crucial component in lithium-ion batteries and other rechargeable batteries, responsible for monitoring and managing the battery's performance.
Eightfold Safety Protection: Over-current/Over-charge/Over-discharge/Over-load/High Temperature/Low Temperature/Short Circuit/Equalization Protection
Working as Usual in Extreme Weathers
Charge Temperature: 0℃ to 50℃ / 32℉ to 122℉
Discharge Temperature： -20℃ to 70℃ / -4℉ to 158℉
Group 24 Size, Universal Fit
Typical dimensions for a Group 24 battery:
Length: 10.25 inches (260 mm)
Width: 6.8125 inches (173 mm)
Height: 8.875 inches (225 mm)
Please double-check the specific dimensions provided by WattCycle to ensure a perfect fit, as slight variations can occur.

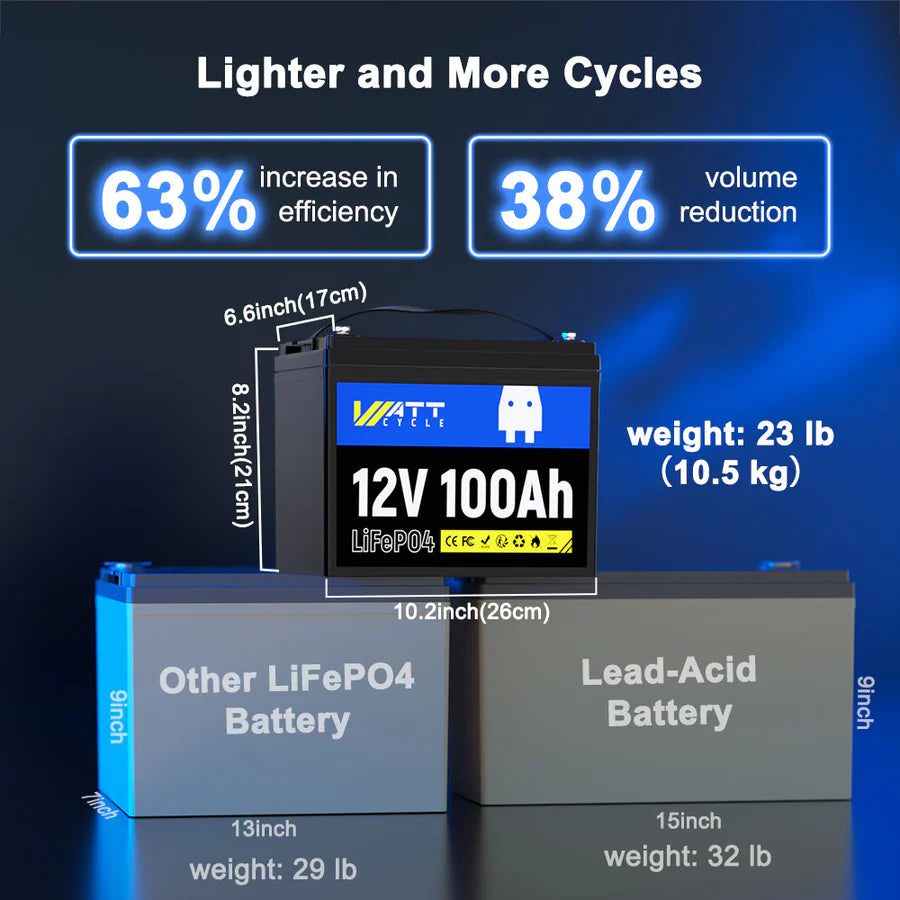

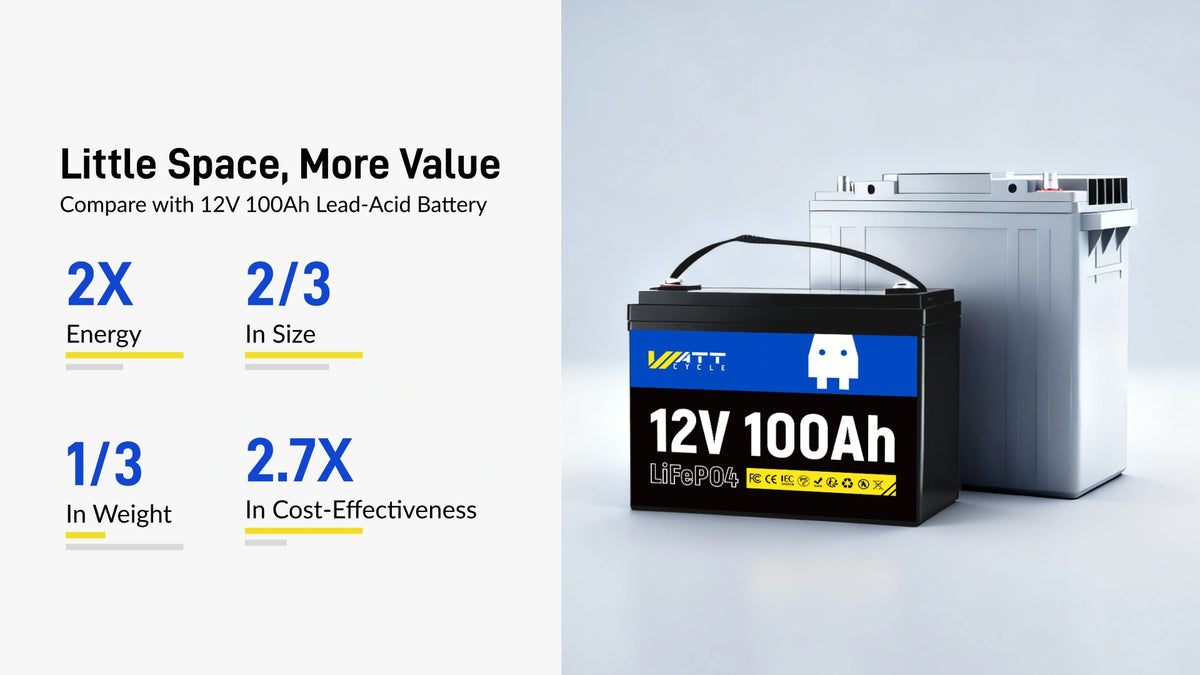

Lighter, Smaller & More Energy
62~69% Lighter | 27% Smaller | 178~247% Energy Increases

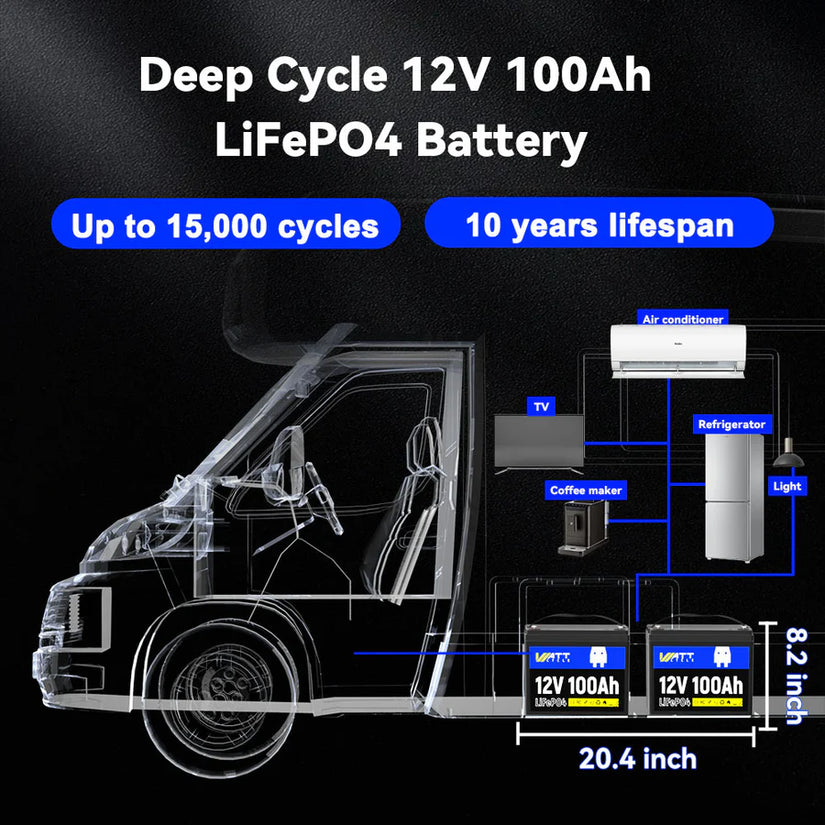

Versatile Compatibility for RVs with Different Configurations
-

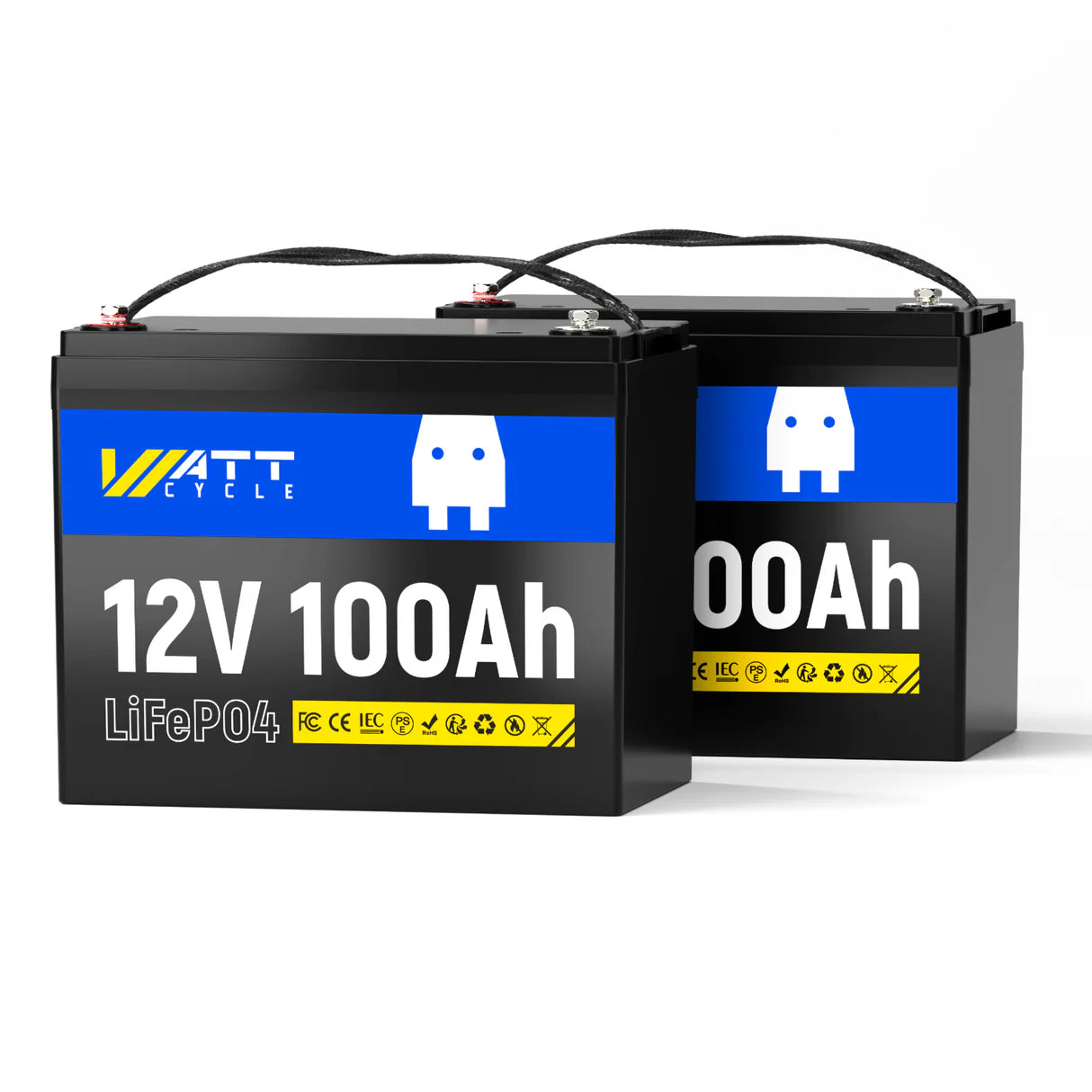

2P Configuration
Voltage: 24.8V
Current: 100A
Energy Capacity: 2480Wh -
3P Configuration
Voltage: 38.4V
Current: 100A
Energy Capacity: 3840Wh -
4P Configuration
Voltage: 51.2V
Current: 100A
Energy Capacity: 5120Wh
Empower Your Adventures: Build the Ultimate RV Power System!
Stay Powered: Reliable Home Backup Solutions for Peace of Mind
Choose Sustainability: 100% Safe, Clean, and Renewable Energy Solutions
Precautions before Connections
-
No charging for the lead-acid battery
For the sake of safety and battery life, It cannot be used to charger for the lead-acid battery.
-
No using as the starting battery
Lithium batteries are not intended for use as starter power sources. Please do not perform this operation.
-
Kind Reminding for Connections
Before you perform series or parallel connections with lithium batteries, please ensure that you have followed the above principles.

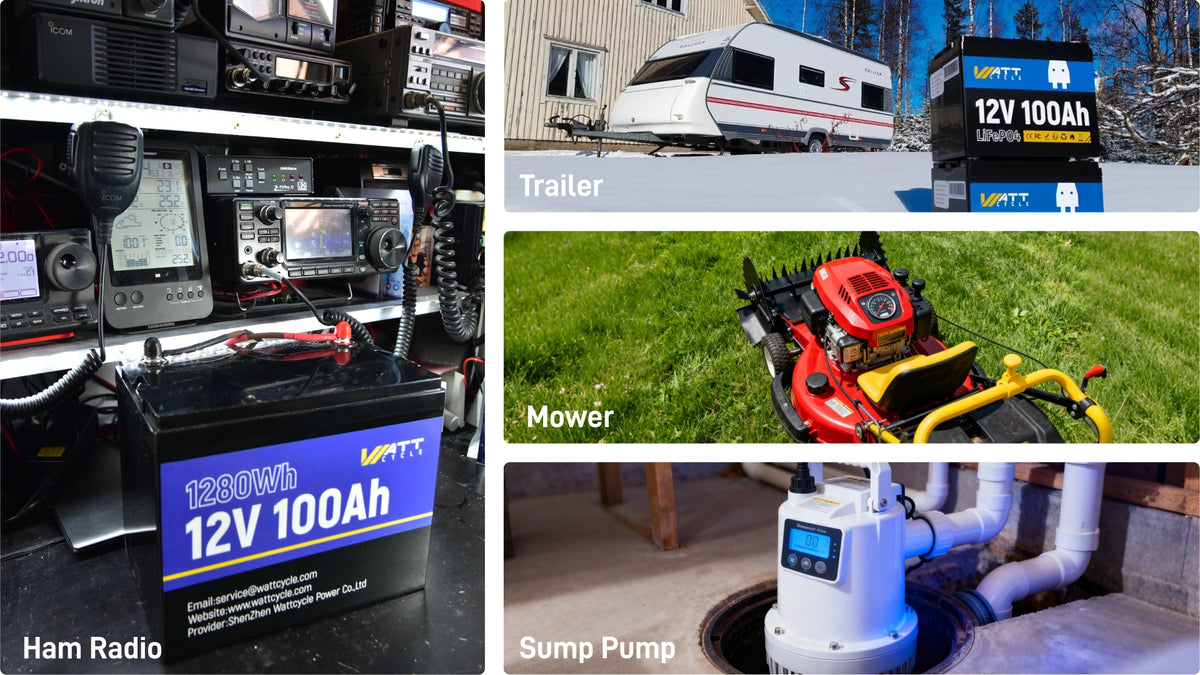

More Applications, More Possibilities
RV/VANS/Camper/Off-grid/Home Storage/Trolling Motors
| Dimensions (Inches) | 10.2 (L) x 6.6 (W) x 8.2 (H) |
| Weight | 23.0lbs / 10.5kg |
| Waterproof Rating | IP65 |
| Warranty | 7 years |
| Housing Material | ABS (Flame Retardant Plastic) |
| Terminal | M8 bolts |
| Cell | EVE Grade A+ LiFePO4 Cells |
| Nominal Voltage | 12.8V |
| Nominal/Usable Capability | 100Ah |
| Energy | 1280Wh |
| Cycle Life | 5,000+ cycles @100% DOD, 6,000+ cycles @80% DOD, 15,000+ cycles @40% DOD |
| Max Depth of Discharge (DOD) | 100% |
| Max. Expansion | 4S4P |
| Internal Resistance | ≤40mΩ |
| BMS | 100A |
| Max. Continuous Output Power | 1280W |
| Max. Continuous Charge Current | 100A |
| Max. Continuous Discharge Current | 100A |
| Max. Discharge Current | 300±50A (≤5s) |
| Charge Voltage | 14.6V ± 0.2V |
| Charge Method | CC / CV |
| Recommend Charge Current | 20A (0.2C) |
| Charge Temperature | 0℃ to 50℃ / 32℉ to 122℉ |
| Discharge Temperature： | -20℃ to 70℃ / -4℉ to 158℉ |
| Storage Temperature | -10℃ to 50℃ / 14℉ to 122℉ |
| Low-Temperature Protection | Yes (32℉/0℃) |
| Low-Temperature Charging Protection Auto Recovery | Yes (41℉/5℃) |
