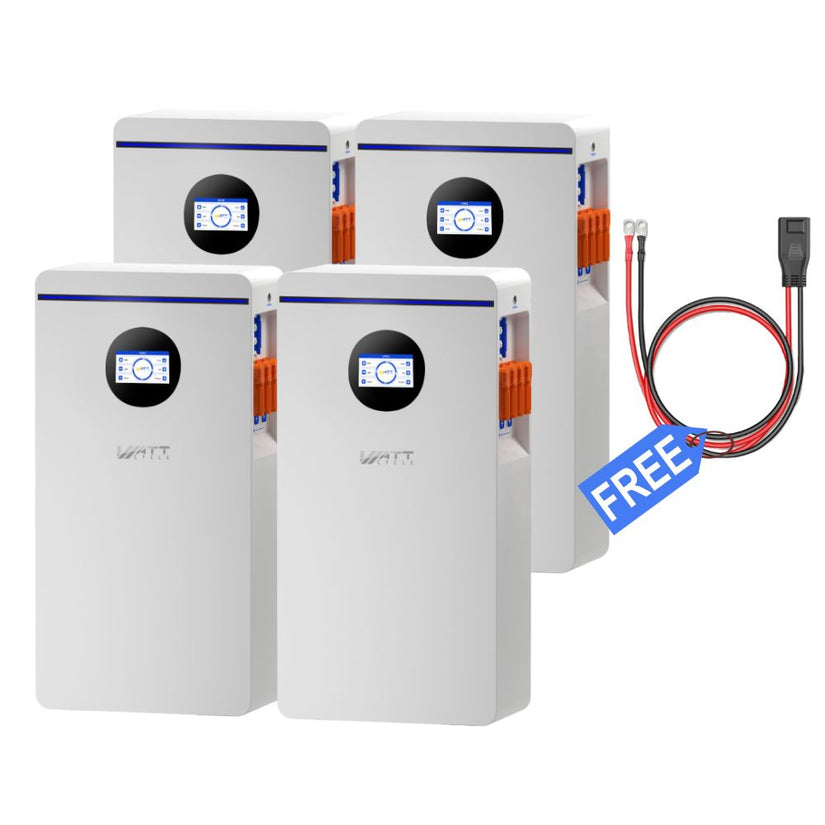

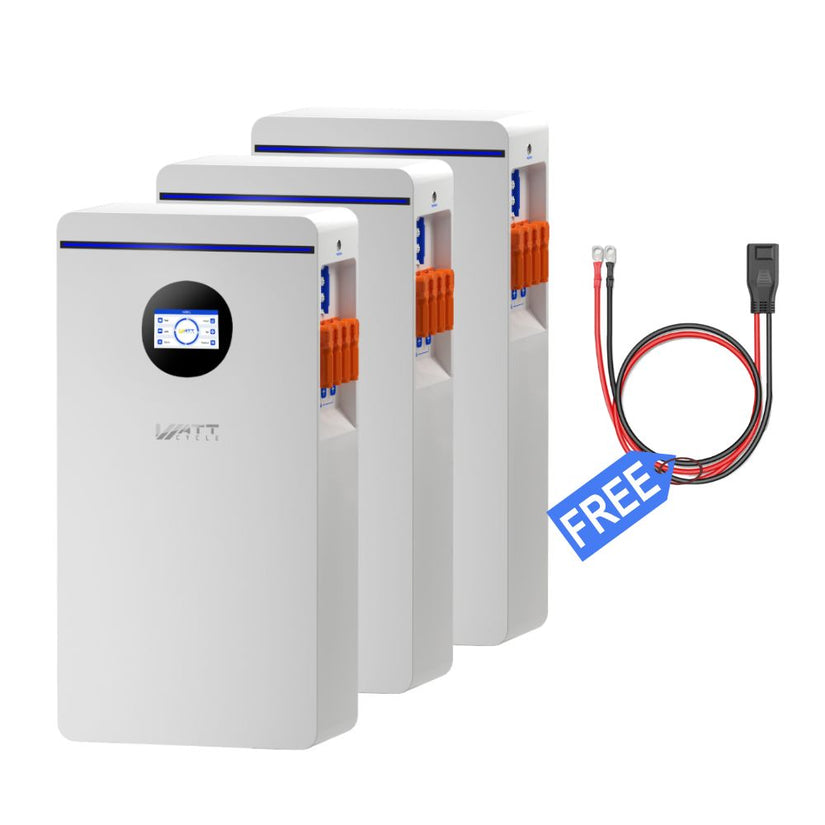

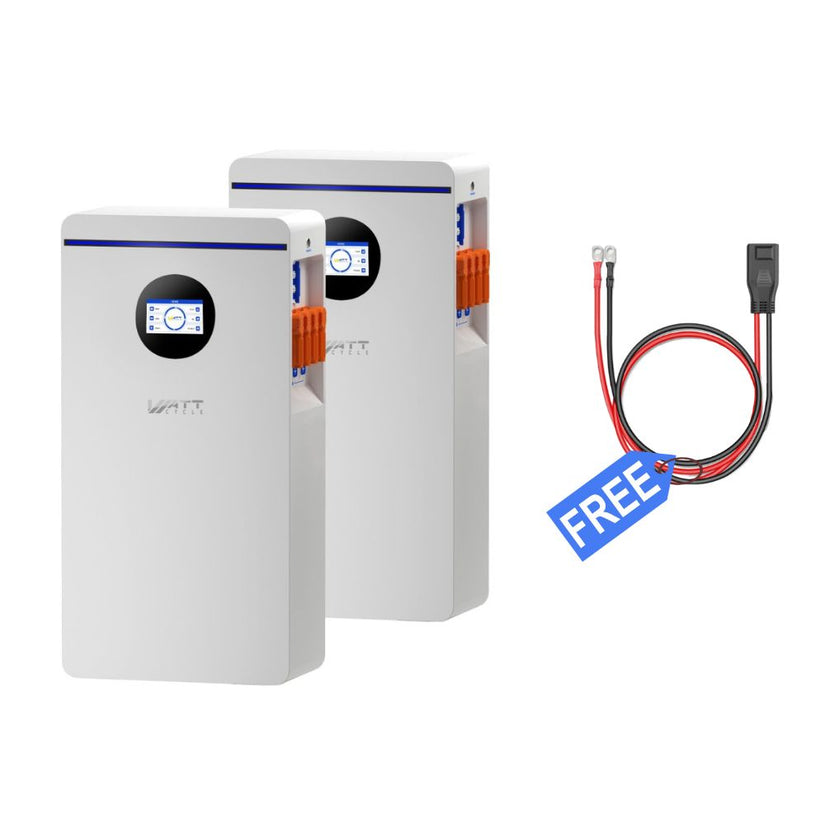

WattCycle 16kWh 48V 314Ah Floor-Standing LiFePO₄ Lithium Battery | 300A BMS, Bluetooth & CAN/RS485
Winter Thank You Flash Sale Ends In:
This 48V 314Ah Solar Battery is built with high-quality EV-grade LiFePO4 cells and the integrated 3A active balancing technology, which continuously optimises cell performance, improves efficiency and extends lifespan by up to 50%.
A powerful 300A smart BMS ensures stable high-output performance while providing comprehensive protection. Combined with an optimised internal structure, the system achieves enhanced heat dissipation and long-term reliability.
With 6000+ cycles, scalable capacity, and intelligent monitoring, this Solar Battery offers a dependable and future-ready solution for home energy storage, off-grid systems, and backup power applications.
- 16kWh usable energy in one battery to power your devices for one week
- EV-grade LiFePO4 cells for long-term reliability
- 3A active balancing extends lifespan and improves efficiency
- Up to 15 years of service life with 6000+ deep cycles
- 300A smart BMS with 20+ protection functions
- Bluetooth + LCD touchscreen + LED strip for real-time monitoring
- Improved heat dissipation design (+20%) for safer operation
- Flexible installation for home, off-grid, and commercial use
- Certified & Locally Supported: IEC, FCC, EMC, RoHS, CE and UN38.3 compliance
Free local shipping
Our batteries come with a 5-year warranty, which can be extended to 7 years total upon product registration. Accessories are covered by a 1-year warranty, and like-new (refurbished) batteries include a 1-year warranty.
For full terms, conditions, and claim details, please visit:
-
Fast, Free Shipping
-
30-Day Money-Back Guarantee
-
Hassle-Free Warranty
-
Lifetime Customer Support
Compatible with 30+ Leading Inverter Brands
Connect with confidence through CAN, RS485 and dual-protocol communication. Supporting 30+ leading inverter brands, this battery delivers stable integration for compatible home backup, off-grid, farm and commercial energy storage systems. Please confirm your inverter model and communication protocol before ordering.
Built for a Decade of Cleaner Energy
Store more of the solar energy you generate and use it when your home needs it most. With 16.07kWh capacity and long-life LiFePO₄ technology, this battery helps reduce grid reliance and supports a lower-carbon energy future.
Engineered for Power. Designed for Easy Installation.
The four-channel shunt system supports balanced current distribution and improved heat dissipation for stable 300A performance. Its ultra-slim housing and 360° caster wheels make this 16kWh battery easier to position, install and maintain.
Long-Lasting Power. Lower Lifetime Cost.
EV-grade LiFePO₄ cells, 3A active balancing and a powerful 300A BMS work together to reduce cell imbalance and support 6,000+ cycles at 80% DOD—delivering dependable daily power with fewer battery replacements over time.
Store More Solar. Spend Less on Grid Power.
Store excess solar energy during the day and use it at night or during peak-rate periods. The 16.07kWh battery helps reduce grid reliance and manage electricity costs more efficiently.
Actual savings and payback vary depending on solar generation, electricity tariffs, energy consumption, system configuration and installation costs.
Smart Monitoring. Clear Control.
View battery capacity, voltage, current, temperature and operating status in real time through the Bluetooth App or integrated LCD touchscreen. The LED light strip provides an instant capacity indication, keeping essential battery information clear at a glance.
Reliable 16kWh Energy for Home Backup & Off-Grid Living
Store 16.07kWh of energy for nighttime use, grid outages or off-grid properties. When paired with a compatible inverter and properly sized solar system, it can help power essential household loads and reduce dependence on the grid.
15.36kW Output for High-Demand Home Loads
The powerful 300A BMS supports up to 15.36kW continuous discharge, allowing multiple household appliances to operate through a compatible inverter. With suitable high-current charging equipment, the 314Ah battery can recharge in approximately one hour under ideal conditions.
Actual runtime and charging time depend on connected loads, inverter efficiency, charger output and operating conditions.
Advanced Protection. Reliable Communication.
The intelligent 300A BMS provides 15+ safeguards against overcharge, over-discharge, overcurrent, excessive temperature, low-temperature charging and short circuits. RS485, CAN and RS232 communication supports compatible inverter integration, while UN38.3, IEC, FCC, EMC, RoHS and CE documentation provides added assurance.
Please confirm your inverter model and communication protocol before ordering.
Start at 16kWh. Scale Up to 320kWh.
Connect up to 20 matching batteries in parallel to expand capacity as your energy needs grow—from one 16.07kWh unit to approximately 320kWh. Ideal for home energy storage, off-grid properties, farms, commercial facilities and backup power systems.
Large parallel systems require a compatible inverter, correctly sized cables and professional system design.
Expandable from 16kWh to 320kWh
Start with one 16.07kWh battery and connect up to 20 matching units in parallel as your energy requirements grow. A flexible solution for residential solar storage, off-grid properties, farms, commercial facilities, server systems and backup power.
Large parallel installations require compatible equipment and professional system design.
LiFePO4 Smart Home Storage Specifications
| Model | 48V 100Ah Smart Home Storage | 48V 314Ah Smart Home Storage |
|---|---|---|
| Battery Mode | LiFePO4 Battery | |
| Battery Capacity | 5.12kWh | 16.07kWh |
| Internal Resistance | ≤ 13.9mΩ | ≤ 13.9mΩ |
| Single Cell Capacity | 100Ah | 314Ah |
| Rated Operating Voltage | 51.2V | 51.2V |
| Standard Input Current | 50A (Max.100A) | 150A (Max.305A) |
| Standard Output Current | 50A (Max.100A) | 150A (Max.305A) |
| Overcharge Protection | 58.4V | |
| Overcharge Protection Recovery | 53.6V | |
| Overdischarge Protection | 40V | |
| Overdischarge Protection Recovery | 47.2V | |
| Charging Overcurrent Protection | 110±10A/10s | 310±10A/10s |
| Discharging Overcurrent Protection | 120±10A/10s | 310±10A/10s |
| Internal Resistance Recovery Methods | a. Remove the Charger; b. Remove Loads | |
| Power Delivery | 60% | |
| Equalization | Active equilibrium | |
| Parallel Capability | Up to 20 units | |
| Power Failure Self-Consumption | ≤300uA | |
| Communication Protocol | RS485, CAN | |
| Recommend Charging Temperature | 0°C to 55°C / 32°F to 131°F | |
| Recommend Discharging Temperature | -20°C to 60°C / -4°F to 140°F | |
| Dimensions (L×W×H) | 15.67 x 7.87 x 24.61 inch 398 x 200 x 625 mm | 17.72 x 9.45 x 34.65 inch 450 x 240 x 880 mm |
| Weight | 99.21 lbs / 45kg | 253.53 lbs / 115kg |
b. Remove Loads
398 × 200 × 625 mm
b. Remove Loads
450 × 240 × 880 mm
Compatible Inverters
| Inverter Brands | Communication Ports |
|---|---|
| Afore | CAN |
| Aiswei | CAN |
| Aohai | RS485 |
| Deye | CAN |
| GOODWE | CAN |
| GROWATT | RS485/CAN |
| GT | RS485 |
| Hoymiles | CAN |
| INVT | CAN |
| LUXPOWER | CAN |
| MEGAREVO | CAN |
| MUST | CAN |
| MUST | RS485 |
| NEXT | RS232 |
| PYLON TECH | RS485/CAN |
| SAJ | CAN |
| SAKO | RS485 |
| Sacolar | RS485 |
| Senergy | CAN |
| SMA | CAN |
| SOFAR | CAN |
| SOLAX | RS485/CAN |
| Solis | CAN |
| SOROTEC | CAN |
| SRNE | RS485 |
| Studer | CAN |
| Sumry | RS485 |
| SUYEEGO | RS485 |
| TBB | CAN |
| Techfine | RS485 |
| VICTRON | CAN |
| Voltronic | RS485 |
Compatibility may vary by inverter model, firmware and communication protocol. Please confirm your exact inverter model before ordering.
WattCycle 16kWh 48V 314Ah LiFePO₄ Battery FAQs
This 51.2V 314Ah floor-standing LiFePO₄ battery provides 16.07kWh of energy storage and is designed for off-grid homes, farm properties, workshops and professionally configured backup power systems.
One battery stores approximately 3.14 times the energy of a 5.12kWh battery, reducing the number of batteries, cables and parallel connections required. It is a practical choice for customers who need higher overnight capacity in one cabinet.
Runtime depends on the combined power consumption of the connected appliances.
As a simple theoretical guide:
- A 1,000W average load: approximately 16 hours
- A 2,000W average load: approximately 8 hours
- A 4,000W average load: approximately 4 hours
Actual runtime will be lower after allowing for inverter efficiency, battery settings, temperature and system losses.
Estimated runtime = usable battery energy ÷ average load.
Send us your daily electricity usage and essential appliance list if you need help selecting the correct battery capacity.
The battery supports a standard charge and discharge current of 150A, equivalent to approximately 7.68kW at 51.2V. Its powerful 300A BMS can support up to approximately 15.36kW of DC output, subject to the inverter, cabling and complete system design.
Actual AC output and appliance start-up capacity are determined by the inverter. High-demand appliances such as air conditioners, pumps, heaters and power tools must remain within both the battery and inverter limits.
An inverter is not included. This is a 51.2V DC battery and requires a compatible 48V/51.2V inverter-charger to power standard AC appliances.
The battery supports CAN and RS485 communication, but this does not mean it works with every inverter model. Compatibility depends on:
- Inverter voltage range
- Battery charging settings
- CAN or RS485 communication protocol
- Inverter firmware
- Communication cable pin configuration
Please send us your inverter brand and exact model number before ordering so that compatibility can be checked.
Grid connection and rebate eligibility are not automatic. They depend on the complete battery and inverter combination, the current Clean Energy Council approved product lists, network requirements and installation by an appropriately accredited professional.
CE, IEC, FCC, EMC, RoHS or UN38.3 documentation does not by itself confirm Australian grid-connection or government-rebate eligibility.
If you intend to use this battery in a grid-connected system, export electricity, join a VPP or claim a rebate, ask your installer to verify the exact battery and inverter models before purchasing. It is primarily suited to compatible off-grid, farm, workshop and professionally designed backup applications.
The standard charging current is 150A, with a maximum supported current of approximately 305A.
Under ideal conditions:
- 150A charging: approximately 2.1 hours
- Maximum-current charging: approximately 1 hour
Actual charging time may be longer because of charging losses, temperature, state of charge and charger limitations. One-hour charging requires a compatible high-power inverter-charger and correctly sized electrical protection.
The recommended charging temperature is 0°C to 55°C, while the discharge range is -20°C to 60°C.
The battery measures 450 × 240 × 880 mm and weighs approximately 115kg. Swivel wheels make positioning easier, but the battery should be securely restrained after installation and should not be treated as a portable power station.
Up to 20 matching batteries can be connected in parallel, expanding storage capacity from 16.07kWh to approximately 321kWh. Parallel systems require matching batteries, balanced cable lengths, suitable busbars, DC protection and a compatible inverter.
Due to the battery’s weight and high current capability, professional system design and installation are strongly recommended.
1. Cell Overcharge Protection and Recovery
When the voltage of any cell is higher than the set value of the cell overcharge voltage, and the time of duration reaches the cell overcharge delay, the system enters the overcharge protection state, the charging MOS will turn off, and the battery cannot be charged.After the cell overcharge protection, when the voltage of all cells drops below the cell overcharge recovery value, the overcharge protection state is released. It can also be released by discharge.
2. Overall Overcharge Protection and Recovery
When the overall voltage is higher than the overall over-voltage set value, and the time of duration reaches the overall overcharge delay, the system enters the overcharge protection state, turns off the charging MOS, and cannot charge the battery.When the overall voltage drops below the recovery value of the overall over-voltage protection, the overcharge protection state is released, and it can also be released by discharge.
