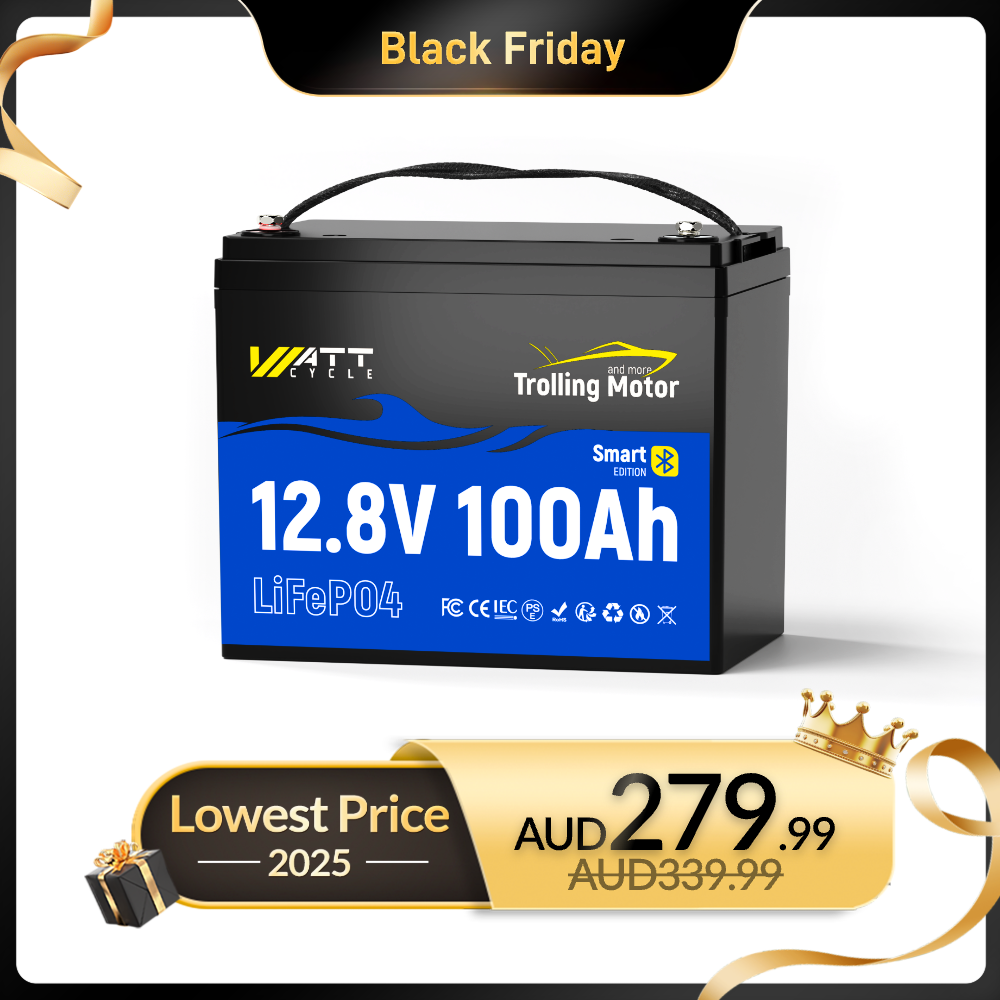

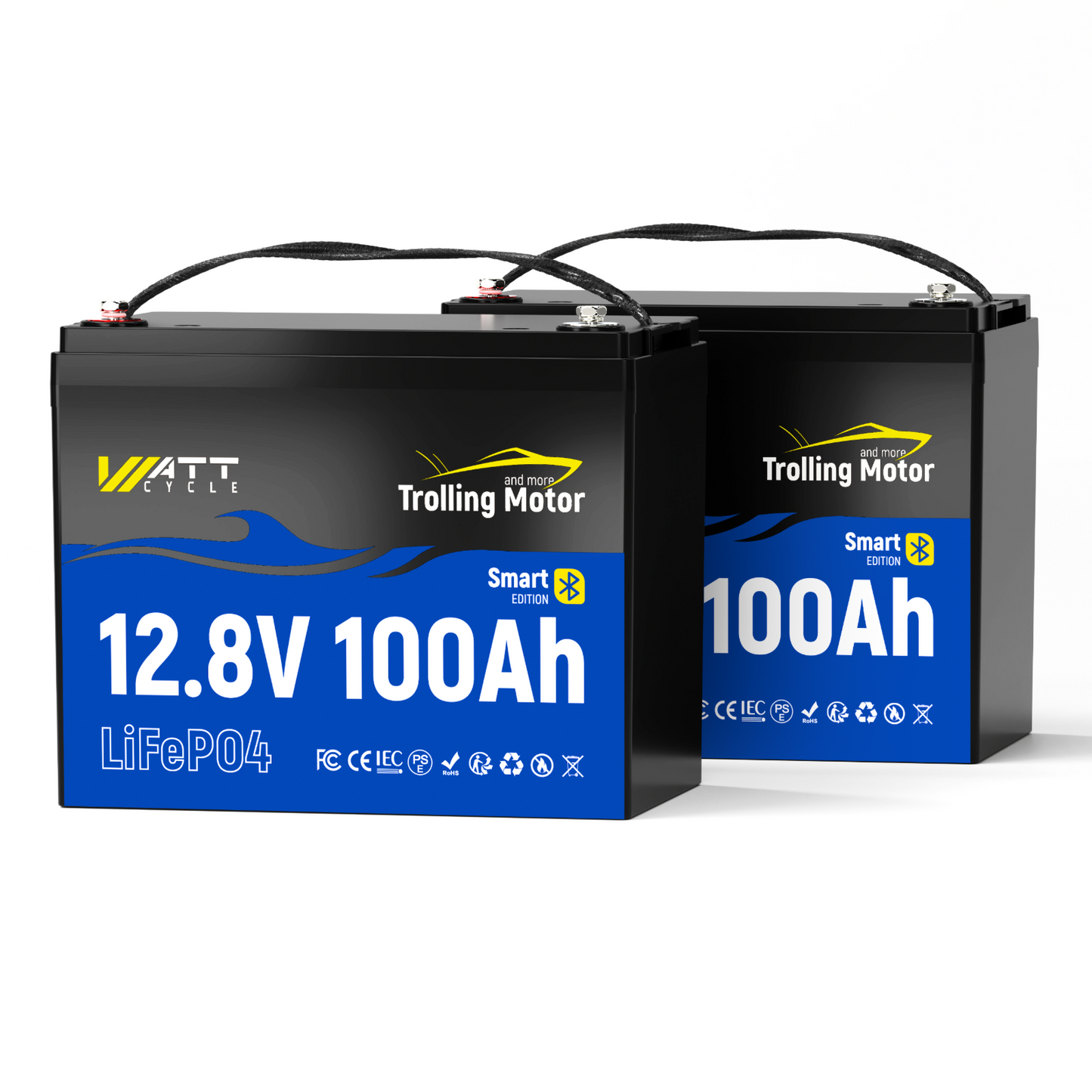

【PRE-SALE】WattCycle 12V 100Ah Group 24 LiFePO4 Battery with Bluetooth for Trolling Motors
【PRE-SALE】WattCycle 12V 100Ah Group 24 LiFePO4 Battery with Bluetooth for Trolling Motors
🕒Estimated dispatch: 8th July | Delivery date: between 11th July and 14th July
- Smart: Real-Time Monitoring via WattCycle App
- Applications: Ideal for fishing boats, electric kayaks, leisure boats, and more. Also perfect for RV, Vans, Camping and other scenarios.
- Compact: L260 x W168 x H209mm (same size as 12V 100Ah), 11.1kg
- Safe: Low-temperature cutoff protection
- Premium: EV grade A+ LiFePO4 cells
- Durable: 5,000-15,000 deep discharge cycles
- Reliable: Built-in 120A BMS | 1536W | 1280Wh

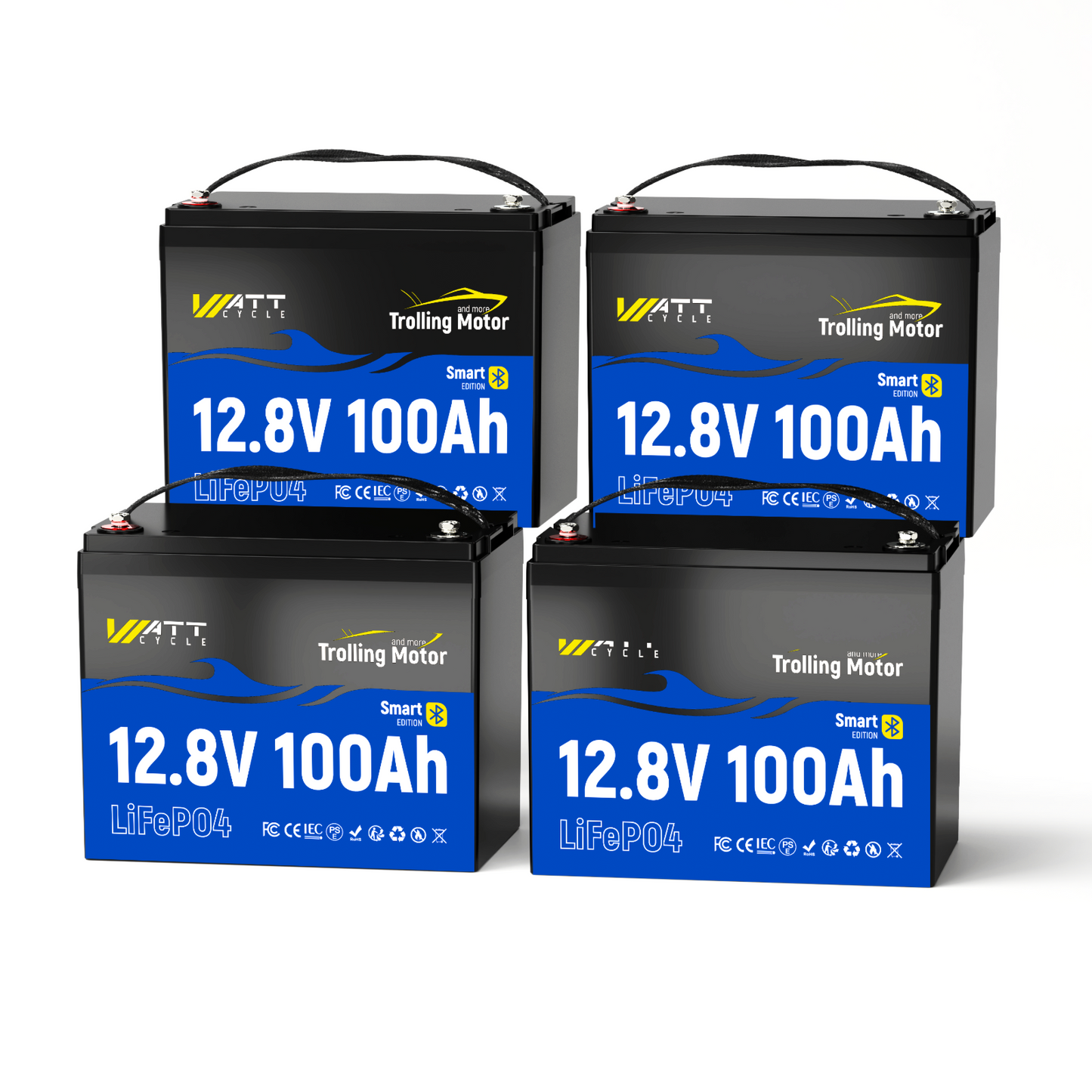

- Scalable: Max. 4S4P, up to 20.48kWh
- Waterproof: IP67, resistant to water, dust, and salt spray
- Certification: SDS / UN38.3 / FCC / CE / ROHS / UL
Couldn't load pickup availability
- 5-Year Warranty
- Hassle-free Returns
- 7/24 Help & Advice
Shipping
Shipping
Free local shipping on all orders.
Description
Description
- Best for Trolling Motors & Marine：This lithium battery is ideal for trolling motors with a thrust of 30~70 lbs and is also perfect for RVs, vans, campers, and household use.Designed to Group 24 size（10.2 * 6.6* 8.2 inchs，23.15lbs）, this trolling motor battery is nearly three times lighter than a lead-acid battery of the same capacity.
- Automatically Cuts off Charging Protection & IP67： Equipped with a premium BMS, the battery automatically cuts off charging below 0°C / 32°F and resumes charging above 5°C / 41°F to prevent the battery cells from being damaged; And battery with IP67 waterproof rating.

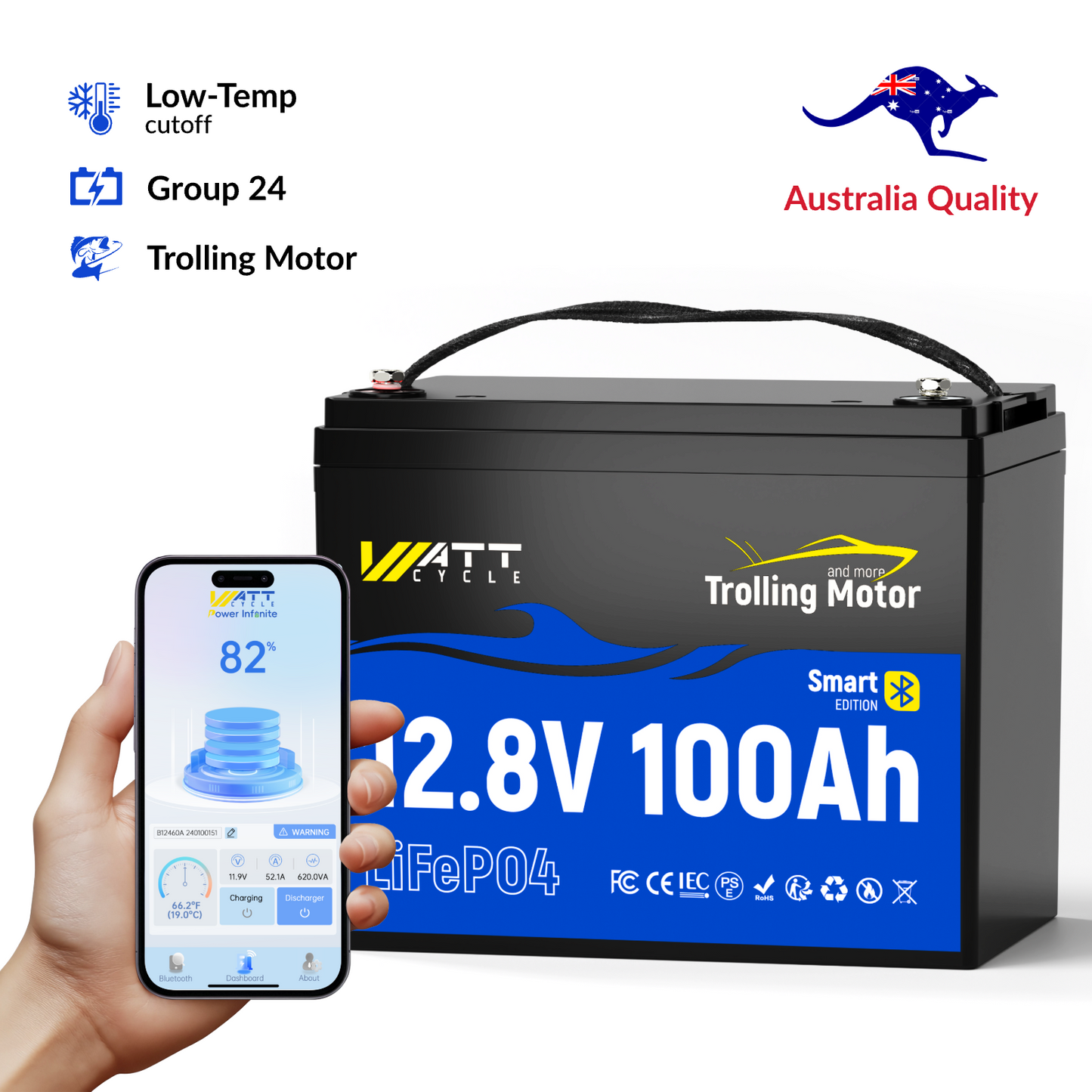

- Bluetooth Real-Time Monitoring： Downloading the Bluetooth app allows you to set your Bluetooth name while mastering marine power, you can read the real-time status of your battery, giving you a clear picture of the health of your Lifepo4 battery even on a rocking boat, ensuring safe use.

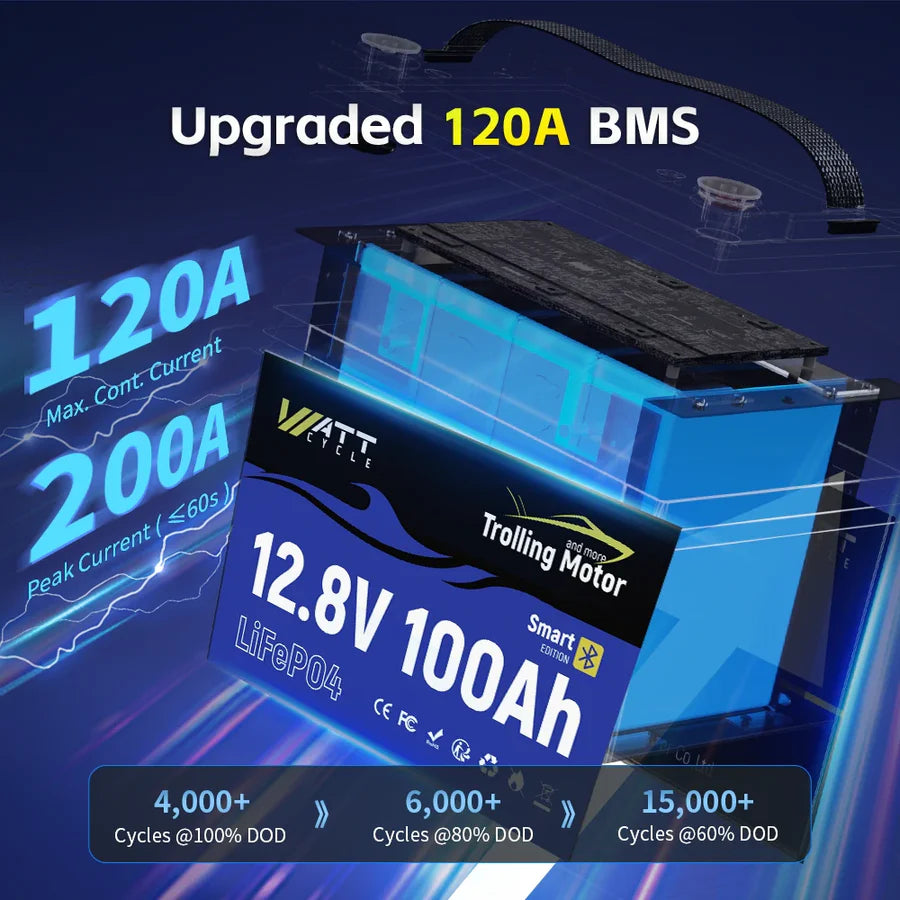

- Upgraded 120A BMS &Low-Temp Protection： The integrated Battery Management System (BMS) continuously monitors battery status, preventing overcharge, over-discharge, overcurrent, and short circuits. It also offers automatic over-discharge protection and recovery without user intervention.
- Automatic recovery function: When the battery is in low temperature protection, it can automatically recover without the need for a charger or other batteries; No need to worry about your Trolling motors being stranded in the middle of the lake.
- High Quality and Ultra Long Life：The Grade A+ cells that make up our 100Ah LiFePO4 battery are made by EV, and guarantee a lifespan of up to 10 years. It can withstand up to 15,000 cycles and can be used in a 4S4P arrangement with a capacity of up to 20.48kWh; And Wattcycle TM LiFePO4 battery is designed with technology in mind to be waterproof and drop-resistant, with a rugged housing and a stable internal structure.
- Warranty and Support：Our LiFePO4 batteries come with a 5-year support, If you have any concerns or inquiries about a product, you can find us on the Amazon page and our support team directly through Amazon. Within 24 hours, our technical team will respond. Our official email address is also a means of reaching us for assistance.
WattCycle 12V 100Ah LiFePO4 Trolling Motor Battery
WattCycle is honored to be the official gold sponsor of American Bass Anglers (ABA), marking three consecutive years of successful partnership.
This collaboration underscores our commitment to supporting America's premier bass fishing community with innovative marine energy solutions.
Unmatched Marine Performance
Experience unmatched marine performance with WattCycle's 12V 100Ah TM LiFePO4 deep cycle battery, engineered for superior power and reliability. It consistently delivers robust energy to keep your marine adventures smooth and uninterrupted.
Premium Deep Cycle Design
This premium marine deep cycle battery is designed for fishing boats, electric kayaks, and leisure vessels, ensuring a consistent energy supply in every adventure. Its robust design meets the rigorous demands of the marine environment, making it perfect for both casual outings and professional use.
Smart Connectivity
The integrated smart real-time status monitor and Bluetooth 5.0 connectivity allow effortless control and monitoring directly from your smartphone. Enjoy immediate access to vital battery metrics that enhance your overall marine experience. With built-in GPS and seamless compatibility with Android and iOS, you stay informed and connected at all times. The intuitive mobile interface makes it simple to track performance and optimize battery usage on the go.
EV Grade A+ Cells ＆ Rugged Waterproof Construction
Crafted with EV grade A+ LiFePO4 cells, it delivers exceptional durability with 5,000 to 15,000 deep discharge cycles. With an IP67 waterproof rating, this battery is resistant to water, dust, and salt spray, making it ideal for harsh marine environments. Its rugged construction guarantees reliable performance even in heavy rain or corrosive sea conditions.This high-quality construction guarantees a reliable power source that withstands frequent use and harsh conditions.

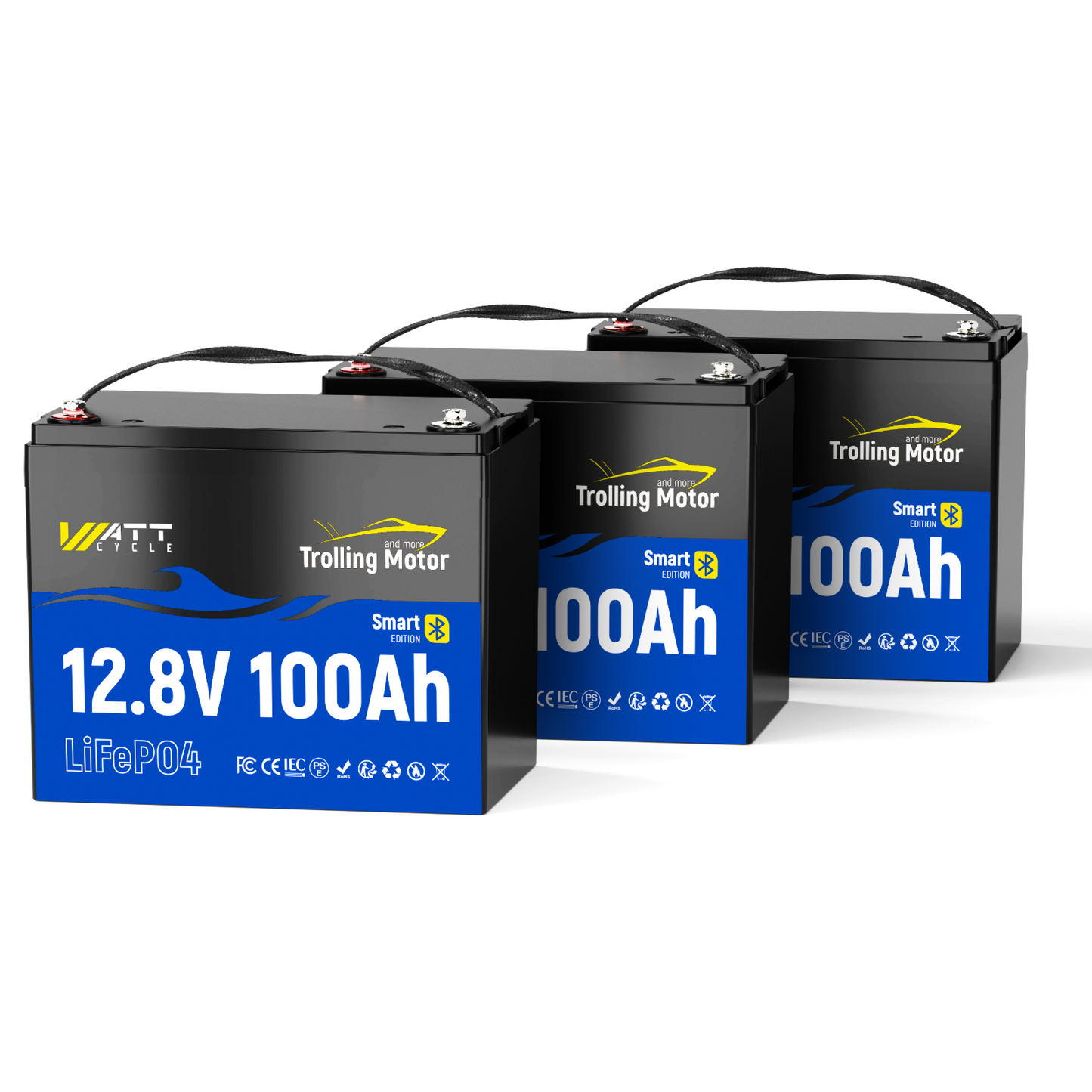

Scalable Energy Solutions
Equipped with a robust 120A BMS, our battery delivers 1536W and 1280Wh of steady power while an advanced management system enhances efficiency and battery longevity; its scalable 4S4P design supports up to 20.48kWh of capacity, allowing easy expansion as your power needs grow.
12V 100Ah TM LiFePO4 Deep Cycle Battery Tech Specs
GENERAL
| Dimensions (Inches) | 10.2 (L) x 6.6 (W) x 8.2 (H) |
| Weight | 23.15lbs / 10.5kg |
| Waterproof Rating | IP67 |
| Warranty | 7 years |
| Housing Material | ABS (Flame Retardant Plastic) |
| Terminal | M8 bolts |
BATTERY
| Cell | EV Grade A+ LiFePO4 Cells |
| Nominal Voltage | 12.8V |
| Nominal/Usable Capability | 100Ah |
| Energy | 1280Wh |
| Cycle Life | 5,000+ cycles @100% DOD, 6,000+ cycles @80% DOD, 15,000+ cycles @60% DOD |
| Max Depth of Discharge (DOD) | 100% |
| Max. Expansion | 4S4P |
| Internal Resistance | ≤40mΩ |
BMS
| BMS | 120A |
| Max. Continuous Output Power | 1536W |
| Max. Continuous Charge Current | 120A |
| Max. Continuous Discharge Current | 120A |
| Max. Discharge Current | 220A (≤6s) |
| Peak Discharge Current | 400A (≤0.3s) |

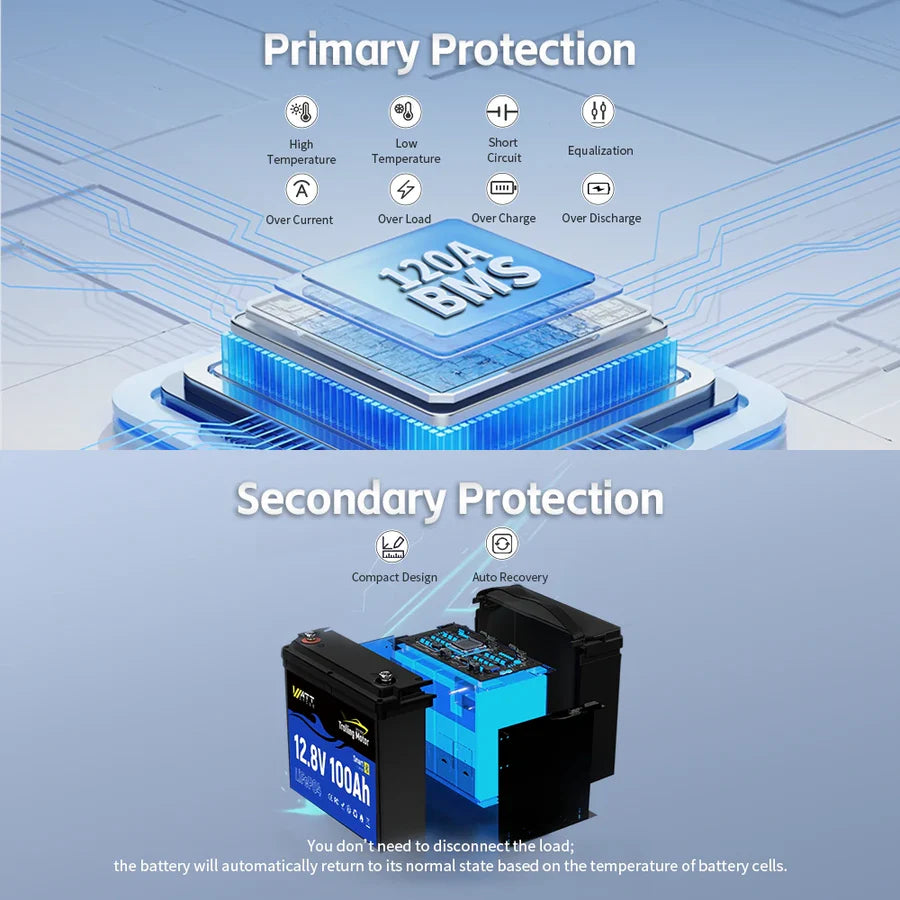

| Primary Current Protection | 220A |
| Secondary Current Protection | 400A |
CHARGE
| Charge Voltage | 14.6V ± 0.2V |
| Charge Method | CC/CV |
| Recommend Charge Current | 20A (0.2C) |
| Charge Temperature | 0℃ to 65℃ / 32℉ to 149℉ |
| Discharge Temperature： | -20℃ to 55℃ / -4℉ to 131℉ |
| Storage Temperature | 0℃ to 55℃ / 32℉ to 131℉ |
| Low-Temperature Protection | Yes (32℉/0℃) |
| Low-Temperature Charging Protection Auto Recovery | Yes (±41℉/5℃) |
Frequently Asked Questions
Q1: What applications is this battery best suited for?
Our 12V 100Ah LiFePO4 Trolling Motor Battery is optimized for trolling motor use in fishing boats, electric kayaks, and leisure vessels, and it also works well for RVs, camping, and off-grid systems.
Q2: Can I use this battery for electric outboard motors?
The WattCycle 12V 100Ah LiFePO4 Trolling Motor Battery is optimized for trolling motor applications and may not meet the higher surge current requirements of electric outboard motors. For electric outboard applications, we recommend a battery specifically designed for those demands to ensure optimal performance and safety.
Q3: How can I monitor my battery’s performance?
With integrated Bluetooth 5.0 connectivity and real-time status monitoring, you can easily track voltage, charge levels, and overall health via our dedicated mobile app. Please reading WattCycle detailed Bluetooth Guide.
Q4: How should I prepare the battery for first use?

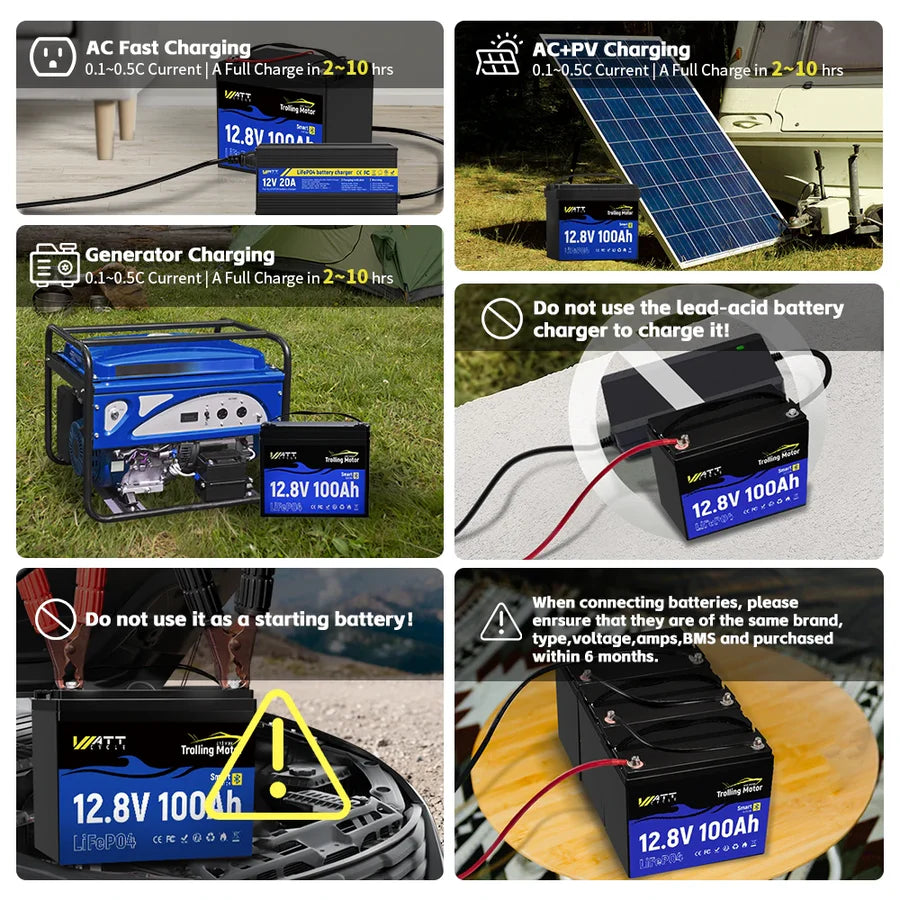

We recommend charging the battery fully with a compatible LiFePO4 charger before its initial use and maintaining a 30%–50% charge for long-term storage to ensure optimal performance.
Q5: Can this battery be used to start my car or boat engine?
No, this battery is designed for energy storage and trolling motor applications, not for cranking engines. For starting applications, please consider our dedicated marine cranking and dual-purpose batteries. (coming soon)
Q6: How does the battery's BMS overcurrent protection work?
Our advanced BMS continuously monitors the current flow and instantly disconnects power if it detects an overload, ensuring that neither the battery nor your devices are exposed to harmful currents.This proactive overcurrent protection automatically resets once safe conditions resume, maintaining optimal performance and extending the battery’s lifespan.
