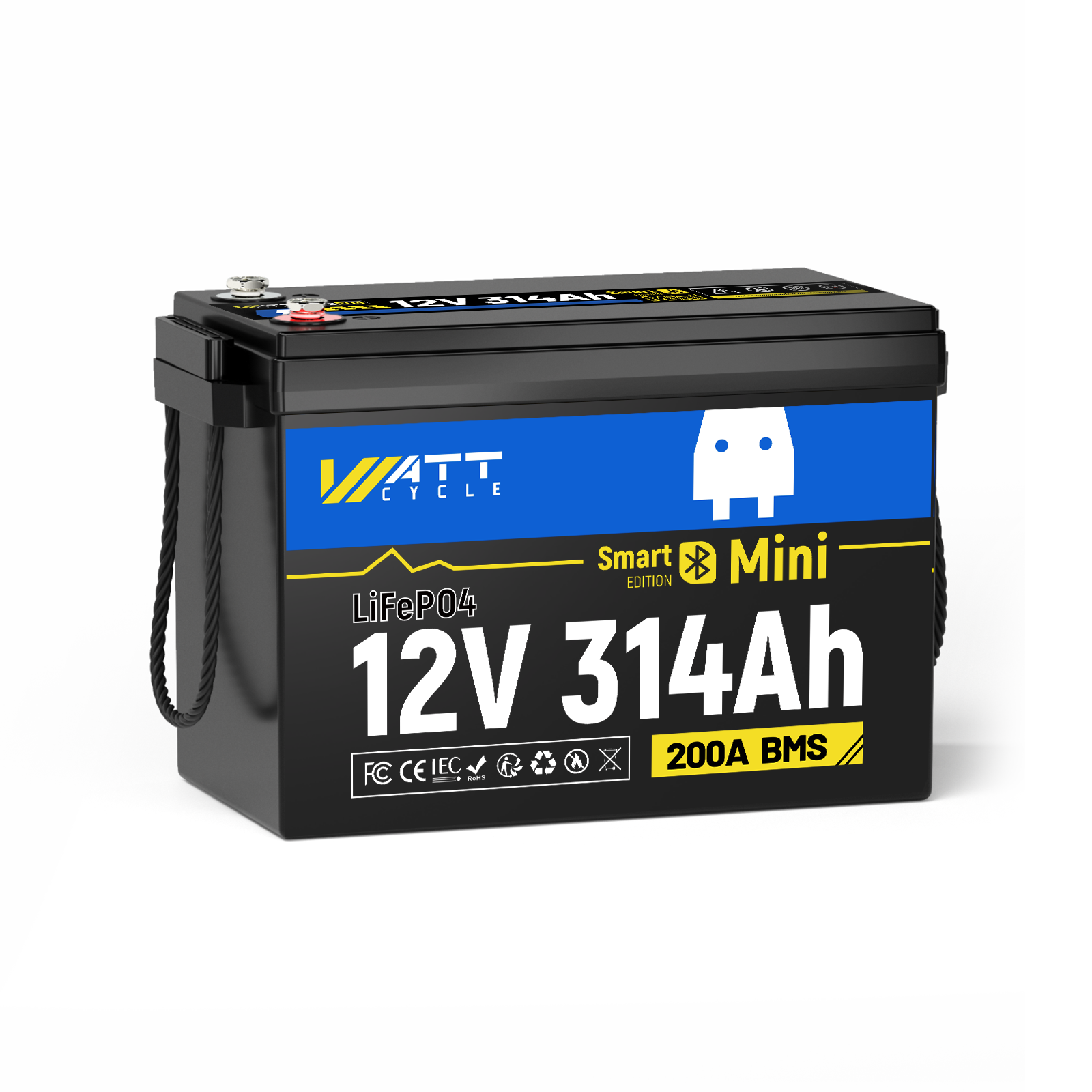

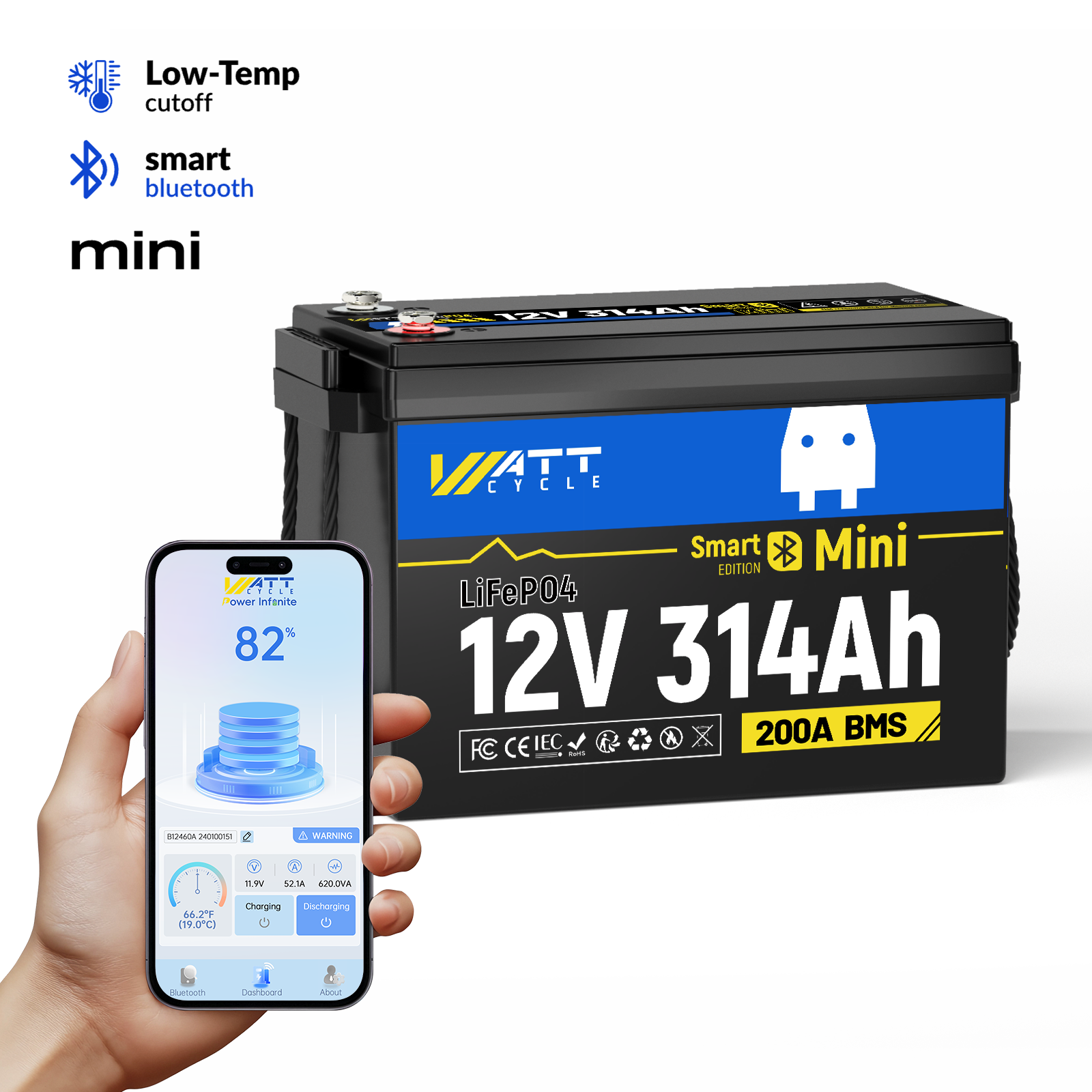

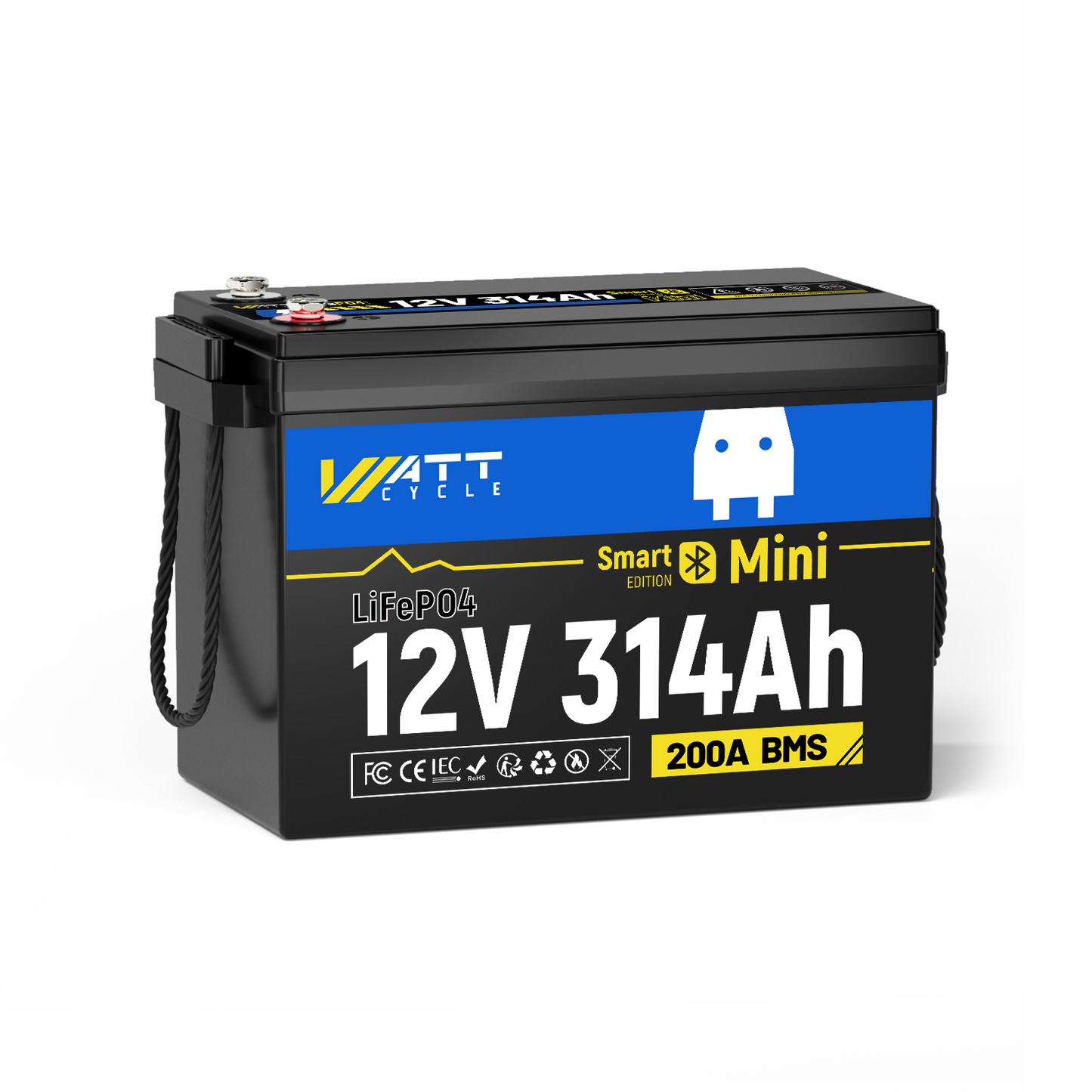

【SOLD OUT】WattCycle AU - 12V 314Ah MiniBT LiFePO4 Battery
【SOLD OUT】WattCycle AU - 12V 314Ah MiniBT LiFePO4 Battery
Out of stock
🕒Estimated dispatch: 8th NOV. | Delivery date: About from 15th NOV. to 18th NOV.
- 12V 314AH MINI BT: L382 x W193 x H249.5 mm | 28 kg
- Over Current Protection: 210±10A (1s)
- 314Ah Cells: EV Grade A+ Cells
- Nearly 5.44 kg lighter than 3 pack of 12V 100Ah
- 42% smaller than 3 pack of 12V 100Ah

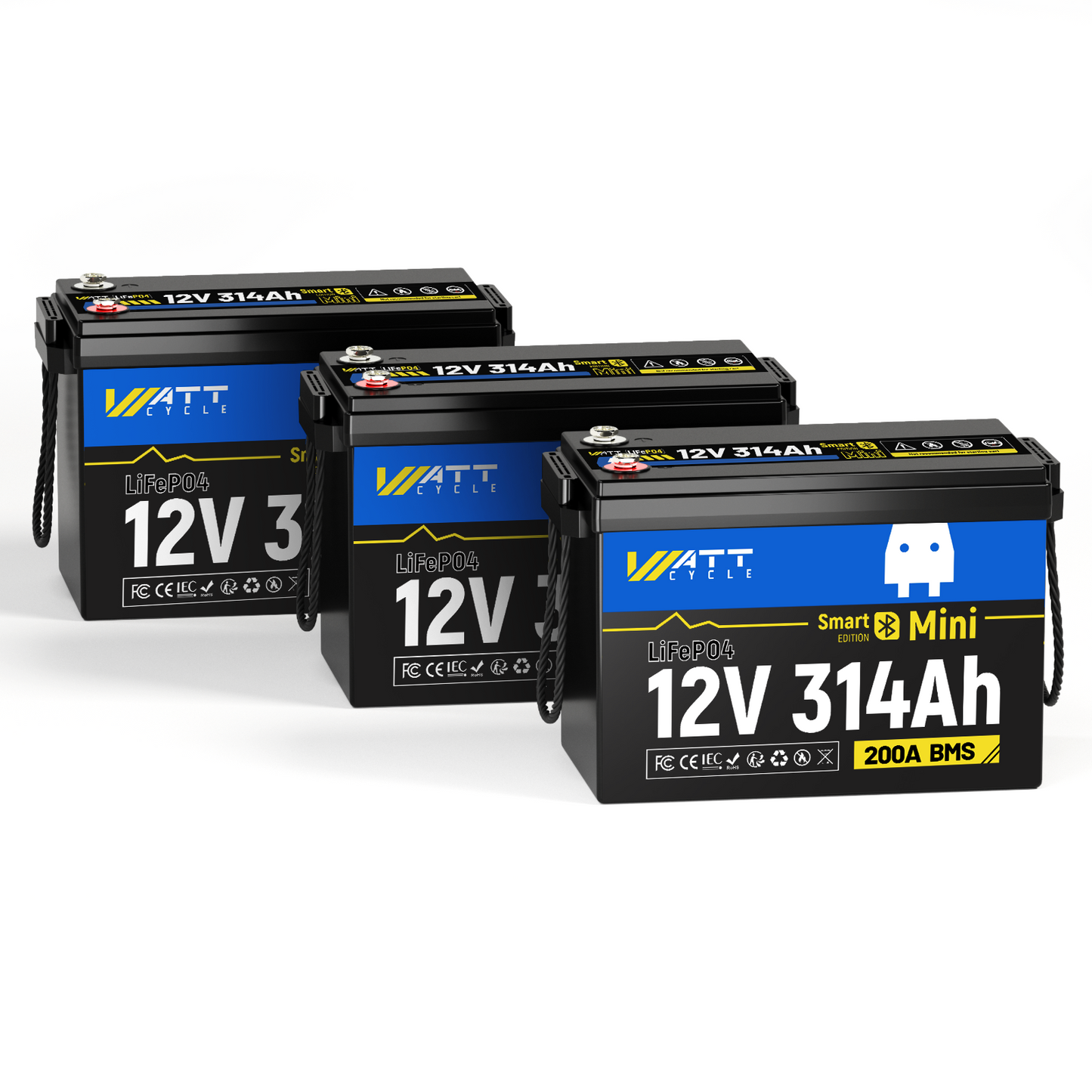

- The same capacity with 3 pack of 12V 100Ah
- Safe: Low-temperature cut-off protection
- Durable: 5,000-15,000 deep discharge cycles
- Reliable: Built-in 200A BMS | 2560W | 3584Wh
- Scalable: Max. 4S4P, up to 57.34kWh
- Waterproof: IP65
- Certification: MSDS / UN38.3 / IEC / FCC / CE / ROHS / UL
Couldn't load pickup availability
- 5-Year Warranty
- Hassle-free Returns
- 7/24 Help & Advice
Shipping
Shipping
Free local shipping for all orders, except some areas need extra shipping cost
Download
Download
Customer Reviews
Fantastic product, works great
Great batteries, very happy with them.
Fantastic deal Bluetooth works really well.

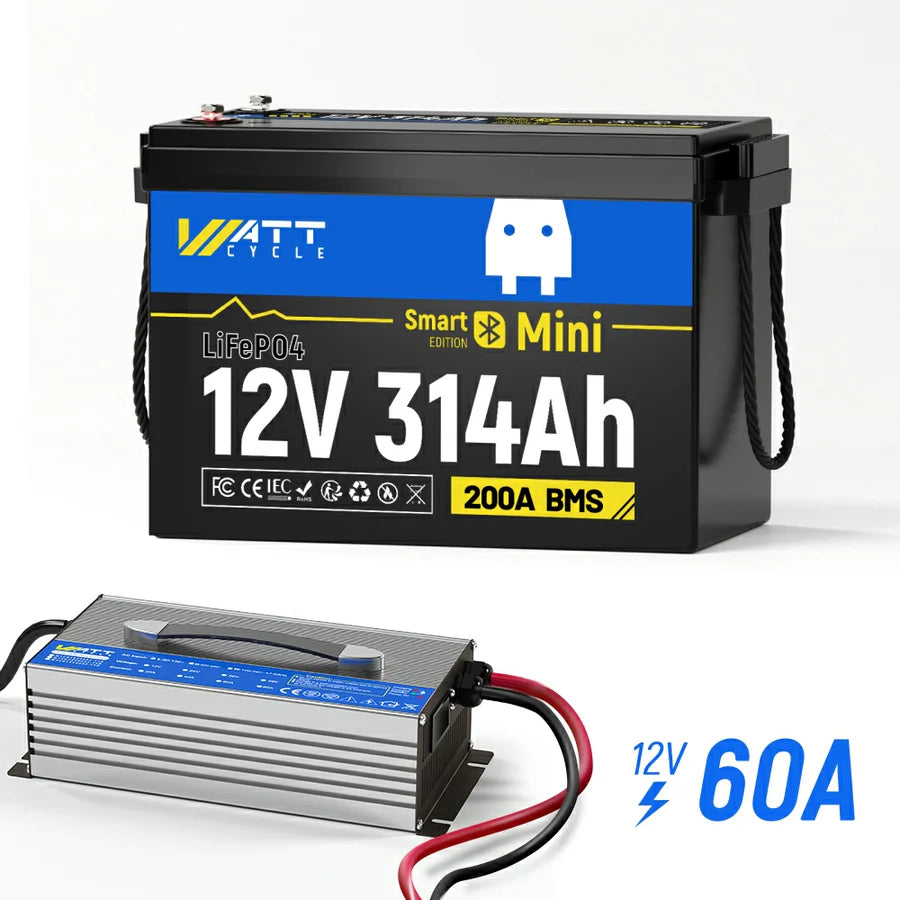

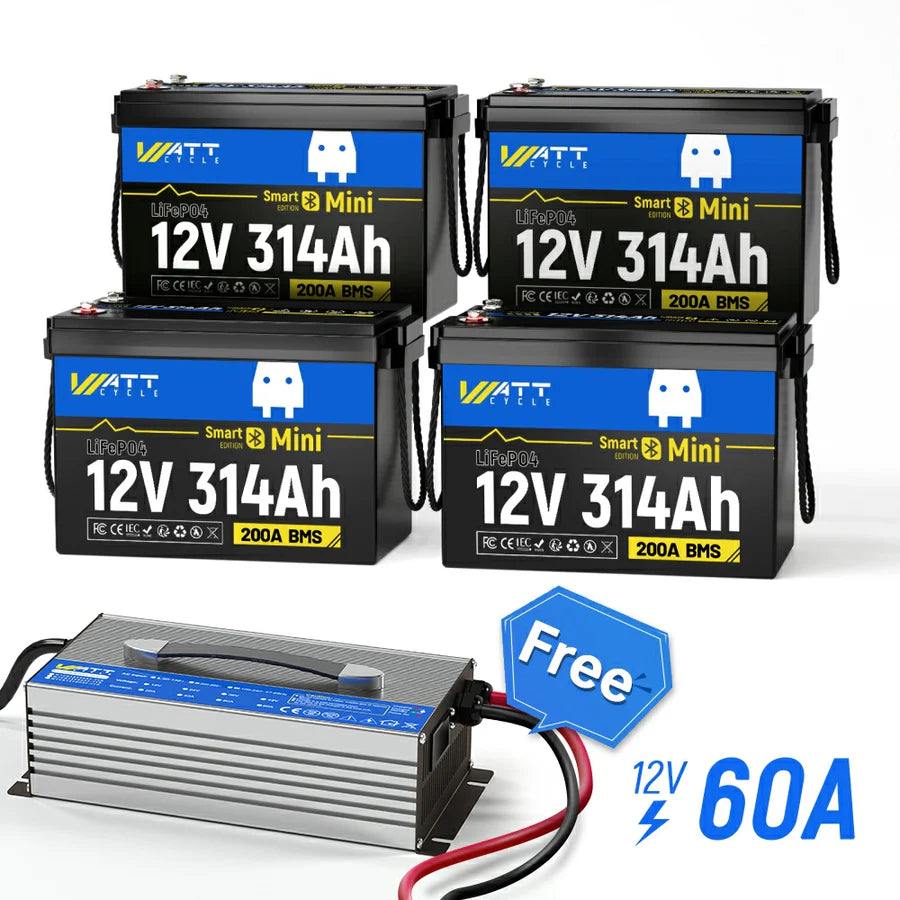

M, the 60 amp.
Charger does exactly that.
I will be buying one more 314 ah battery because why not love having power
Batteries not top balancing after several attempts

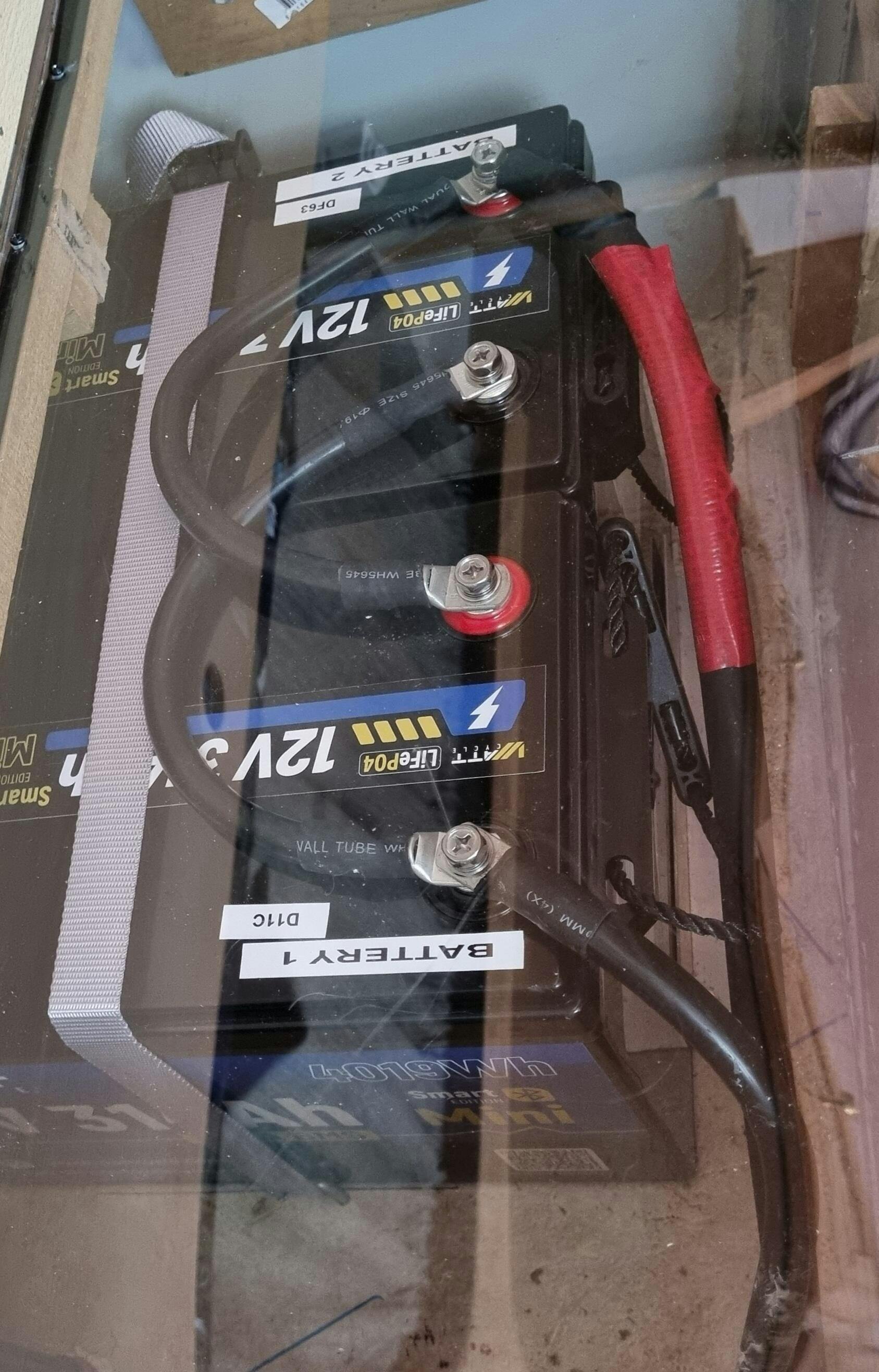

I brought 2 x 314 AH 12v mini battery's connected them in parallel after fully charging them, so far they are working well in my caravan
WattCycle Revolutionary Battery, More Energy in a Compact Design
WattCycle 12V 314Ah Mini Bluetooth lithium leisure battery has an internal 200A BMS(Battery Management System), which ensure a 200A(1C) continuous discharge/charge current. Made of EV-grade A+ cells, it can store 4.01kWh energy, providing enough energy during your motorhome trip.
Why 12V 314Ah Mini Bluetooth Lithium Battery

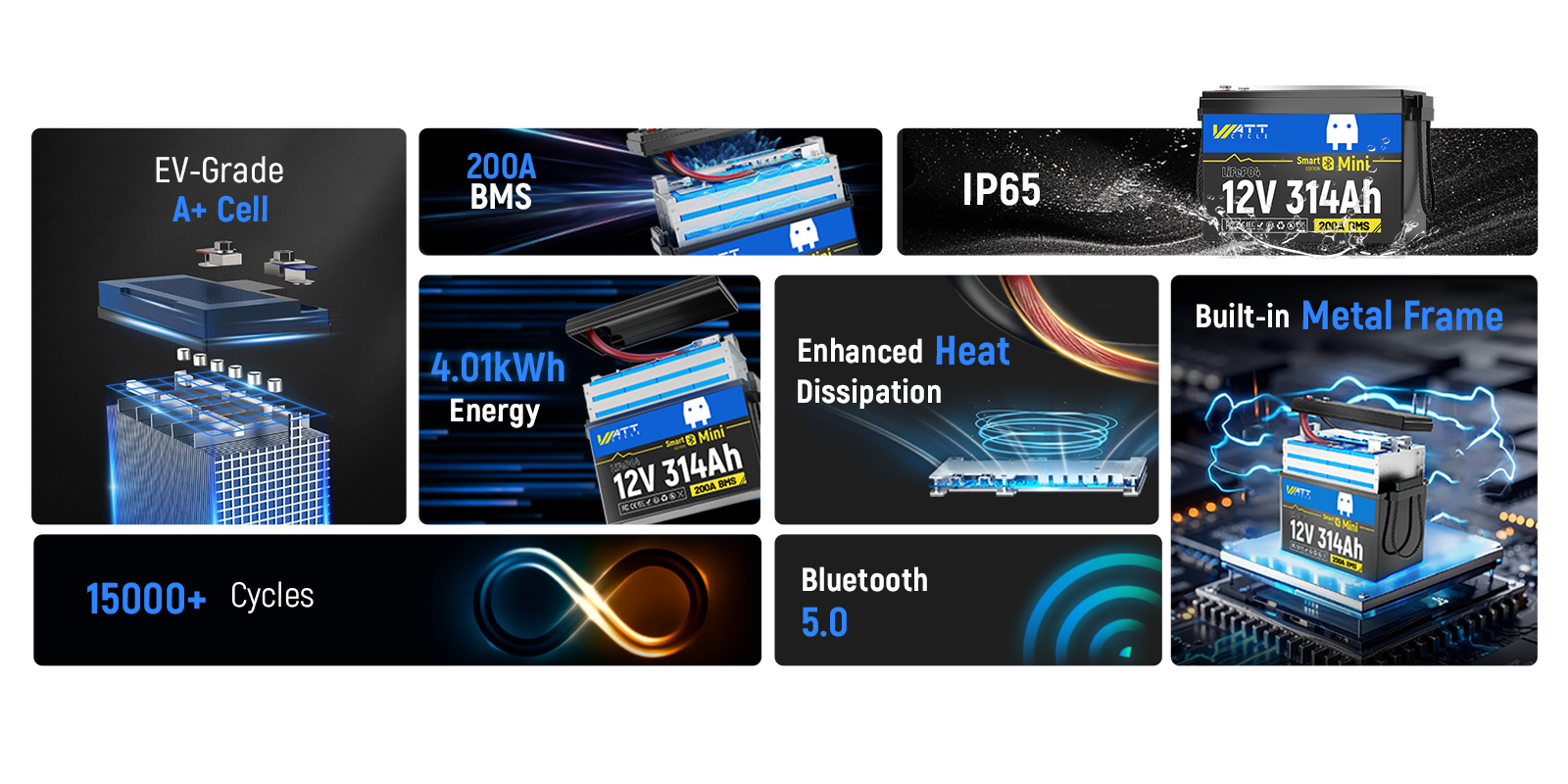

Built with high-performance EV-grade A+ cells and advanced 200A BMS, it gives 4.01kWh energy and 2560W max output, delivering up to 15000 cycles. The external IP65 waterproof rating makes the battery fearless of salt environments, and the internal metal frame ensures that the battery is safe even in bumpy environments. Bluetooth 5.0 function lets you check battery status anytime & anywhere.

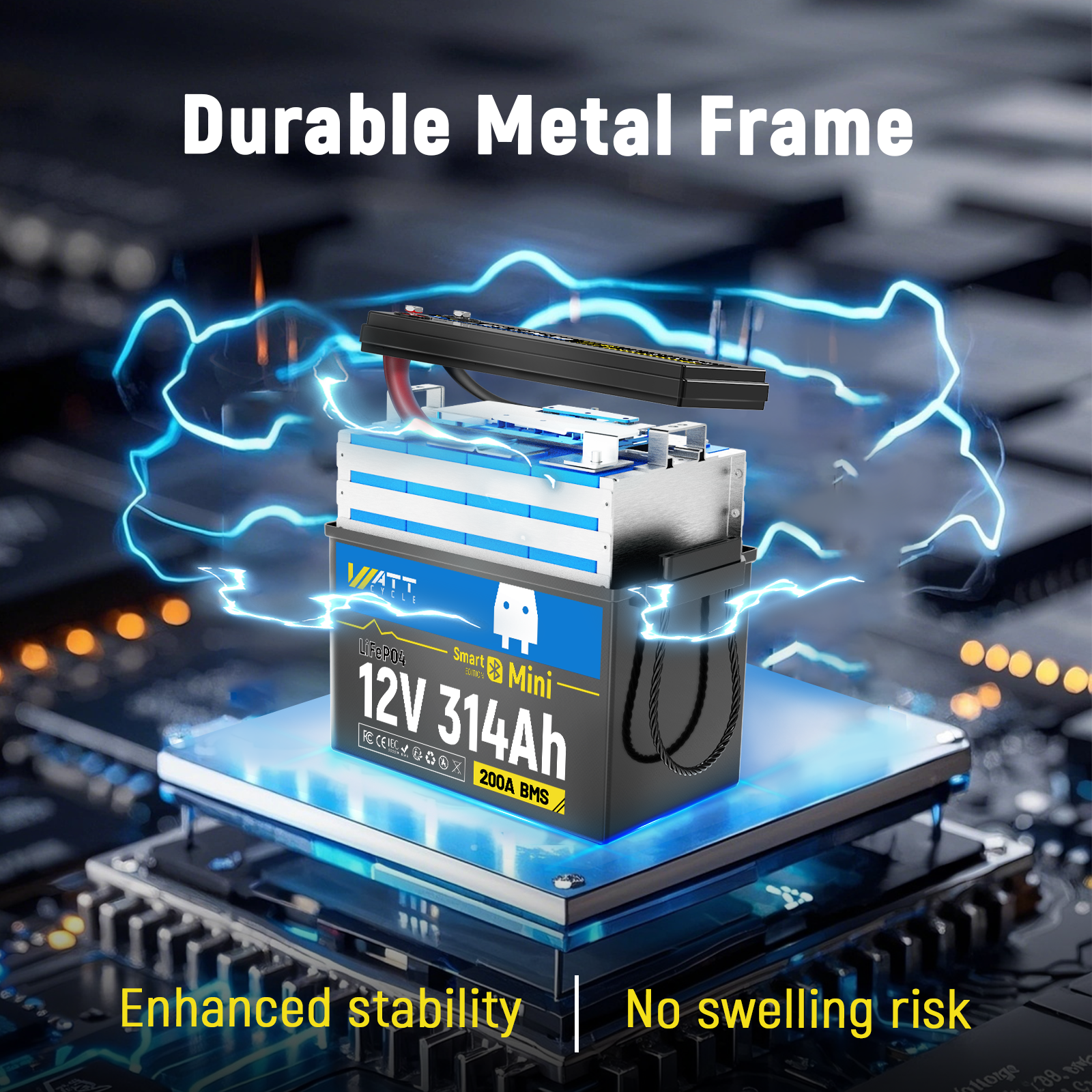

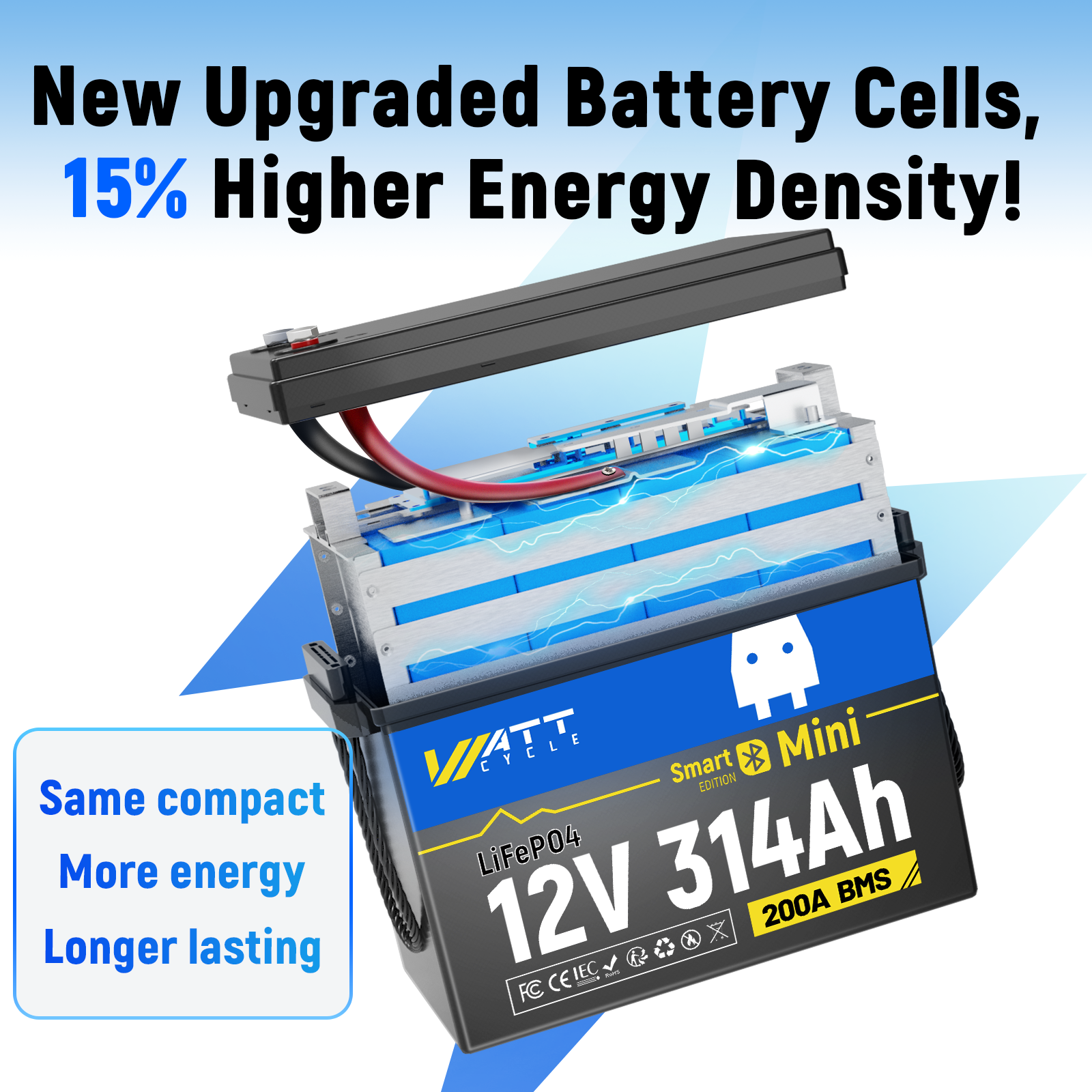

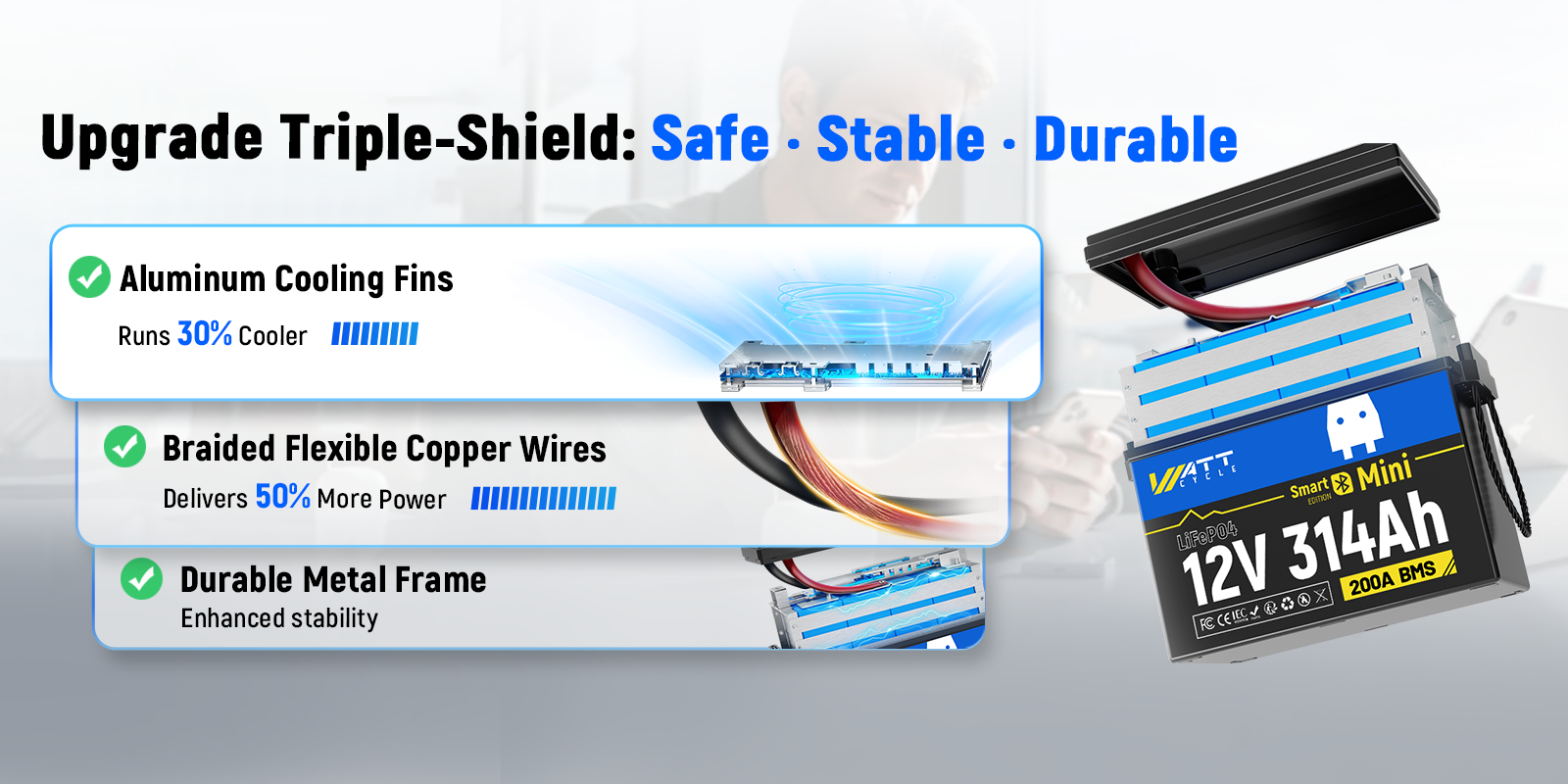

Upgraded To Safer, Degigned To Be Stable & Durable

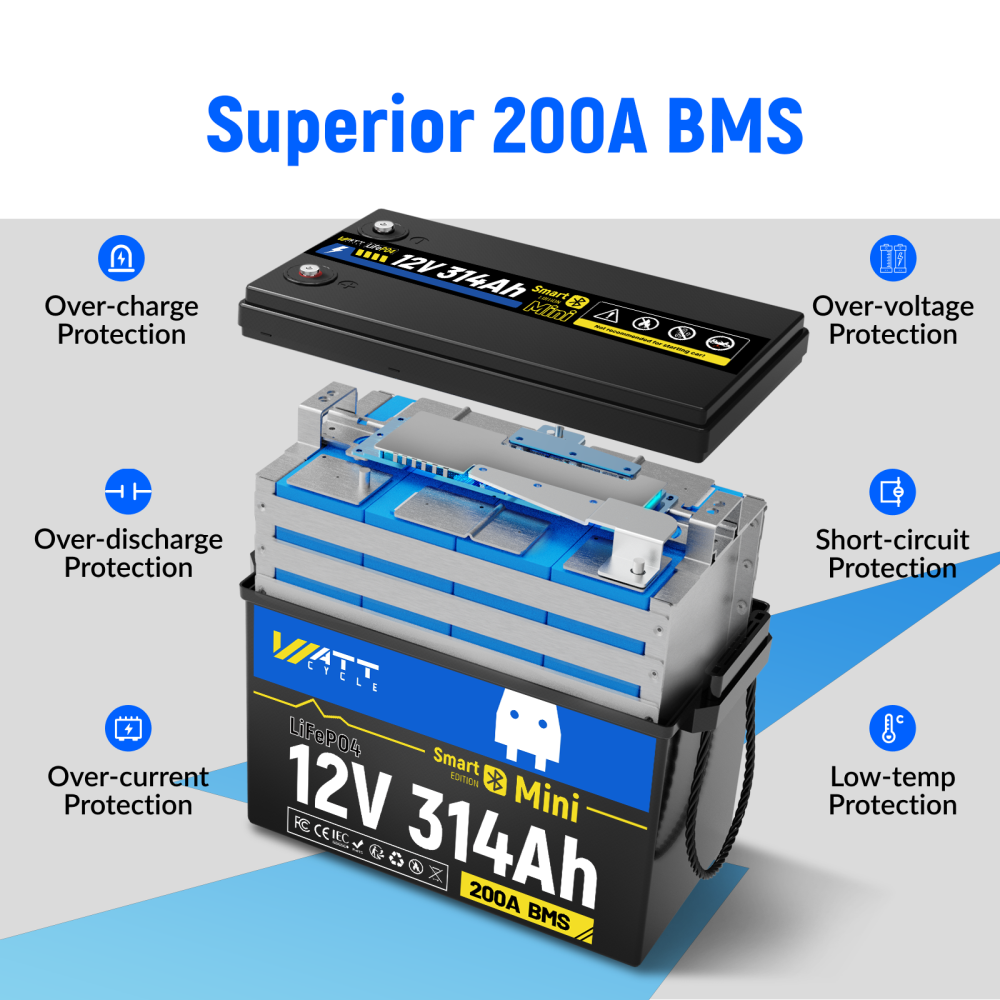

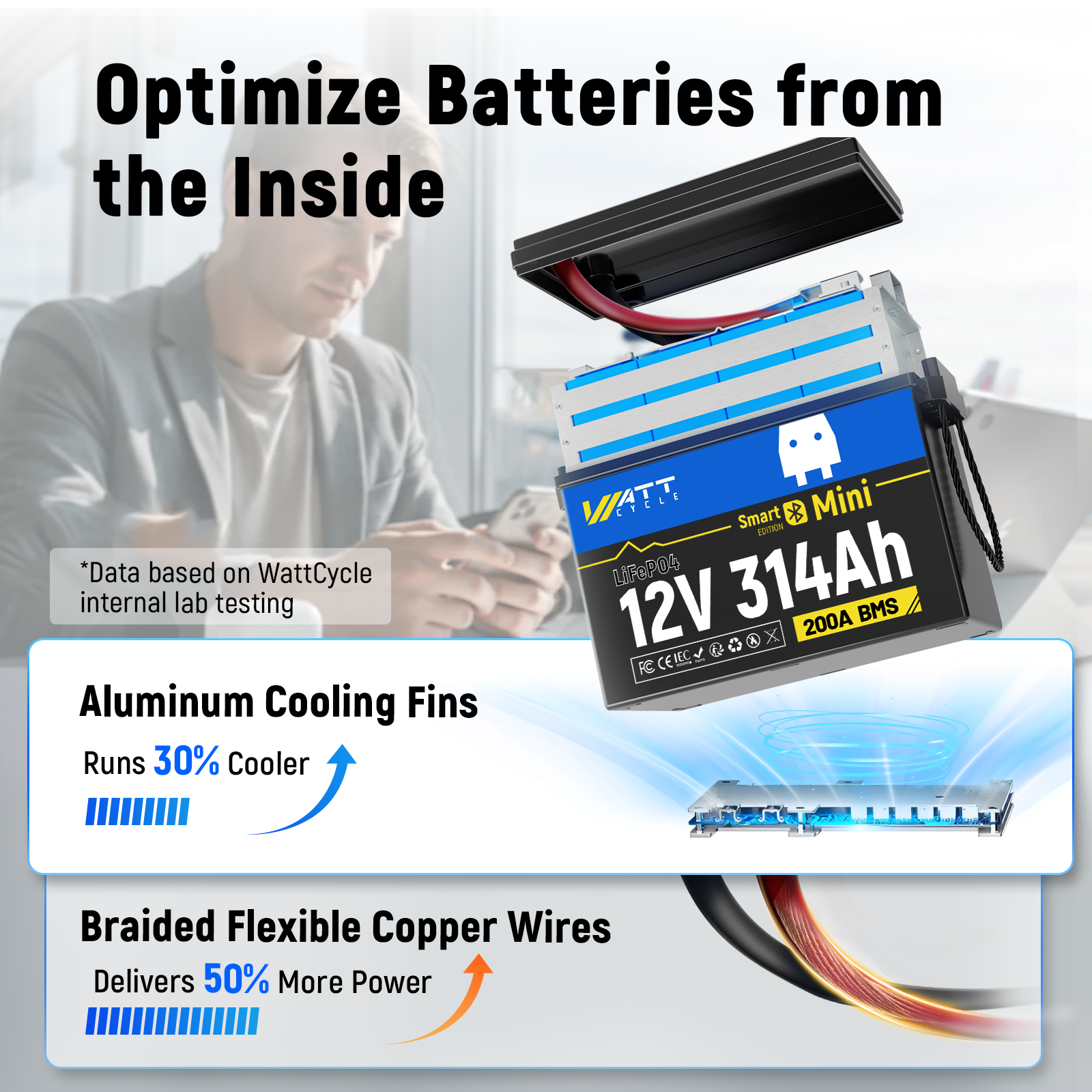

WattCycle 12V 314Ah Mini lithium leisure battery has a unique internal design. There is a metal frame inside to enhance the stability of the battery. Built with braided flexible copper wires, it can deliver 50% more power and run 30% cooler with the aluminum colling fins.
Worry-Free Power From Freezing Cold to Scorching Heat
WattCycle 12V 314Ah Mini Bluetooth battery with extreme temperature protection (high and low temperature cut-off protection) keeps your essentials powered through the cold and heat. When the battery is in use, the BMS initiates protection when the temperature drops below -25°C to -15°C. When the temperature rises from 5°C to 15°C, the battery continues to discharge.

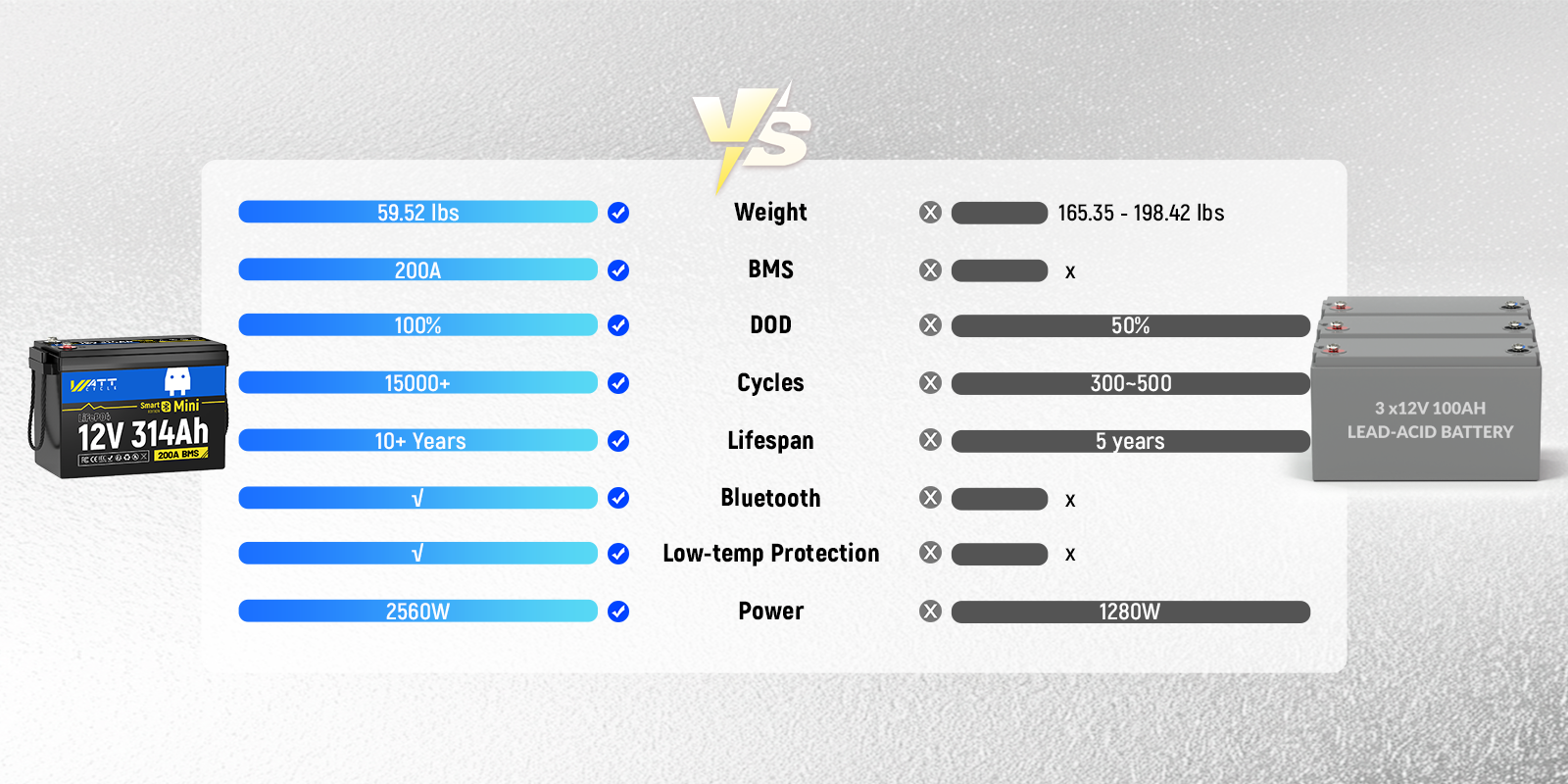

The Ultimate Upgrade from AGM Battery
WattCycle's flagship 12V 314Ah Mini Bluetooth lithium battery redefines portable power with its space-saving dimensions (L384×W194×H248 mm) and remarkably light 27kg frame. Delivering 2560W output and 4019Wh capacity, it outperforms traditional setups - replacing three bulky lead-acid batteries (87kg) that offer just 1800W/1800Wh. It's a smarter and more efficient energy solution for modern needs.

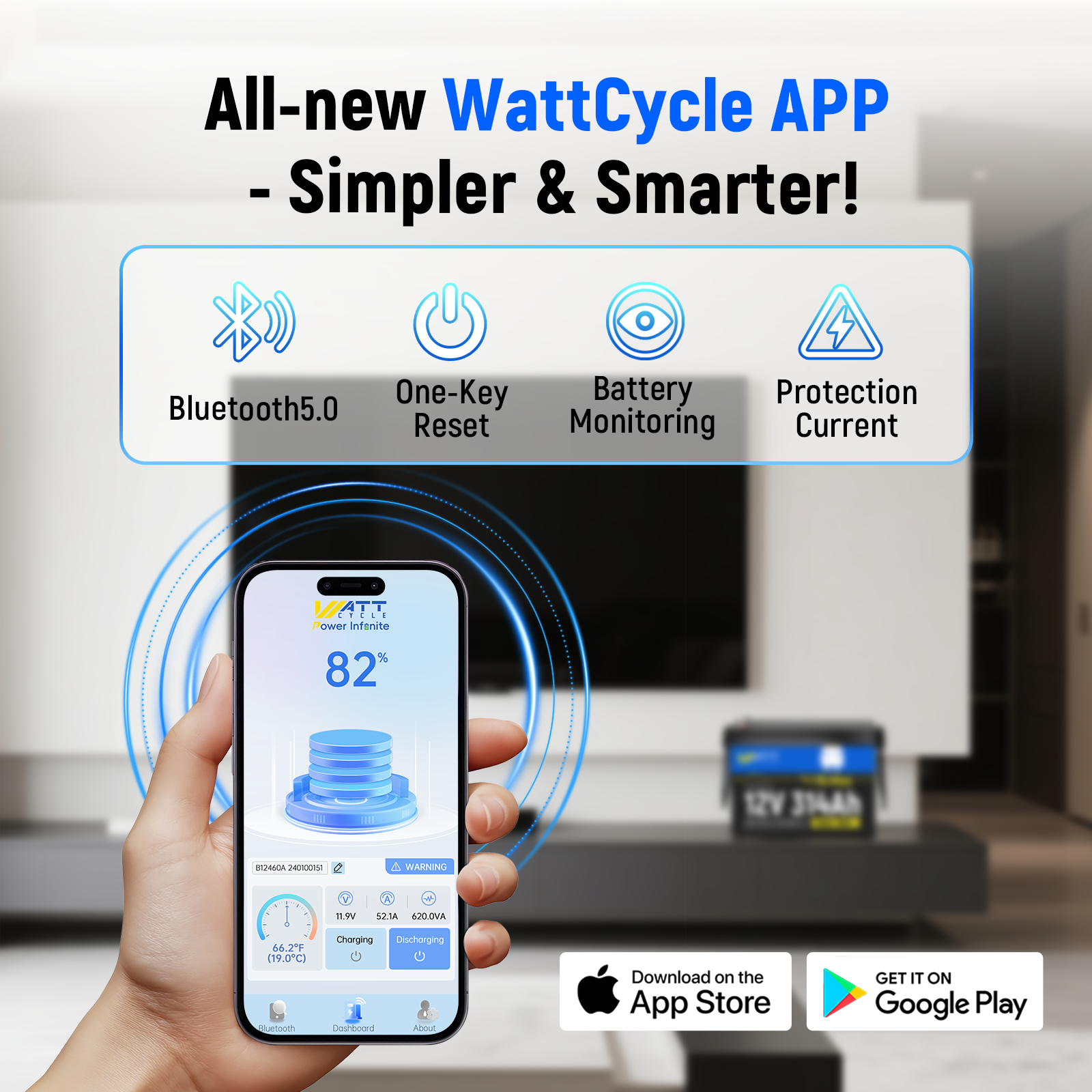

Effortless Bluetooth Connectivity To Control Battery Smartly
Gain complete oversight of your power system in three quick steps: Install the WattCycle App, detect your Bluetooth-enabled battery, and pair it through the interface. The App is readily available - either scan the provided QR code or locate "WattCycle" directly in the Google Play or Apple App Store.

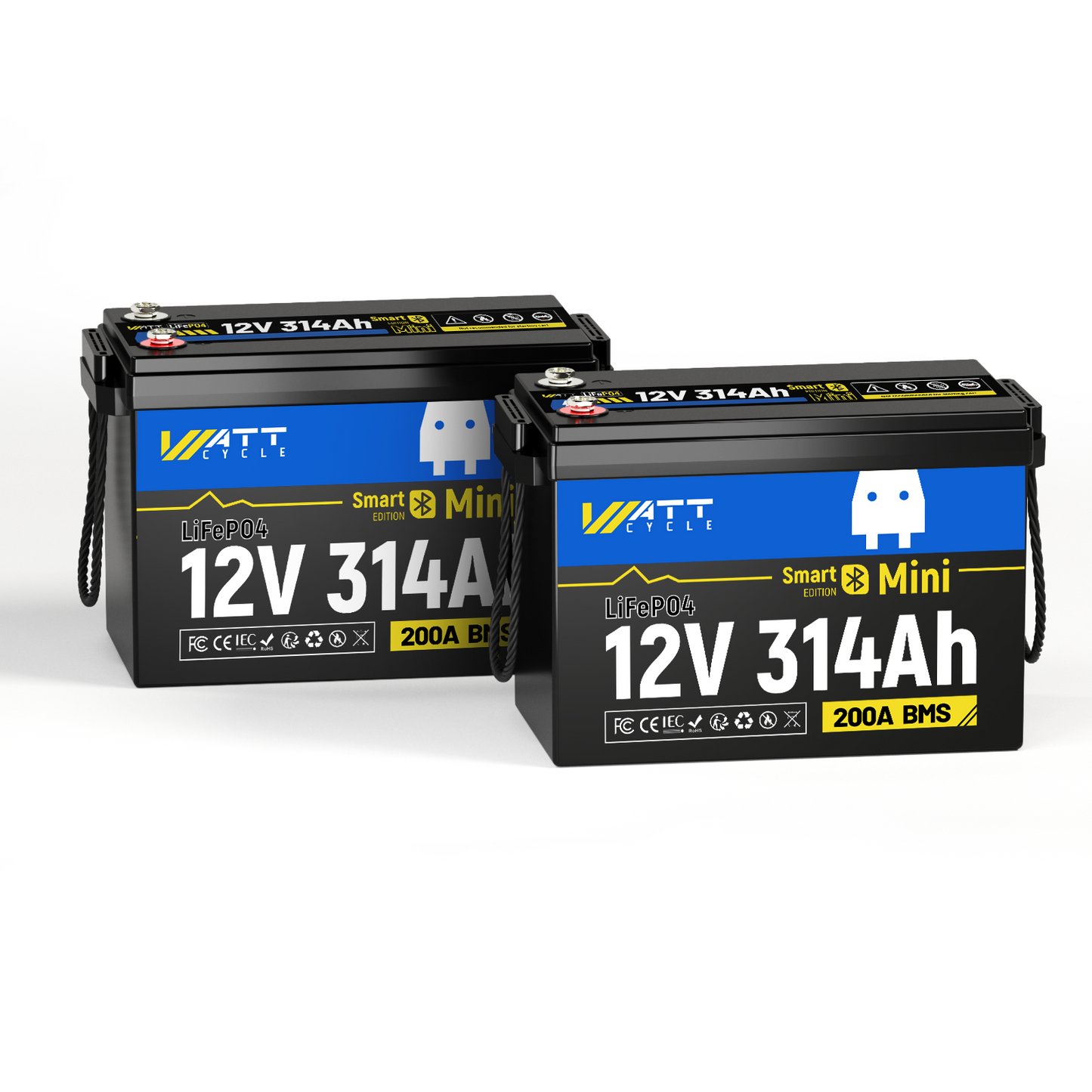

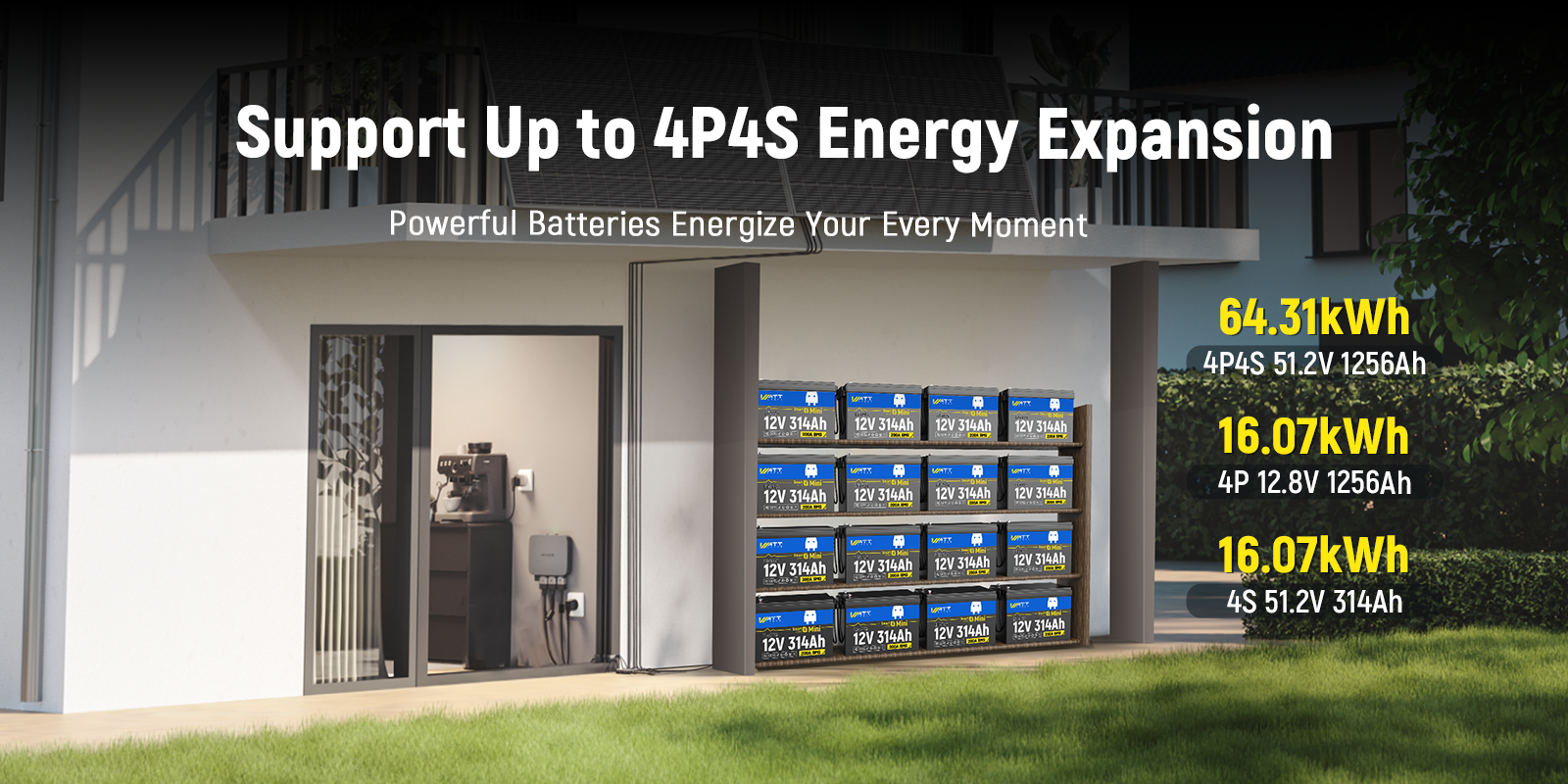

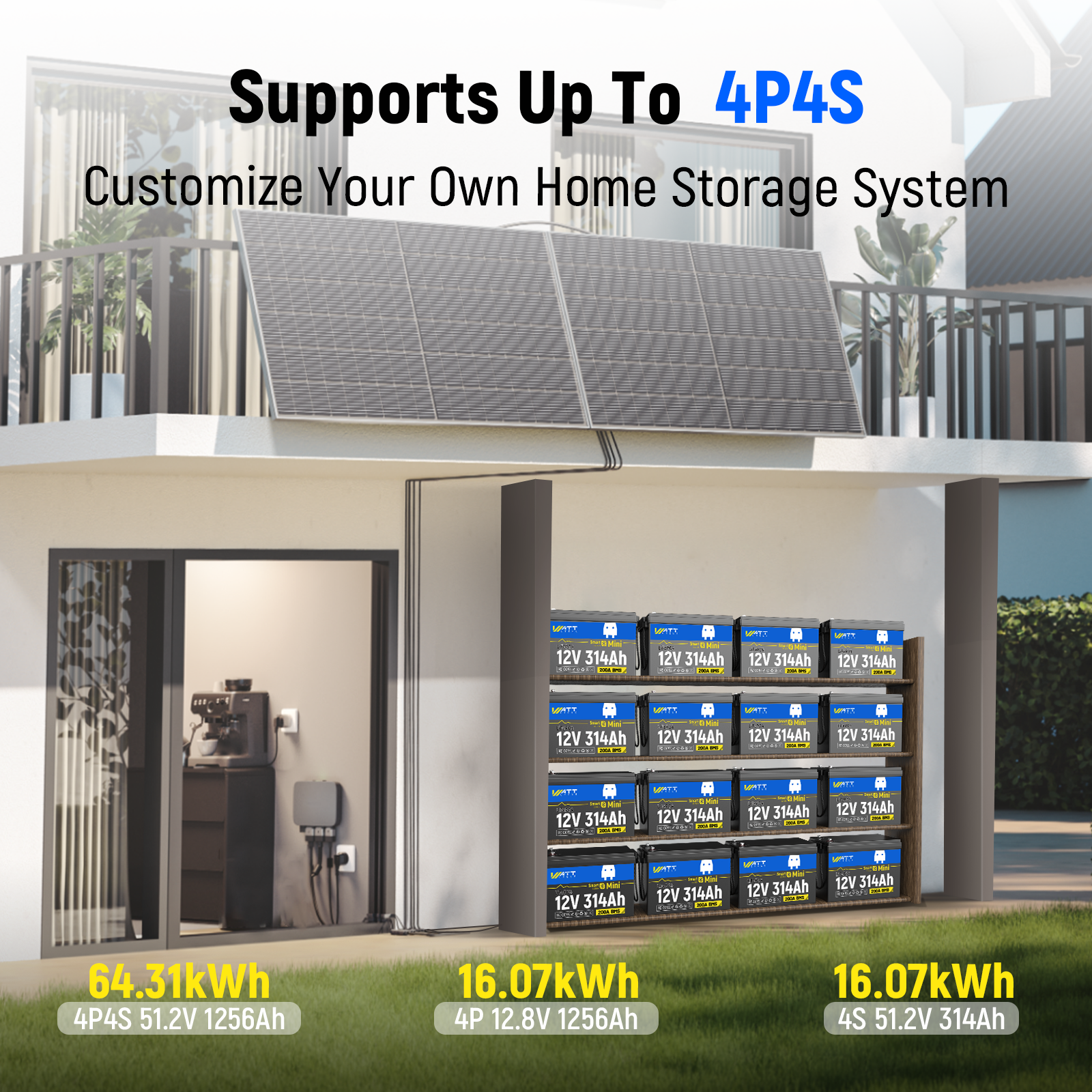

Scalable Power, Expand Your Energy Potential

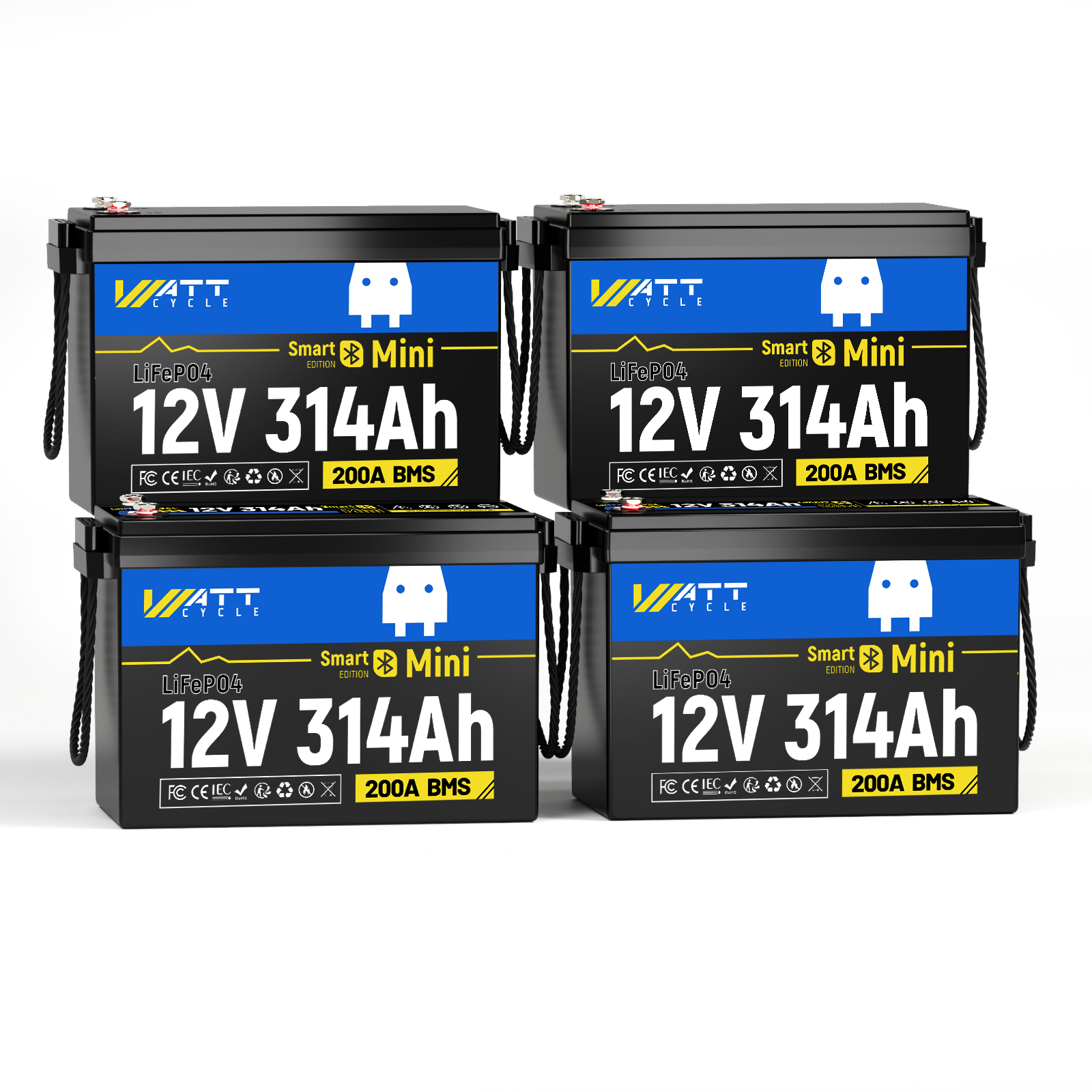

WattCycle 12V 314Ah Mini Bluetooth LiFePO4 battery supports max. 4 batteries in parallel and max. 4 batteries in series. 16 pcs WattCycle 12V 314Ah Mini Bluetooth LiFePO4 batteries can form a 48V 1256Ah battery system, providing up to 64.31kWh energy to power your motohomr trip or sailing journey. The modular design lets you start small and expand as your power needs grow, making it perfect for weekend campers and full-time off-grid dwellers alike.
Power for Sustainable Adventures
For true energy independence, connect multiple WattCycle 12V 314Ah Mini lithium batteries to create a massive 64.31kWh power bank. This scalable system is ideal for extended motorhome trips, marine excursions, and off-grid living situations - providing reliable electricity for appliances, navigation systems, and essential devices wherever your journey takes you.
Tech Specs

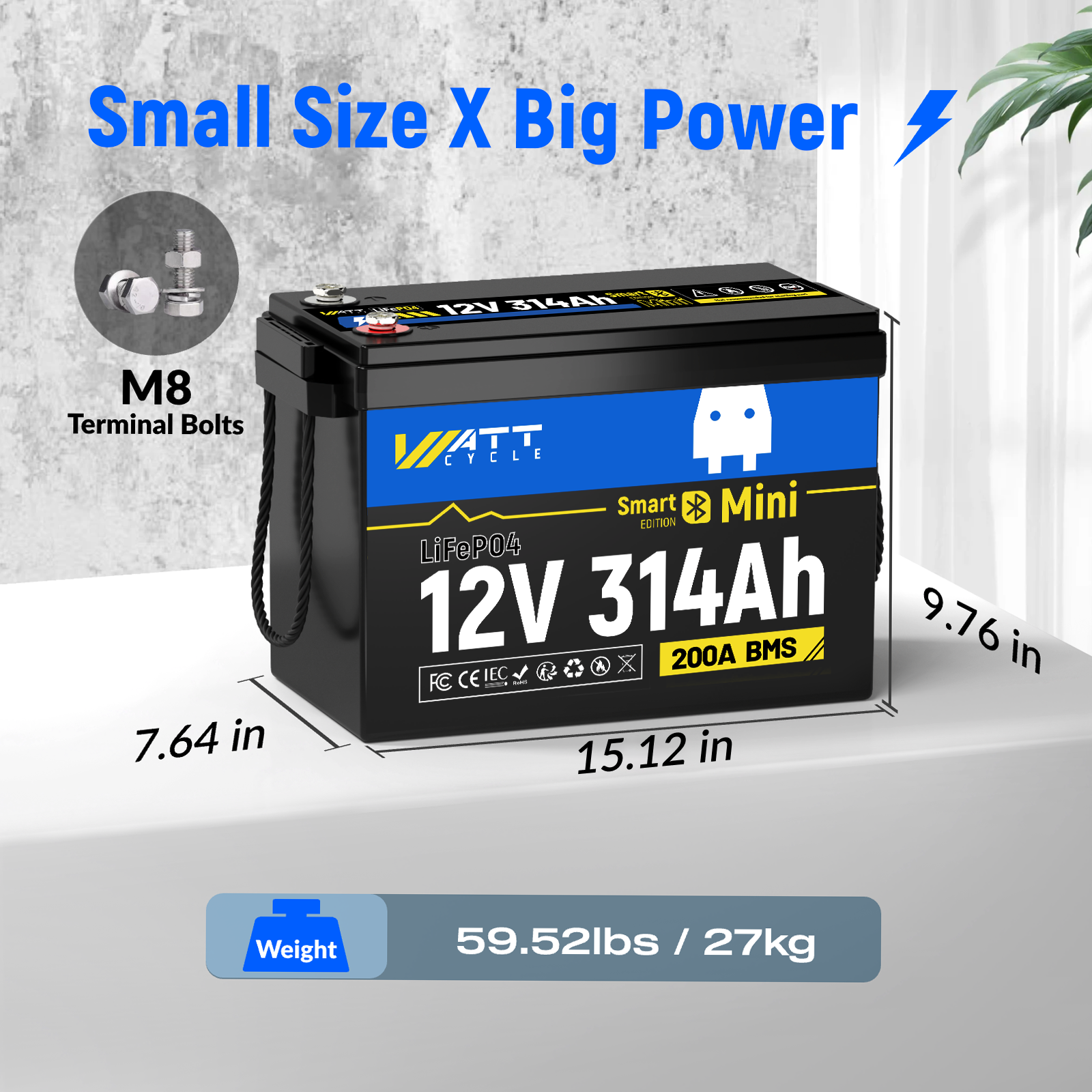

| Dimensions | 15.12 × 7.64 × 9.76 in | 384 × 194 × 248 mm |
| Weight | 59.52 lbs | 27 kg |
| Waterproof Rating | IP65 |
| Warranty | 5 Years |
| Case Material | ABS + PC / UL94 V-0 |
| Terminal | M8 Bolts |
| Battery BMS | 200A |
| Standard / Max. Continuous Charging | 100A / 200A |
| Max. Continuous Discharge Current | 200A |
| Short Circuit Protection | Supported (Auto Cut Load) |
| Charging High Temp Protection | 140°F ~ 158°F / 60°C ~ 70°C |
| Discharging High Temp Protection | 149°F ~ 167°F / 65°C ~ 75°C |
| High Temp Release Condition | Drop by 41°F ~ 59°F / 5°C ~ 15°C |
| Charging Low Temp Protection | 23°F ~ 41°F / -5°C ~ 5°C |
| Discharging Low Temp Protection | -13°F ~ 5°F / -25°C ~ -15°C |
| Low Temp Release Condition | Rise by 41°F ~ 59°F / 5°C ~ 15°C |
| Rated Voltage | 12.8V |
| Standard Charging Voltage | 14.6V ±0.2V |
| Shipping Voltage | 12.8V ~ 13.5V |
| Shipping Capacity | ≈50% |
| Cycle Life | 6000 @ 80% DoD |
| Self Discharge Rate | <3% / Month |
| Series & Parallel Connections | Up to 4 Series & 4 Parallel |
| Cell Certifications | UL1642 / UL2580 / UN38.3 |
