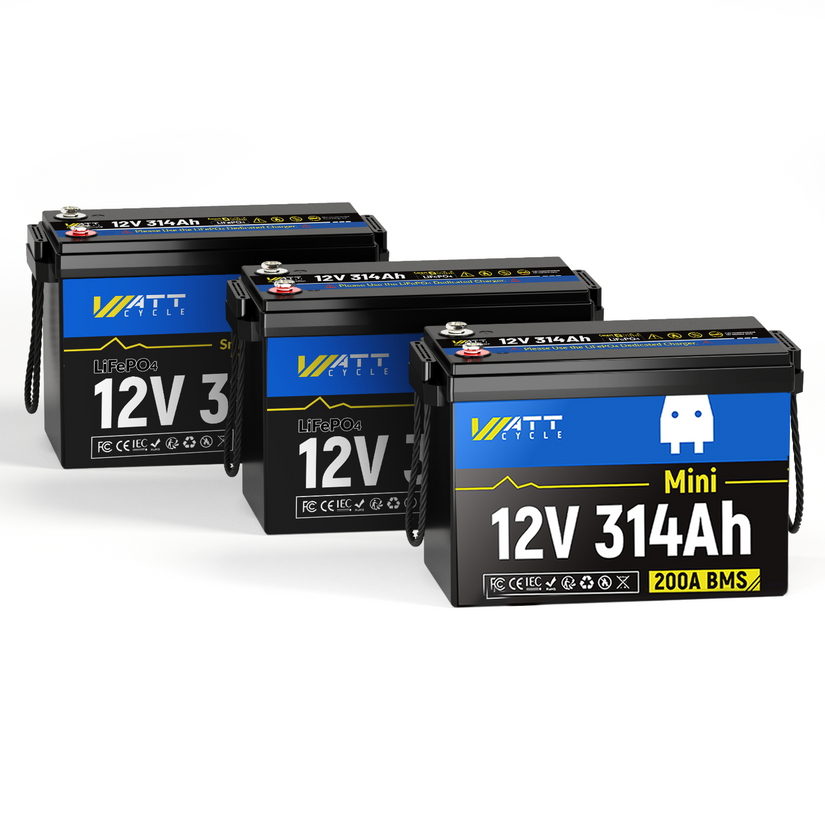

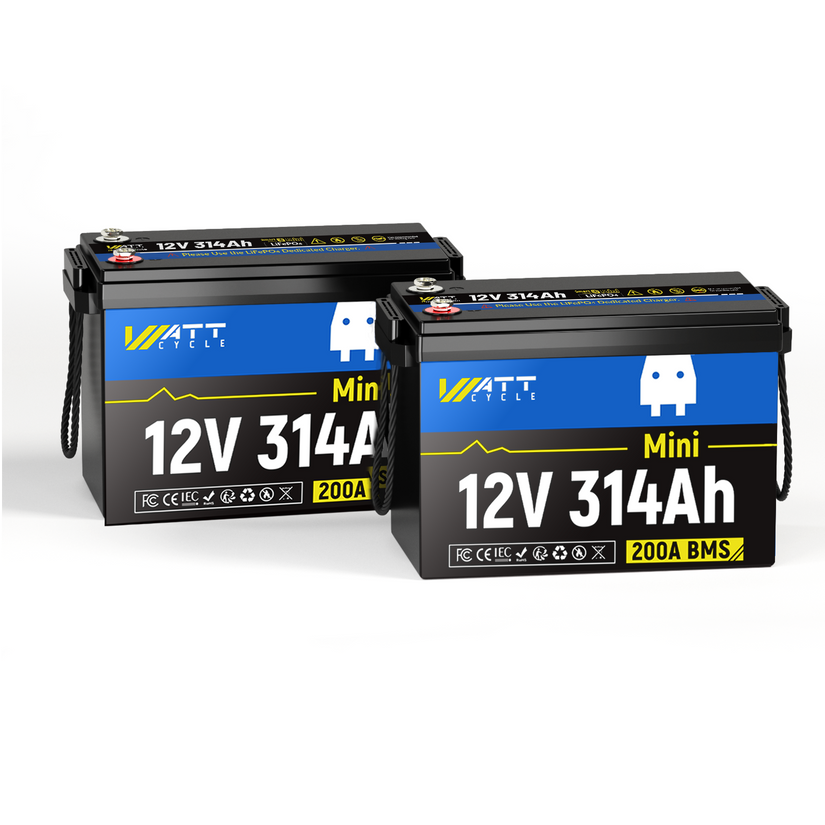

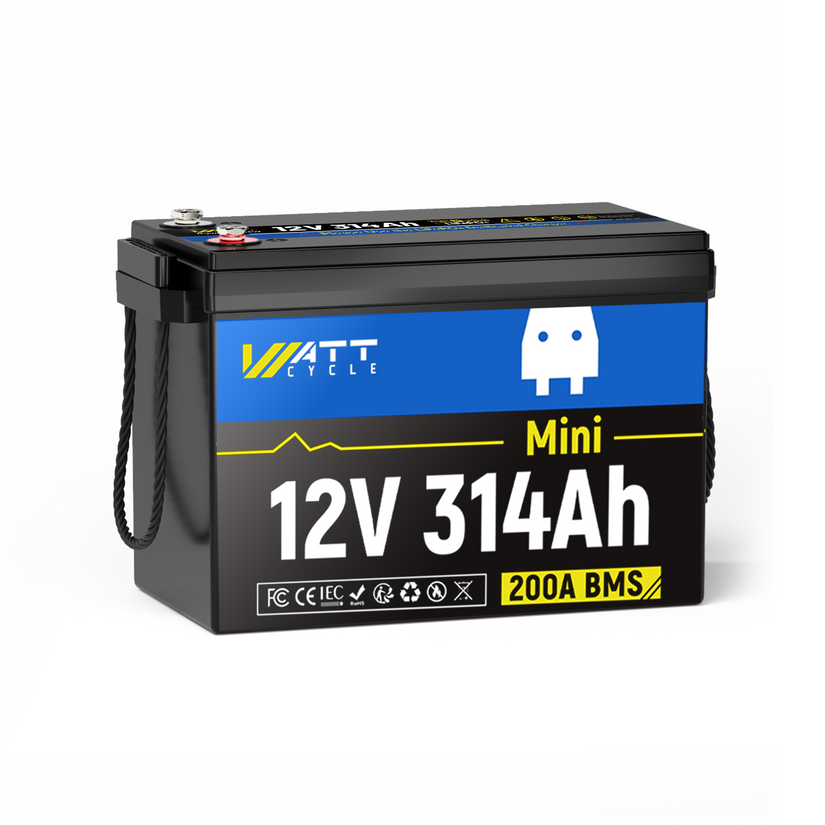

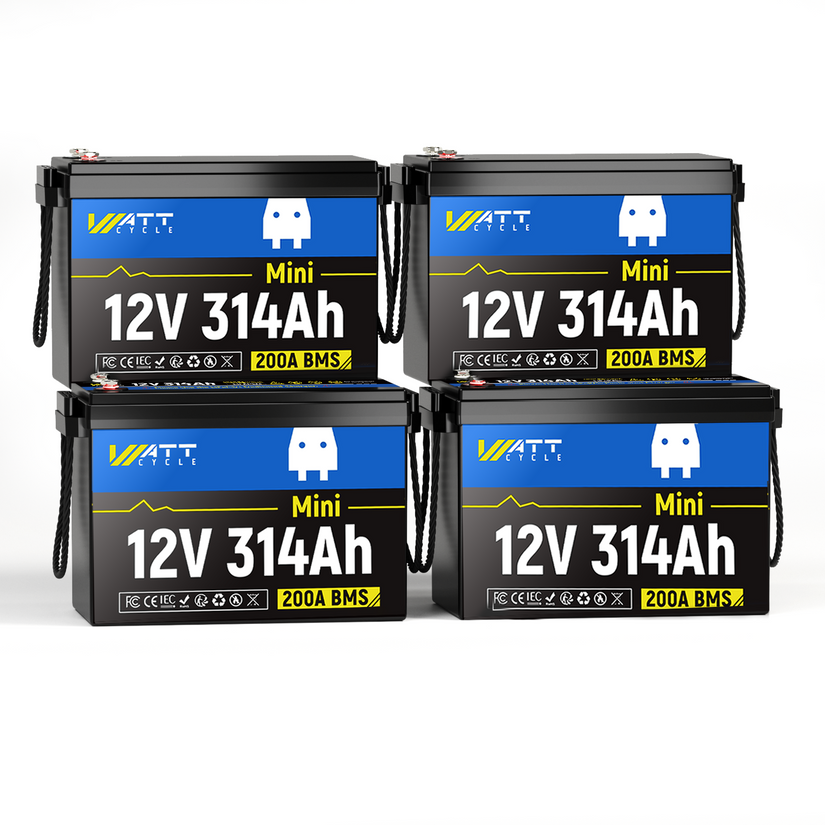

WattCycle 12V 314Ah Mini Basic LiFePO₄ Battery – Compact, High-Capacity Power
Prime Day Sale Ends in:
- 12V 314AH MINI: L382 x W193 x H249.5 mm | 28 kg
- Over Current Protection: 210±10A (1s)
- 314Ah Cells: EV Grade A+ Cells
- Nearly 5.44 kg lighter than 3 pack of 12V 100Ah
- 42% smaller than 3 pack of 12V 100Ah
- The same capacity with 3 pack of 12V 100Ah
- Safe: Low-temperature cut-off protection
- Durable: 5,000-15,000 deep discharge cycles
- Reliable: Built-in 200A BMS | 2560W | 3584Wh
- Scalable: Max. 4S4P, up to 57.34kWh
- Waterproof: IP65
- Certification: MSDS / UN38.3 / IEC / FCC / CE / ROHS
Free local shipping for all orders, except some areas need extra shipping cost.
Our batteries come with a 5-year warranty, which can be extended to 7 years total upon product registration. Accessories are covered by a 1-year warranty, and like-new (refurbished) batteries include a 1-year warranty.
For full terms, conditions, and claim details, please visit:
-
Fast, Free Shipping
-
30-Day Money-Back Guarantee
-
Hassle-Free Warranty
-
Lifetime Customer Support

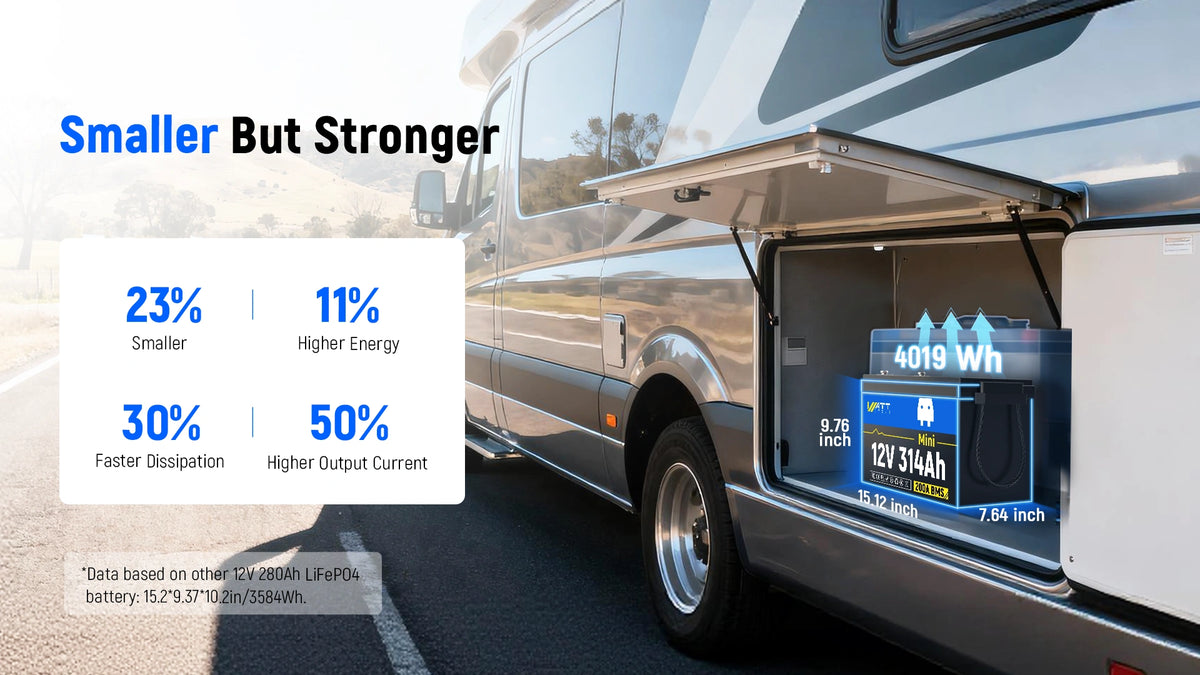

Unleash More Energy in a Smaller Size

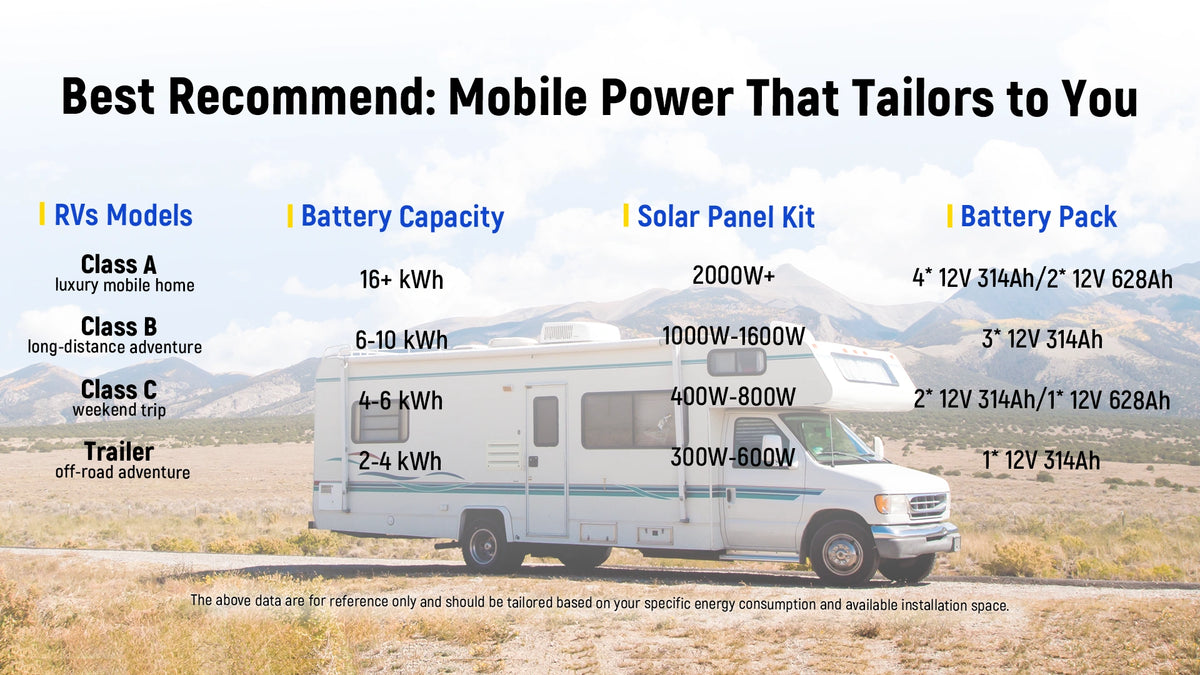

Compared to a 12V 280Ah LiFePO4 battery, it offers 11% more capacity while taking up less space. It's ideal for extended outdoor camping trips, RV travel, and boat fishing.

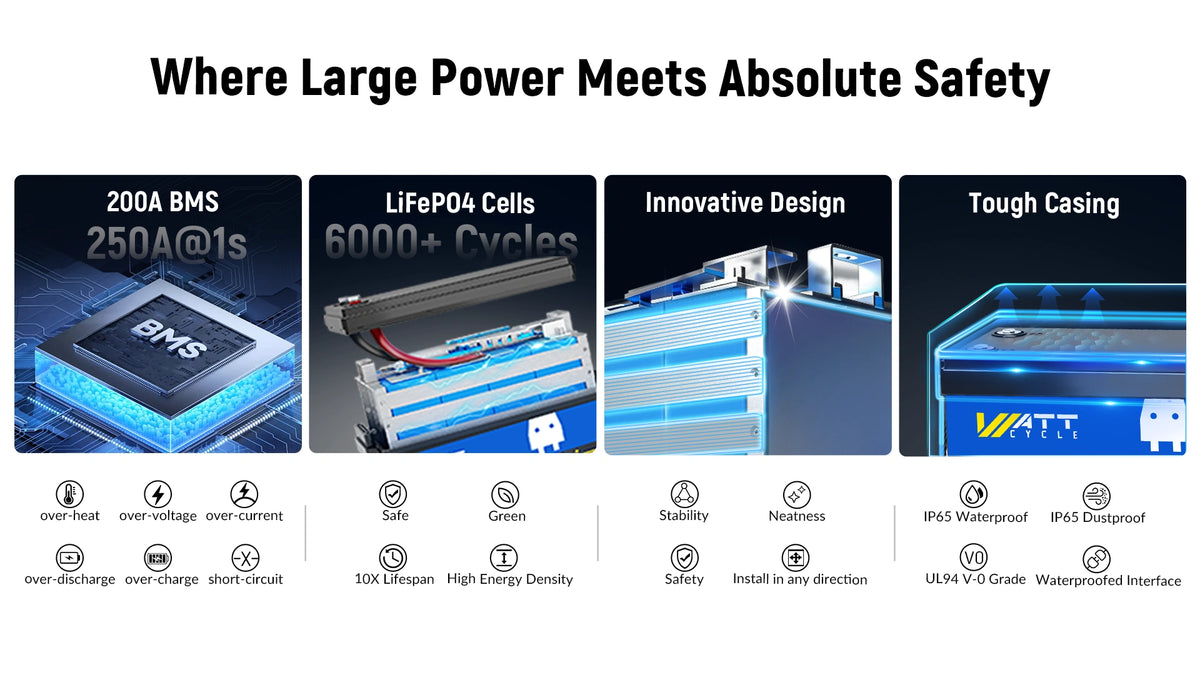

Safety in Every Aspect

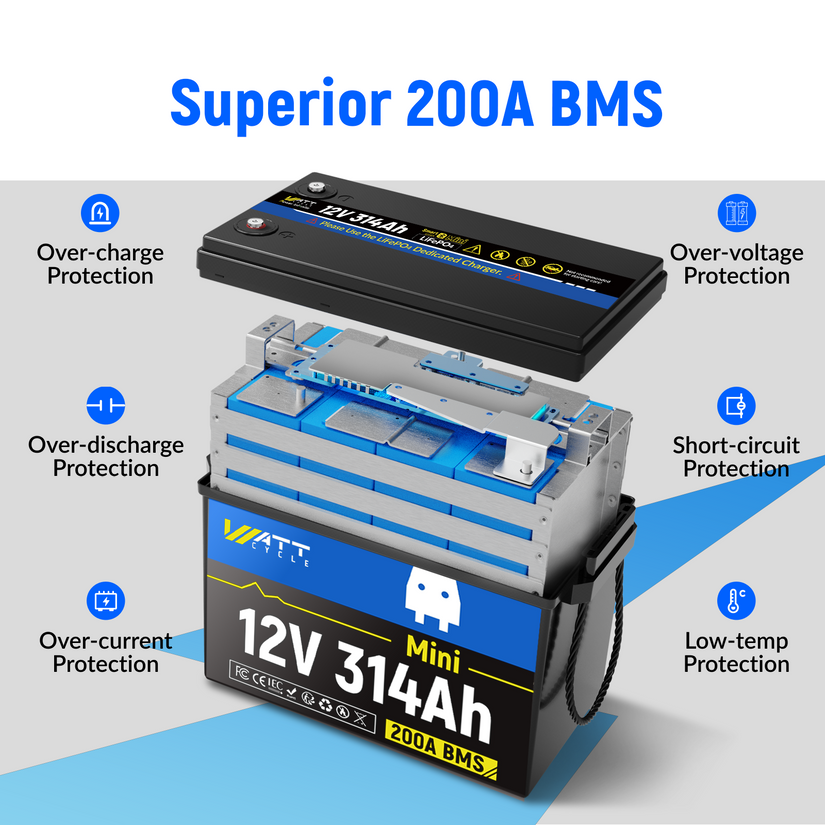

WattCycle lithium batteries offer absolutely safe battery performance. A 200A BMS with over 20 protections and a 250A(1s) peak discharge current allow you to use high-power appliances with peace of mind. It also features an innovative design with an internal metal frame and external tough casing, effectively reducing battery swelling, maintaining cell stability, and allowing for installation and use in any orientation.

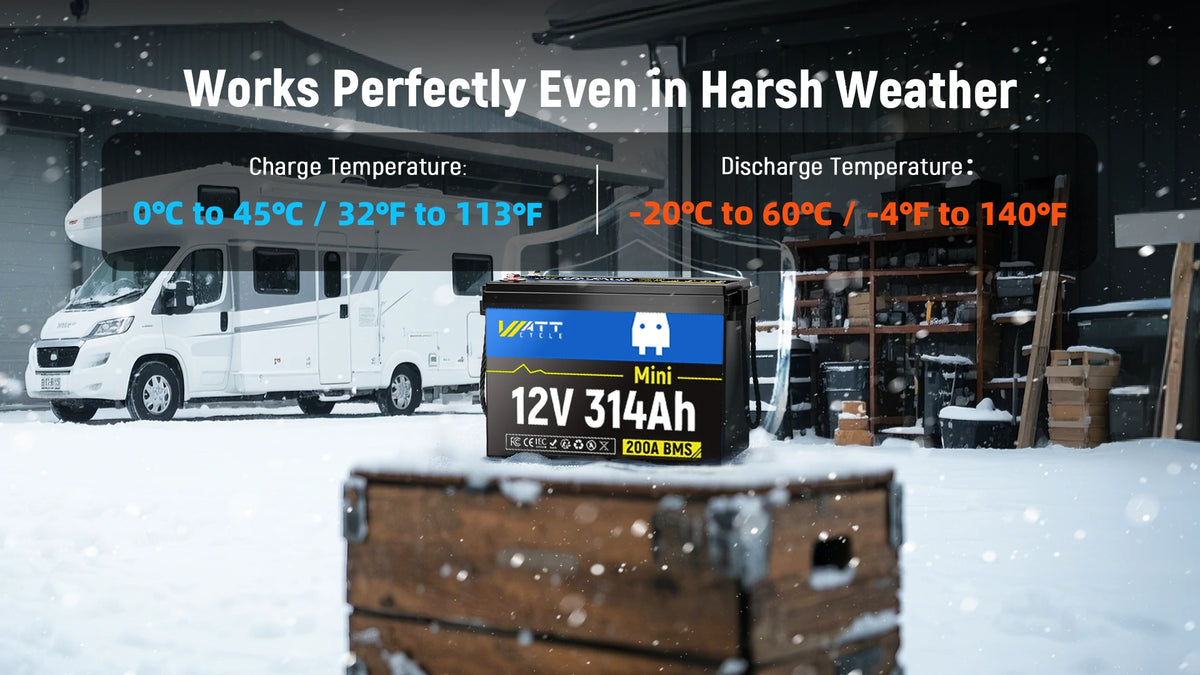

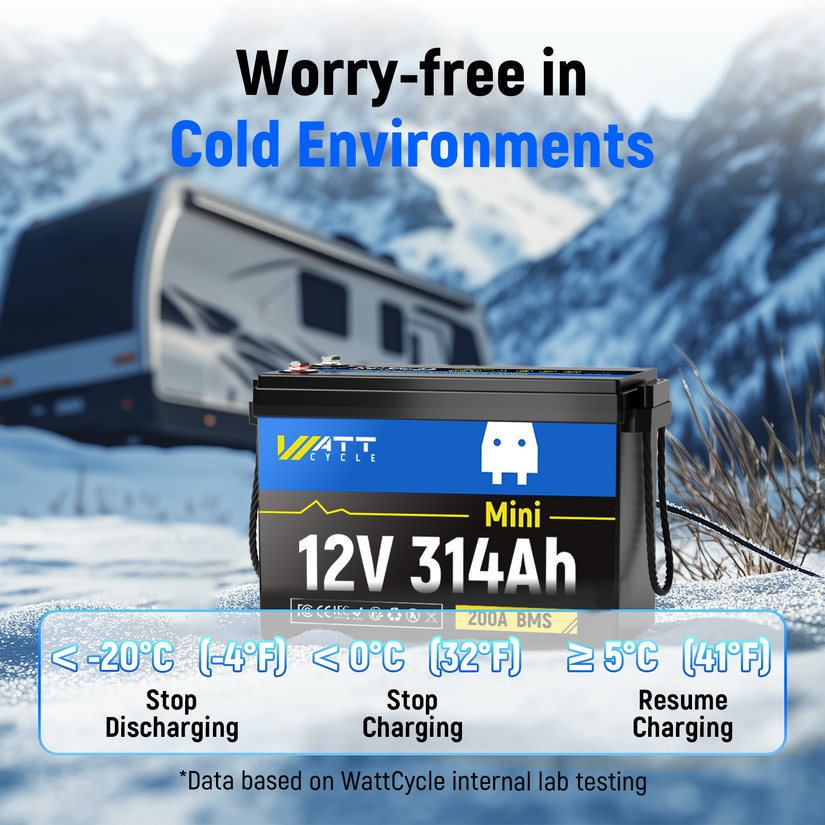

Weather-Proof Performance
Whether you’re charging in 113 °F summer heat or discharging at –4 °F ice-fishing, this battery keeps pace. Charge range: 32 °F to 113 °F (0 °C–45 °C). Discharge range: –4 °F to 140 °F (–20 °C–60 °C). For anyone running a “solar battery 12V 300Ah” system in extreme climates, this pack won’t flinch.

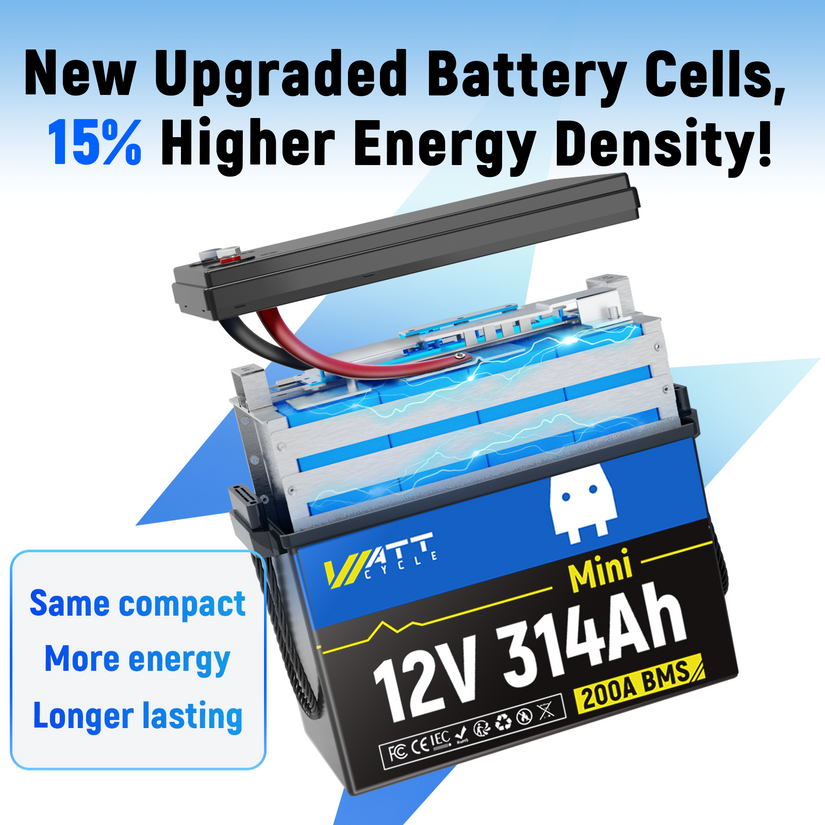

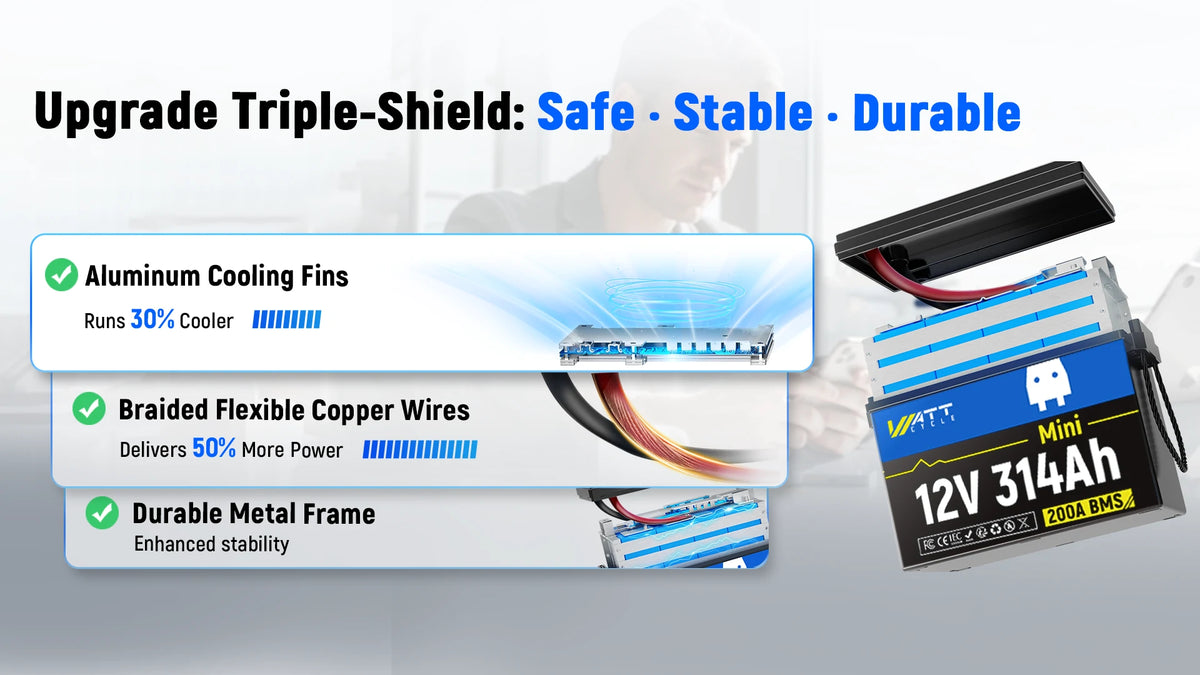

Triple-Shield Safety

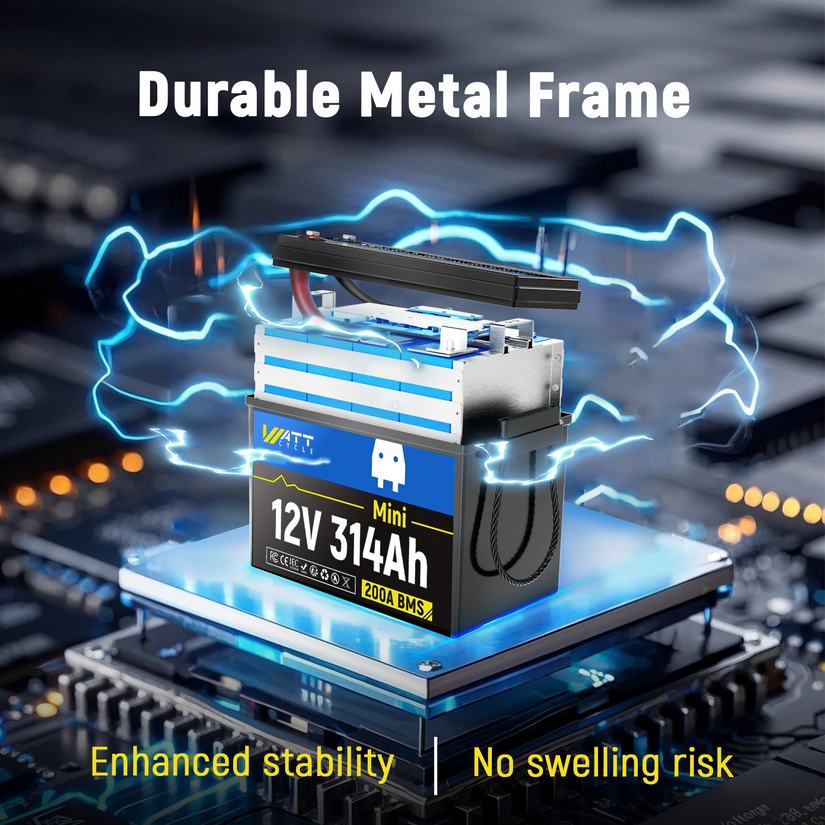

The WattCycle 12V 314Ah LiFePO4 Battery stands up to harsh conditions thanks to its unique full-aluminum internal frame,Which not only reinforces the cell structure but also integrates cooling fins that improve heat dissipation by 30 %. That means during heavy discharge or rapid charging, excess warmth is whisked away faster—protecting cell health and maintaining peak performance. Meanwhile, braided copper wires have been newly added inside the battery, enabling it to provide more than 50% of the power with the minimum voltage drop. This three-tier design makes it one of the safest 12V 300Ah deep cycle battery options on the market.

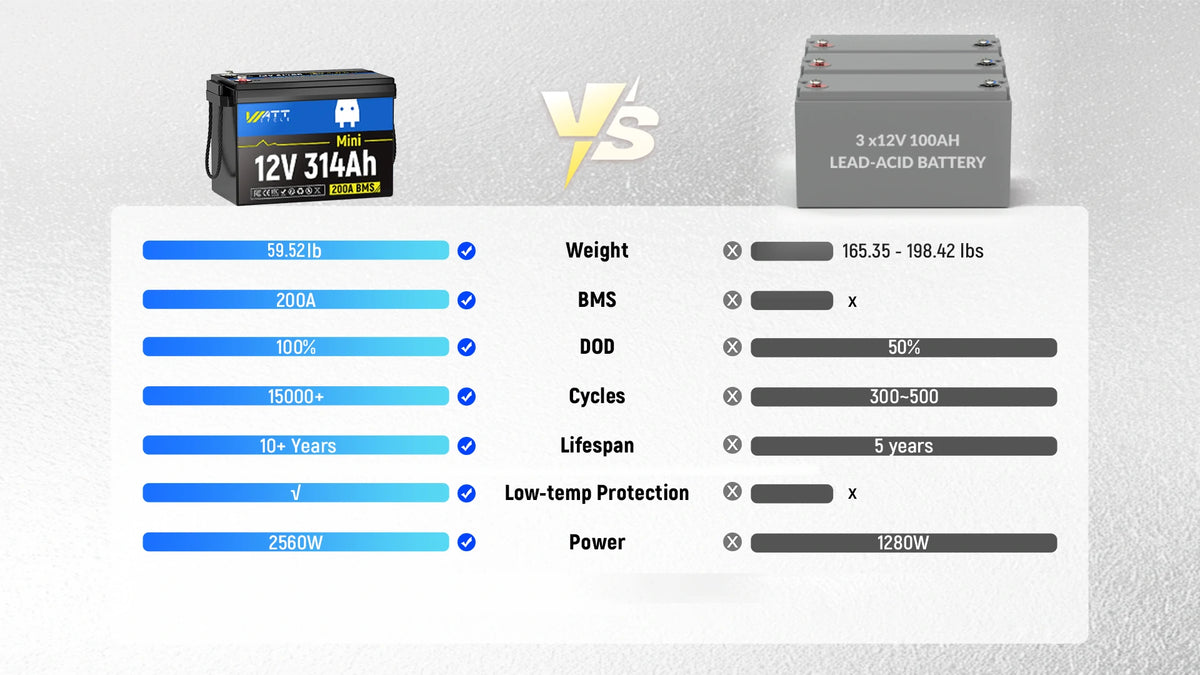

Simplified Comparison
For those running three 12V 100Ah batteries in parallel, you’d typically combine to 300 Ah. That setup adds weight, wiring complexity, and more points of failure. By choosing one WattCycle 314Ah MINI battery instead. you get additional benefits.

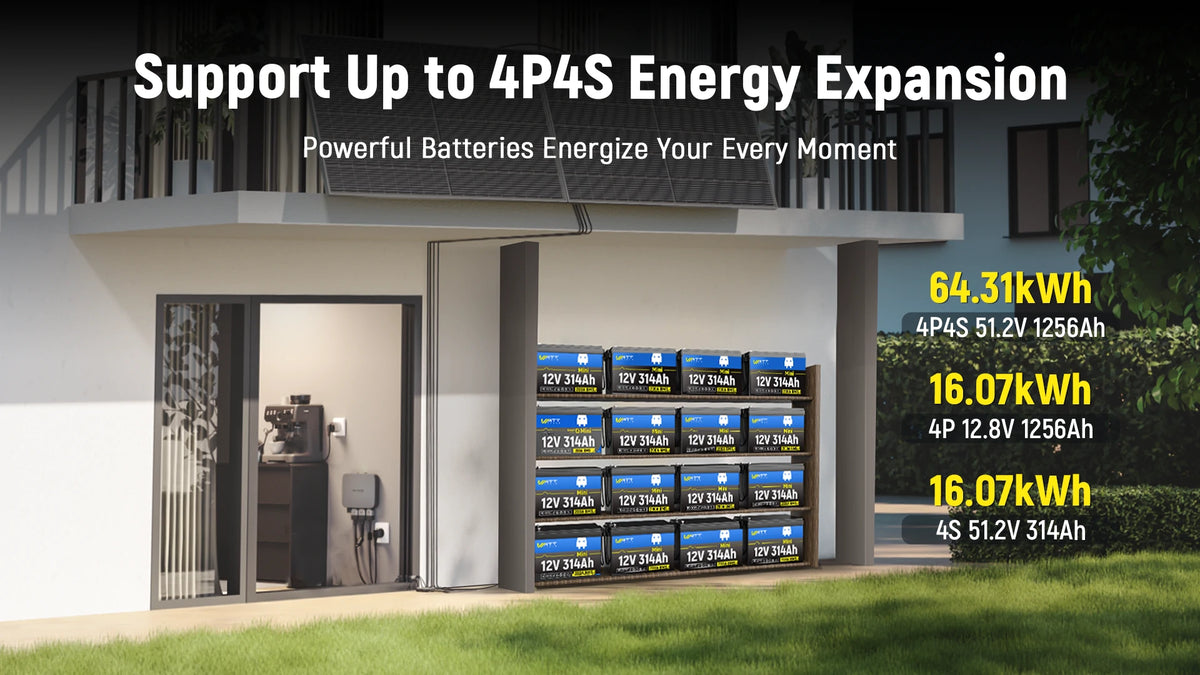

Scalable Energy Expansion
Scale up your array with extra WattCycle battery to build a 4S4P (64.3 kWh) mega-bank ideal for large solar arrays or whole-home backup. your go-to for WattCycle 12V 314Ah batteries that need to grow as your demand does.
Tech Specs
General
| Dimensions | 15.12 × 7.64 × 9.76 in | 384 × 194 × 248 mm |
| Weight | 59.52lbs / 27kg |
| Waterproof Rating | IP65 |
| Warranty | Sign Warranty to extend for 7 years |
| Case Material | ABS+PC/UL94 V-0 |
| Terminal | M8 bolts |
Battery BMS
| BMS | 12.8V/200A |
| Standard/Max. Continuous Charging | 62.8A/200A |
| Max. Continuous Discharge Current | 200A |
| Over-current Discharge Protection | 210A±10A |
| Over-current Charge Protection | 210A±10A |
| Short Circuit Current Protection | Support |
| Release Condition | Cut Load |
| Charging High Temperature Protection | 140°F ~ 158°F / 60°C ~ 70°C |
| Discharging High Temperature Protection | 149°F ~ 167°F / 65°C ~ 75°C |
| High Temperature Protection Release Condition | Drop by 41°F ~ 59°F / 5°C ~ 15°C |
| Charging Low Temperature Protection | 23°F ~ 41°F / -5°C ~ 5°C |
| Discharge Low Temperature Protection | -13°F ~ 5°F / -25°C ~ -15°C |
| Low Temperature Protection Release Condition | Rise by 41°F ~ 59°F / 5°C ~ 15°C |
| Rated Voltage | 12.8V |
| Standard Charging Voltage | 14.6V±0.2V |
| Shipping Voltage | 12.8V~13.5V |
| Shipping Capacity | 50% |
| Cycle Life | 6000@80%DOD |
| Self Discharge Rate | <3%/Month |
| Series & Parallel Connections | Max. 4 Parallel 4 Series |
| Cell Certifications | UL1642/UL2580/UN38.3 |
