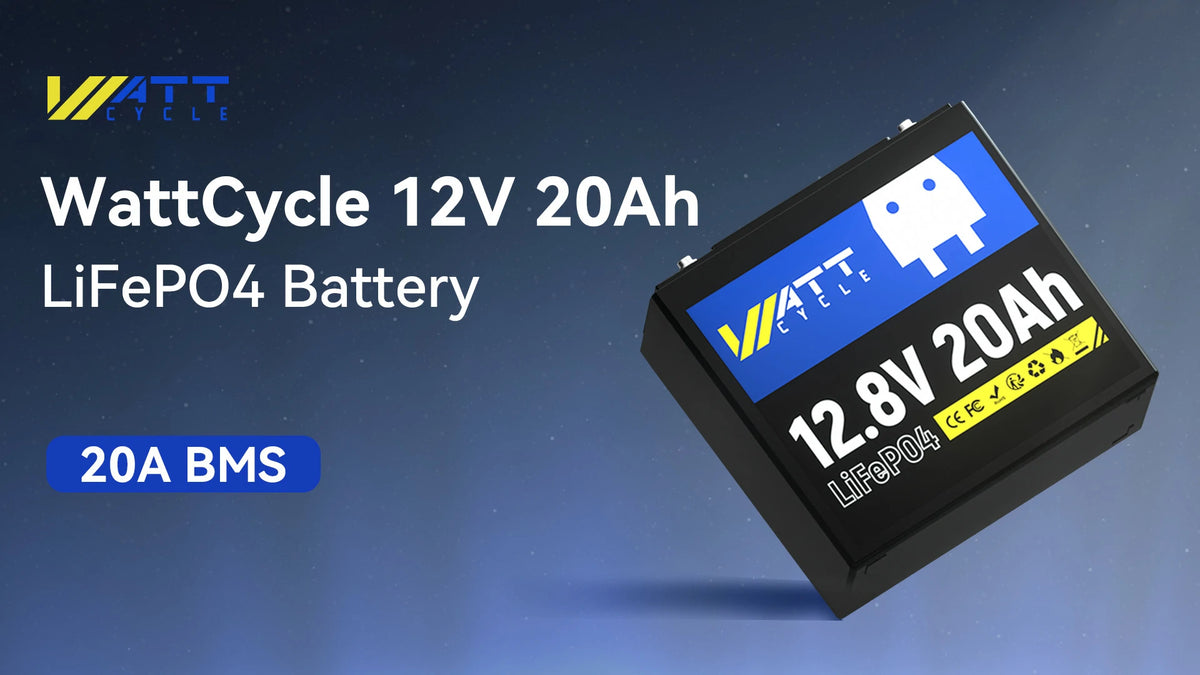

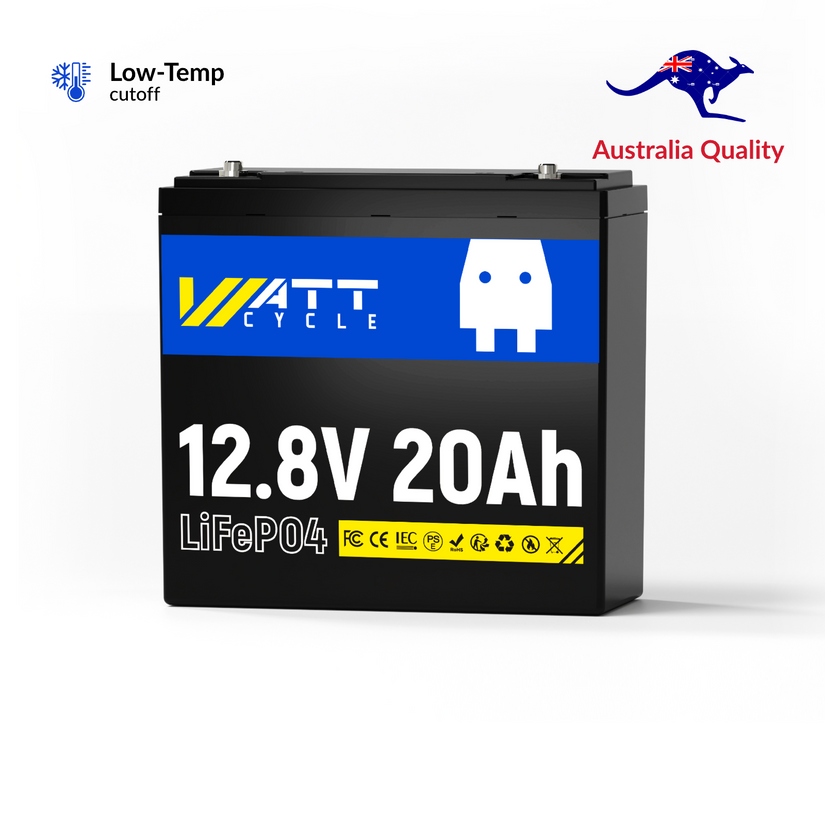

WattCycle 12V 20Ah LiFePO4 Battery
$79.99 AUD$199.99 AUD

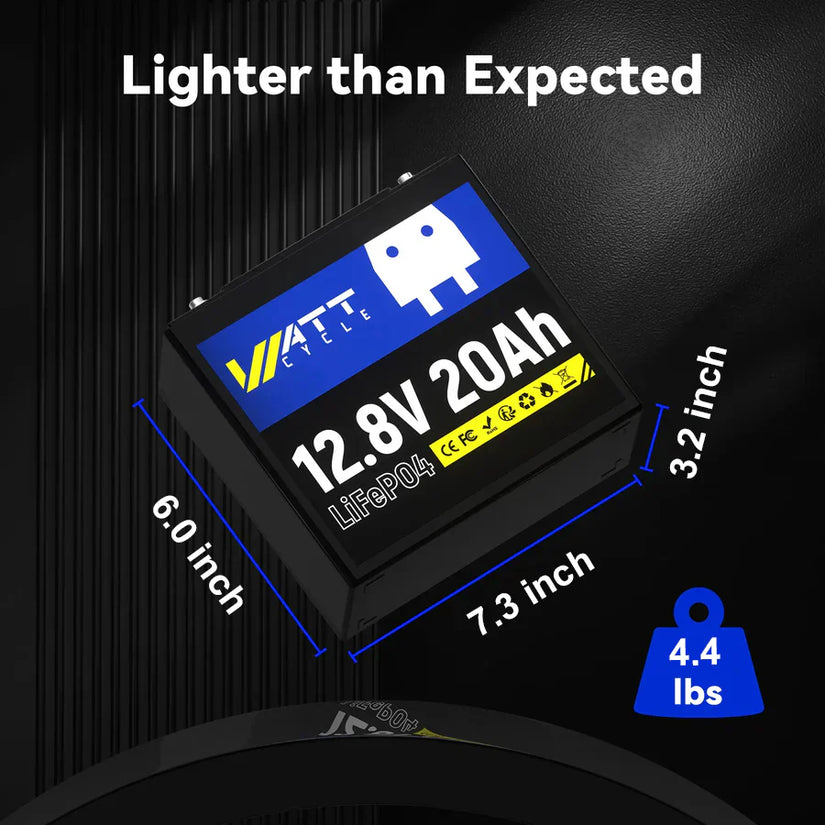

- Compact: L187 * W77 * H170 mm
- Weight: 2.05 kg
- Safe: Low-temperature cut-off protection

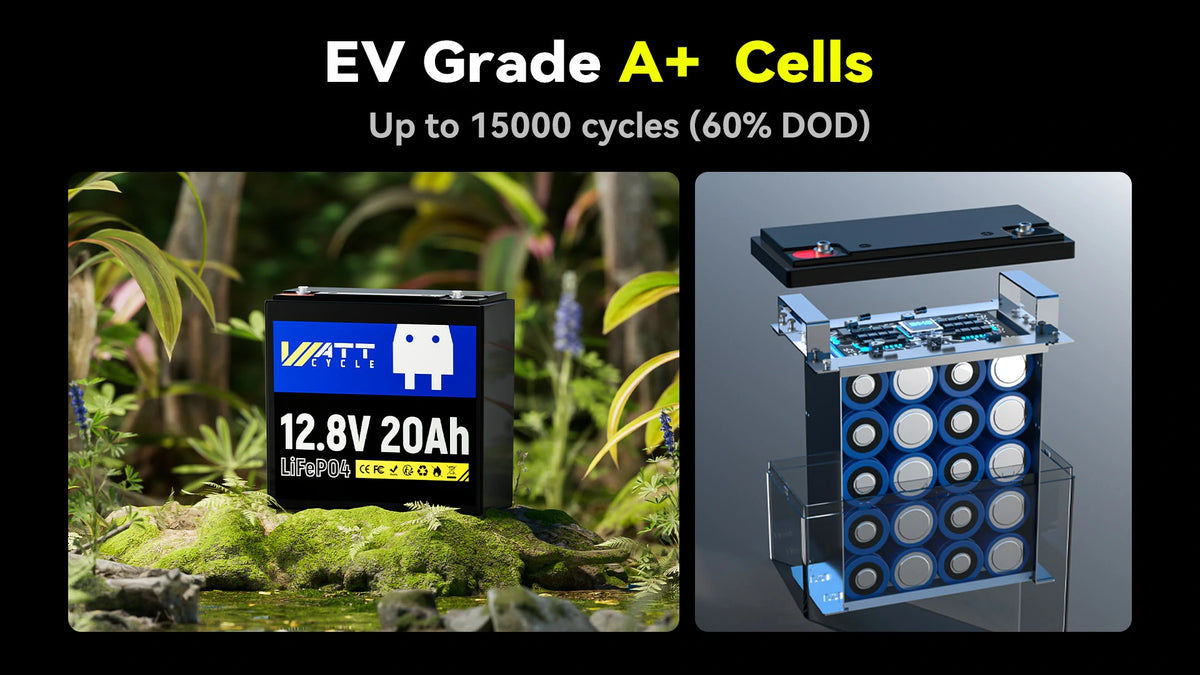

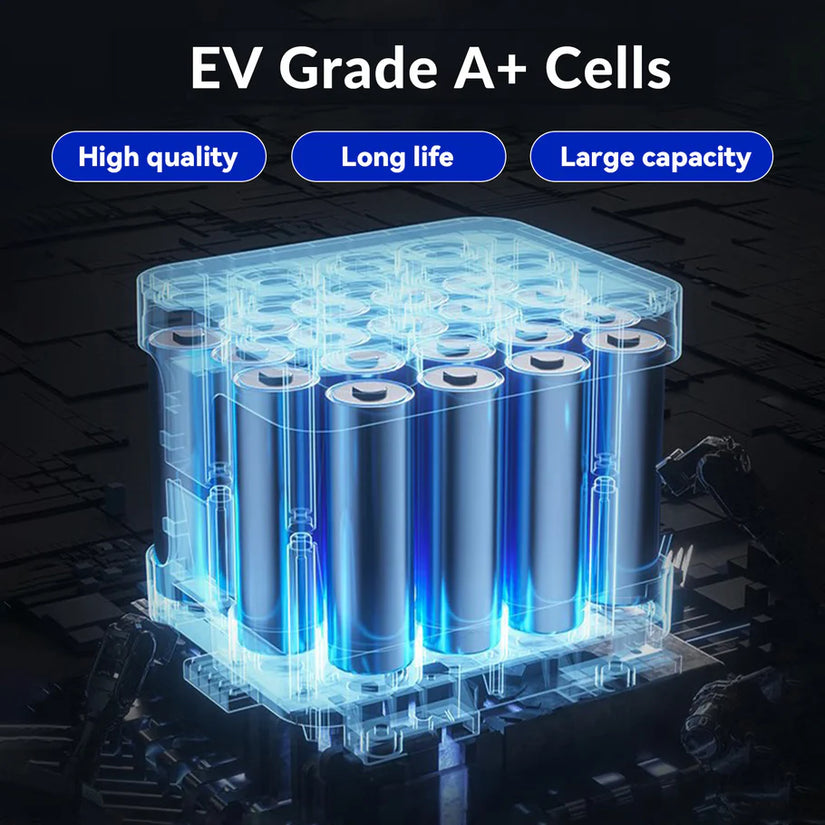

- Premium: EV grade A+ LiFePO4 cells
- Durable: 5,000-15,000 deep discharge cycles & 10 years lifetime
- Reliable: Built-in 20A BMS | 256W | 256Wh

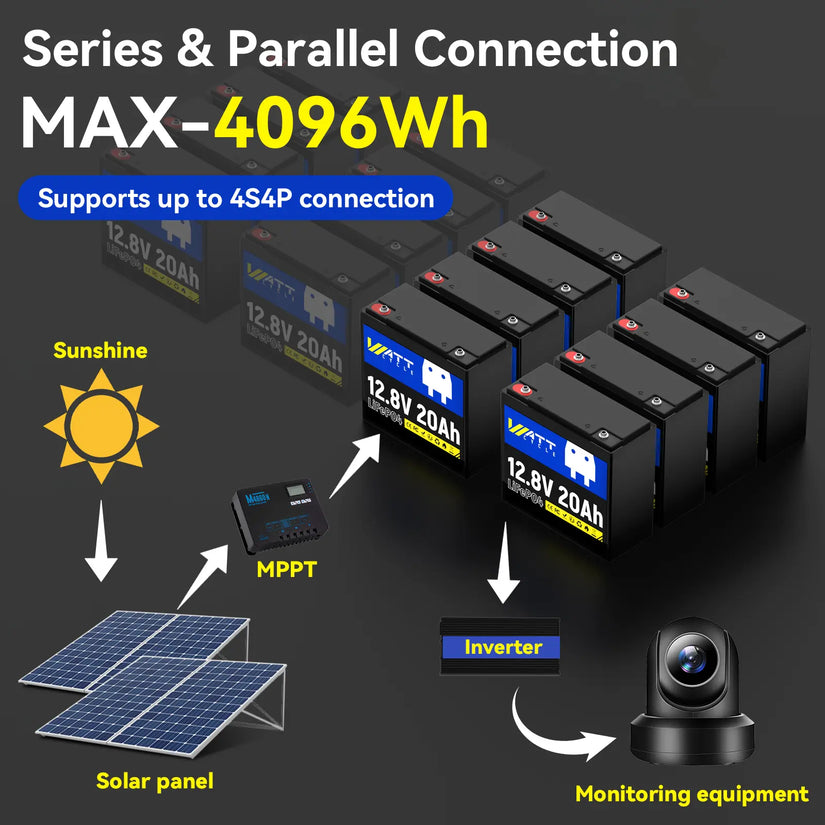

- Scalable: Max. 4S4P, up to 4.096kWh
- WaterproofIP65
- Certifications: SDS / UN38.3 / IEC / FCC / CE / ROHS
View More
Quantity
Free local shipping for all orders, except some areas need extra shipping cost.
Our batteries come with a 5-year warranty, which can be extended to 7 years total upon product registration. Accessories are covered by a 1-year warranty, and like-new (refurbished) batteries include a 1-year warranty.
For full terms, conditions, and claim details, please visit:
-
Fast, Free Shipping
-
30-Day Money-Back Guarantee
-
Hassle-Free Warranty
-
Lifetime Customer Support
Payment Method
Tech Specs
GENERAL
| Dimensions (Inches) | 7.3 (L) x 3.3 (W) x 6.7 (H) |
| Weight | 4.52lbs / 2.05kg |
| Waterproof Rating | IP65 |
| Warranty | 3 years |
| Housing Material | ABS (Flame Retardant Plastic) |
| Terminal | M5 bolts |
BATTERY
| Cell | EV Grade A+ LiFePO4 Cells |
| Nominal Voltage | 12.8V |
| Nominal/Usable Capability | 20Ah |
| Energy | 256Wh |
| Cycle Life | 5,000+ cycles @100% DOD, 6,000+ cycles @80% DOD, 15,000+ cycles @40% DOD |
| Max Depth of Discharge (DOD) | 100% |
| Max. Expansion (Parallel & Series) | 4S4P |
| Internal Resistance | ≤40mΩ |
BMS
| BMS | 20A |
| Max. Continuous Output Power | 256W |
| Max. Continuous Charge Current | 20A |
| Max. Continuous Discharge Current | 20A |
CHARGE
| Charge Voltage | 14.6V ± 0.2V |
| Charge Method | CC/CV |
| Recommend Charge Current | 40A (0.2C) |
| Charge Temperature | 0℃ to 50℃ / 32℉ to 131℉ |
| Discharge Temperature： | -20℃ to 55℃ / -4℉ to 131℉ |
| Storage Temperature | 0℃ to 55℃ / 32℉ to 131℉ |
| Low-Temperature Protection | Yes (32℉/0℃) |
| Low-Temperature Charging Protection Auto Recovery | Yes (41℉/5℃) |
