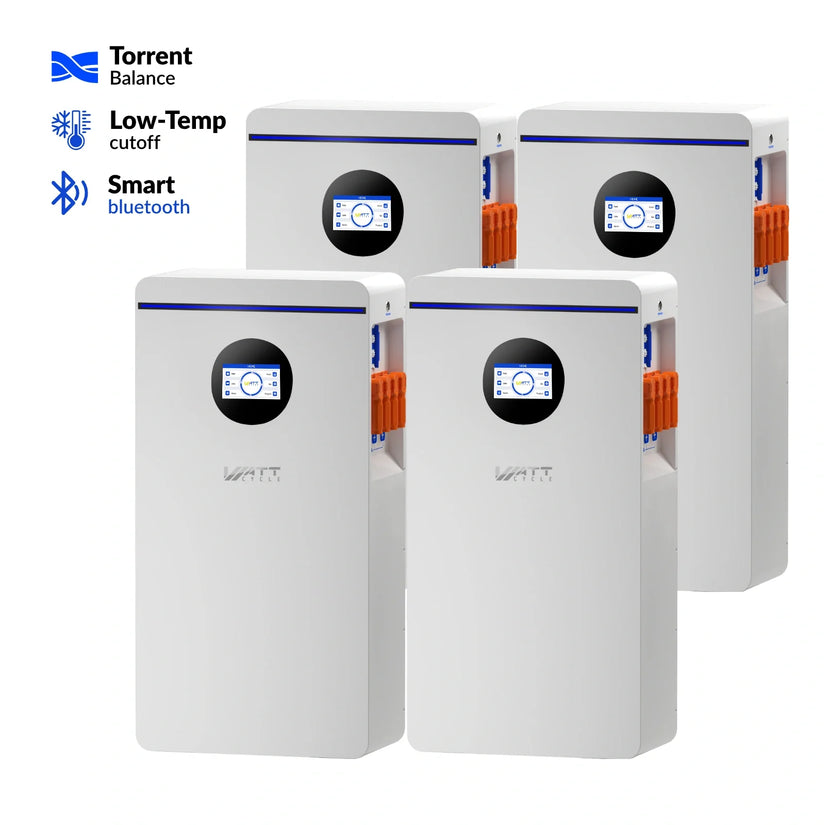

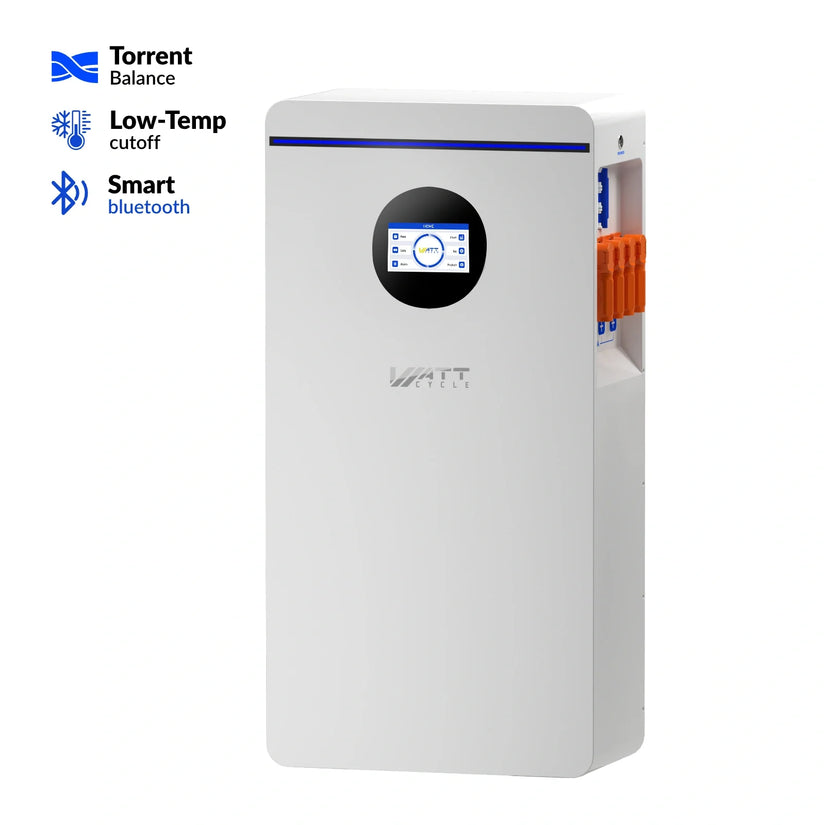

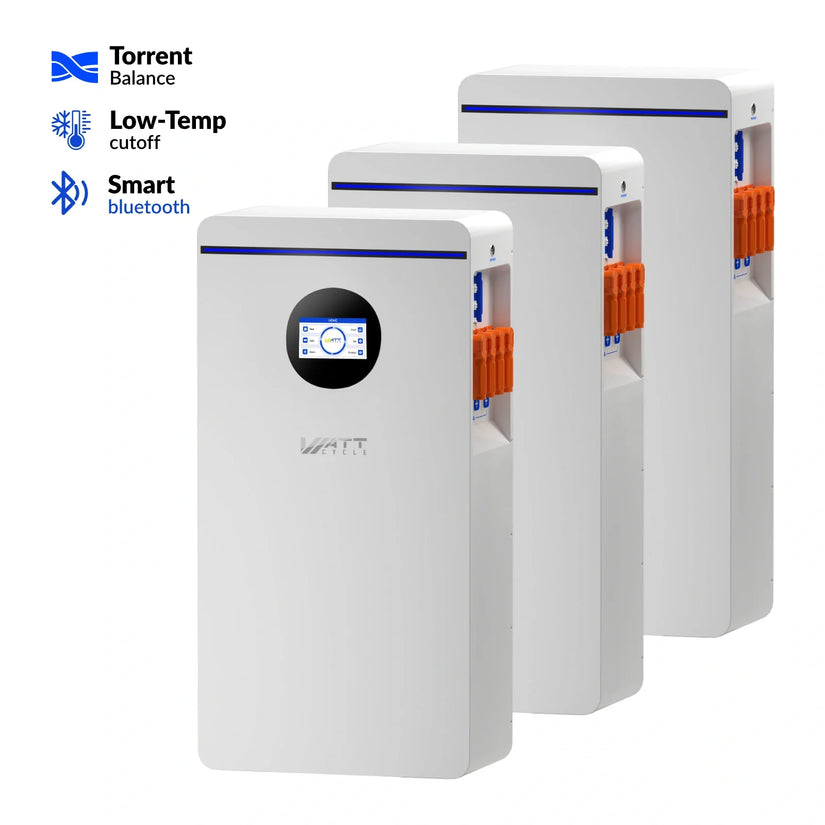

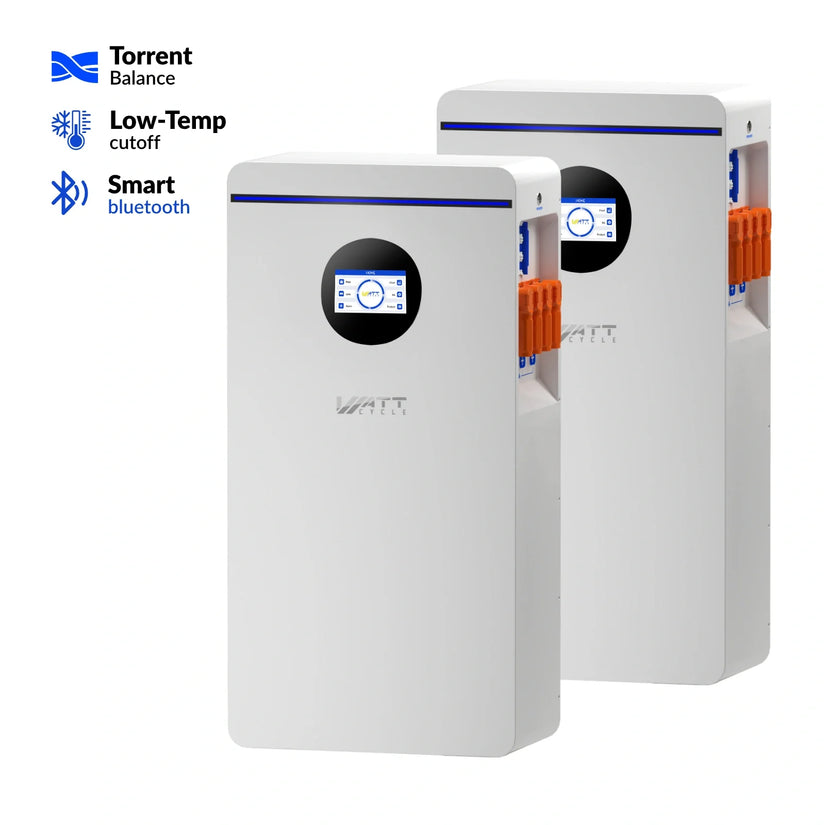

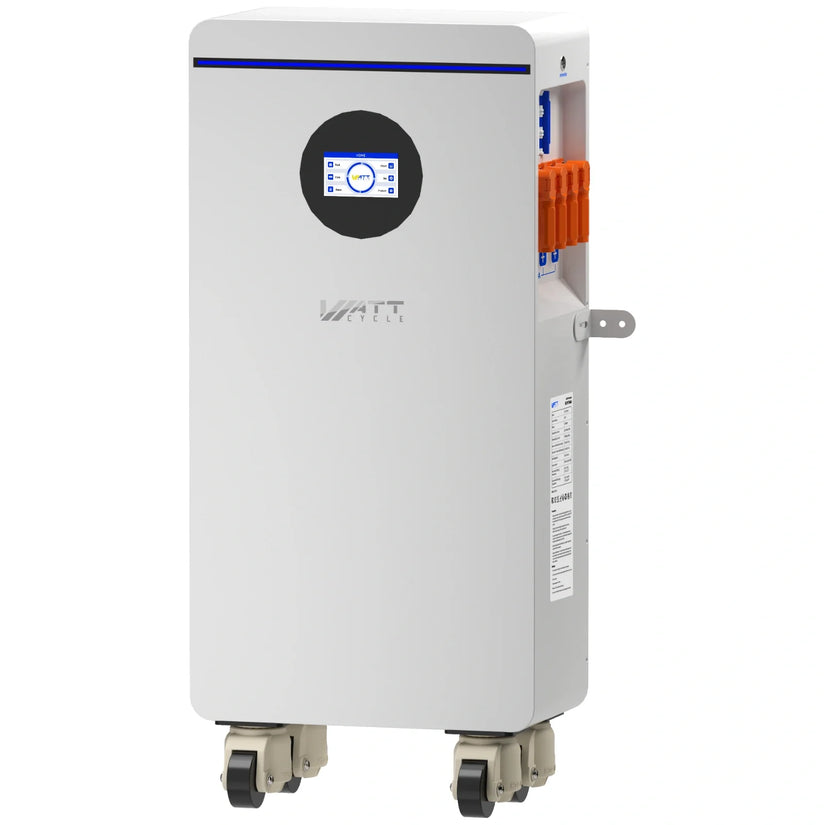

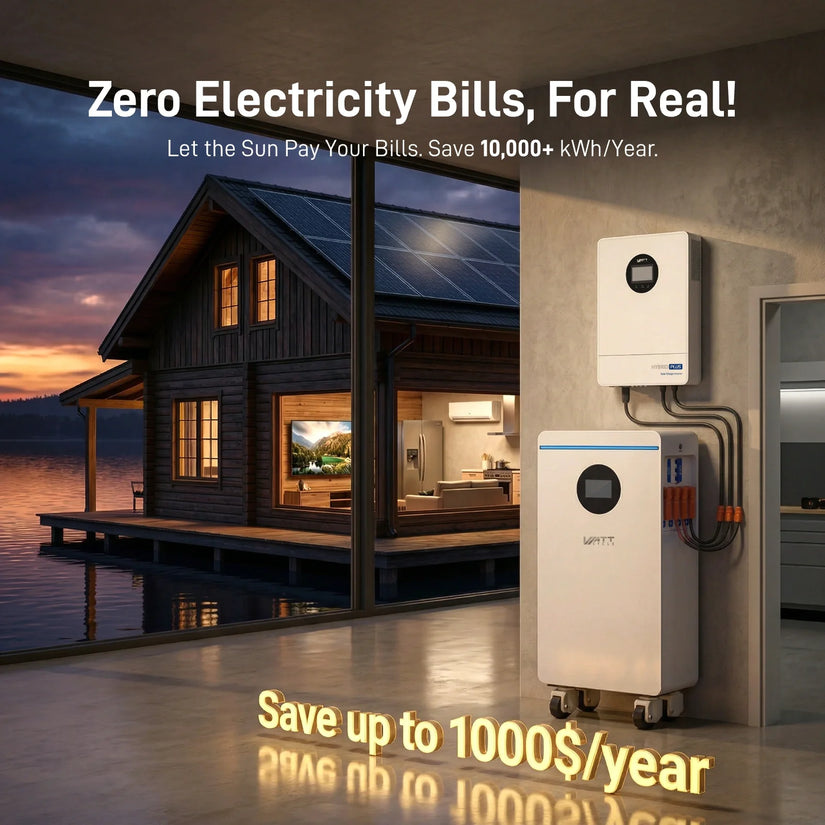

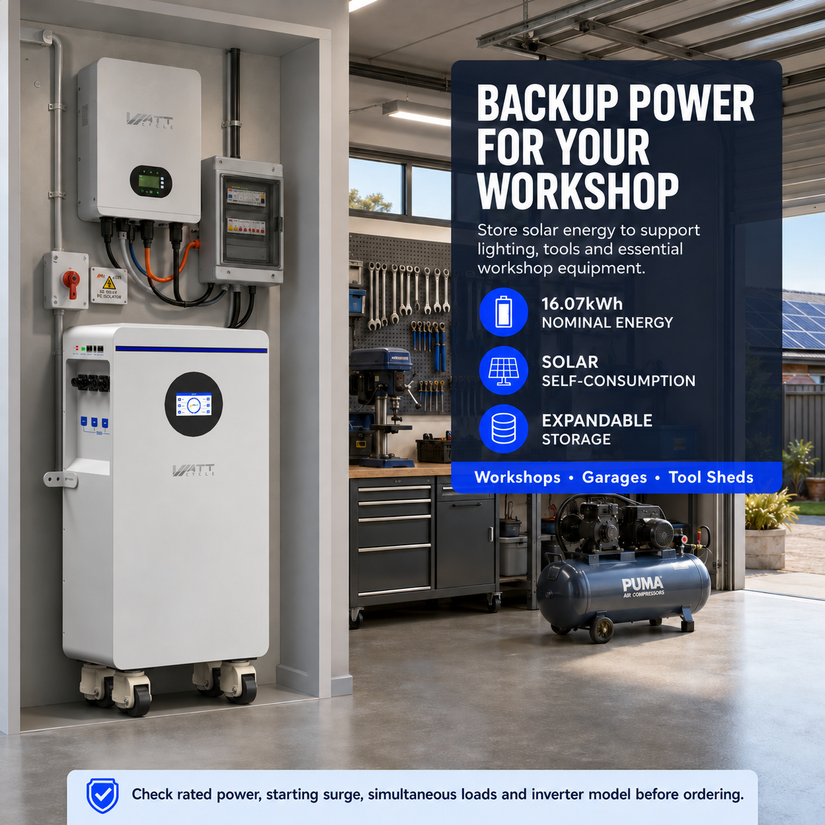

Local Pickup Only WattCycle 16kWh 48V 314Ah Wall-Mount Bluetooth LiFePO4
$3,349.99 AUD$3,649.99 AUD
Winter Thank You Flash Sale Ends In:
00
Days
00
Hours
00
Minutes
00
Seconds

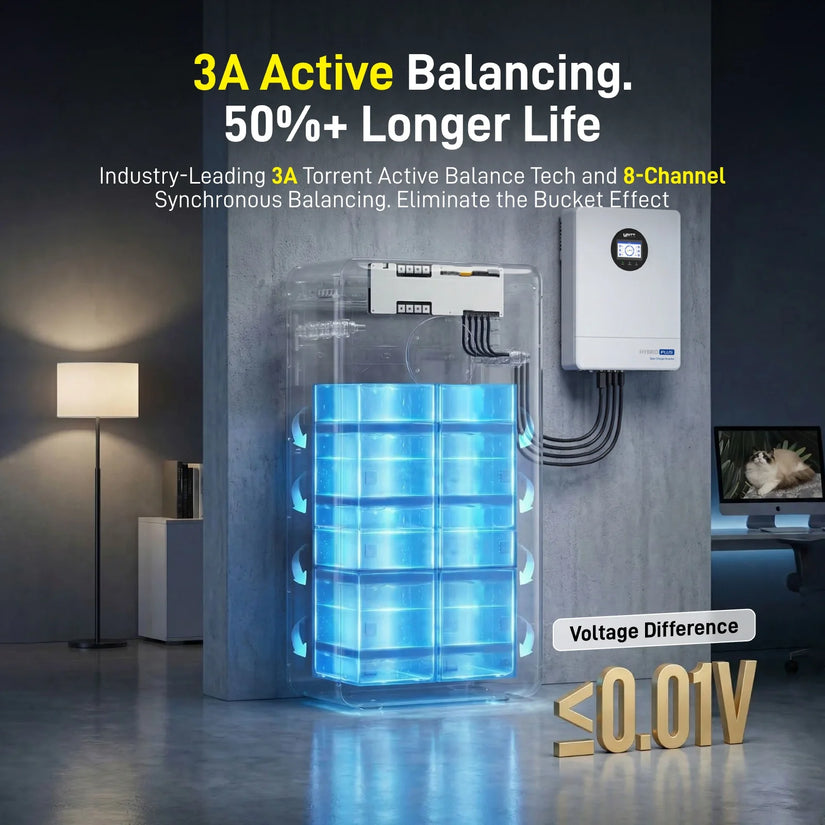

- ⚡ Extend Lifespan by 50%: 3A Ultra-Large Active Balancing Current for longer battery life, 8-way synchronization for multiple cells.

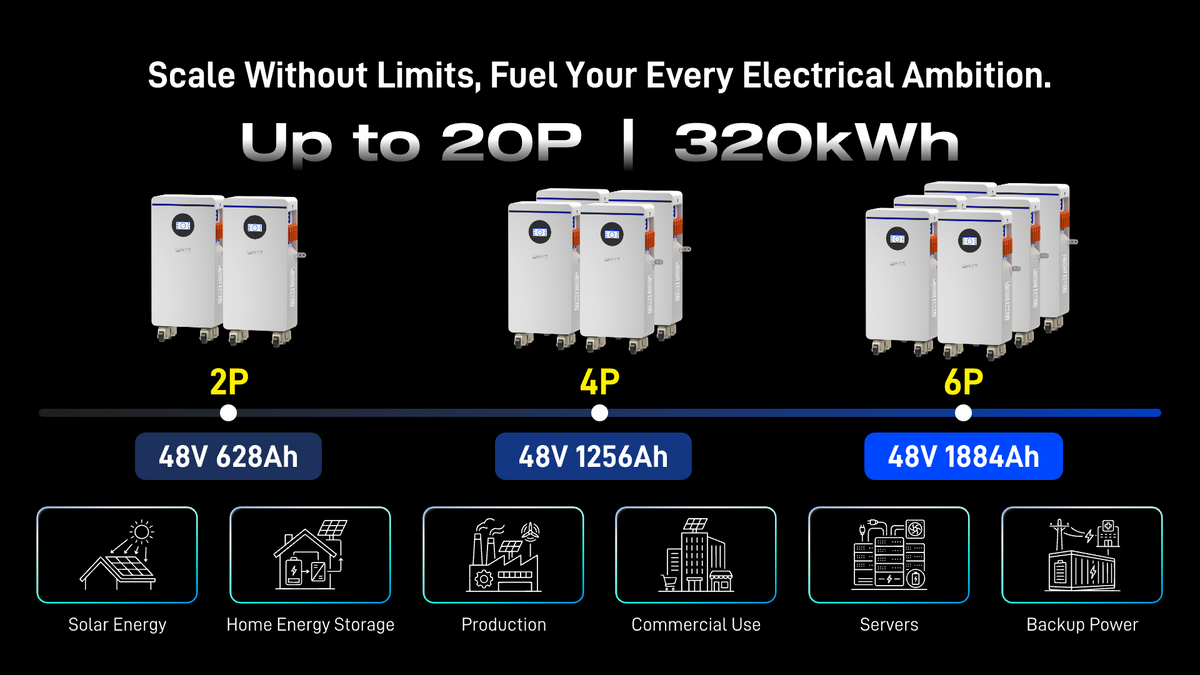

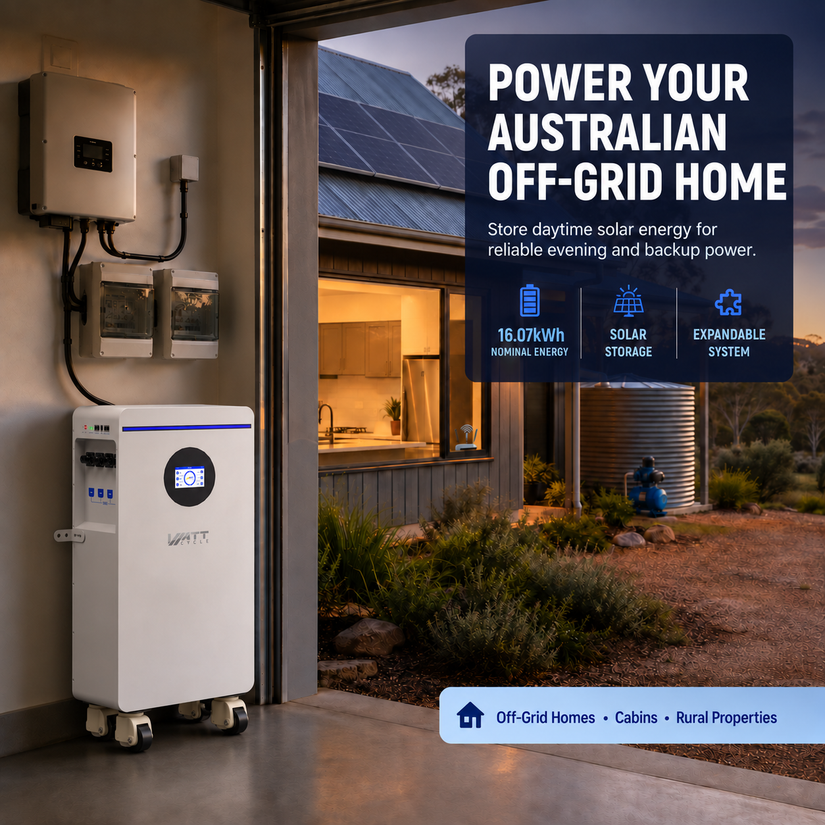

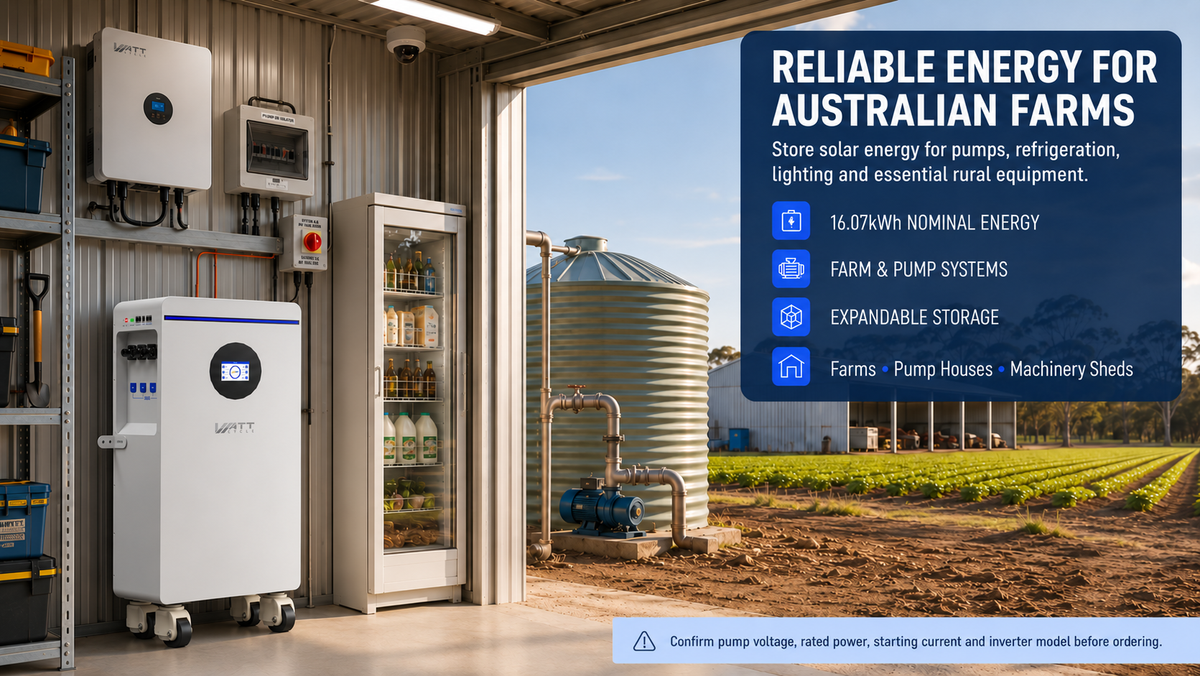

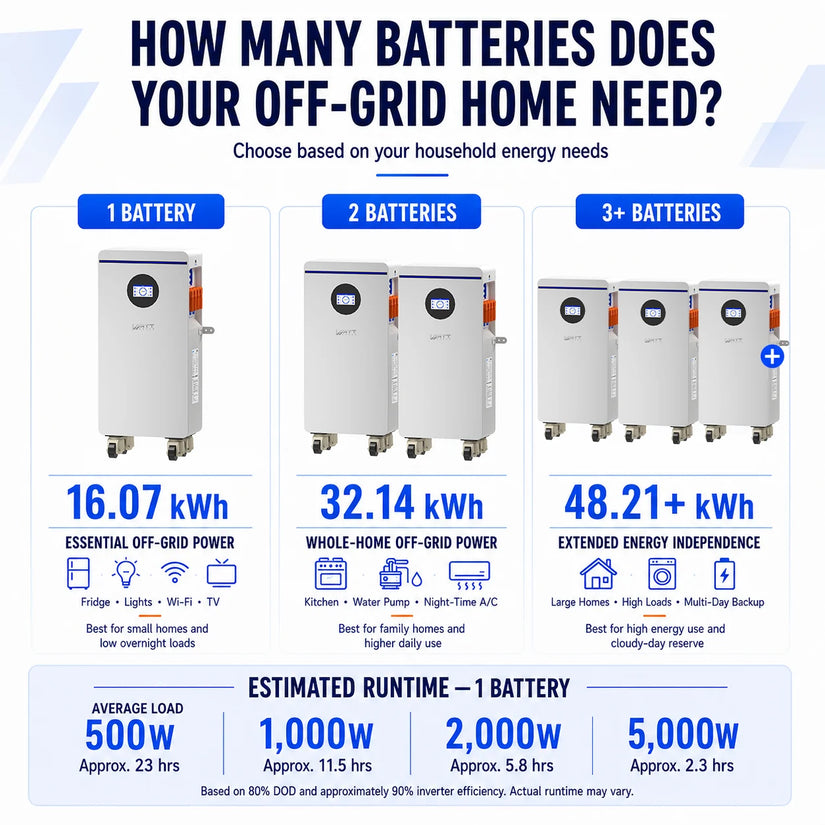

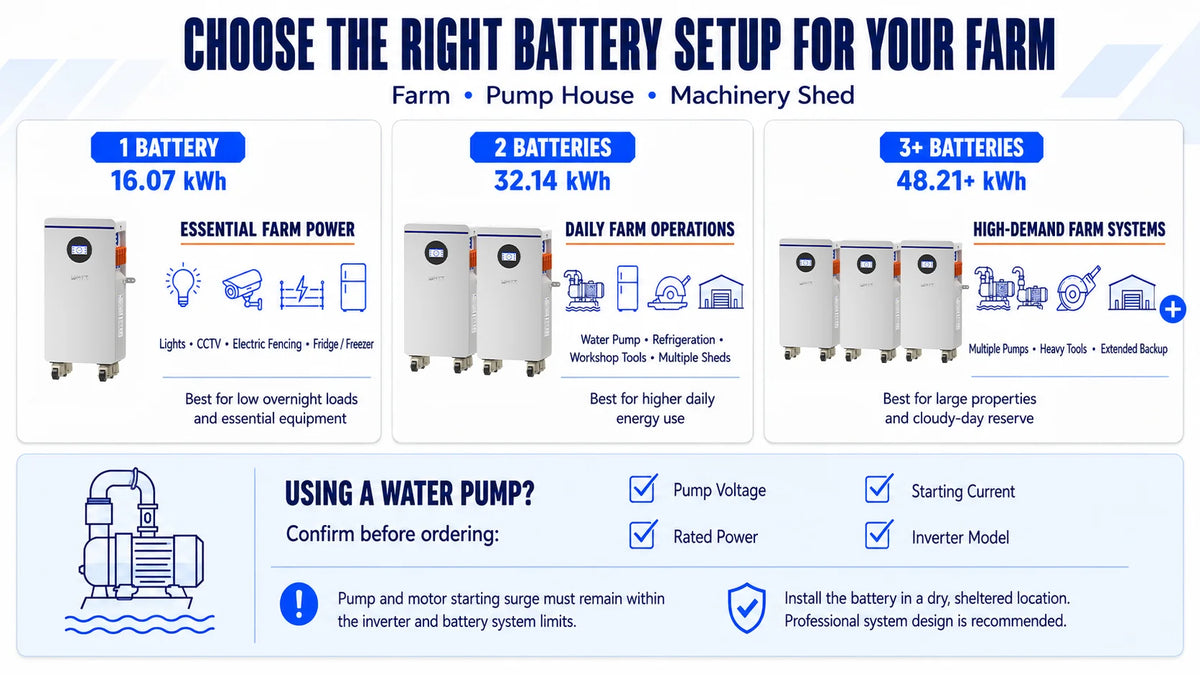

- ⚡ 16kWh Energy-Safe Home: Equivalent to twelve 12V 100Ah lithium batteries, supports 20P parallel connection, ideal for off-grid, farm, and commercial use.
- ⚡ Deep Discharge & Energy Savings: Supports twice daily deep discharge and can save up to 10,000 kWh per year.

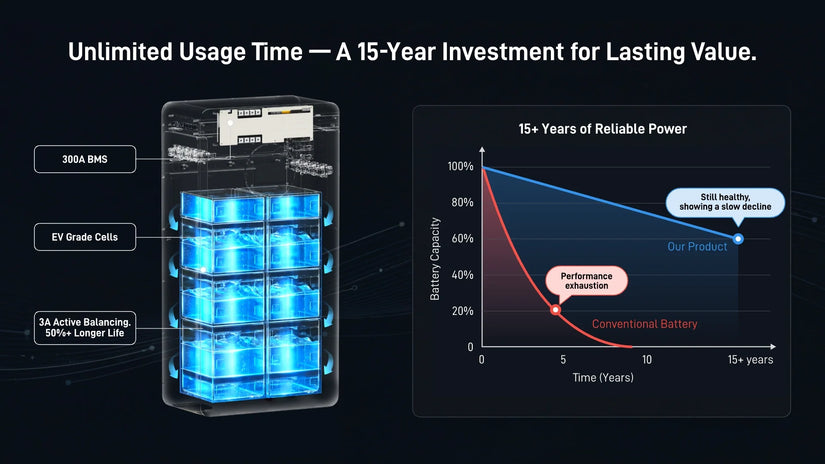

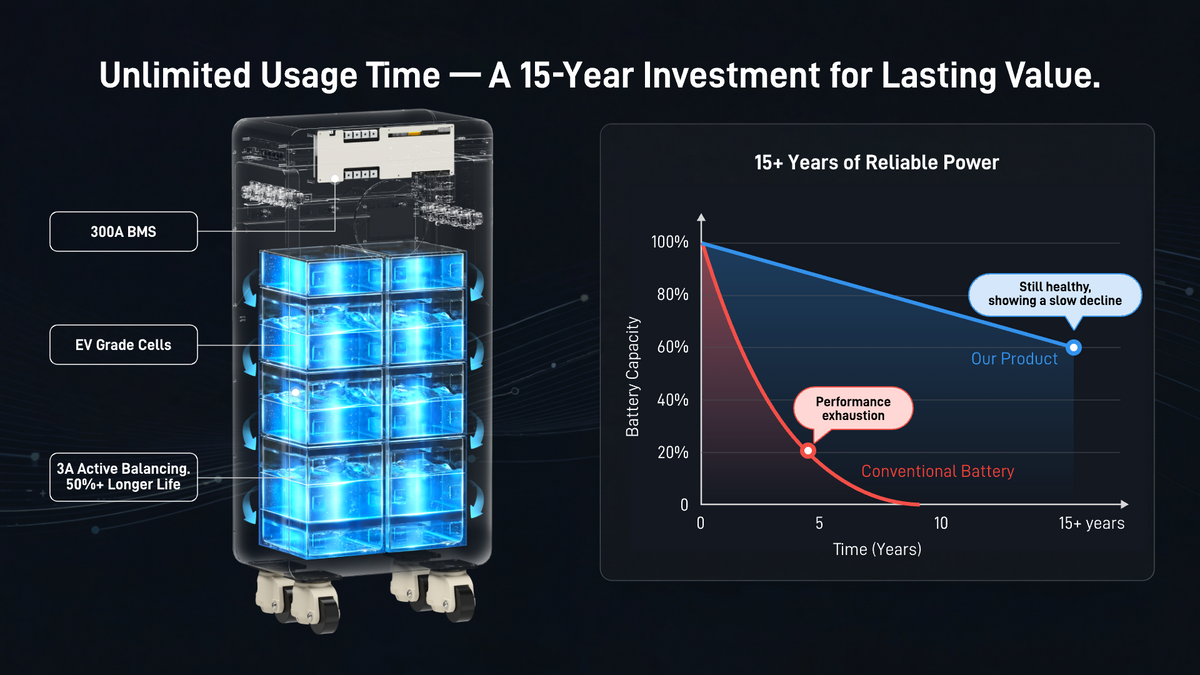

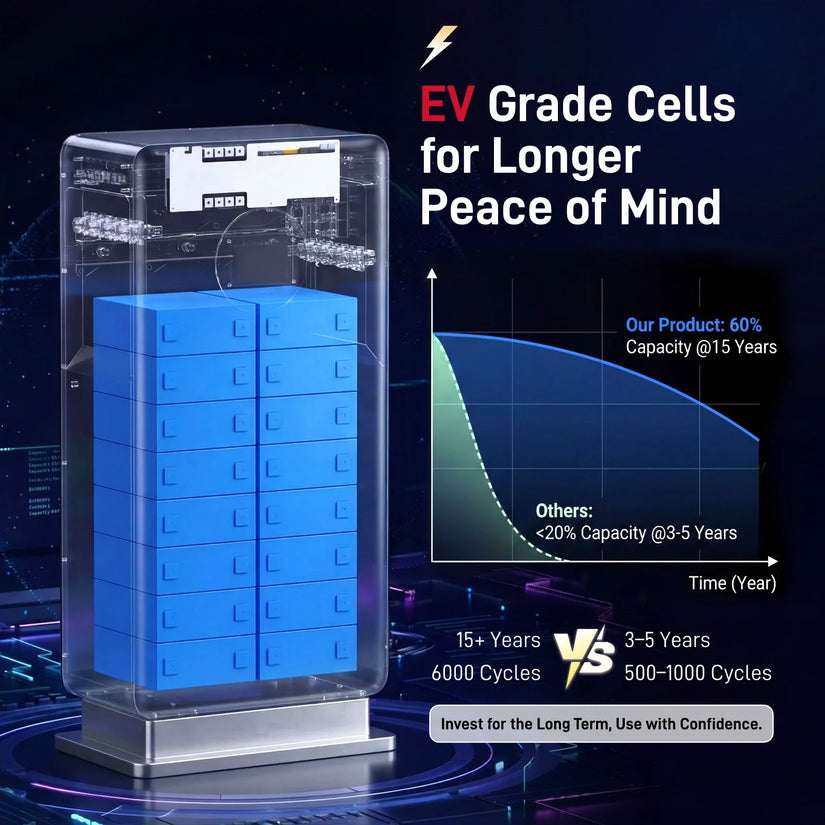

- ⚡ EV-Grade Cells + Super Active Balancing: Industry-leading 15-year lifespan and 6000+ deep cycles, maintenance-free.
- ⚡ Powerful 300A BMS: Handles 15.36kW loads with 20+ protection categories and intelligent low-temperature cutoff.

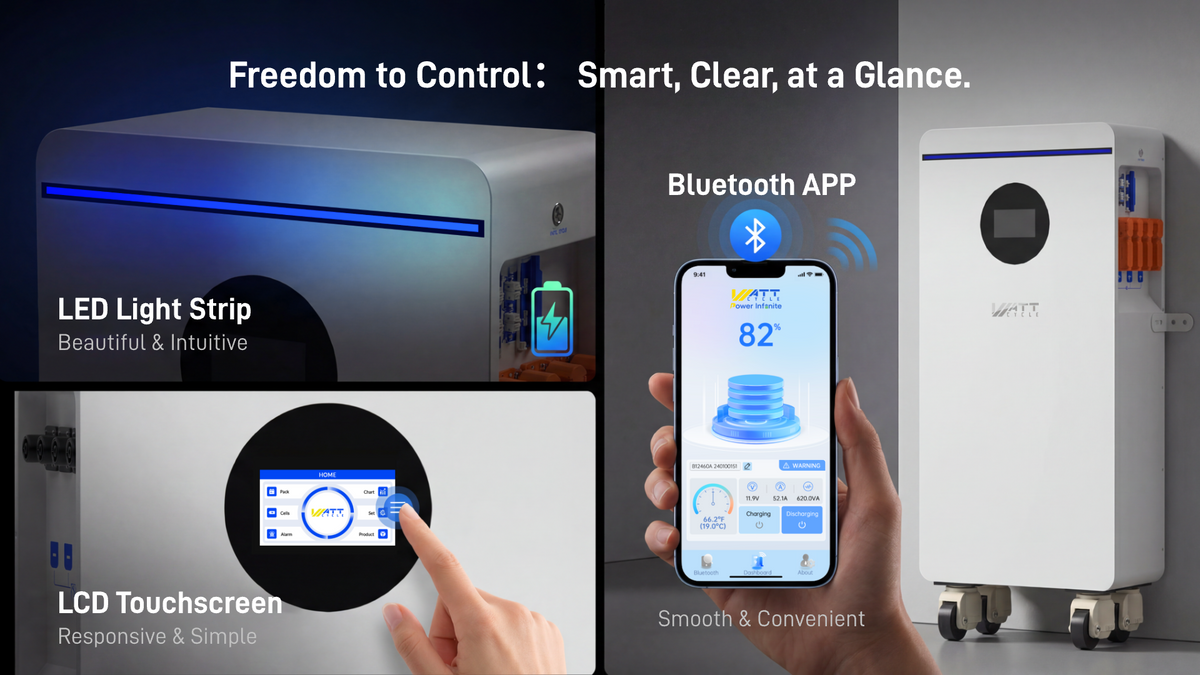

- ⚡ Smart Monitoring: Bluetooth, LCD touchscreen, and flowing capacity light bar for real-time series and parallel status.

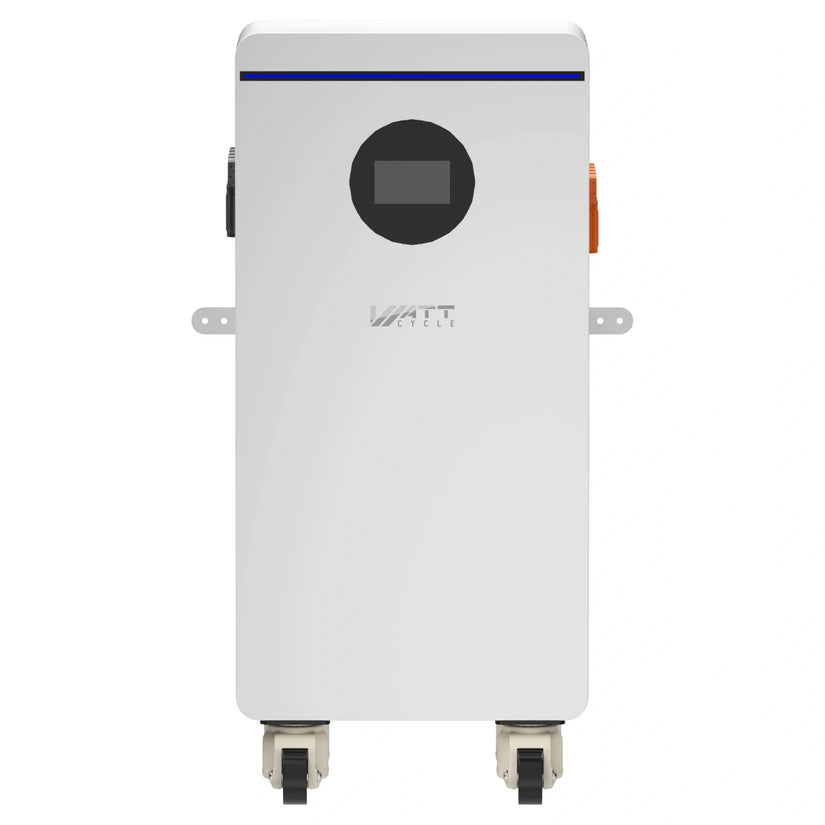

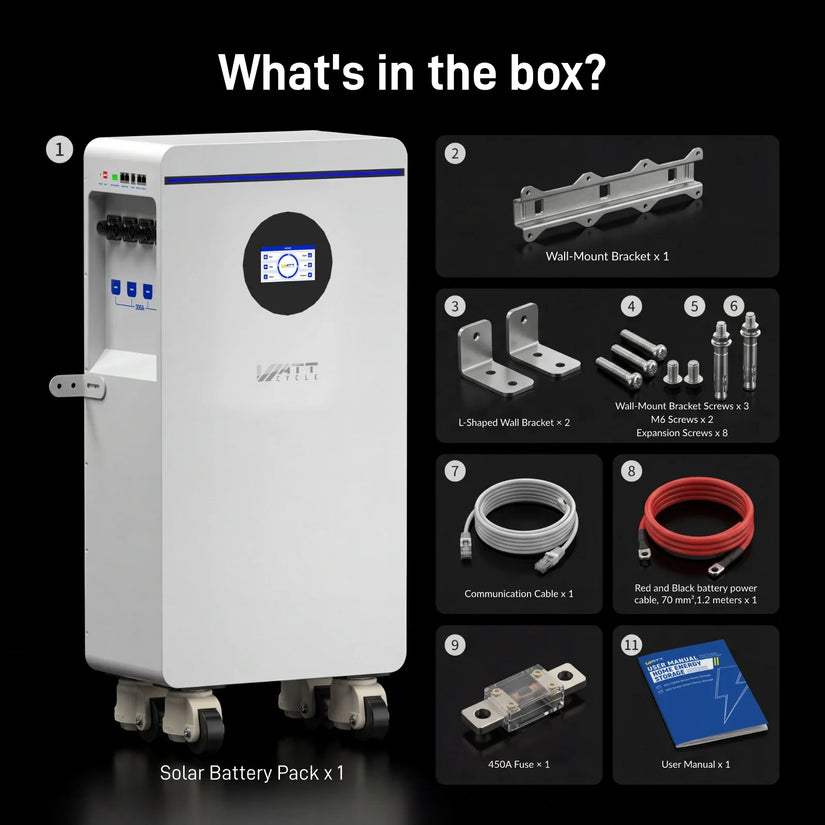

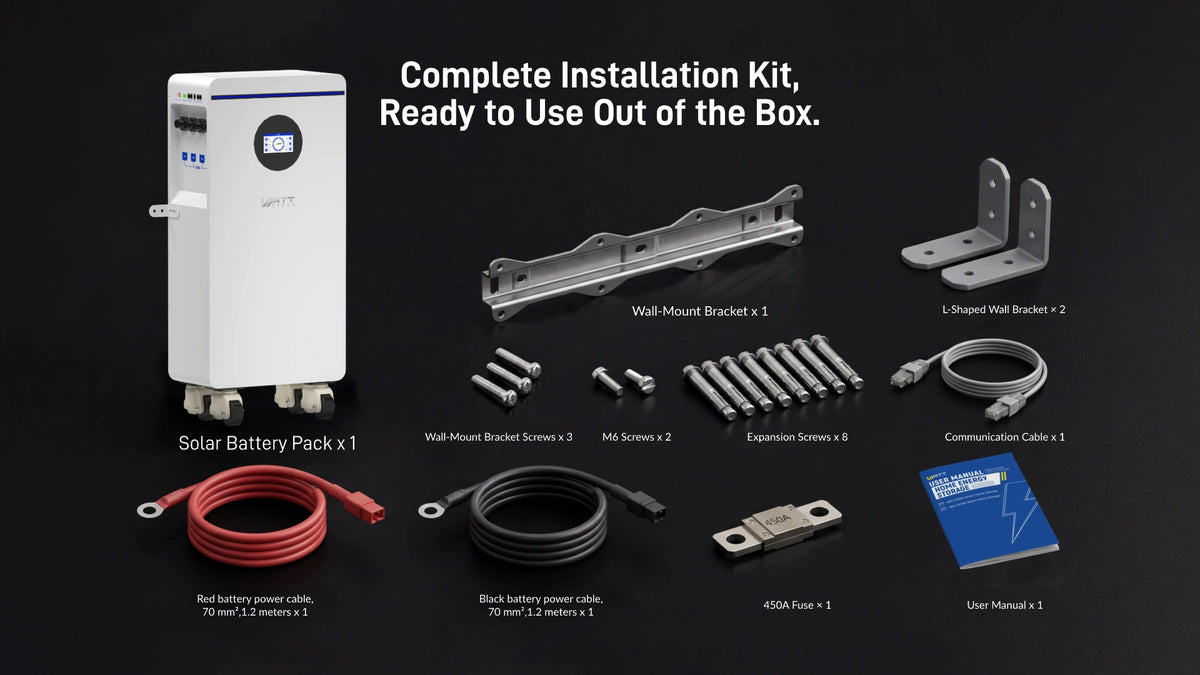

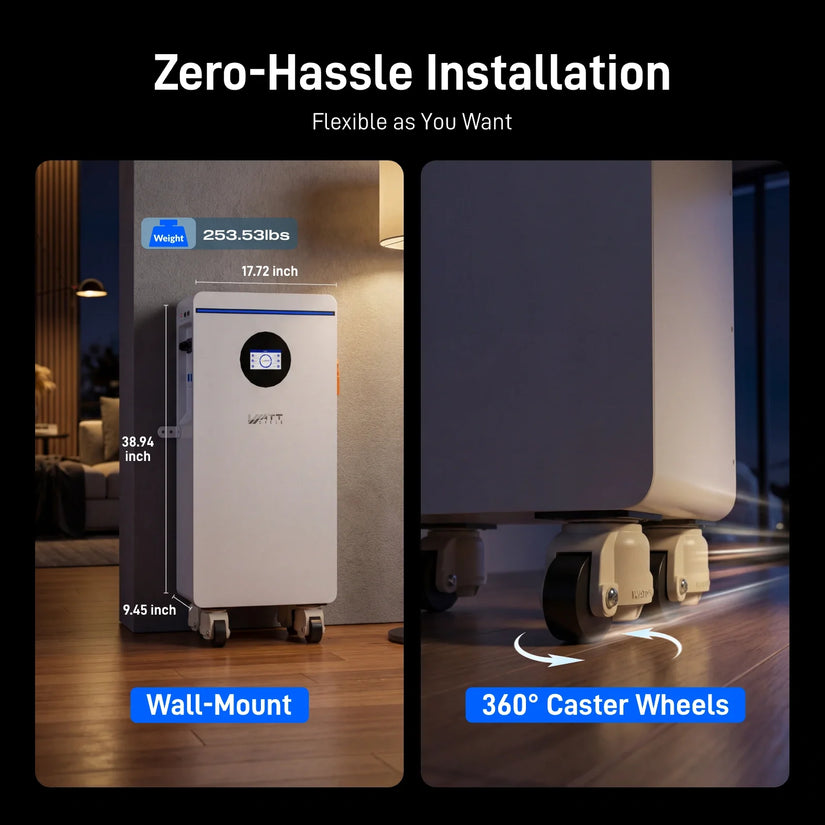

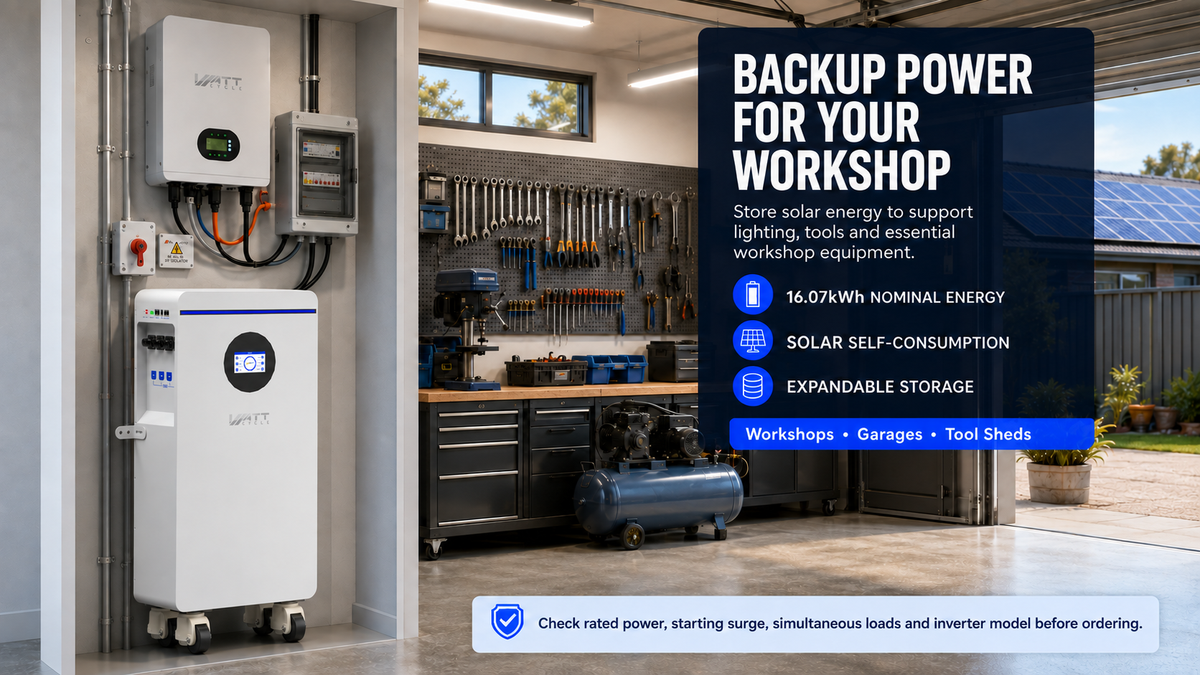

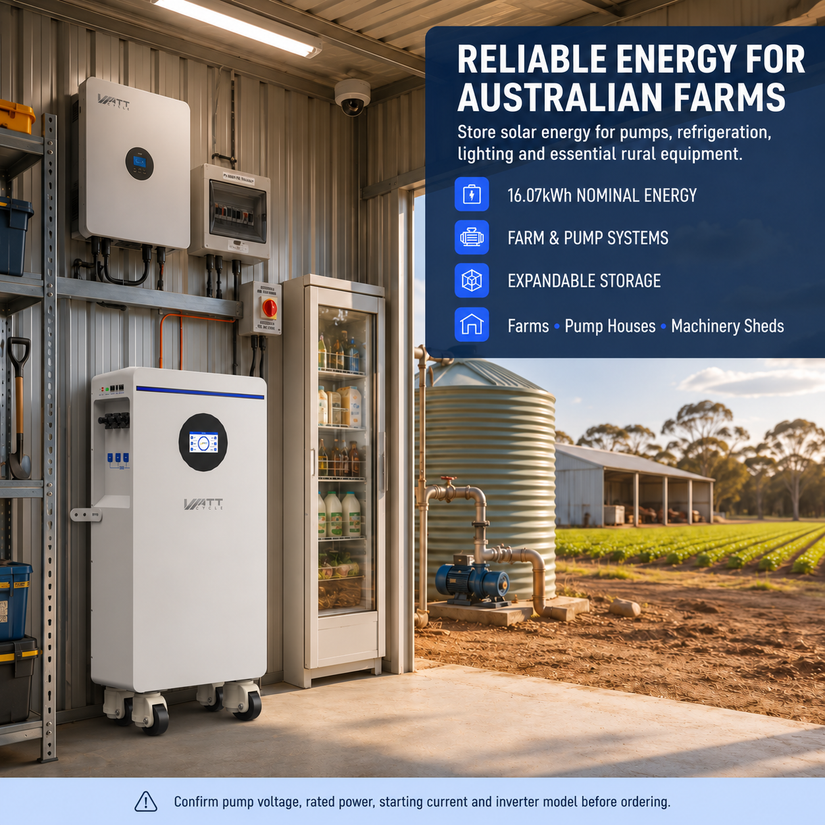

- ⚡ Flexible Installation: Wall-mounted with swivel wheels and complete accessories for easy placement.
- ⚡ Faster Charging & Longer Discharge: Max 300A charge current, full charge in 1 hour, double discharge time compared to lead-acid.

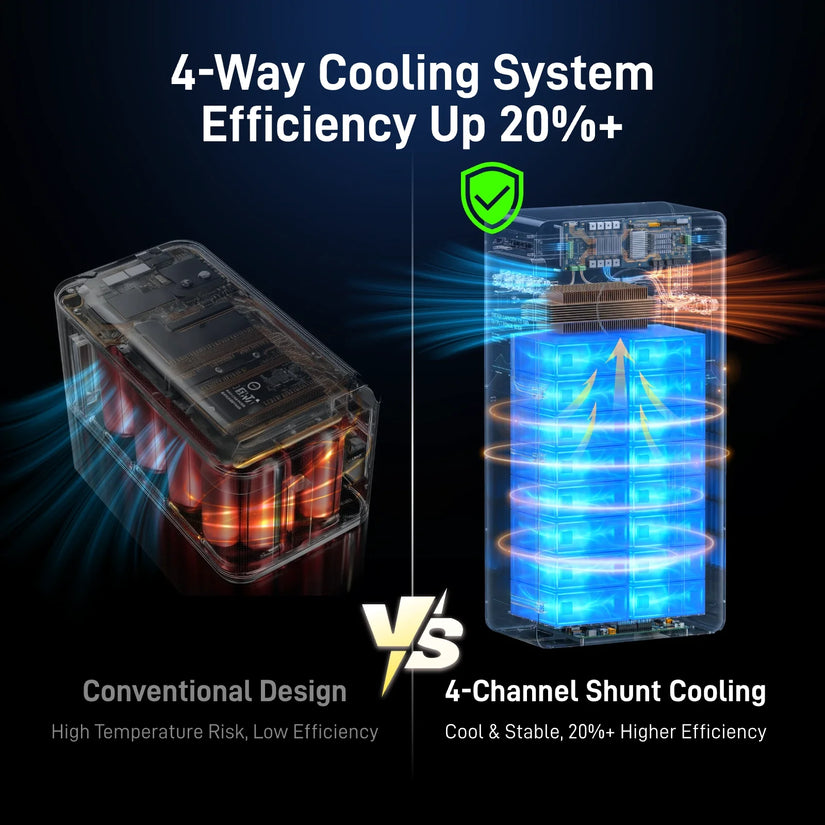

- ⚡ Improved Heat Dissipation: Innovative four-channel shunt design ensures safer, smoother power usage.
- ⚡ Reliable Certifications & Warranty: IEC/FCC/EMC/RoHS/CE/UN38.3 certified, 5+2 year warranty, local warehouse dispatch, free shipping and insurance.
View More
Option
Warehouse
Free local shipping
Our batteries come with a 5-year warranty, which can be extended to 7 years total upon product registration. Accessories are covered by a 1-year warranty, and like-new (refurbished) batteries include a 1-year warranty.
For full terms, conditions, and claim details, please visit:
-
Fast, Free Shipping
-
30-Day Money-Back Guarantee
-
Hassle-Free Warranty
-
Lifetime Customer Support
Payment Method
LiFePO4 Smart Home Storage Specifications
| Model | 48V 100Ah Smart Home Storage | 48V 314Ah Smart Home Storage |
|---|---|---|
| Battery Mode | LiFePO4 Battery | |
| Battery Capacity | 5.12kWh | 16.07kWh |
| Internal Resistance | ≤ 13.9mΩ | ≤ 13.9mΩ |
| Single Cell Capacity | 100Ah | 314Ah |
| Rated Operating Voltage | 51.2V | 51.2V |
| Standard Input Current | 50A (Max.100A) | 150A (Max.305A) |
| Standard Output Current | 50A (Max.100A) | 150A (Max.305A) |
| Overcharge Protection | 58.4V | |
| Overcharge Protection Recovery | 53.6V | |
| Overdischarge Protection | 40V | |
| Overdischarge Protection Recovery | 47.2V | |
| Charging Overcurrent Protection | 110±10A/10s | 310±10A/10s |
| Discharging Overcurrent Protection | 120±10A/10s | 310±10A/10s |
| Internal Resistance Recovery Methods | a. Remove the Charger; b. Remove Loads | |
| Power Delivery | 60% | |
| Equalization | Active equilibrium | |
| Parallel Capability | Up to 15 units | |
| Power Failure Self-Consumption | ≤300uA | |

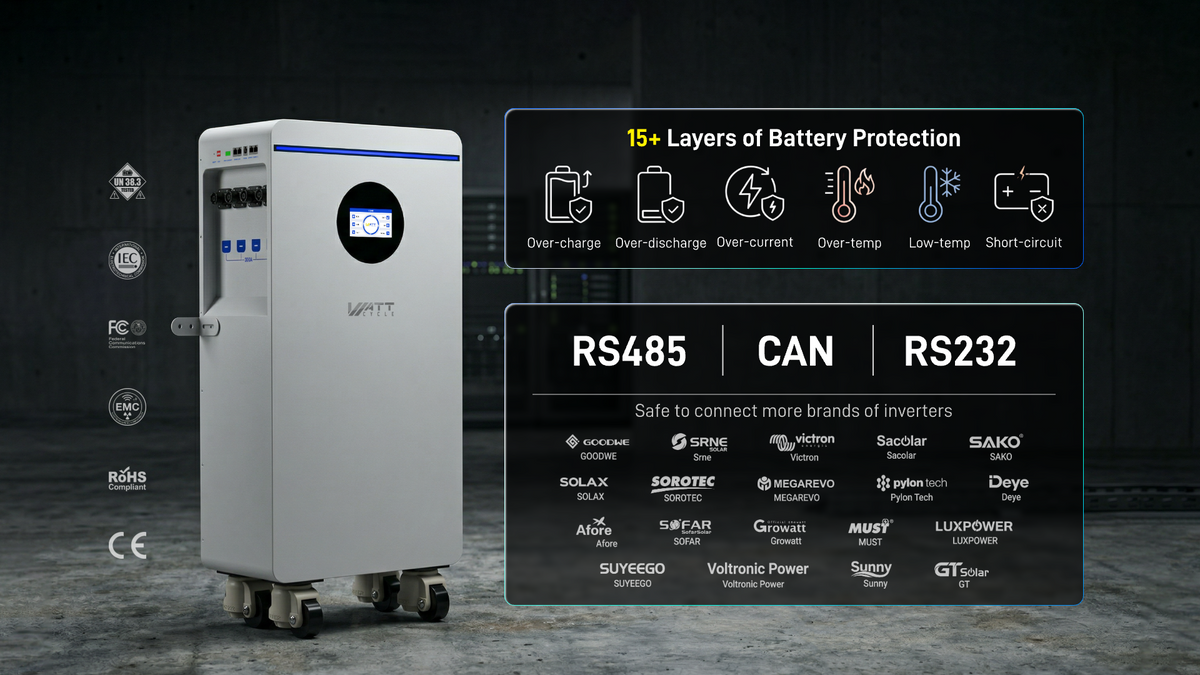

| Communication Protocol | RS485, CAN | |
| Recommend Charging Temperature | 0°C to 55°C / 32°F to 131°F | |
| Recommend Discharging Temperature | -20°C to 60°C / -4°F to 140°F | |
| Dimensions (L×W×H) | 15.67 x 7.87 x 24.61 inch 398 x 200 x 625 mm | 17.72 x 9.45 x 34.65 inch 450 x 240 x 880 mm |
| Weight | 99.21 lbs / 45kg | 253.53 lbs / 115kg |
Basic Info
Battery ModeLiFePO4 Battery
Battery Capacity5.12kWh
Single Cell Capacity100Ah
Rated Voltage51.2V
Internal Resistance≤ 13.9mΩ
Current
Standard Input50A (Max.100A)
Standard Output50A (Max.100A)
Charging OCP110±10A/10s
Discharging OCP120±10A/10s
Protection
Overcharge58.4V
Overcharge Recovery53.6V
Overdischarge40V
Overdischarge Recovery47.2V
Recovery Methodsa. Remove the Charger
b. Remove Loads
b. Remove Loads
Features
Power Delivery60%
EqualizationActive equilibrium
Parallel CapabilityUp to 15 units
Self-Consumption≤300uA
CommunicationRS485, CAN
Temperature
Charging0°C ~ 55°C / 32°F ~ 131°F
Discharging-20°C ~ 60°C / -4°F ~ 140°F
Physical
Dimensions15.67 × 7.87 × 24.61 in
398 × 200 × 625 mm
398 × 200 × 625 mm
Weight99.21 lbs / 45 kg
Basic Info
Battery ModeLiFePO4 Battery
Battery Capacity16.07kWh
Single Cell Capacity314Ah
Rated Voltage51.2V
Internal Resistance≤ 13.9mΩ
Current
Standard Input150A (Max.305A)
Standard Output150A (Max.305A)
Charging OCP310±10A/10s
Discharging OCP310±10A/10s
Protection
Overcharge58.4V
Overcharge Recovery53.6V
Overdischarge40V
Overdischarge Recovery47.2V
Recovery Methodsa. Remove the Charger
b. Remove Loads
b. Remove Loads
Features
Power Delivery60%
EqualizationActive equilibrium
Parallel CapabilityUp to 15 units
Self-Consumption≤300uA
CommunicationRS485, CAN
Temperature
Charging0°C ~ 55°C / 32°F ~ 131°F
Discharging-20°C ~ 60°C / -4°F ~ 140°F
Physical
Dimensions17.72 × 9.45 × 34.65 in
450 × 240 × 880 mm
450 × 240 × 880 mm
Weight253.53 lbs / 115 kg
