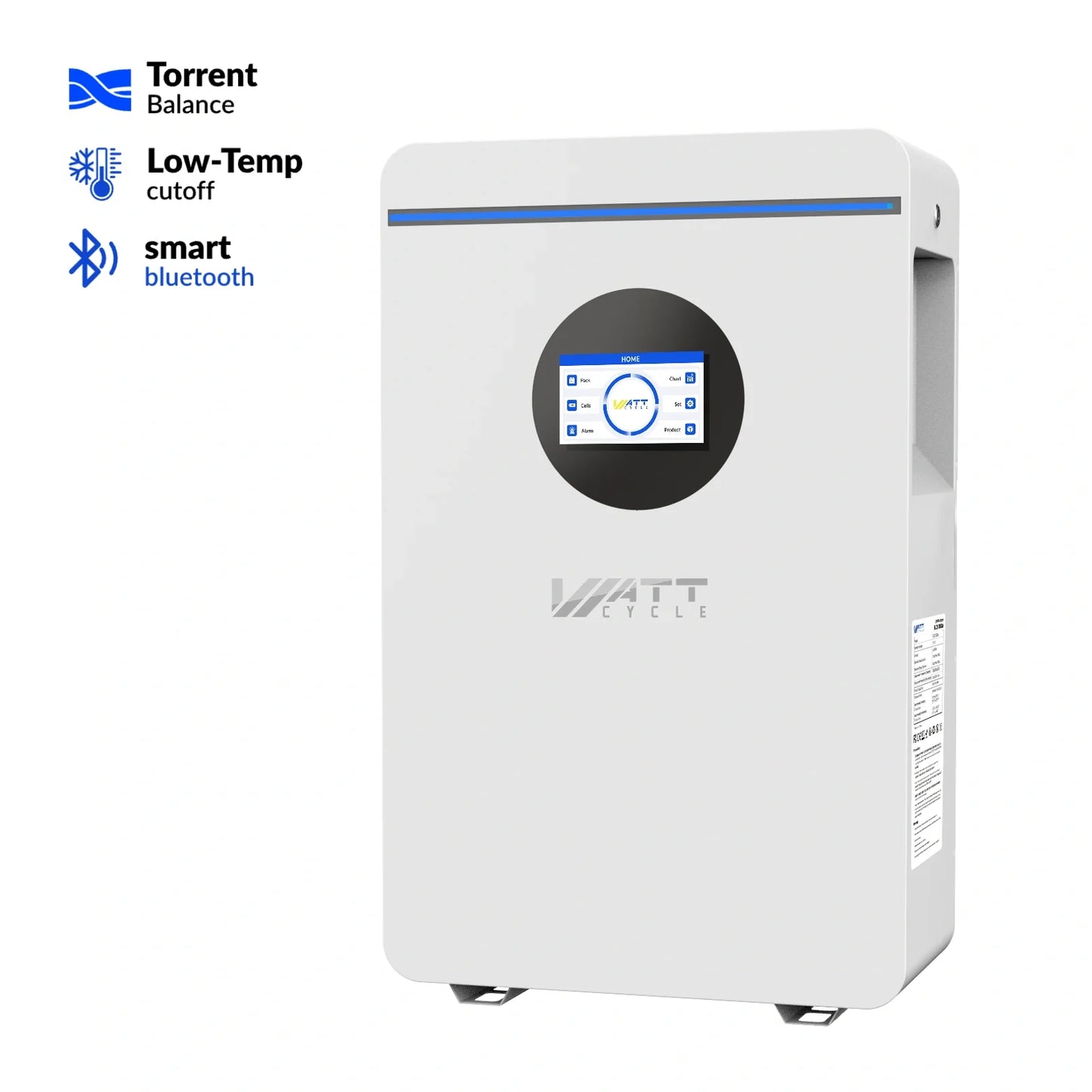

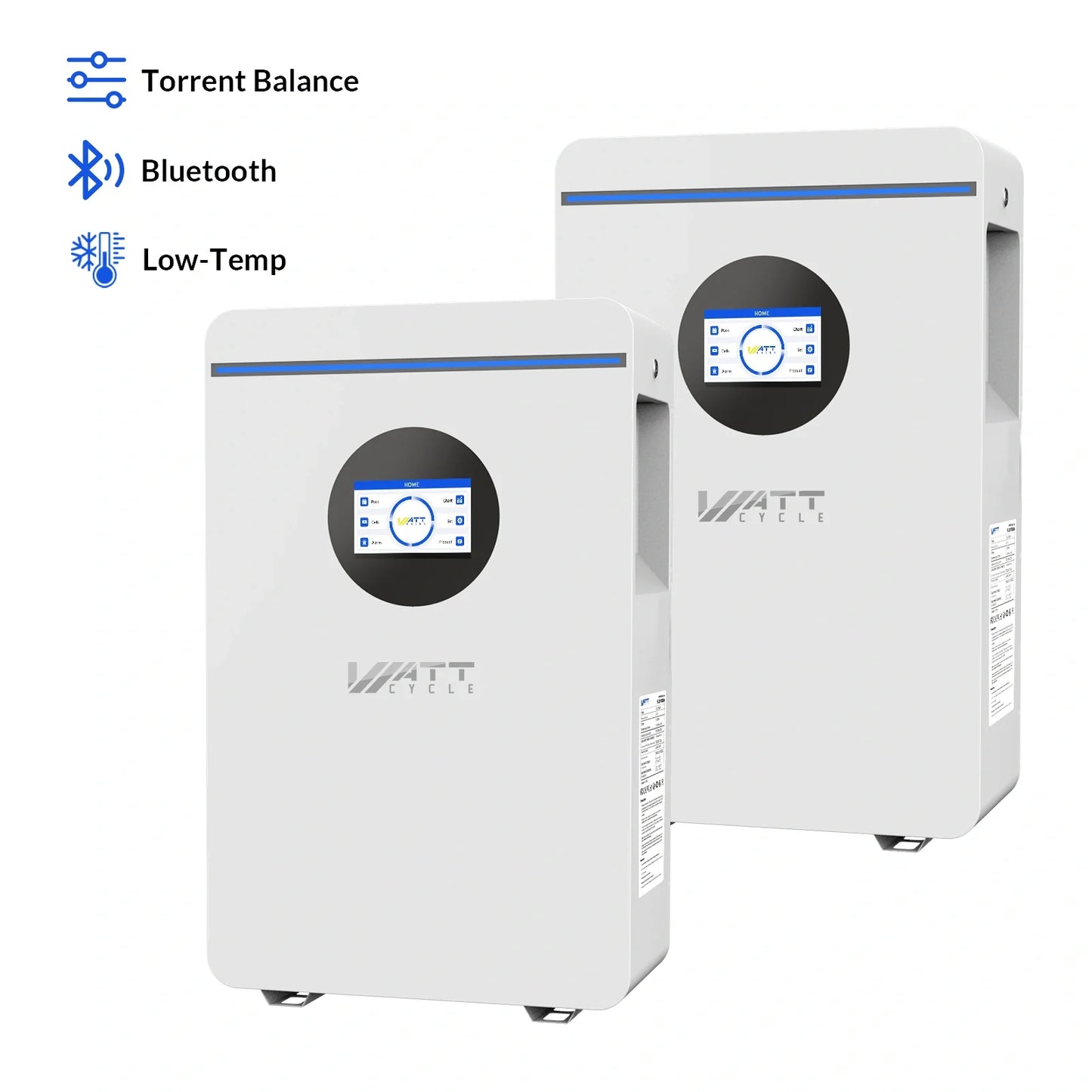

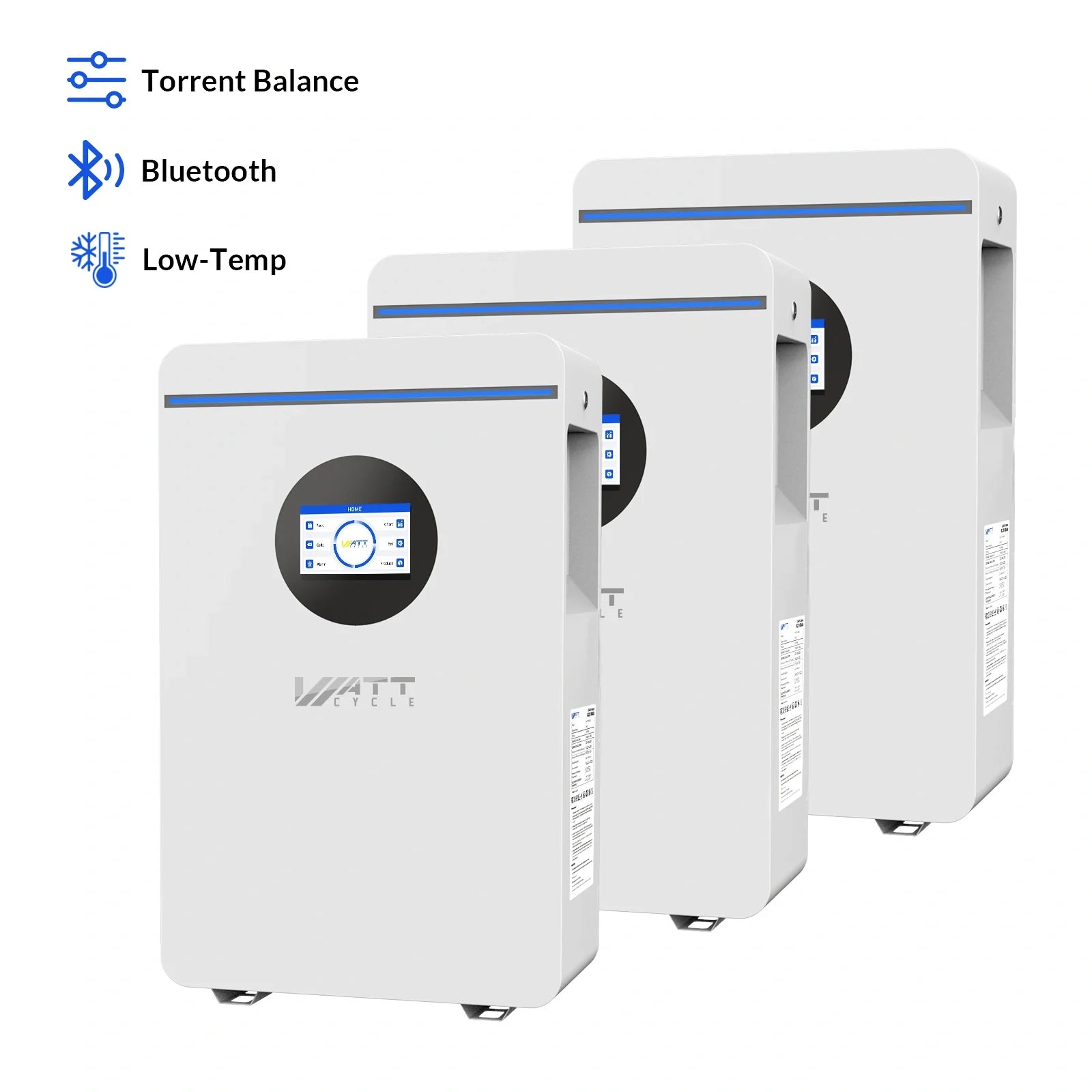

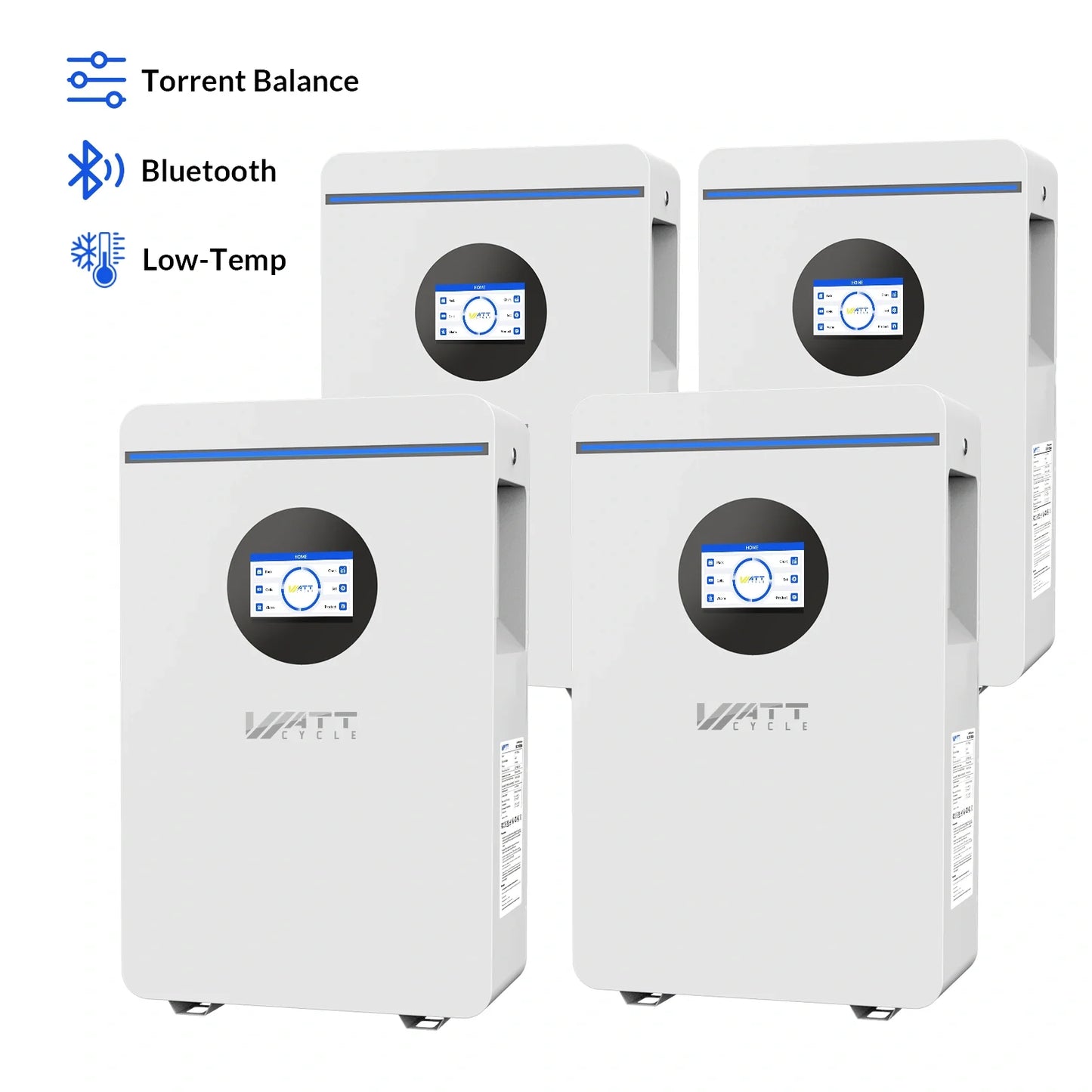

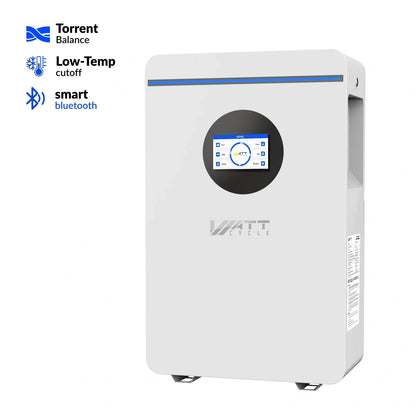

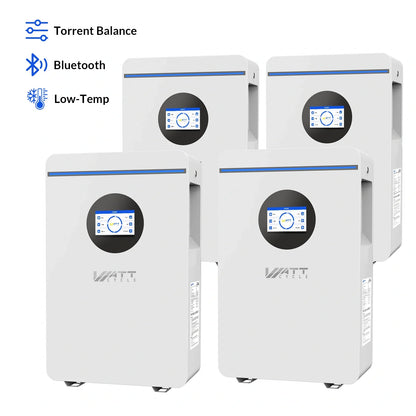

WattCycle 5.12kWh 48V 100Ah Wall-Mount LiFePO4 Battery – Bluetooth, Active Balancing & RS485/CAN Communication
WattCycle 5.12kWh 48V 100Ah Wall-Mount LiFePO4 Battery – Bluetooth, Active Balancing & RS485/CAN Communication
Regular price
$4,703.99 AUD
Regular price
$1,899.99 AUD
Sale price
$4,703.99 AUD
Free shipping, tax and discount code calculated at checkout.
20 in stock
- BYD Grade A Cells: 6000+ deep cycles, 12 years of reliable performance for long-lasting energy storage.
- Exclusive 3A Active Balancing: Intelligently balances cell voltages to extend battery lifespan by 50%.
- 5120Wh Massive Energy: 51.2V/100Ah provides days of power for daily use and backup scenarios.
Quantity
Couldn't load pickup availability
- 5-Year Warranty
- Hassle-free Returns
- 7/24 Help & Advice
Shipping
Shipping
Free local shipping
Premium BYD LiFePO₄ Cells
Powered by BYD-grade LiFePO₄ battery cells, this system delivers industry-leading safety, chemical stability, and consistency. These cells are widely recognized for their low thermal risk and long service life, making them ideal for demanding energy storage applications.

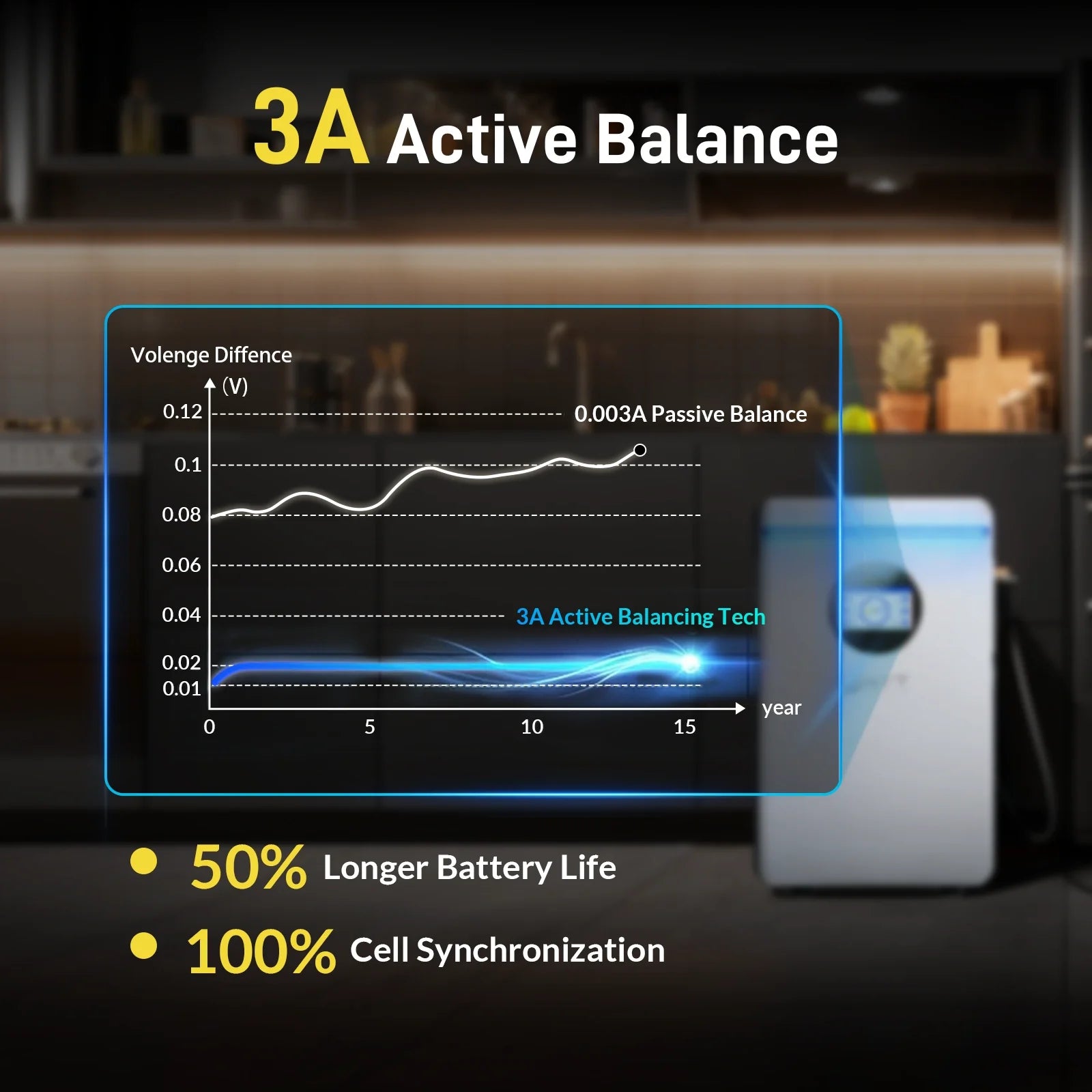

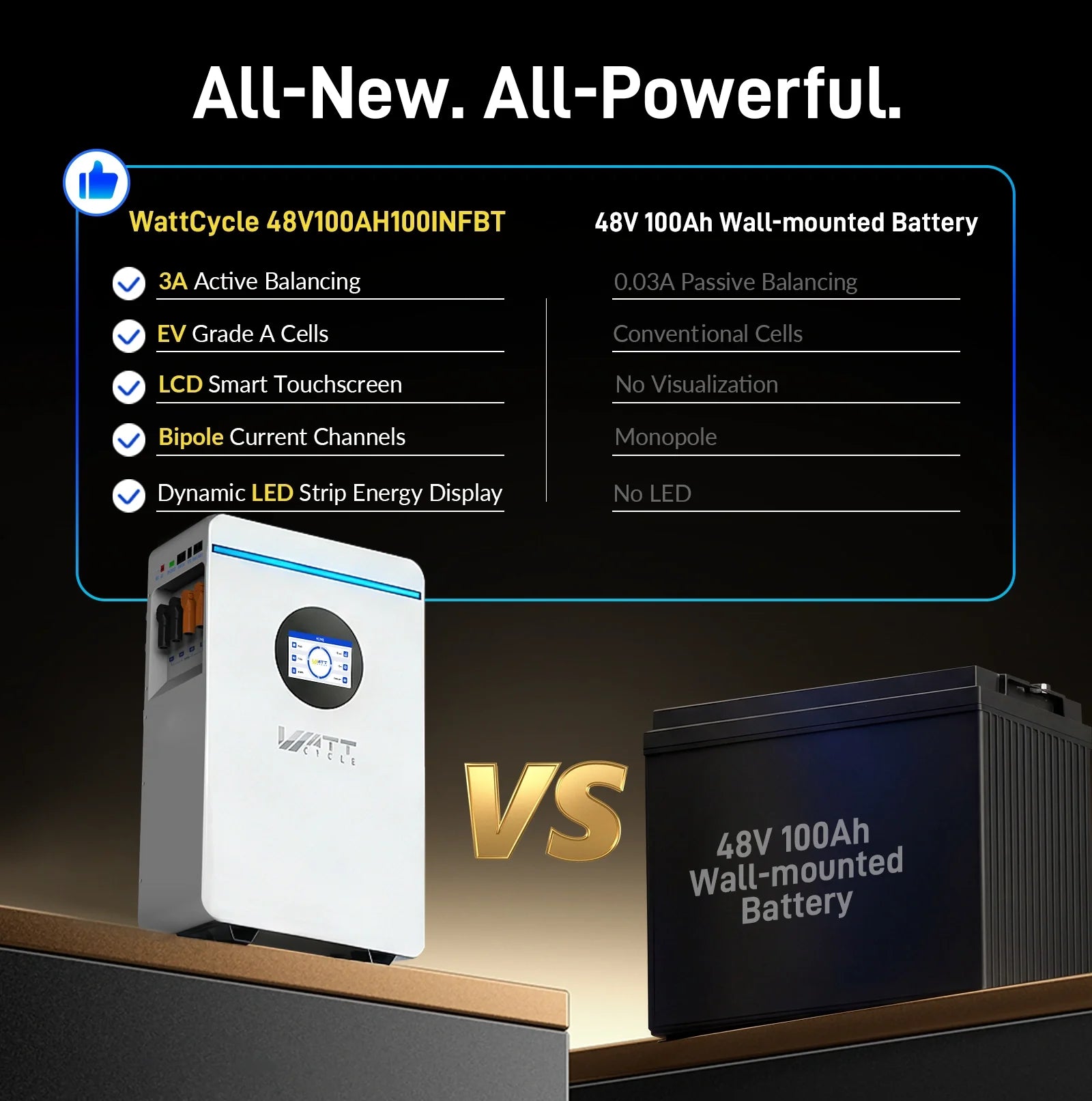

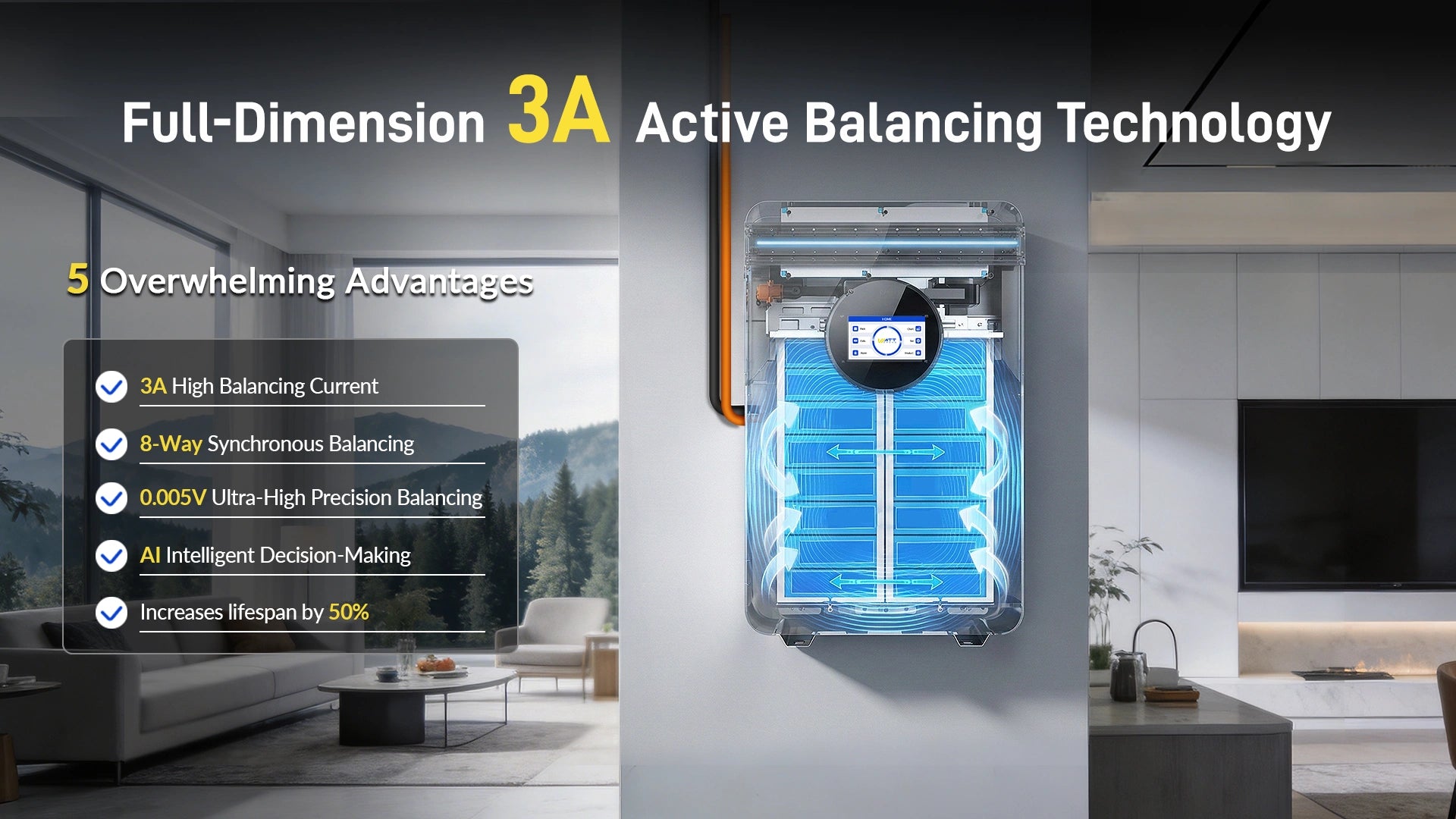

100× Faster Balancing. Smarter Energy Use.
Equipped with an advanced 3A active balancing system, this battery delivers up to 100× higher balancing efficiency compared to traditional 0.03A passive balancing. Energy is redistributed intelligently between cells instead of being wasted as heat, ensuring faster equalization, lower power loss, and improved consistency across the pack. The result is longer battery life, higher usable capacity, and reduced heat generation, keeping the system safer, more efficient, and more reliable over the long term.
LiFePO4 Smart Home Storage Specifications
| Model | 48V 100Ah Smart Home Storage | 48V 314Ah Smart Home Storage |
|---|---|---|
| Battery Mode | LiFePO4 Battery | |
| Battery Capacity | 5.12kWh | 16.07kWh |
| Internal Resistance | ≤ 13.9mΩ | ≤ 13.9mΩ |
| Single Cell Capacity | 100Ah | 314Ah |
| Rated Operating Voltage | 51.2V | 51.2V |
| Standard Input Current | 50A (Max.100A) | 150A (Max.305A) |
| Standard Output Current | 50A (Max.100A) | 150A (Max.305A) |
| Overcharge Protection | 58.4V | |
| Overcharge Protection Recovery | 53.6V | |
| Overdischarge Protection | 40V | |
| Overdischarge Protection Recovery | 47.2V | |
| Charging Overcurrent Protection | 110±10A/10s | 310±10A/10s |
| Discharging Overcurrent Protection | 120±10A/10s | 310±10A/10s |
| Internal Resistance Recovery Methods | a. Remove the Charger; b. Remove Loads | |
| Power Delivery | 60% | |
| Equalization | Active equilibrium | |
| Parallel Capability | Up to 15 units | |
| Power Failure Self-Consumption | ≤300uA | |
| Communication Protocol | RS485, CAN | |
| Recommend Charging Temperature | 0°C to 55°C / 32°F to 131°F | |
| Recommend Discharging Temperature | -20°C to 60°C / -4°F to 140°F | |

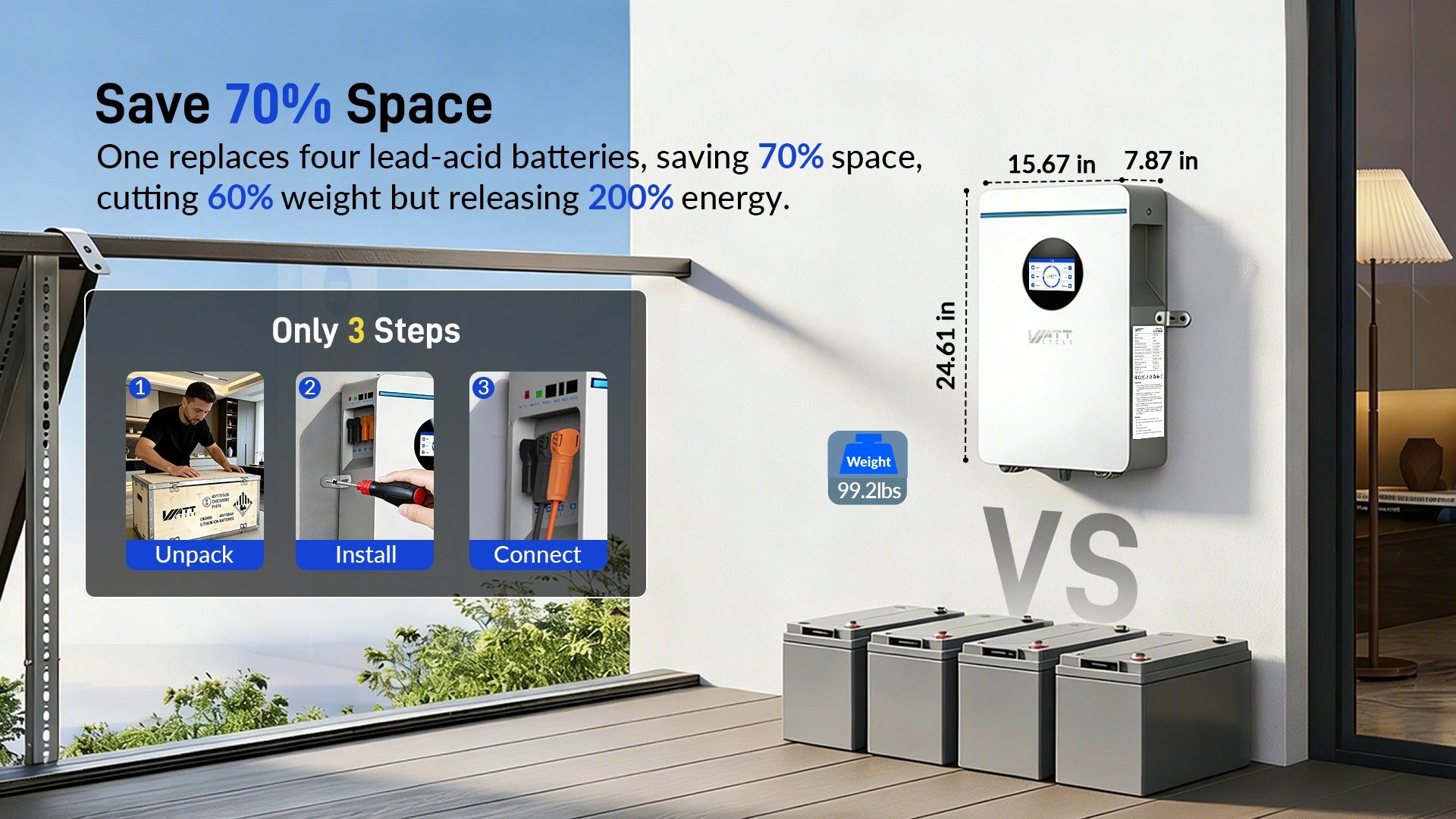

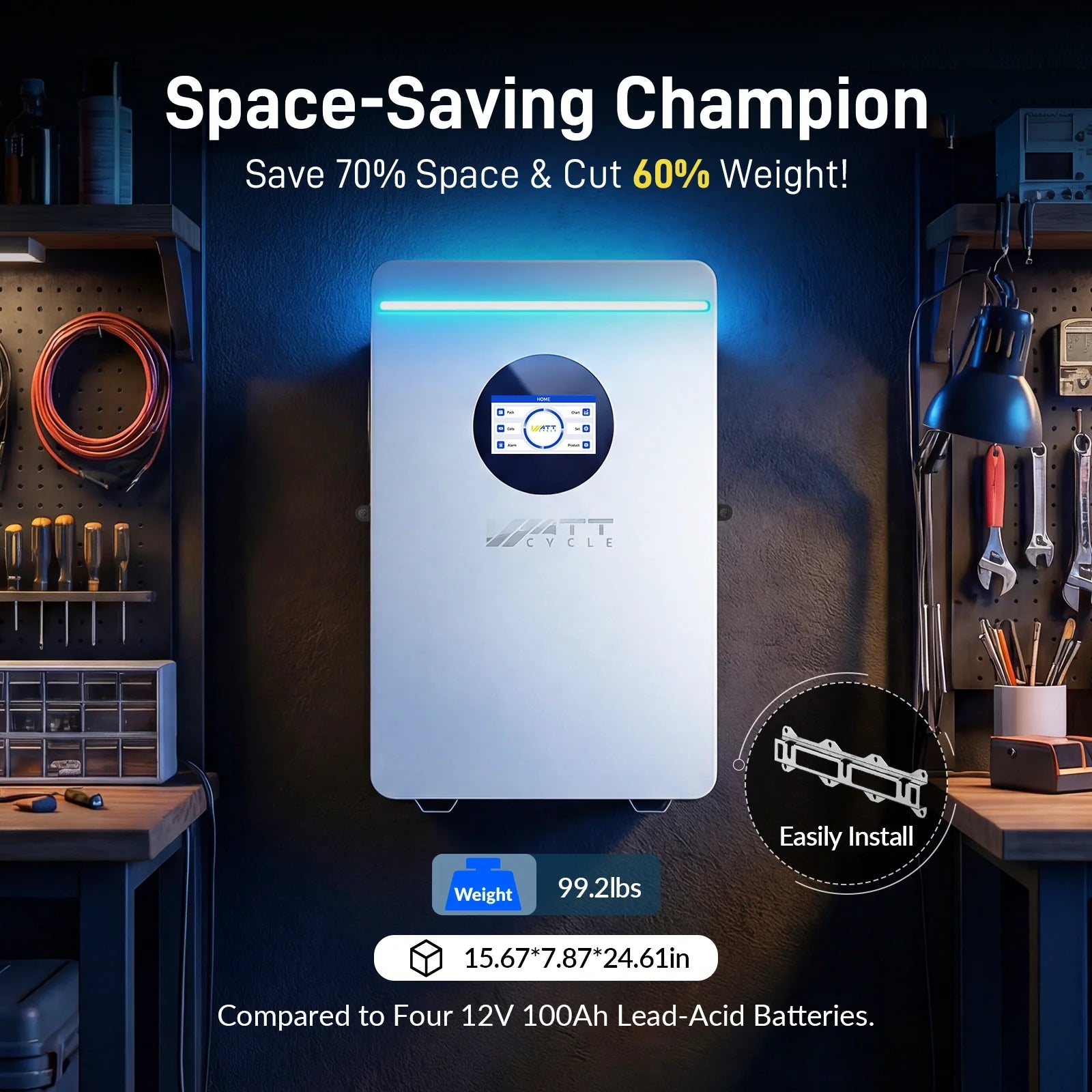

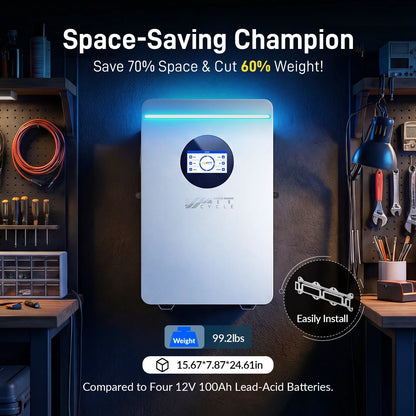

| Dimensions (L×W×H) | 15.67 x 7.87 x 24.61 inch 398 x 200 x 625 mm | 17.72 x 9.45 x 34.65 inch 450 x 240 x 880 mm |
| Weight | 99.21 lbs / 45kg | 253.53 lbs / 115kg |
Basic Info
Battery ModeLiFePO4 Battery
Battery Capacity5.12kWh
Single Cell Capacity100Ah
Rated Voltage51.2V
Internal Resistance≤ 13.9mΩ
Current
Standard Input50A (Max.100A)
Standard Output50A (Max.100A)
Charging OCP110±10A/10s
Discharging OCP120±10A/10s
Protection
Overcharge58.4V
Overcharge Recovery53.6V
Overdischarge40V
Overdischarge Recovery47.2V
Recovery Methodsa. Remove the Charger
b. Remove Loads
b. Remove Loads
Features
Power Delivery60%
EqualizationActive equilibrium
Parallel CapabilityUp to 15 units
Self-Consumption≤300uA
CommunicationRS485, CAN
Temperature
Charging0°C ~ 55°C / 32°F ~ 131°F
Discharging-20°C ~ 60°C / -4°F ~ 140°F
Physical
Dimensions15.67 × 7.87 × 24.61 in
398 × 200 × 625 mm
398 × 200 × 625 mm
Weight99.21 lbs / 45 kg
Basic Info
Battery ModeLiFePO4 Battery
Battery Capacity16.07kWh
Single Cell Capacity314Ah
Rated Voltage51.2V
Internal Resistance≤ 13.9mΩ
Current
Standard Input150A (Max.305A)
Standard Output150A (Max.305A)
Charging OCP310±10A/10s
Discharging OCP310±10A/10s
Protection
Overcharge58.4V
Overcharge Recovery53.6V
Overdischarge40V
Overdischarge Recovery47.2V
Recovery Methodsa. Remove the Charger
b. Remove Loads
b. Remove Loads
Features
Power Delivery60%
EqualizationActive equilibrium
Parallel CapabilityUp to 15 units
Self-Consumption≤300uA
CommunicationRS485, CAN
Temperature
Charging0°C ~ 55°C / 32°F ~ 131°F
Discharging-20°C ~ 60°C / -4°F ~ 140°F
Physical
Dimensions17.72 × 9.45 × 34.65 in
450 × 240 × 880 mm
450 × 240 × 880 mm
Weight253.53 lbs / 115 kg
